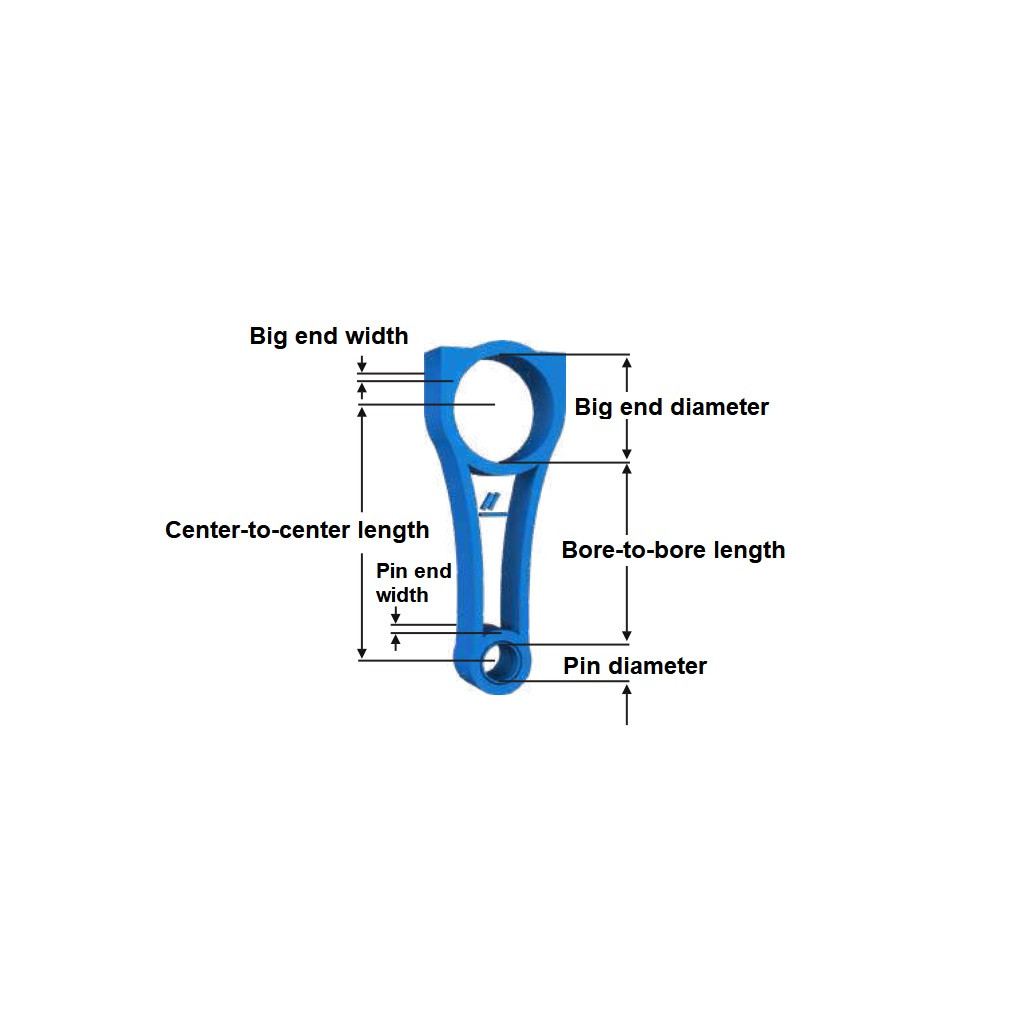

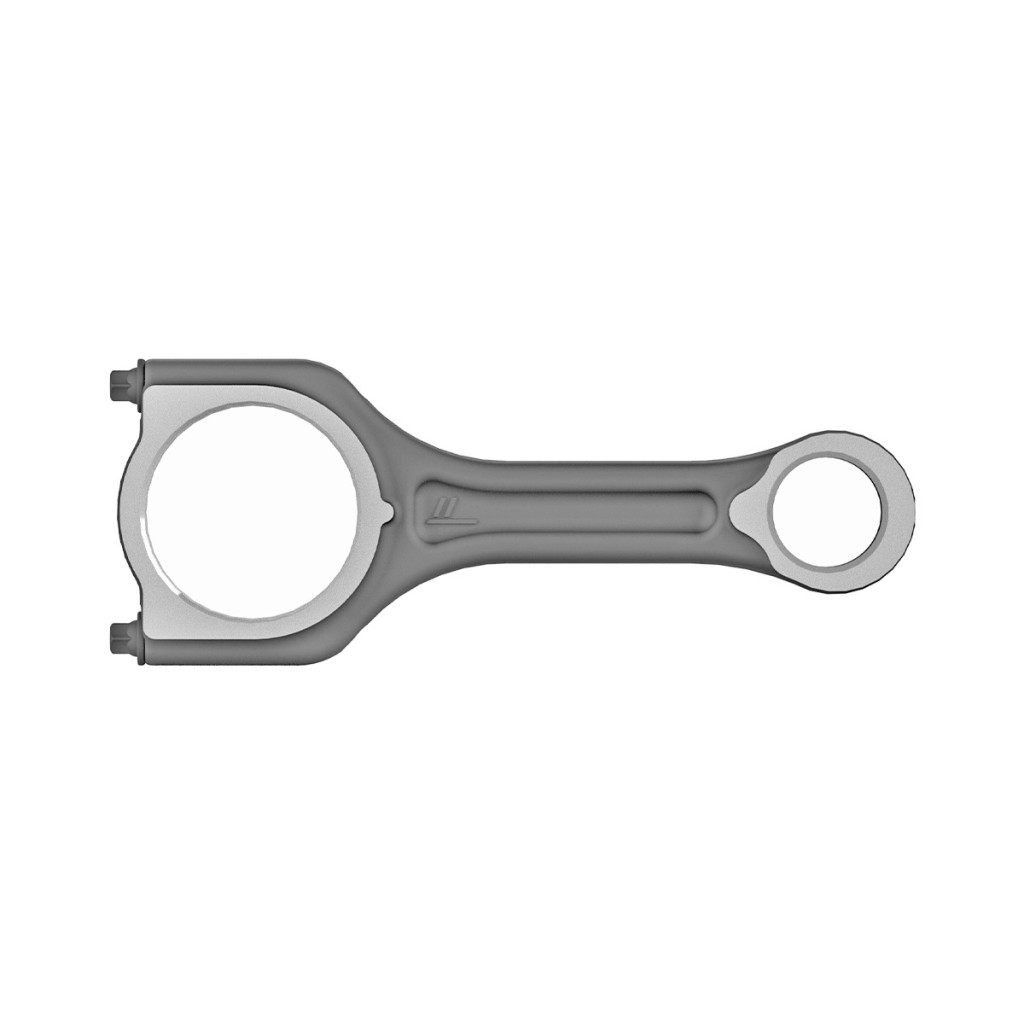

Number in pack: 1Big end width: 20.800 Big end diameter: 50.655-50.670 Center-to-center length: 136.800 Bore-to-bore length: 98.470 Pin end width: 20.800 Pin diameter: 26.020-26.032 Weight: 600 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 10 Nm + 130 degree

Number in pack: 1Big end width: 20.850 Big end diameter: 47.995-48.020 Center-to-center length: 138.550 Bore-to-bore length: 104.530 Pin end width: 20.800 Pin diameter: 20.020-20.040 Weight: 465 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 15 Nm + 130 degree

Number in pack: 1Big end width: 20.850 Big end diameter: 47.995-48.020 Center-to-center length: 138.550 Bore-to-bore length: 104.530 Pin end width: 20.800 Pin diameter: 20.020-20.040 Weight: 465 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 5 Nm + 15 Nm + 130 degree

Number in pack: 1Big end width: 24.150 Big end diameter: 53.695-53.710 Center-to-center length: 145.000 Bore-to-bore length: 103.150 Pin end width: 24.150 Pin diameter: 30.020-30.035 Weight: 790 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm :

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm : Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Bolt length [mm]: 57 Bolt Ø [mm]: 19,495 Component Number: 62165; 62167; 62169 Compression Height [mm]: 32,35 Cylinder Piston Diameter [mm]: 79,009 Length [mm]: 50,15 Oversize [mm]: 0,50 Piston protrusion [mm]: 0,15 Production Number: 078123 Quantity: 3 Thickness [mm] 62165: 3,1 Height [mm] 62165: 1,2 Material 62165: Steel Surface 62165: Blank; Plasma...

Bolt length [mm]: 68 Bolt Ø [mm]: 30 Component Number: 66181; 66182; 66183 Compression Height [mm]: 46,7 Cylinder Piston Diameter [mm]: 85 Length [mm]: 74,7 Production Number: 085236 Quantity: 3 Recess Depth 1 [mm]: 13,7 Recess Diameter [mm]: 50,5 Valve pocket depth 1 [mm]: 0,45 Valve pocket depth 2 [mm]: 0,45 Thickness [mm] 66181: 3,4 Height [mm] 66181:...

Bolt length [mm]: 61 Bolt Ø [mm]: 26 Component Number: 66270; 66271; 66272 Compression Height [mm]: 41,7 Cylinder Piston Diameter [mm]: 75,6 Length [mm]: 65,15 Oversize [mm]: 0,60 Production Number: 075259 Quantity: 3 Recess Depth 1 [mm]: 13,9 Recess Diameter [mm]: 45 Thickness [mm] 66270: 3,1 Height [mm] 66270: 2,5 Material 66270: Cast Iron with Ductile...
