Bore: 85.00mm Top ring: 2.00mm 2nd ring: 2.00mm 3rd ring: 2.00mm

Bore: 77.00mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 75.00mm Top ring: 1.20mm 2nd ring: 1.00mm 3rd ring: 2.00mm

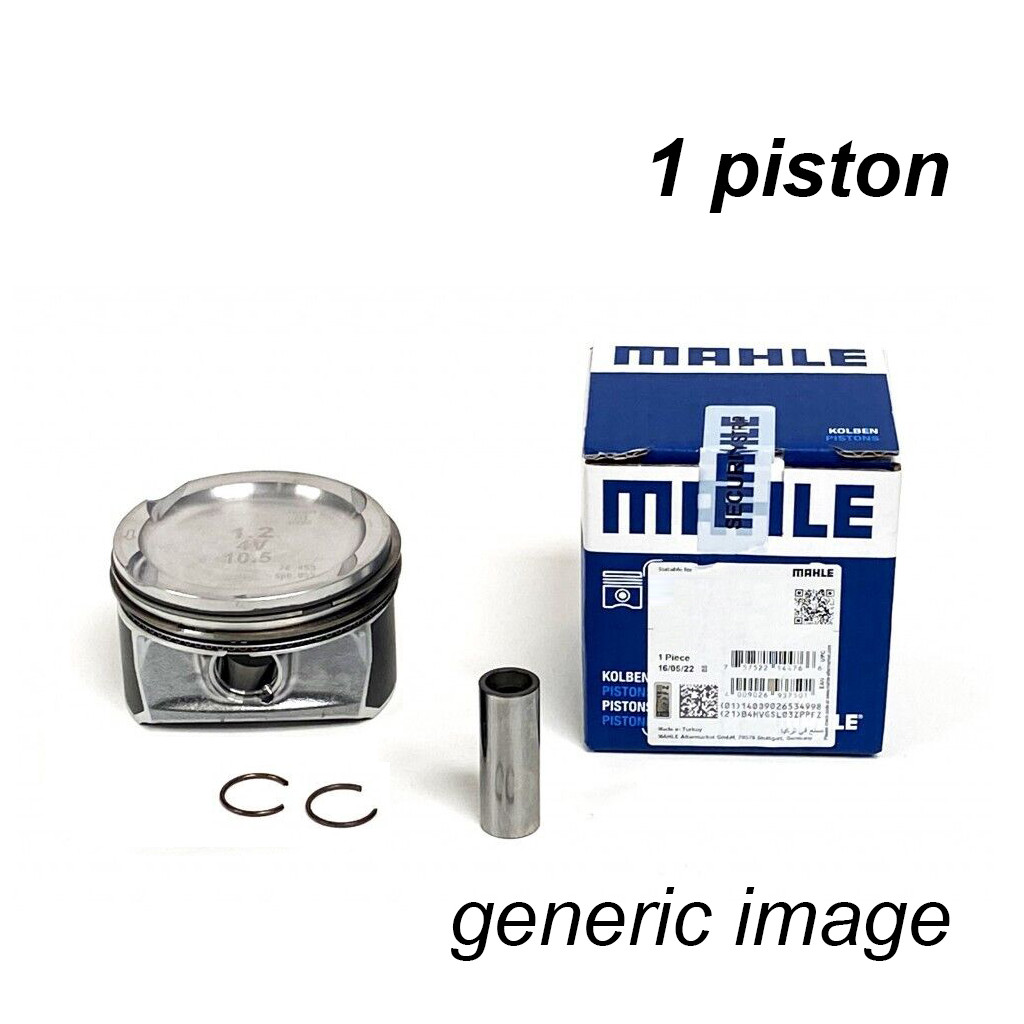

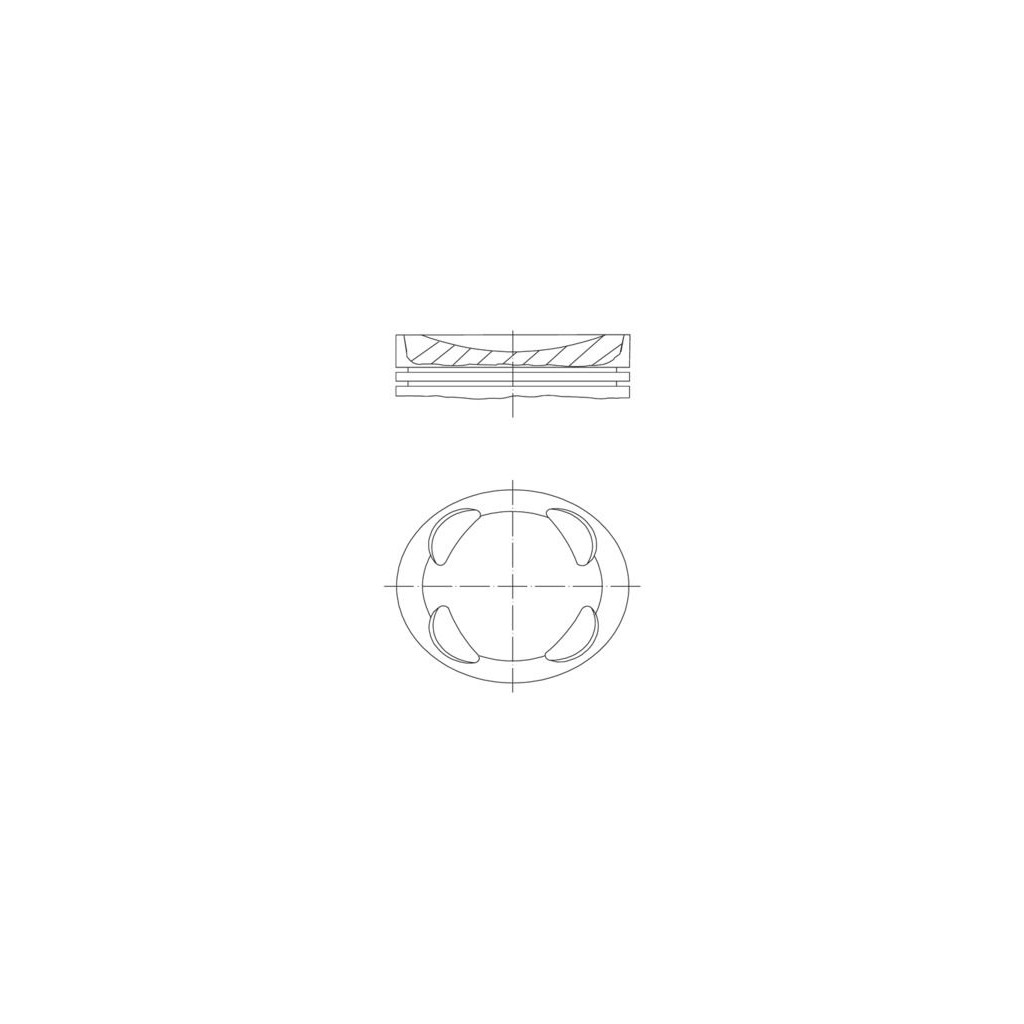

Bore: 77.00mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.00mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.25mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.25mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm Length: 47.5 mm Compression Height: 27.5 mm Pin Length: 43 mm Pin Diameter: 18 mm Recess Depth 1: 2 mm Recess Diameter: 56.6 mm Valve Pocket Depth 1: 5.7 mm Valve Pocket Depth 2: 3.8 mm Surface: Coated Top Land Height: 7.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 77 L 54 Piston Clearance: 0.05 mm Piston...

Bore: 77.50mm (stock 77.00mm) Stroke: 85.80mm Compression height: 28.50mm Compression ratio: 10.3 Pin: 20x50.8mm Rings: 1.00x1.20x2.80mm Crown volume: -1.1cc Weight: 273g Alloy: M142P Clearance guide: Measuring point: .385 Min: .0008 Max: .0016 Package: 4 pistons with rings and pins Warning: check for interference to piston motion from valves, oil squirters,...

Position: Connecting rod Quantity: 3 pairs Shaft diameter: 41.984 / 42.000mm Housing bore: 45.000 / 45.012mm Wall thickness: 1.49mm Bearing width: 16.00mm

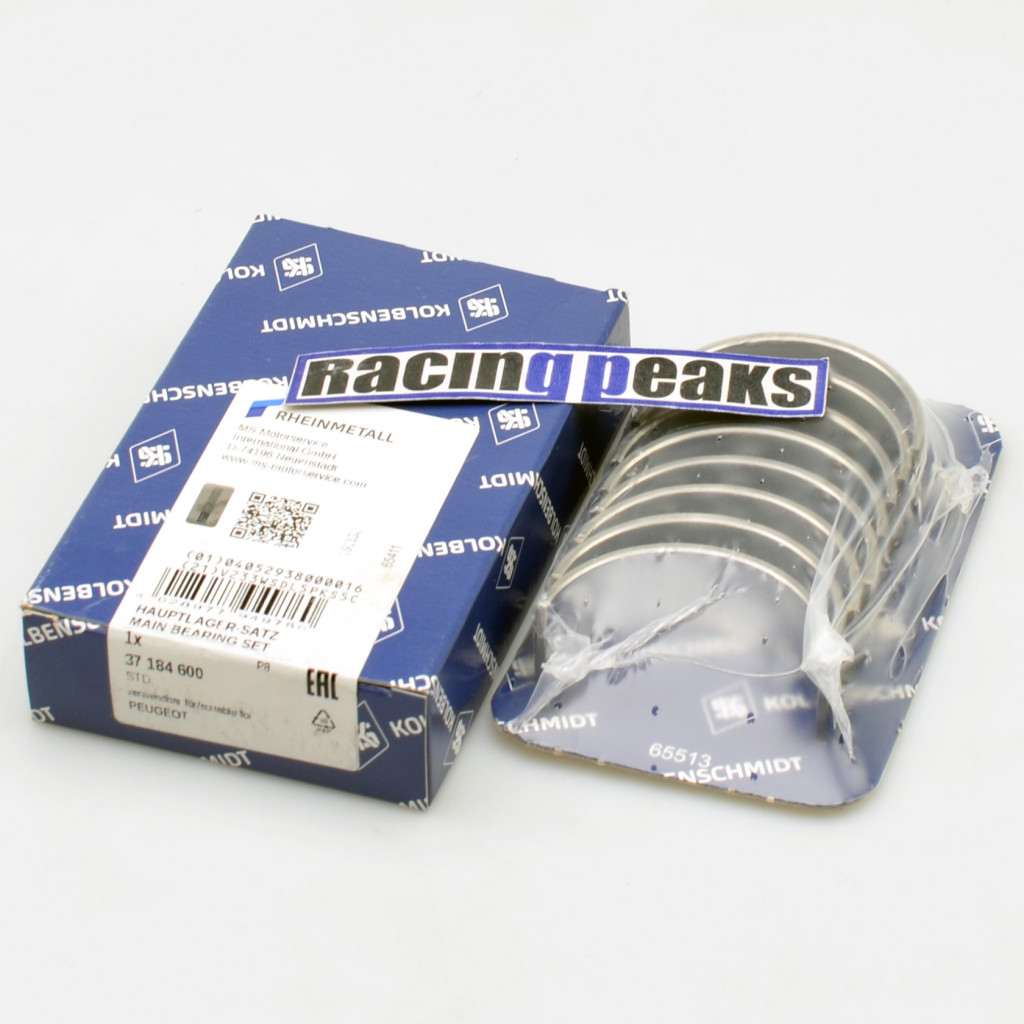

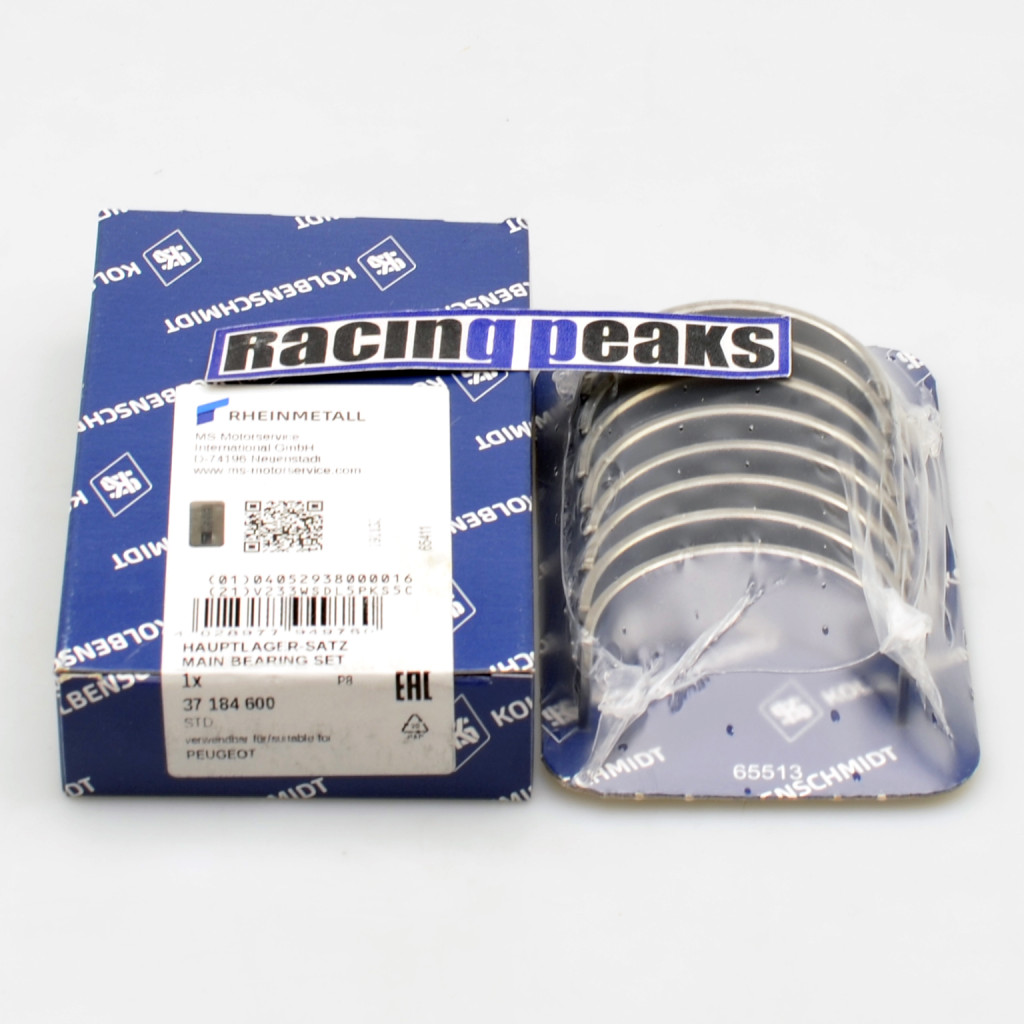

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 41.981 / 42.000mm Housing bore: 45.600 / 45.619mm Wall thickness: 1.795mm Bearing width: 16.19mm
