Cyl.Bore: 77.00mm is STD Compression Height: 28.5mm Length: 51.2mm Recess Depth: +2.7/-3.5mm Bolt d.: 20.0mm Bolt Length: 48.0mm Info: top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod Piston rings: 1.20x1.50x2.00mm

Cyl.Bore: 77.00mm is STD Compression Height: 28.5mm Length: 51.2mm Recess Depth: +2.7/-3.5mm Bolt d.: 20.0mm Bolt Length: 48.0mm Info: top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod Piston rings: 1.20x1.50x2.00mm

Thread Size: M10 Thread Pitch: 1.5 mm Length: 170 mm Bolt Head-/Nut Design: Male Torx

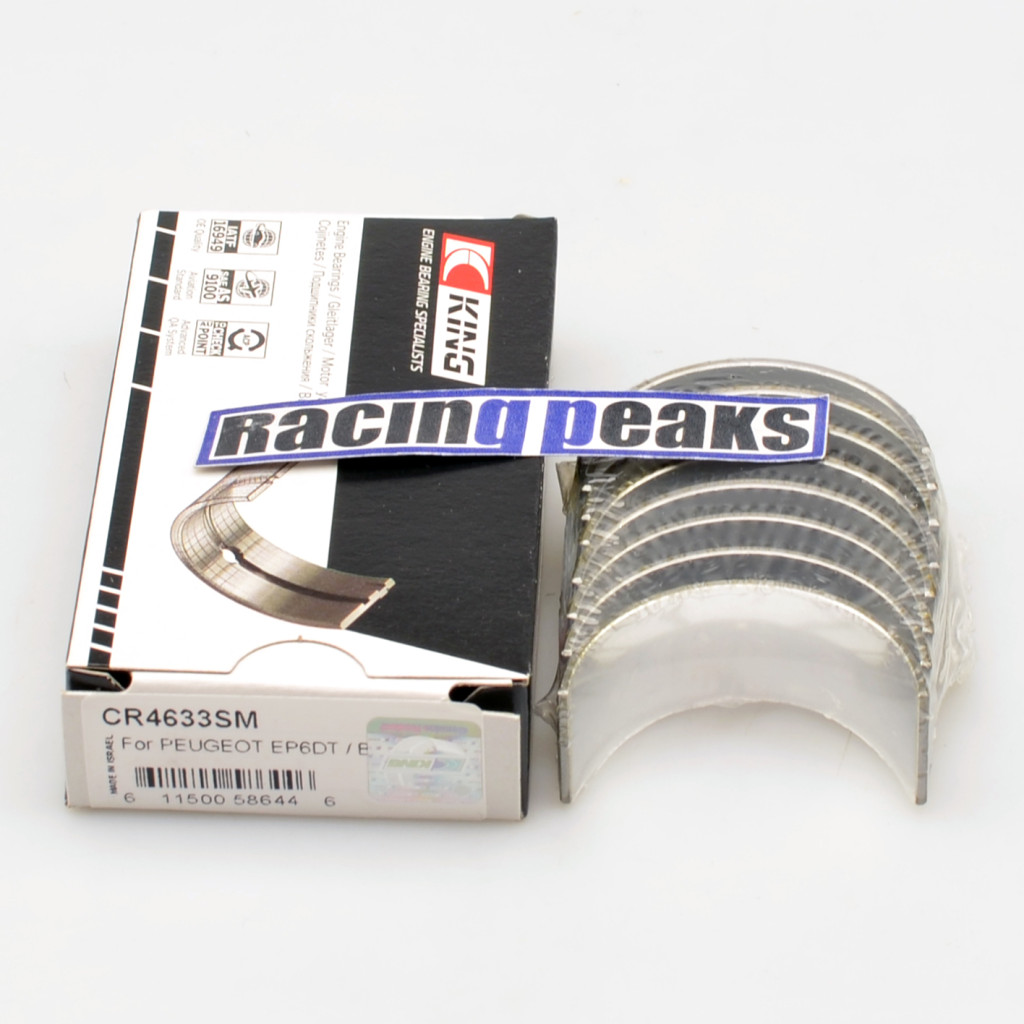

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

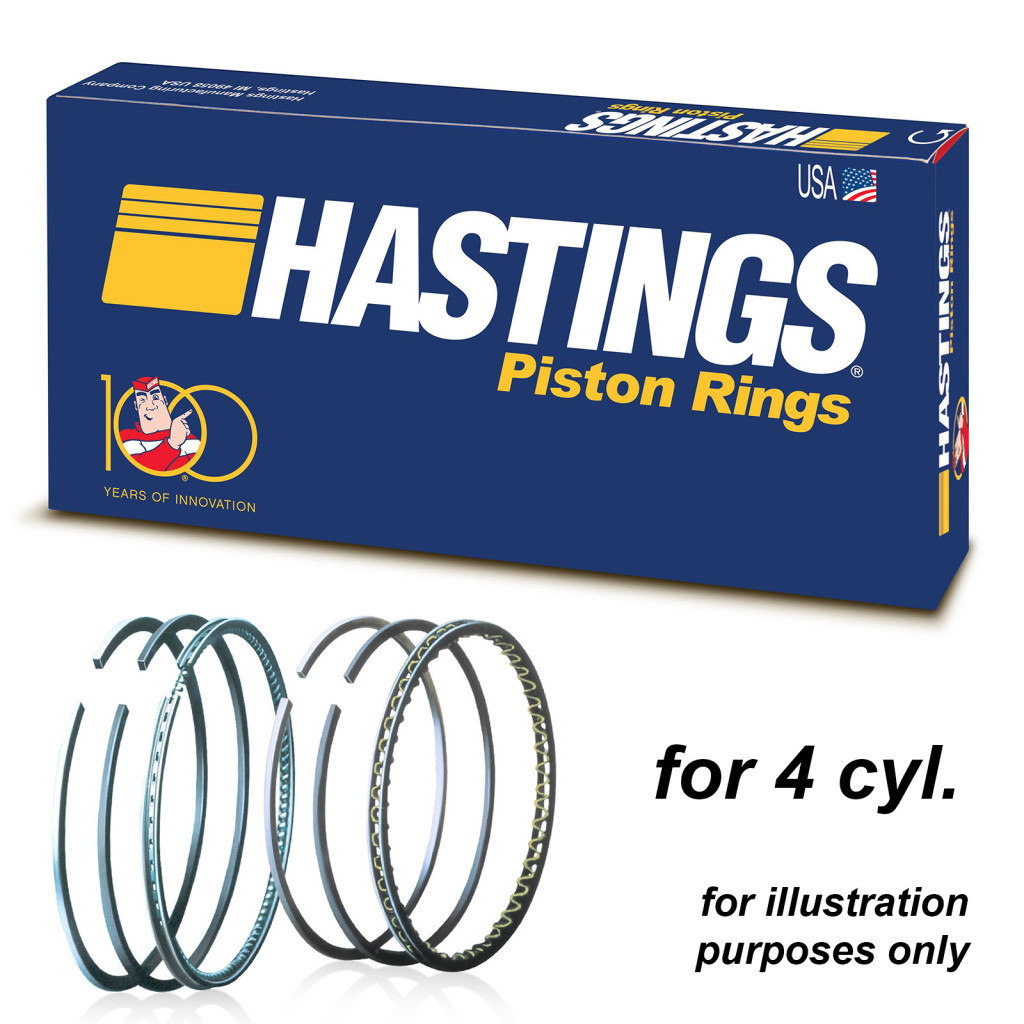

Bore: 77.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Bore: 77.00mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT

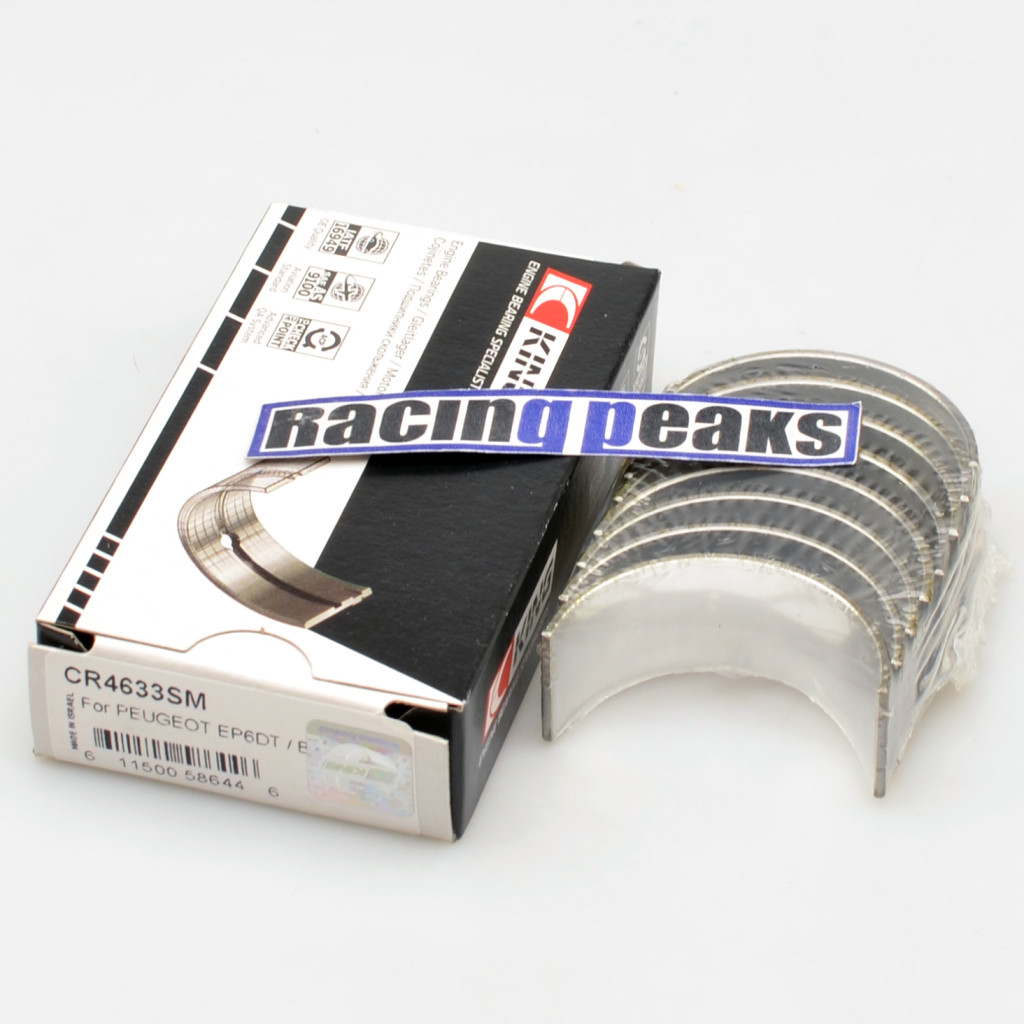

Crankshaft: 44.973 / 44.988mm Housing: 0.000 / 48.019mm Max Wall Thickness: 1.488mm Max Length: 19.698mm Quantity: 4

More details coming soon.

More details coming soon.

Crankshaft: 44.973 / 44.988mm Housing: 0.000 / 48.019mm Max Wall Thickness: 1.488mm Max Length: 19.698mm Quantity: 4

Crankshaft: 45.00 / 44.98mm Housing: 48.70 / 0.00mm Max Wall Thickness: 1.831mm Max Length: 17.8mm Quantity: 5

Crankshaft: 45.00 / 44.98mm Housing: 48.70 / 0.00mm Max Wall Thickness: 1.831mm Max Length: 17.8mm Quantity: 5
