Piston size: 92.50mm; Ring size: 1.20x1.50x2.50mm

Bore: 92.51mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT

Bore: 86.00mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT

Quantity Unit: 8 pairs Oversize: 0.00 mm for bearing clearance: from 0.02 mm, until 0.07 mm for housing diameter: from 52.000 mm, until 52.013 mm mm Width: 17 mm thickness: 1.997 mm for shaft diameter: from 47.975 mm, until 47.991 mm

Quantity Unit: 5 pairs Oversize: 0.00 mm for bearing clearance: from 0.02 mm, until 0.06 mm for housing diameter: from 75.000 mm, until 75.019 mm Width: 24 mm thickness: 2.505 mm for shaft diameter: from 69.971 mm, until 69.990 mm

Crankshaft: 44.99 / 44.98mm Housing: 48.02 / 48.00mm Max Wall Thickness: 1,494mm Max Length: 18mm Quantity: for 1 journal only

Crankshaft: 59.972 / 59.990 | 59.972 / 59.990mm Housing: 65.001 / 65.019 | 65.001 / 65.019mm Max Wall Thickness: 2,494 | 2,494mm Max Length: See AVAILABLE SIZES | 19,969mm Quantity: 1 | 6

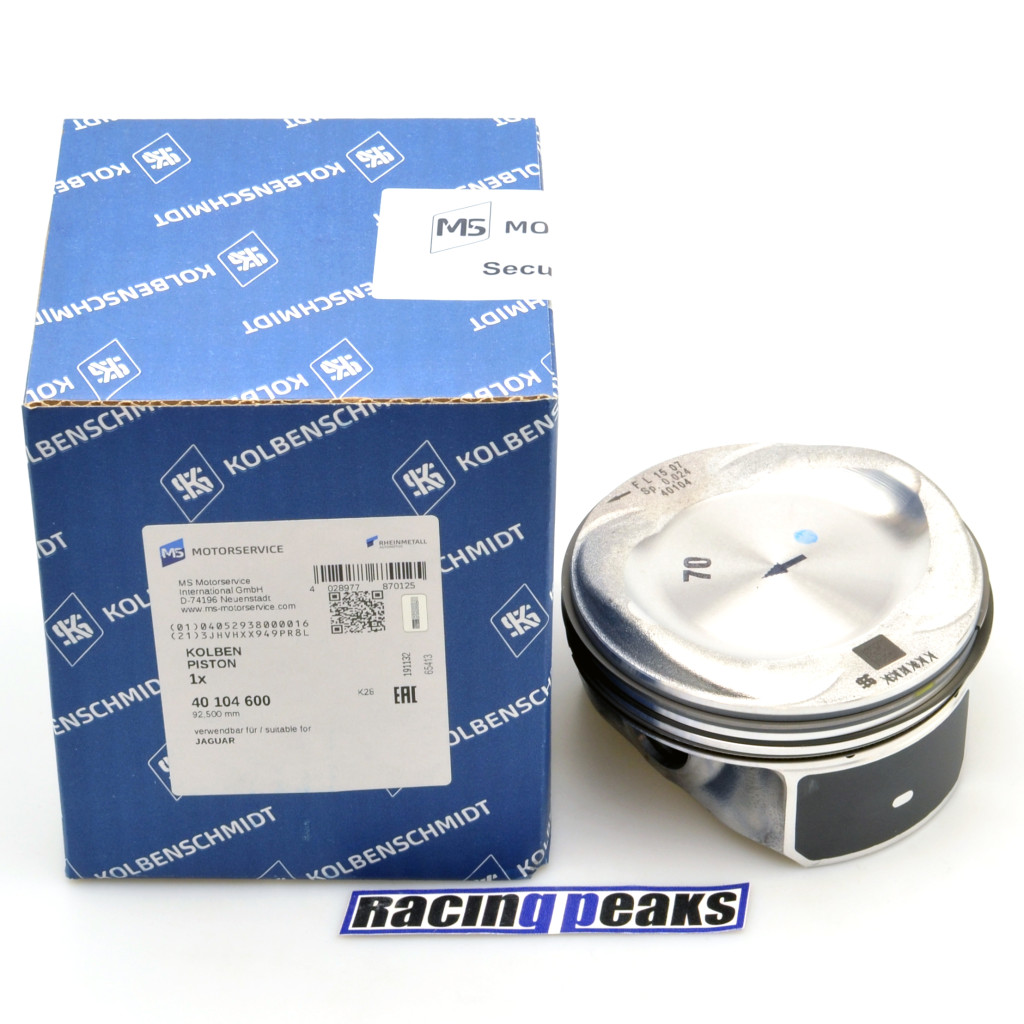

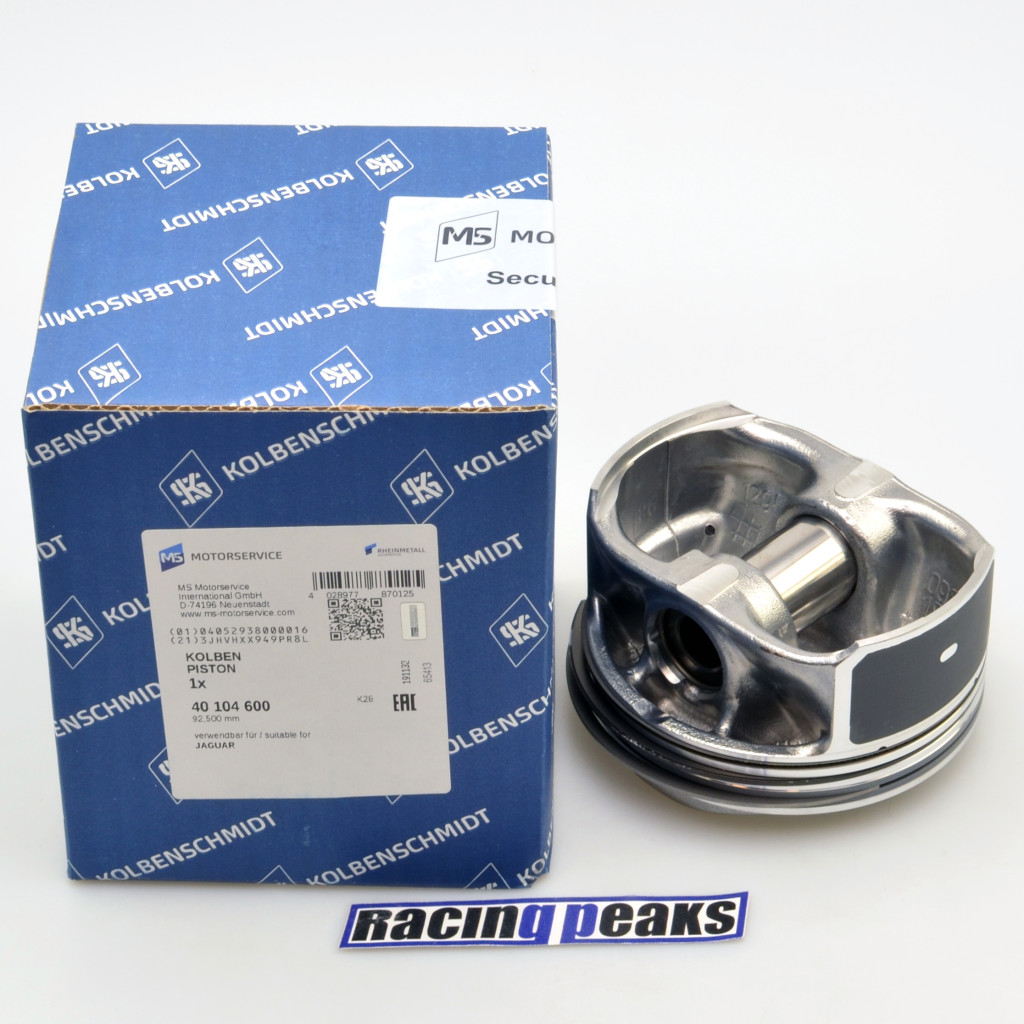

Cyl.Bore: 92.50mm Compression Height: 28.1mm Length: 55.9mm Piston Crown Clearance: 7.8mm Recess Depth 1: 3mm Recess Diameter: 63.13mm Component No.: 62068, 61733, 62070 Standard Size [STD]: Bolt Ø: 22mm Bolt Length: 57mm Connecting Rod Design: Trapezoidal Connecting Rod
