Crankshaft: 50.00 / 49.98mm Housing: 53.71 / 53.69mm Max Wall Thickness: 1,836mm Max Length: 20mm Quantity: 4

Crankshaft: 50.00 / 49.98mm Housing: 53.71 / 53.69mm Max Wall Thickness: 1,836mm Max Length: 20mm Quantity: 4

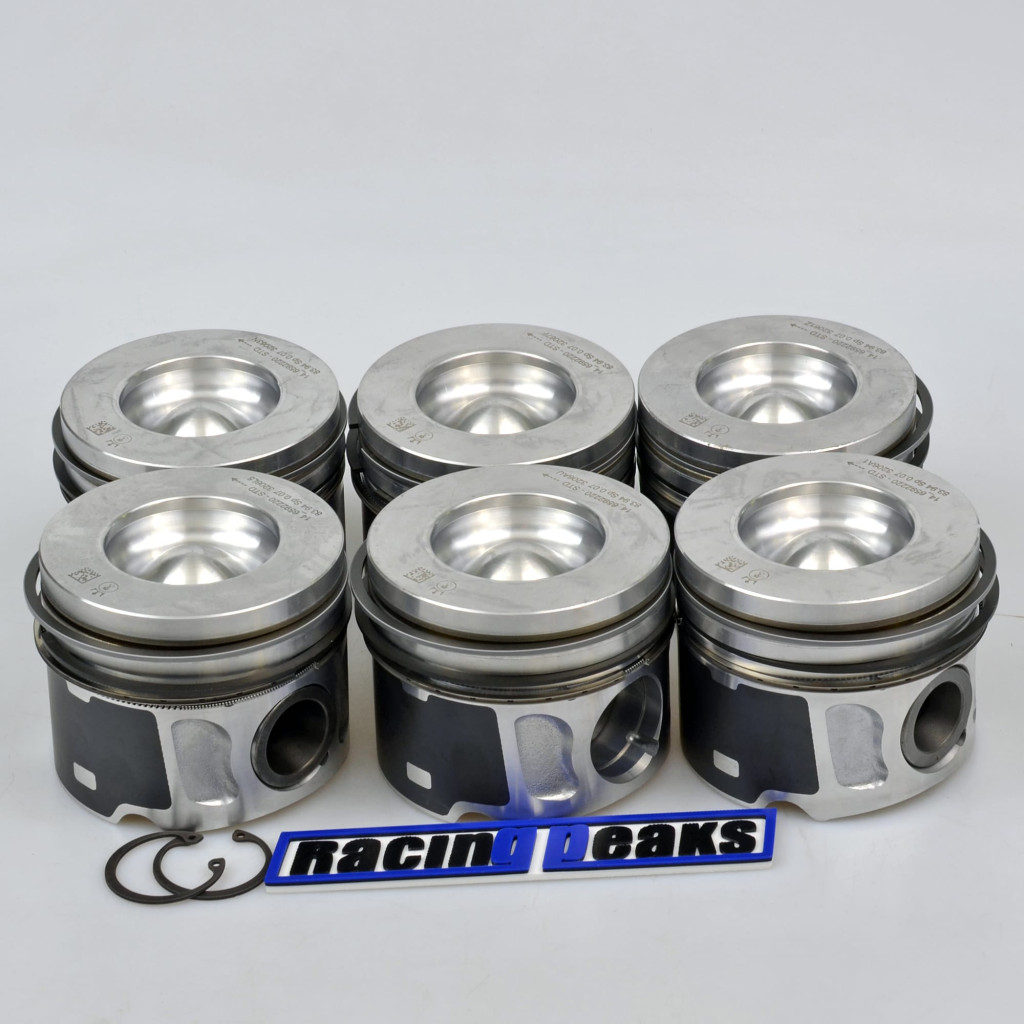

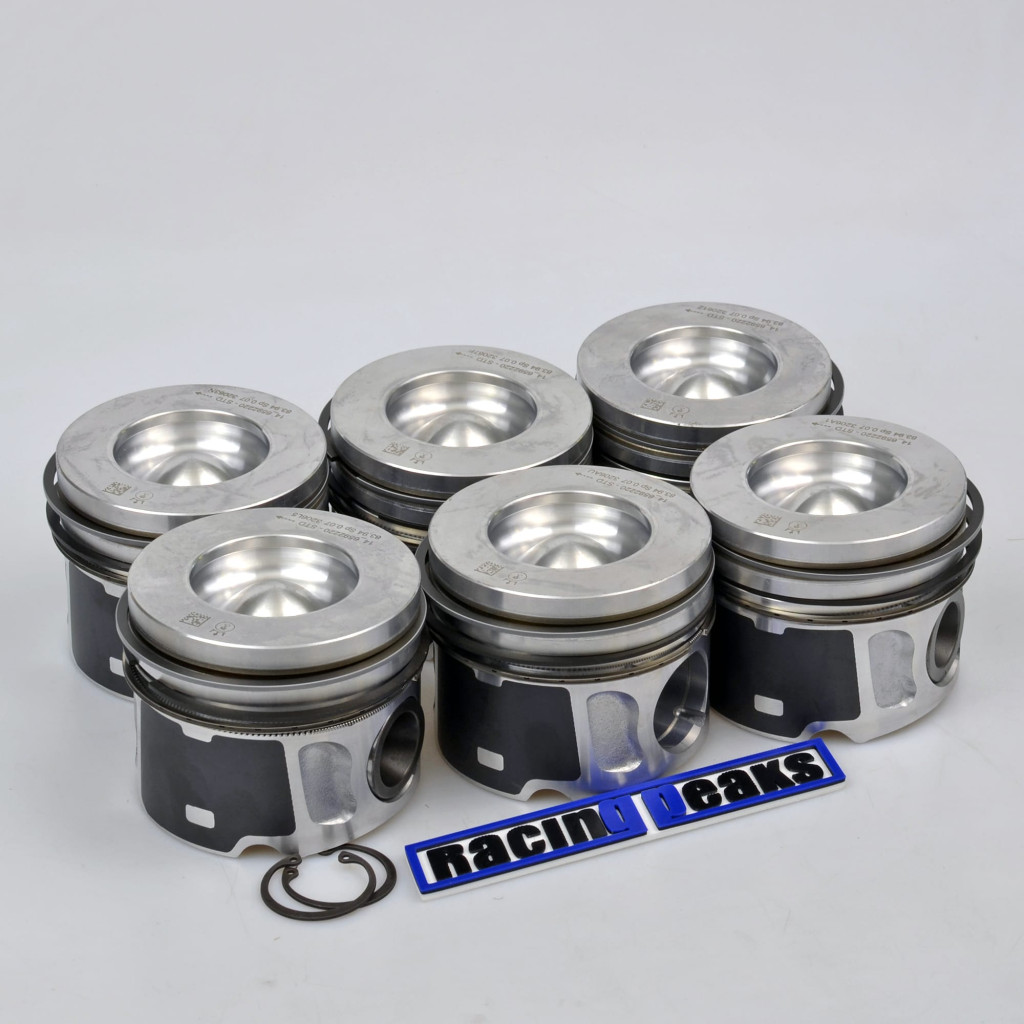

Bolt length [mm]: 68 Bolt Ø [mm]: 30 Component Number: 66181; 66182; 66183 Compression Height [mm]: 46,7 Cylinder Piston Diameter [mm]: 85 Length [mm]: 74,7 Production Number: 085236 Quantity: 3 Recess Depth 1 [mm]: 13,7 Recess Diameter [mm]: 50,5 Valve pocket depth 1 [mm]: 0,45 Valve pocket depth 2 [mm]: 0,45 Thickness [mm] 66181: 3,4 Height [mm] 66181:...

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.984 / 50.000mm Housing bore: 53.695 / 53.708mm Wall thickness: 1.838mm Bearing width: 20.00mm

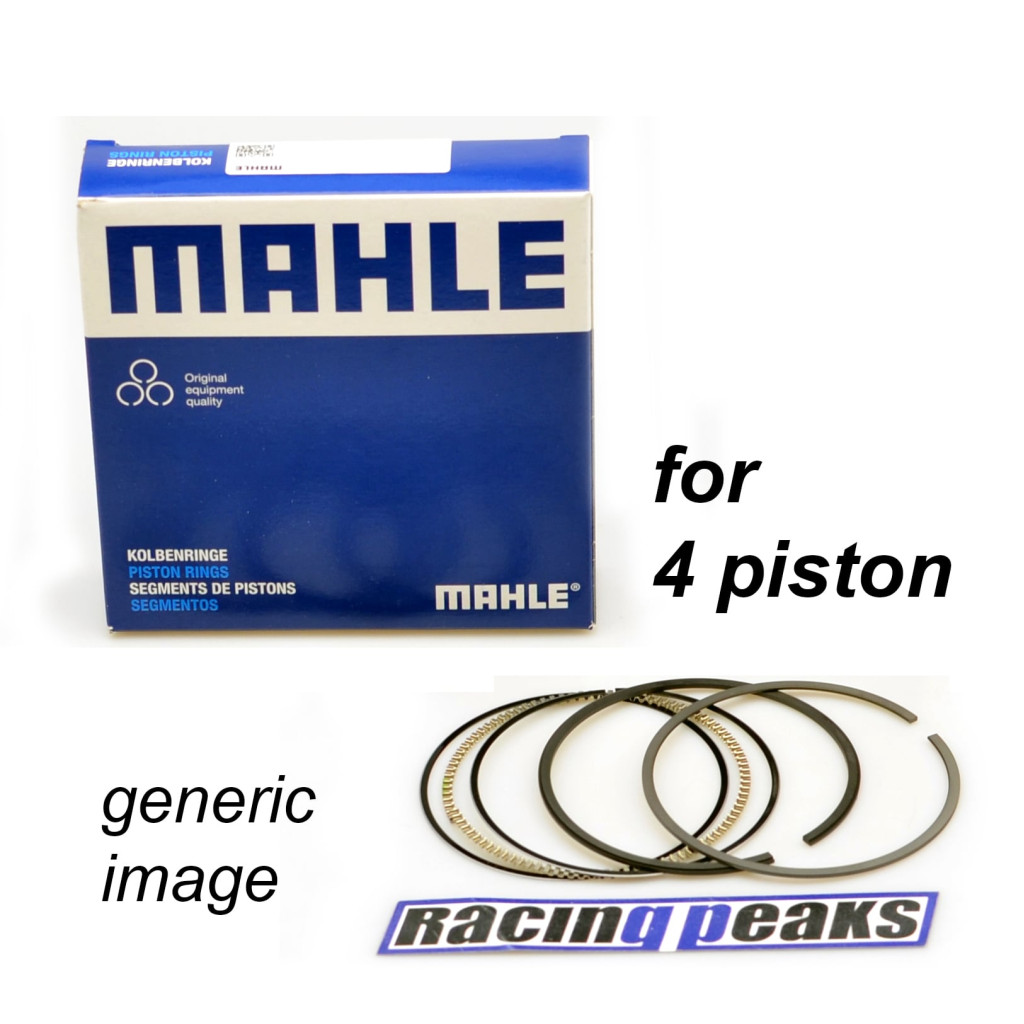

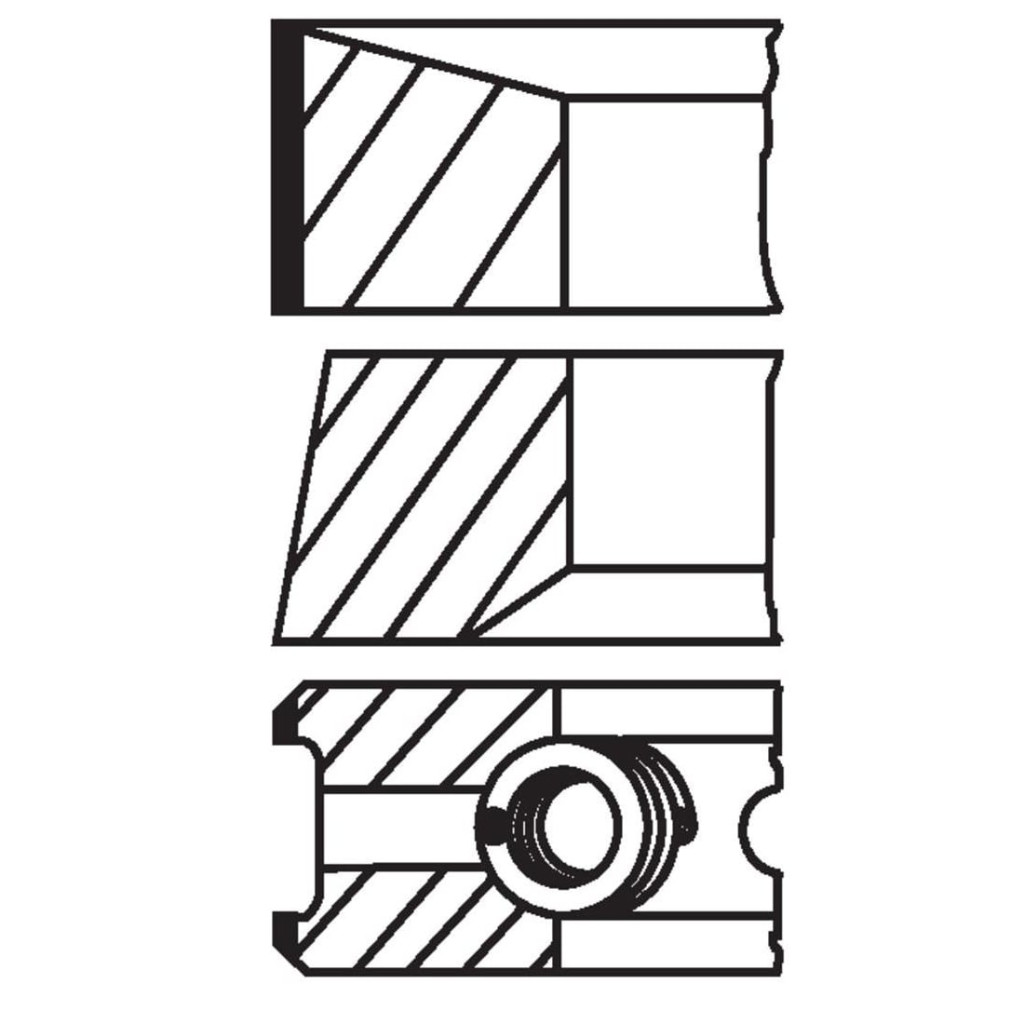

Component Number: 66181; 66182; 66183 Quantity: 3 Thickness [mm] 66181: 3,4 Height [mm] 66181: 2 Material 66181: Cast Iron with Ductile Iron Surface 66181: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm] 66181: 85 Thickness [mm] 66182: 3,3 Height [mm] 66182: 2 Surface 66182: Blank Cylinder Piston Diameter [mm] 66182: 85 Thickness [mm] 66183:...

Bolt length [mm]: 70 Bolt Ø [mm]: 28 Component Number: 83532; 83643; 85930 Compression Height [mm]: 46,705 Cylinder Piston Diameter [mm]: 85 Length [mm]: 80,705 Production Number: 085190 Quantity: 3 Recess Depth 1 [mm]: 15,4 Recess Diameter [mm]: 44,8 Valve pocket depth 1 [mm]: 0,52 Thickness [mm] 83532: 3,65 Height [mm] 83532: 3 Surface 83532: Blank;...

Bearing structure: Tri-Metal; Number in pack: 8

Number in pack: 1Big end width: 24.150 Big end diameter: 53.695-53.710 Center-to-center length: 145.000 Bore-to-bore length: 103.150 Pin end width: 24.150 Pin diameter: 30.020-30.035 Weight: 790 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm

Piston rings: 1.75x1.75x2.00mm A: 46.000 B: 70.000 C: 15.350 CD: 47.620 Pin: 29.99 x 63.65 Features: Ring Carrier / Oil Gallery / Oil Cut-Out
