Cyl.Bore: 72.40mm Compression Height: 32.9mm Length: 50.9mm Recess Depth 1: 8.7mm Valve Pocket Depth 1: 2.9mm Valve Pocket Depth 2: 2.3mm Recess Diameter: 43mm Component No.: 67017, 67016, 67015 Bolt Ø: 20mm Bolt Length: 47mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bore: 71.90mm Top ring: 1.00mm 2nd ring: 1.20mm 3rd ring: 2.00mm

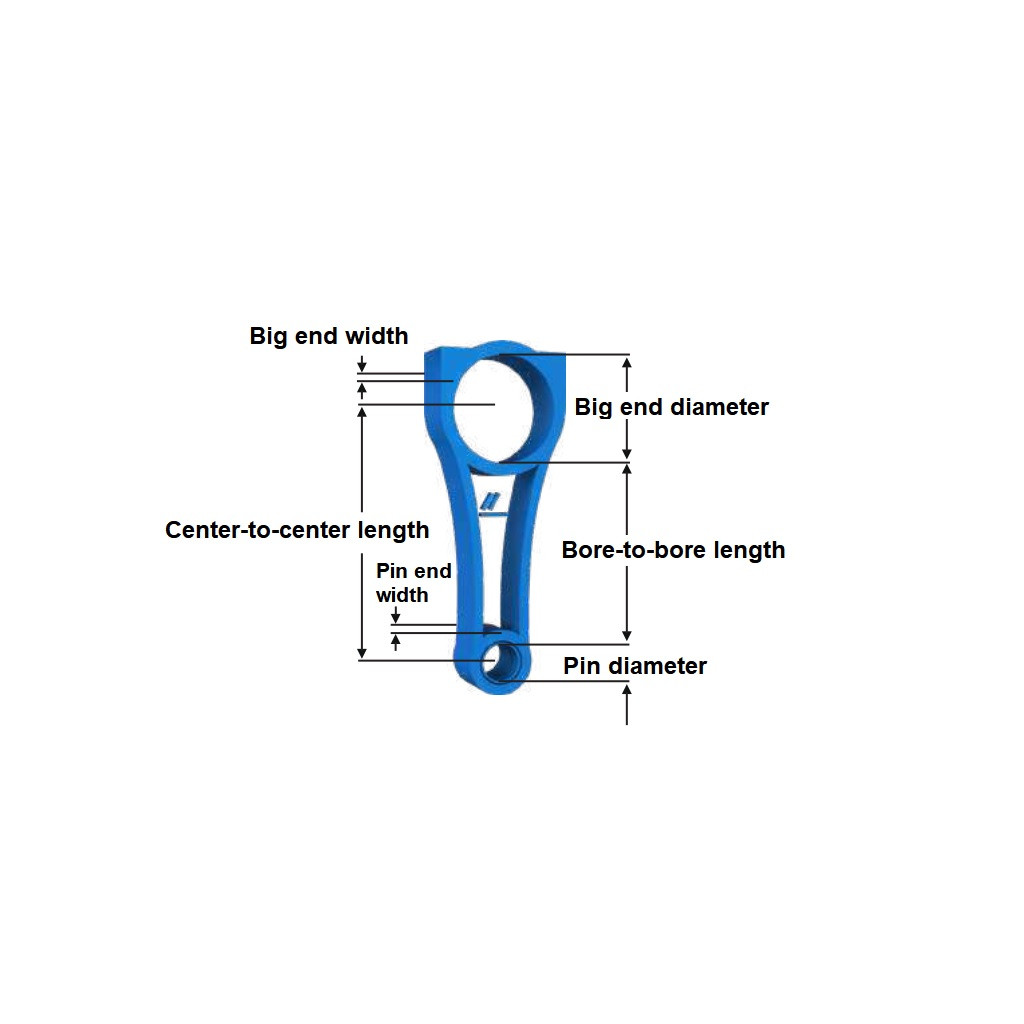

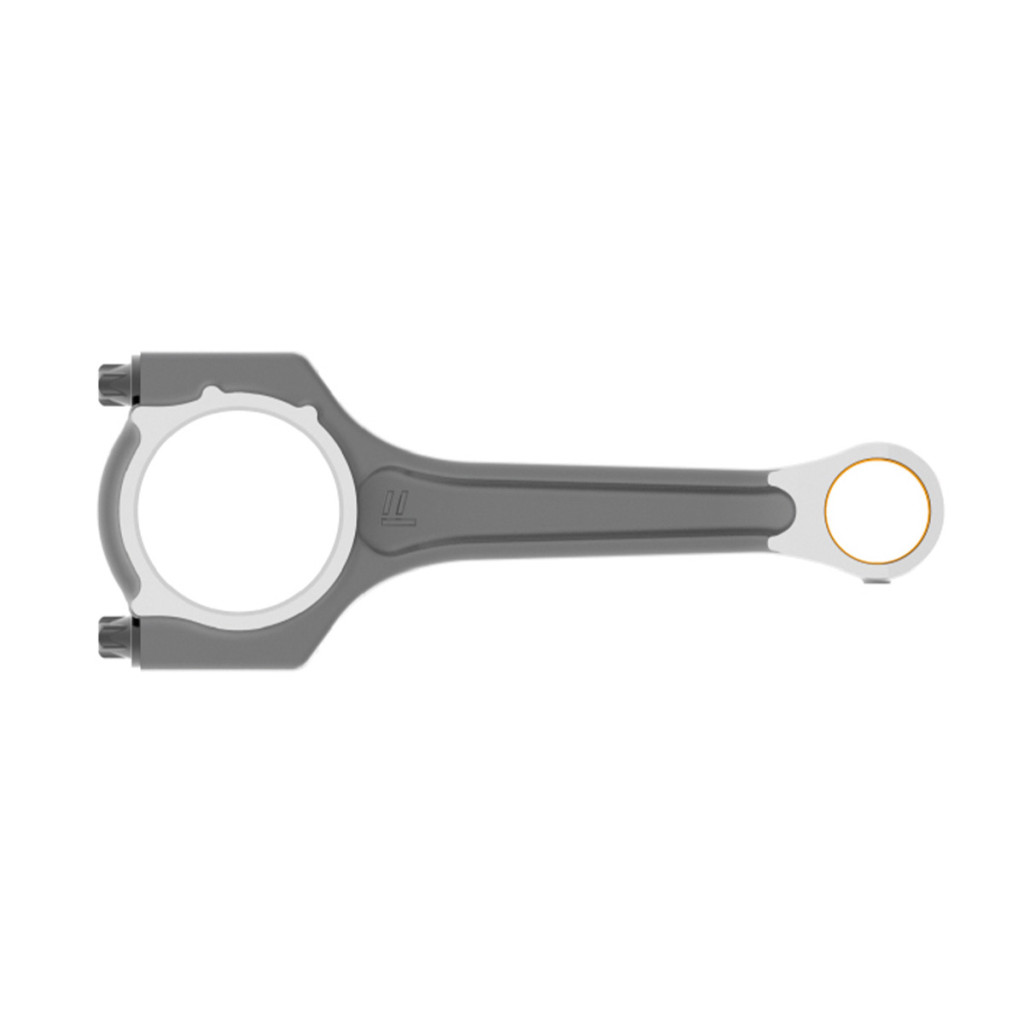

Number in pack: 1Big end width: 19.500 Big end diameter: 43.000-43.015 Center-to-center length: 137.000 Bore-to-bore length: 105.500 Pin end width: 15.300 Pin diameter: 20.015-20.024 Weight: 390 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 20 Nm + 40 degree

Piston rings: 1.00x1.20x2.00mm A: 27.400 B: 50.900 C: 8.700 CD: 43.700 D: 5.500 E: -3.200 F: -2.700 Pin: 20.00 x 46.80 Features: Hard Anodising
