Crankshaft: 50.858 / 50.879mm Housing: 53.701 / 53.711mm Max Wall Thickness: 1,402mm Max Length: 20,399mm Quantity: 4

Crankshaft: 53.98 / 53.96mm Housing: 59.01 / 59.00mm Max Wall Thickness: 2,504mm Max Length: 18,5mm Quantity: 5

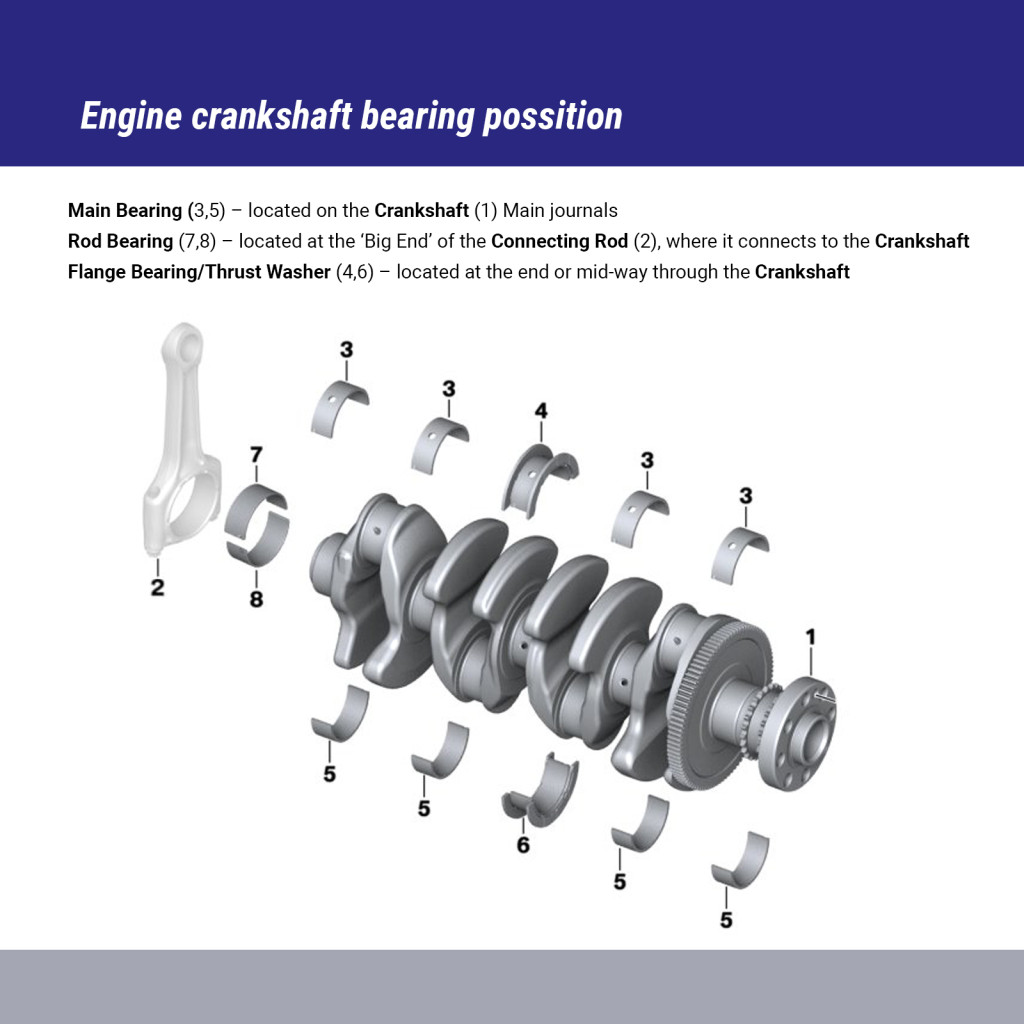

Position: Crankshaft Quantity: 1 pairs Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.010mm Wall thickness: 2.502mm Bearing width: 18.50mm Position: Crankshaft Quantity: 4 pair Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.010mm Wall thickness: 2.502mm Bearing width: 18.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 50.868 / 50.883mm Housing bore: 53.700 / 53.719mm Wall thickness: 1.402mm Bearing width: 20.40mm

Cyl.Bore: 81.51mm Compression Height: 45.55mm Length: 68.55mm Recess Depth 1: 13.1mm Recess Diameter: 50.88mm Component No.: 63509, 63503, 63506 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 50.858 / 50.878mm Housing bore: 53.700 / 53.712mm Wall thickness: 1.404mm Bearing width: 20.40mm

Bore: 81.00mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 3.00mm

Bore: 81.50mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 3.00mm

Component Number: 63502; 63505; 63508 Oversize [mm]: 0,25 Quantity: 3 Thickness [mm] 63502: 3,3 Height [mm] 63502: 1,75 Material 63502: Cast Iron with Ductile Iron Surface 63502: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm] 63502: 81,25 Thickness [mm] 63505: 3,3 Height [mm] 63505: 2 Material 63505: Grey Cast Iron Surface 63505:...
