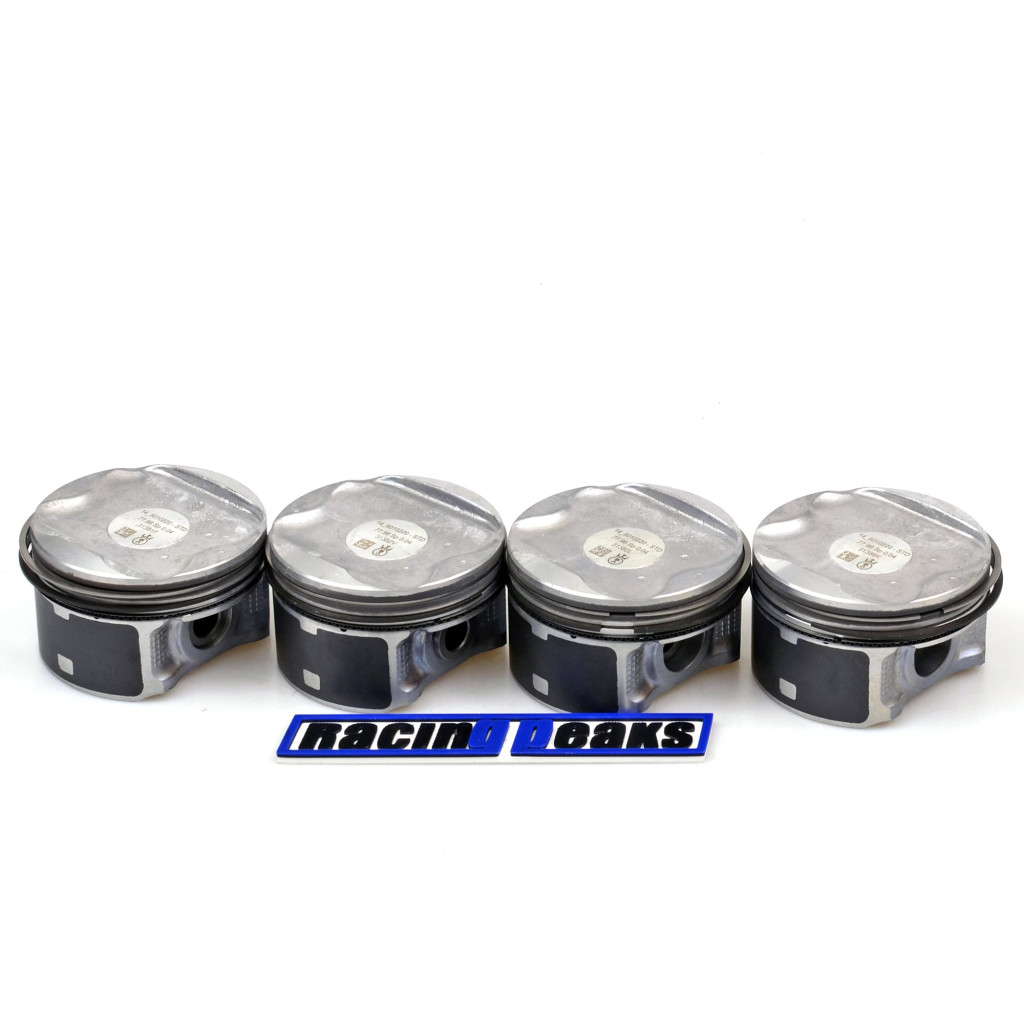

Piston rings: 1.20x1.20x2.00mm A: 28.750 B: 48.250 E: -3.750 Pin: 19.00 x 53.50 Features: Hard Anodising

Application: Con Rod Bolts Material: ARP2000 Head Style: E Thread: M9

Bore: 82.70mm Ring sizes: 1.20x1.50x2.00mm Oil ring type: 3 PC. FLEX-VENT

Bore: 76.00mm Ring sizes: 2.00x2.00x2.50mm Oil ring type: 2 PC. CONFORMATIC

Bolt length [mm]: 60 Bolt Ø [mm]: 26 Component Number: 61824; 61826; 61828 Compression Height [mm]: 41,78 Cylinder Piston Diameter [mm]: 76 Length [mm]: 66 Production Number: 076191 Quantity: 3 Recess Depth 1 [mm]: 14 Recess Diameter [mm]: 39,7 Valve pocket depth 1 [mm]: 0,48 Valve pocket depth 2 [mm]: 0,28 Thickness [mm] 61824: 3,3 Height [mm] 61824:...

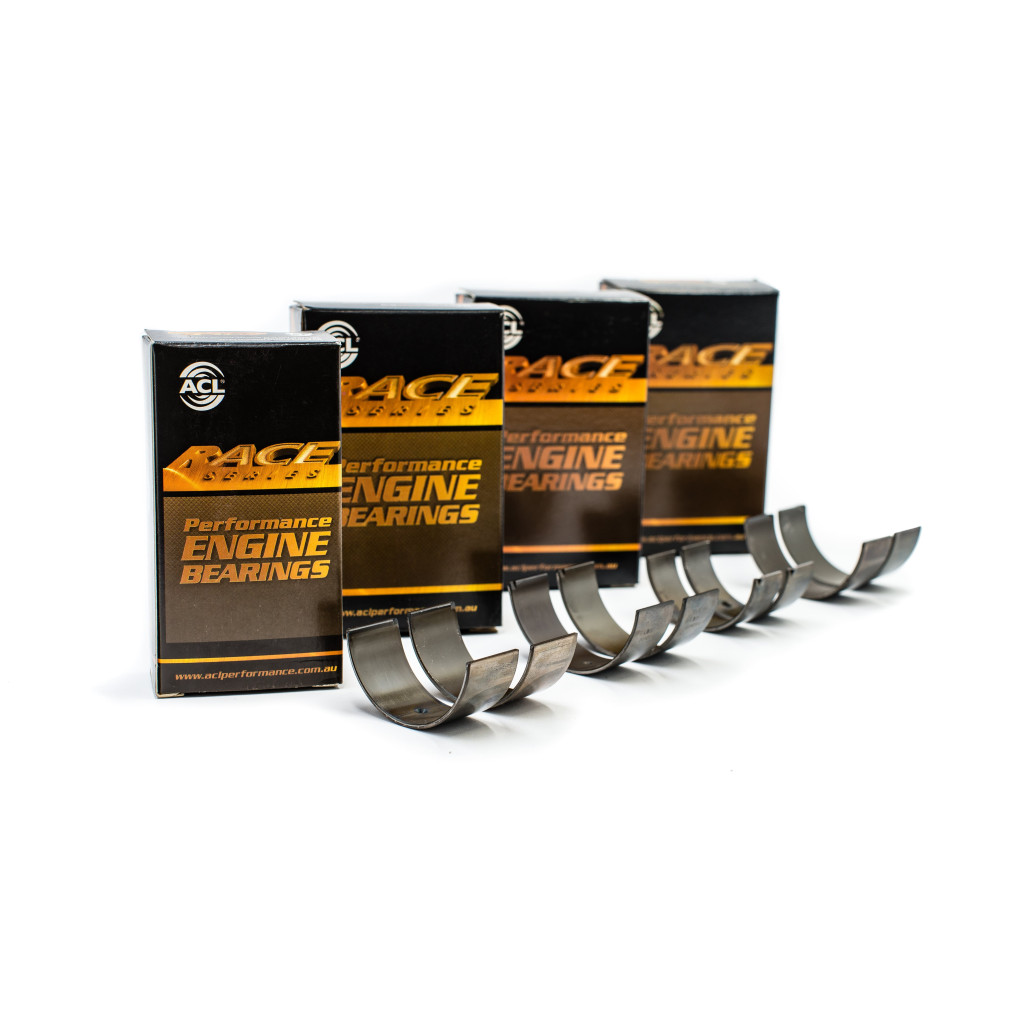

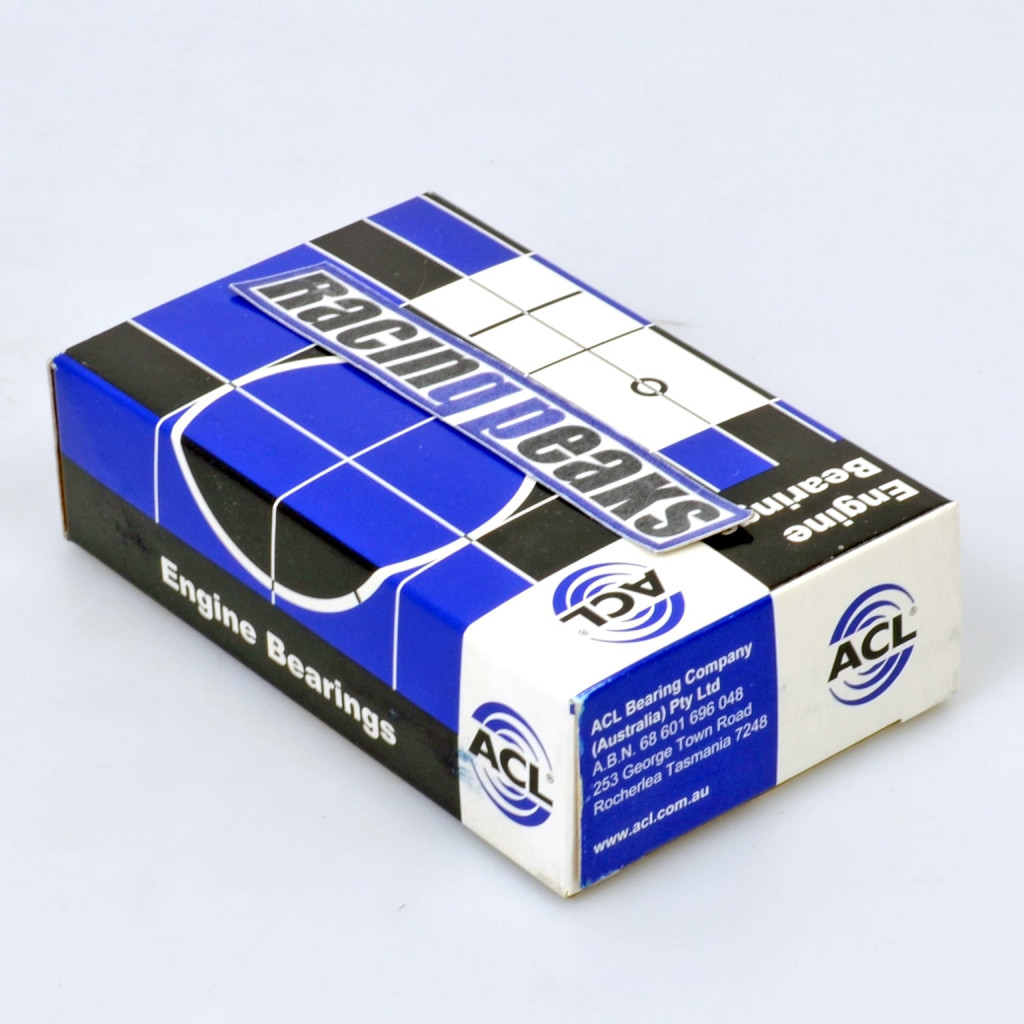

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Conrod design: trapezoidal connecting rod Large connecting rod eye bore diameter: 47.61mm Small connecting rod eye diameter: 26.013mm Width big end: 21.9mm Width small end: 21.9mm Type of connecting rod separation: cracked Length: 133.75mm

Conrod design: trapezoidal connecting rod Large connecting rod eye bore diameter: 47.61mm Small connecting rod eye diameter: 26.013mm Width big end: 21.9mm Width small end: 21.9mm Type of connecting rod separation: cracked Length: 133.75mm

Conrod design: trapezoidal connecting rod Large connecting rod eye bore diameter: 47.61mm Small connecting rod eye diameter: 26.013mm Width big end: 21.9mm Width small end: 21.9mm Type of connecting rod separation: cracked Length: 133.75mm

Position: Connecting rod Quantity: 4 pcs Shaft diameter: 48.000 / 48.020mm Housing bore: 51.587 / 51.600mm Wall thickness: 1.768mm Bearing width: 20.50mm Position: Connecting rod Quantity: 4 pcs Shaft diameter: 48.000 / 48.020mm Housing bore: 51.587 / 51.600mm Wall thickness: 1.768mm Bearing width: 20.50mm
