Bore: 76.50mm Ring sizes: 1.20x1.20x2.00mm Oil ring type: 3 PC. FLEX-VENT

Number in pack: 1

Bore: 76.51mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Bore: 76.51mm Length: 50.2 mm Compression Height: 29.2 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 4.6 mm Valve Pocket Depth 1: 3.6 mm Valve Pocket Depth 2: 0.8 mm Surface: Hard Anodized Top Land Height: 5.7 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 76 L 135 Piston Clearance: 0.07 mm Piston rings: 1.20x1.20x2.00mm

Bore: 76.76mm Length: 50.2 mm Compression Height: 29.2 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 4.6 mm Valve Pocket Depth 1: 3.6 mm Valve Pocket Depth 2: 0.8 mm Surface: Hard Anodized Top Land Height: 5.7 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 76 L 135 Piston Clearance: 0.07 mm Piston rings: 1.20x1.20x2.00mm

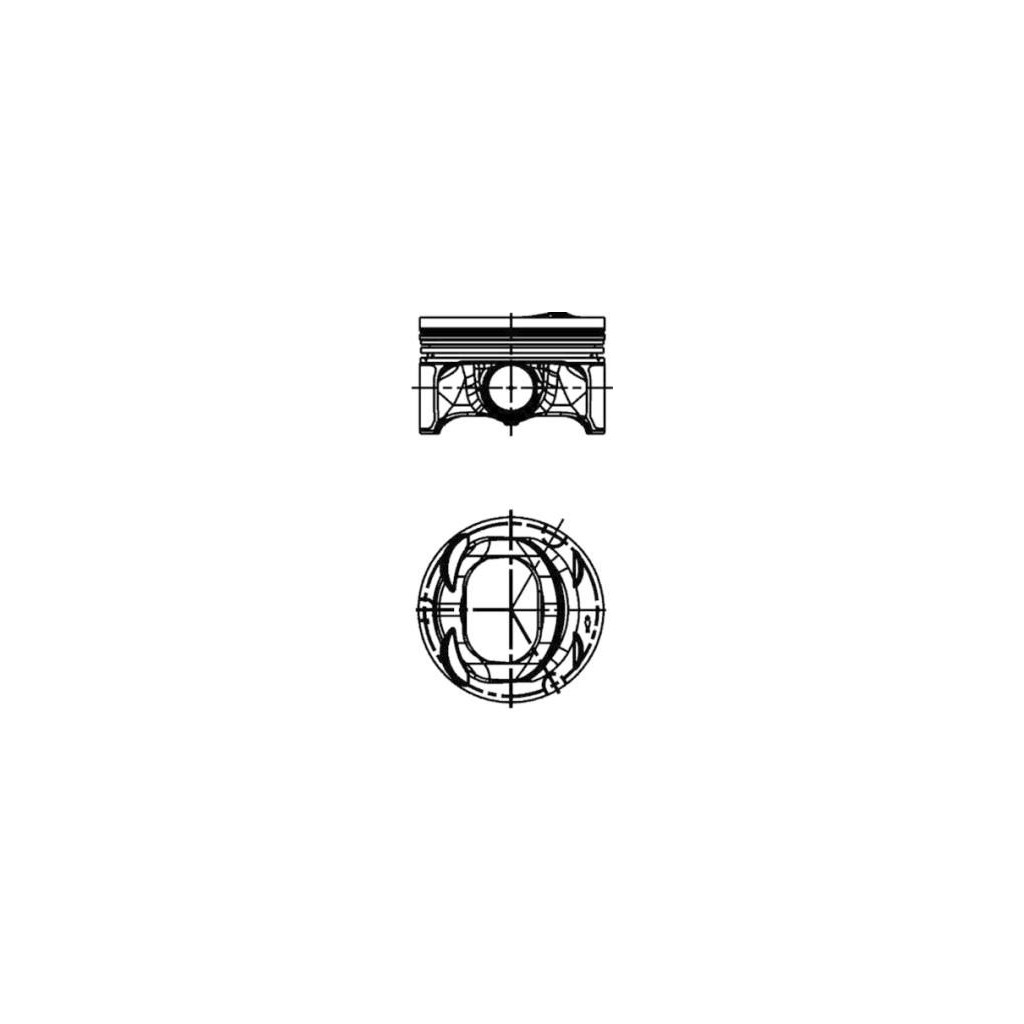

Bore: 77.01mm Length: 50.2 mm Compression Height: 29.2 mm Pin Length: 52 mm Pin Diameter: 19 mm Recess Depth 1: 4.6 mm Valve Pocket Depth 1: 3.6 mm Valve Pocket Depth 2: 0.8 mm Surface: Hard Anodized Top Land Height: 5.7 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 76 L 135 Piston Clearance: 0.07 mm Piston rings: 1.20x1.20x2.00mm

Crankshaft: 47.78 / 47.76mm Housing: 50.61 / 50.60mm Max Wall Thickness: 1,406mm Max Length: 17,1mm Quantity: 4

Crankshaft: 47.78 / 47.76mm Housing: 50.61 / 50.60mm Max Wall Thickness: 1,406mm Max Length: 17,1mm Quantity: 4

Cyl.Bore: 77.01mm Compression Height: 29.2mm Length: 50.21mm Piston Crown Clearance: 2mm Recess Depth 1: 4.6mm Valve Pocket Depth 1: 4mm Valve Pocket Depth 2: 2mm Component No.: 63597, 63593, 63595 Bolt d.: 19mm Bolt Length: 52mm Rep. Stage: 0.50

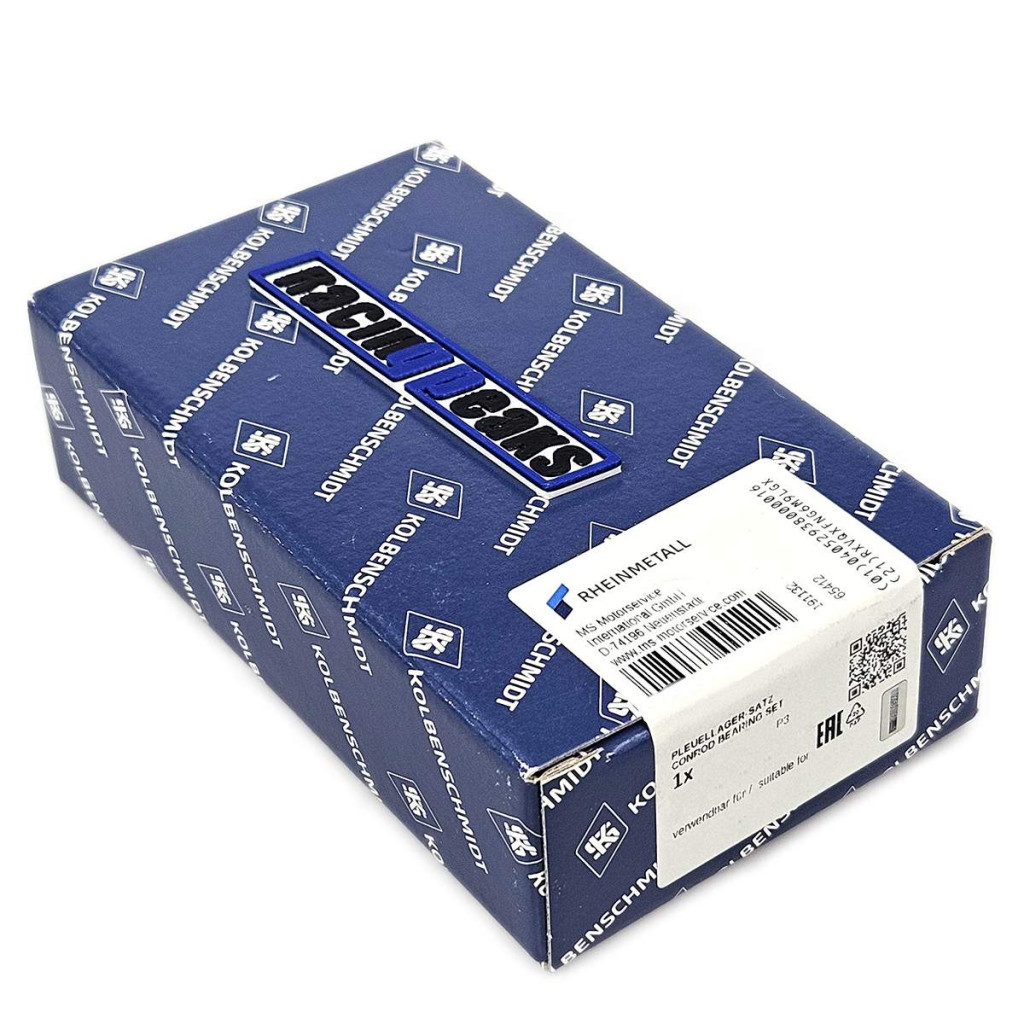

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.763 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 17.20mm

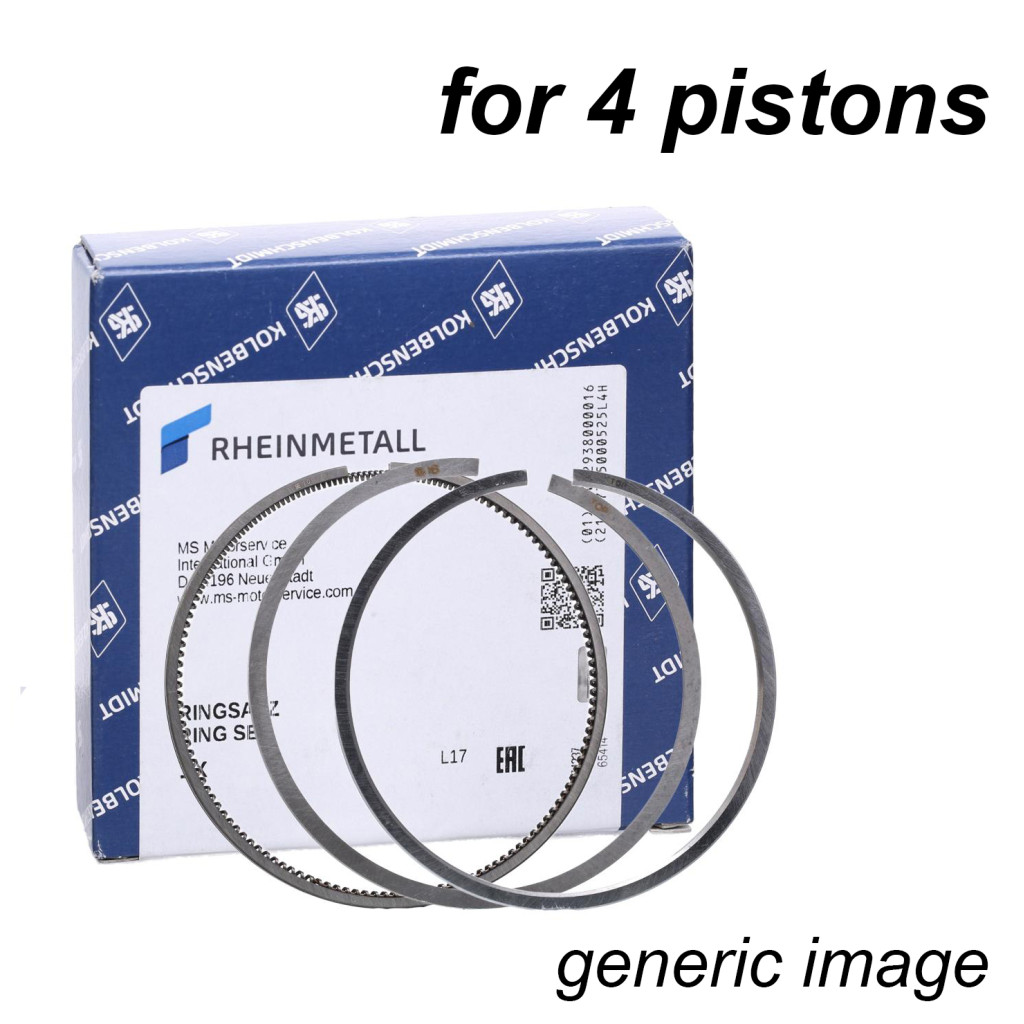

Bore: 76.50mm Top ring: 1.20mm 2nd ring: 1.20mm 3rd ring: 2.00mm
