Component Number: 20830; 32919; 39239 Oversize [mm]: 0,50 Quantity: 3 Thickness [mm] 20830: 3,4 Height [mm] 20830: 2 Surface 20830: Phosphatized Cylinder Piston Diameter [mm] 20830: 77 Thickness [mm] 32919: 3,3 Height [mm] 32919: 1,75 Material 32919: Cast Iron with Ductile Iron Surface 32919: Chromed; Phosphatized Cylinder Piston Diameter [mm] 32919:...

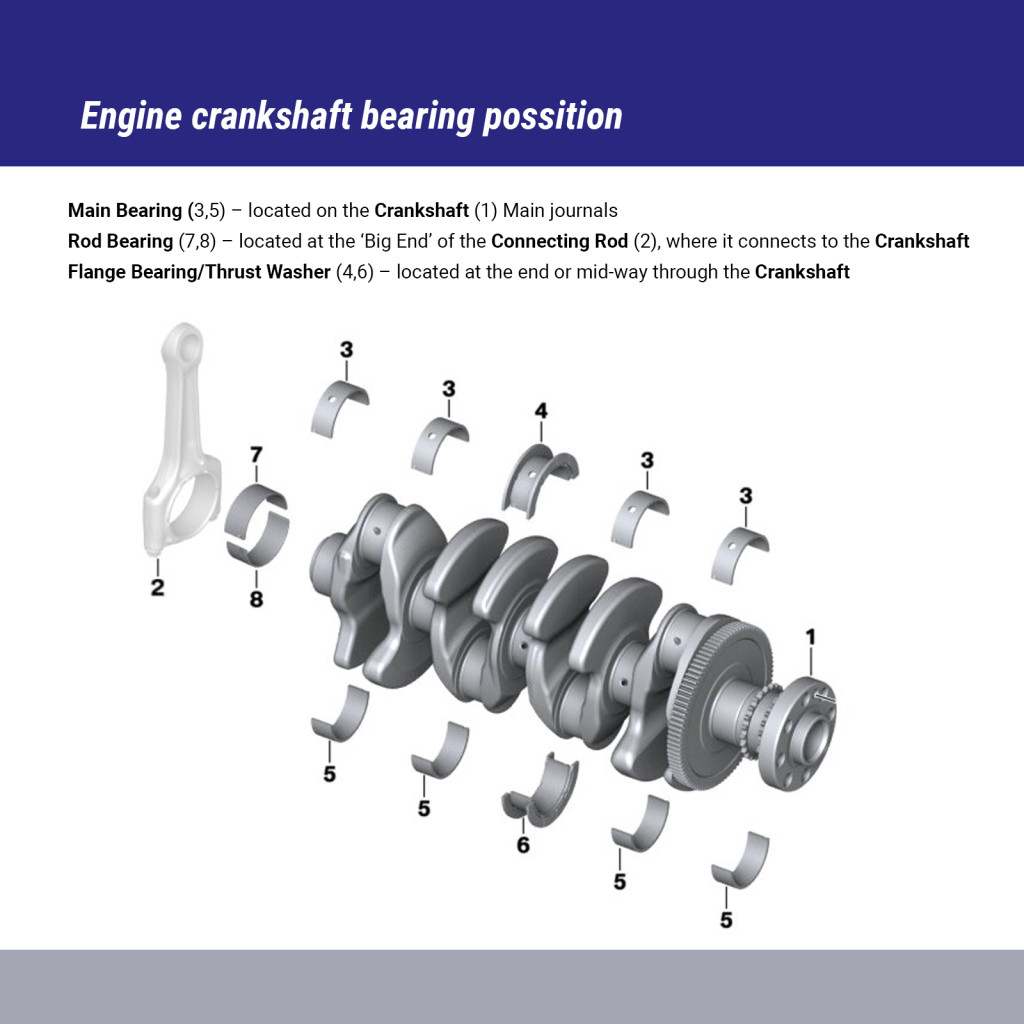

Position: Crankshaft Quantity: 7 pairs Shaft diameter: 2.502mm / Housing bore: 57.958 / 57.978mm Wall thickness: 18.50mm Bearing width: St/B/G

Cyl.Bore: 77.51mm Compression Height: 41.45mm Length: 71.45mm Recess Depth 1: 1.6mm Component No.: 32922, 39240, 35517 Bolt d.: 24mm Bolt Length: 64mm Rep. Stage: 1,00 Connecting Rod Design: Trapezoidal Connecting Rod

Crankshaft: 47.78 / 47.76mm Housing: 50.62 / 50.60mm Max Wall Thickness: 1,402mm Max Length: 19mm Quantity: 6

Crankshaft: 57.98 / 57.96mm Housing: 63.02 / 63.00mm Max Wall Thickness: 2,499mm Max Length: 18,5mm Quantity: 7

Crankshaft: 57.98 / 57.96 | 57.98 / 57.96mm Housing: 63.02 / 63.00 | 63.02 / 63.00mm Max Wall Thickness: 2,499 | 2,499mm Max Length: 18,5 | 25mm Quantity: 6 | 1
