Supplementary Article/Info 2: with piston ring carrier, for keystone connecting rod Recess Depth 1: 9.3 mm Compression Height: 34.85 mm Height: 53.9 mm Cyl.Bore: 79 mm Bolt d.: 21 mm Recess Diameter: 53.5 mm Bolt Length: 49 mm Valve Pocket Depth 1: 3.53 mm Valve Pocket Depth 2: 3.47 mm Component No.: 08-452800-10

Thread Size: M10x1.5x143 Bolt Head-/Nut Design: Female Torx Spanner Size: TX - T55 Number of bolts/screws: 10

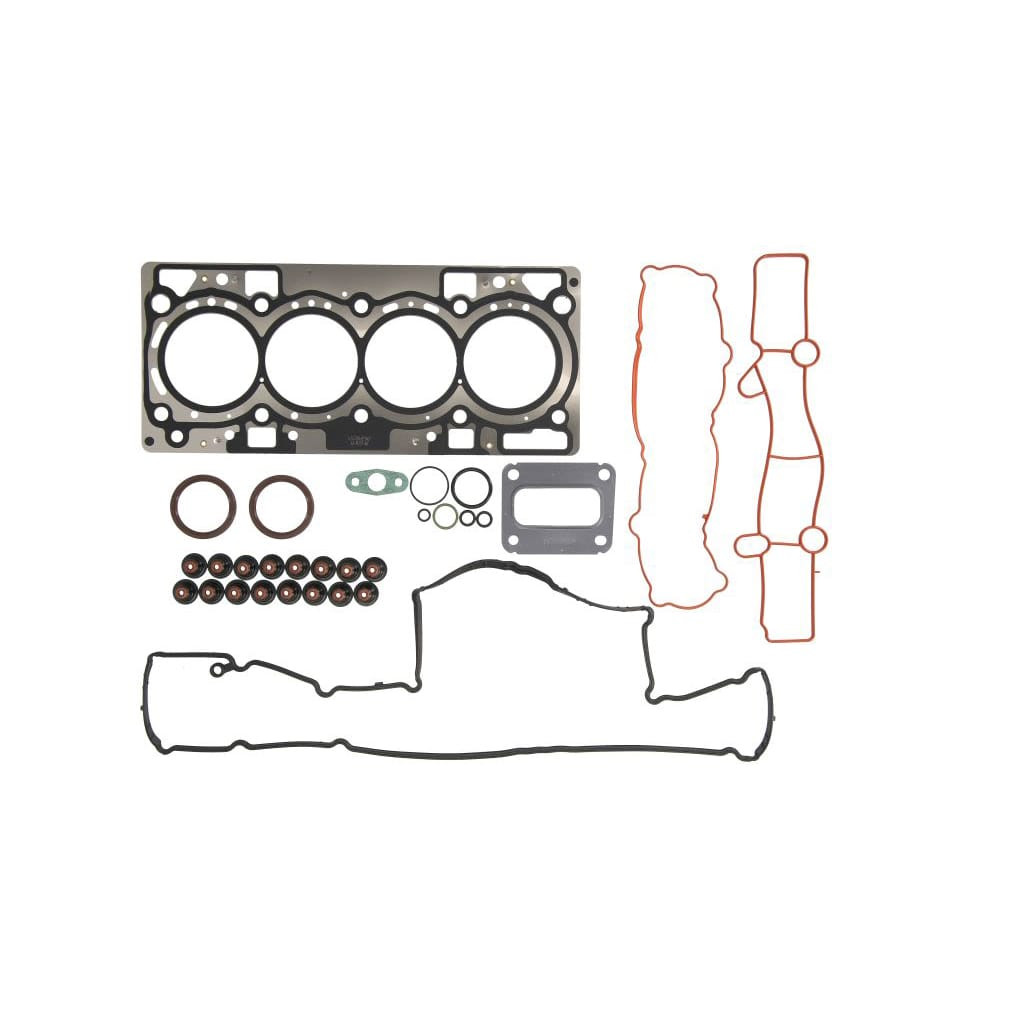

Info: with valve stem seals, with cylinder head gasket

Thickness: 0.6 mm Installed Thickness: 0.6 mm Hole: 80.3 mm Gasket/Seal Design: Multilayer Steel (MLS) Number of layers: 2 -layer

Info: with valve stem seals, with cylinder head gasket

Thread Size: M10 Bolt Head-/Nut Design: Female Torx Thread Pitch: 1.5 mm Length: 140 mm Bolt/Nut Version: with collar

Gasket/Seal Design: Multilayer Steel (MLS) Hole: 80 mm only in connection with: 14-32358-01
