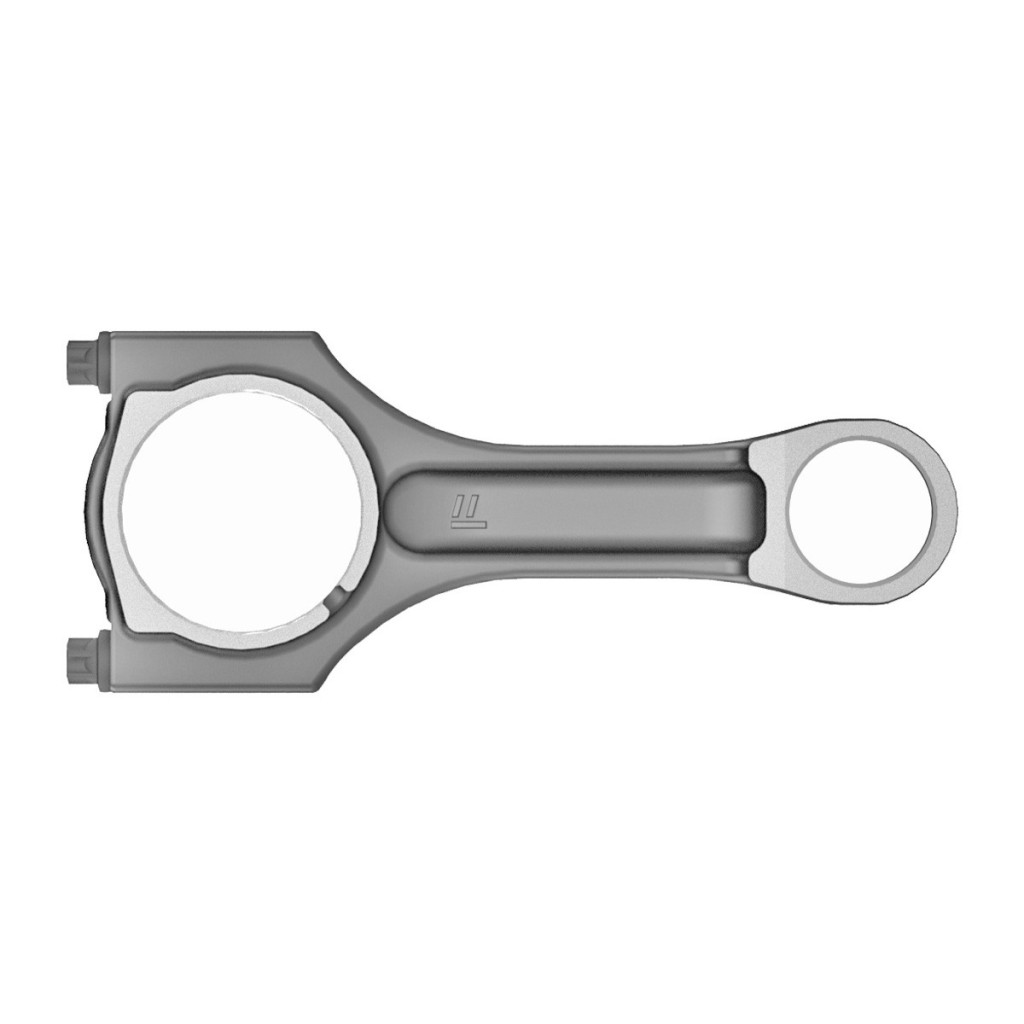

Connecting rod fits BMW N57D30C M550d 750d X5 X6 M50d N57S 2011-19
€60.29
VAT included
Number in pack:

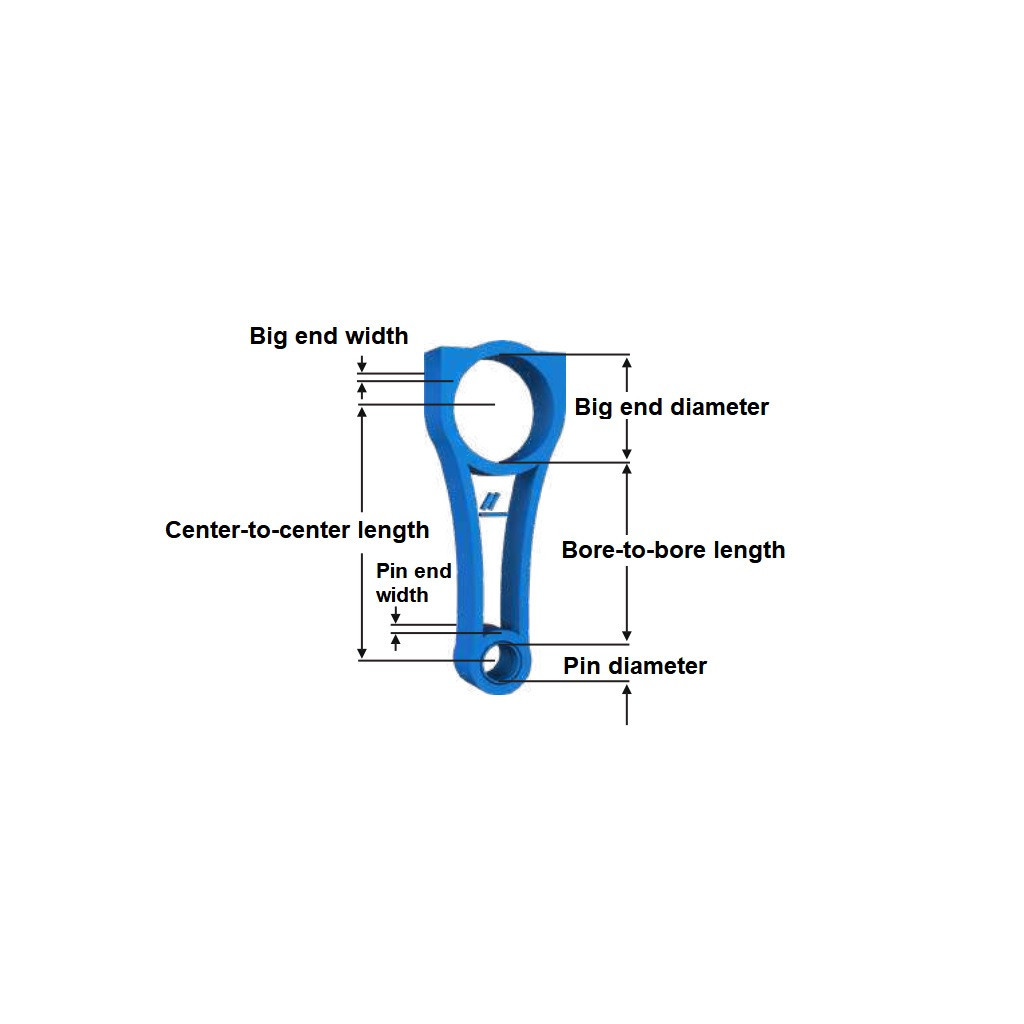

1Big end width: 23.800
Big end diameter: 53.595-53.620
Center-to-center length: 137.000
Bore-to-bore length: 94.200
Pin end width: 25.800
Pin diameter: 32.020-32.040
Weight: 710 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
Last items in stock1Big end width: 23.800
Big end diameter: 53.595-53.620
Center-to-center length: 137.000
Bore-to-bore length: 94.200
Pin end width: 25.800
Pin diameter: 32.020-32.040
Weight: 710 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY1704 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY1704
1 Item
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- 11248506122
- BMW
- 5 Saloon VI (F10 / F18) 2009 - 2016
- M 550 d xDrive (3.0L / 381 Hp / Diesel / N57 D30 C)
- X6 (E71 / E72) 2007 - 2014
- M 50 d (3.0L / 381 Hp / Diesel / N57 D30 C)
- 7 V (F01 / F02 / F01N / F02N / F03 / F03N / F04) 2008 - 2015
- 750 d/Ld xDrive (3.0L / 381 Hp / Diesel / N57 D30 C)
- X5 III (F15 / F85) 2013 - 2018
- M50 d (3.0L / 381 Hp / Diesel / N57 D30 C)
- 5 Estate VI (F11) 2009 - current
- M 550 d xDrive (3.0L / 381 Hp / Diesel / N57 D30 C)
- X5 II (E70) 2006 - 2013
- M 50 d (3.0L / 381 Hp / Diesel / N57 D30 C)
- X6 II (F16 / F86) 2014 - 2019
- M 50 d (3.0L / 381 Hp / Diesel / N57 D30 C)
Specific References
New
Number in pack:
1Big end width: 23.800
Big end diameter: 53.595-53.620
Center-to-center length: 137.000
Bore-to-bore length: 94.200
Pin end width: 25.800
Pin diameter: 32.020-32.040
Weight: 710 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 23.800
Big end diameter: 53.595-53.620
Center-to-center length: 137.000
Bore-to-bore length: 94.200
Pin end width: 25.800
Pin diameter: 32.020-32.040
Weight: 710 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
