Connecting rod fits Mercedes A-B-CLA-GLA-160-180 Citan 1.5d 2018- OM607 OM608 K9K
€60.59
VAT included
Number in pack:

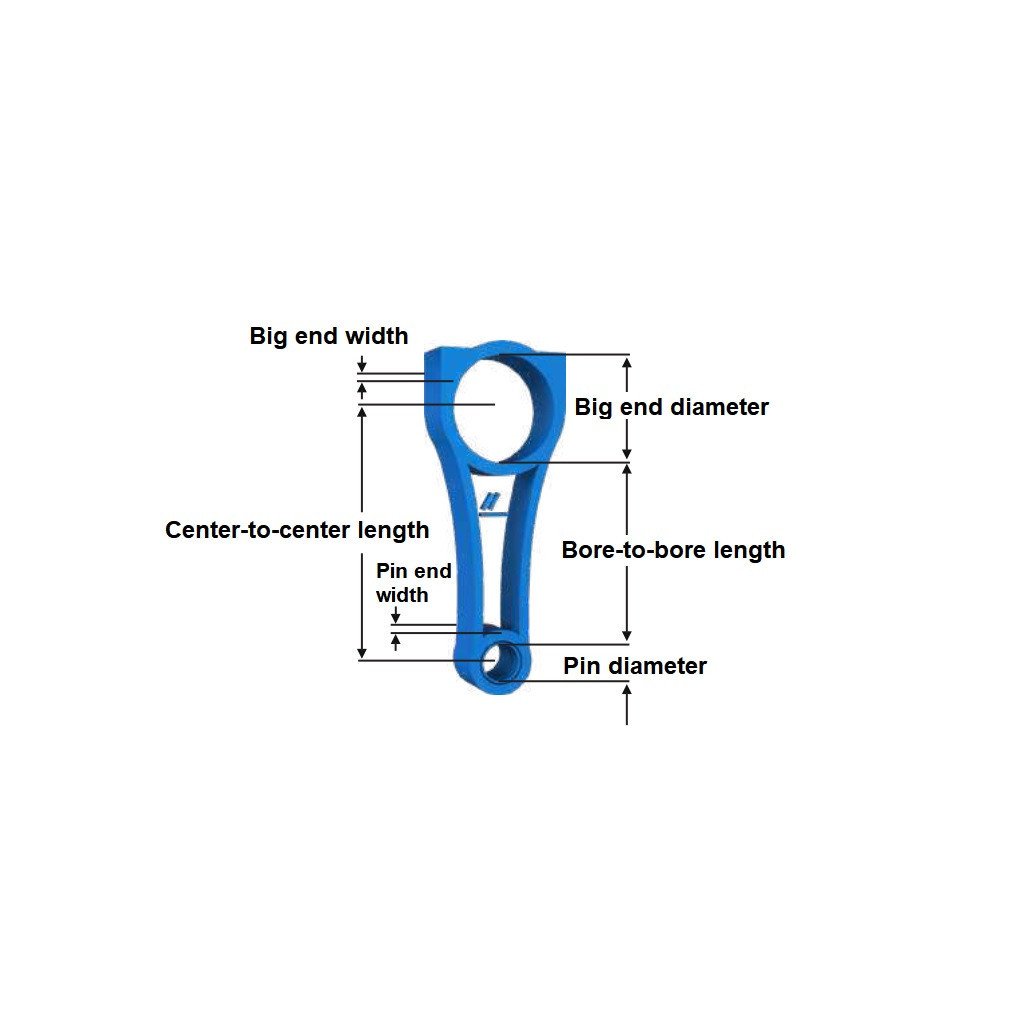

1Big end diameter: 47.614-47.625
Center-to-center length: 142.300
Bore-to-bore length: 105.500
Pin diameter: 26.020-26.035
Weight: 560 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 20 Nm + 45 degree
Notice: Used in forged-steel piston engines
Out-of-Stock1Big end diameter: 47.614-47.625
Center-to-center length: 142.300
Bore-to-bore length: 105.500
Pin diameter: 26.020-26.035
Weight: 560 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 20 Nm + 45 degree
Notice: Used in forged-steel piston engines

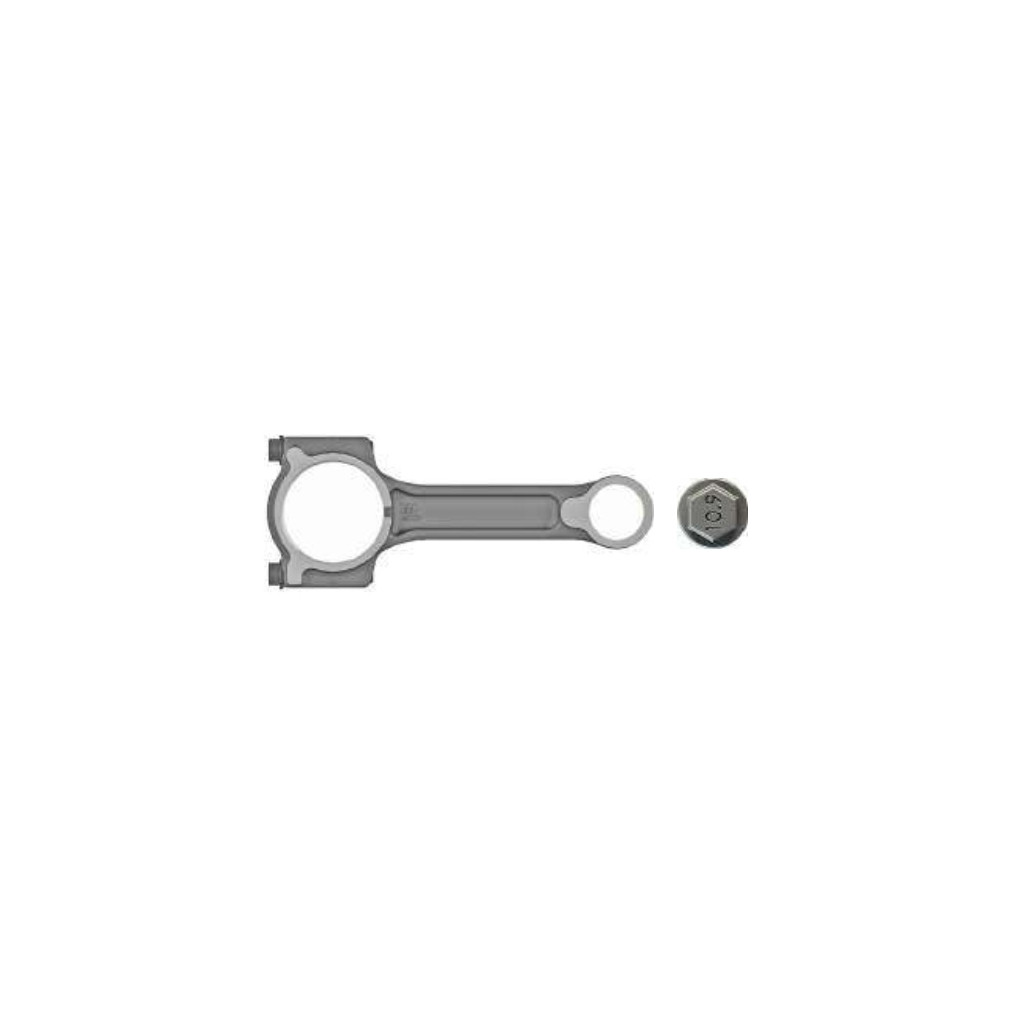

Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0902 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0902
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- 12100-00Q1J
12100-00QAJ
121008820R
6070302100
- Mercedes
- CLA Shooting Brake (X117) 2015 - 2019
- CLA 180 D (1.5L / 109 Hp / Diesel / OM 607.951)
- B II (W246) 2011 - 2018
- B 180 CDI (1.5L / 109 Hp / Diesel / OM 607.951)
- B 160 CDI (1.5L / 90 Hp / Diesel / OM 607.951)
- GLA (X156) 2013 - 2019
- GLA 180 CDI (1.5L / 109 Hp / Diesel / OM 607.951)
- CLA (C117) 2013 - 2019
- CLA 180 CDI (1.5L / 109 Hp / Diesel / OM 607.951)
- A III (W176) 2012 - 2018
- A 160 CDI (1.5L / 90 Hp / Diesel / OM 607.951)
- A 180 CDI (1.5L / 109 Hp / Diesel / OM 607.951)
- CLA II (C118) 2019 - current
- CLA 180 D (1.5L / 116 Hp / Diesel / OM 608.915)
- A Saloon (V177) 2018 - current
- A 160 D (1.5L / 95 Hp / Diesel / OM 608.915)
- A 180 D (1.5L / 116 Hp / Diesel / OM 608.915)
- B III (W247) 2018 - current
- B 160 D (1.5L / 95 Hp / Diesel / OM 608.915)
- B 180 D (1.5L / 116 Hp / Diesel / OM 608.915)
- CLA Shooting Brake II (X118) 2019 - current
- CLA 180 D (1.5L / 116 Hp / Diesel / OM 608.915)
- A Hatch IV (W177) 2018 - current
- A 180 D (1.5L / 116 Hp / Diesel / OM 608.915)
- A 160 D (1.5L / 95 Hp / Diesel / OM 608.915)
- Nissan
- Note II (E12) 2012 - current
- 1.5 dCi (1.5L / 90 Hp / Diesel / K9K 608)
- Renault
- Kadjar (HA_ / HL_) 2015 - current
- 1.5 BLUE dCi 115 (1.5L / 116 Hp / Diesel / K9K 872)
- Megane Hatch III (BZ0_) 2008 - current
- 1.5 dCi (1.5L / 95 Hp / Diesel / K9K 846)
- 1.5 dCi (1.5L / 110 Hp / Diesel / K9K 846)
- Clio V (BF_) 2019 - current
- 1.5 Blue dCi 85 (B7AG) (1.5L / 86 Hp / Diesel / K9K 872)
- 1.5 Blue dCi 115 (B7AD) (1.5L / 116 Hp / Diesel / K9K 872)
- Laguna Grandtour III (KT0/1) 2007 - 2015
- 1.5 dCi (1.5L / 110 Hp / Diesel / K9K 846)
- Captur II 2020 - current
- Blue dCi 95 (HFAF) (1.5L / 95 Hp / K9K 872)
- Blue dCi 115 (HFAD) (1.5L / 116 Hp / K9K 872)
- Kangoo Express II (FW0/1_) 2007 - current
- 1.5 dCi 75 (1.5L / 75 Hp / Diesel / K9K 608)
- 1.5 dCi (1.5L / 90 Hp / Diesel / K9K 608)
- 1.5 dCi 95 (FW16) (1.5L / 95 Hp / Diesel / K9K 872)
- 1.5 dCi 80 (FW15) (1.5L / 80 Hp / Diesel / K9K 872)
- 1.5 dCi 115 (FW17) (1.5L / 116 Hp / Diesel / K9K 872)
- Megane Grandtour III (KZ0/1) 2008 - 2016
- 1.5 dCi (1.5L / 106 Hp / Diesel / K9K 846)
- 1.5 dCi (1.5L / 110 Hp / Diesel / K9K 846)
- 1.5 dCi (1.5L / 95 Hp / Diesel / K9K 846)
- Grand Scenic III (JZ0/1_) 2009 - current
- 1.5 dCi (1.5L / 95 Hp / Diesel / K9K 846)
- Scenic III (JZ0/1_) 2008 - current
- 1.5 dCi (1.5L / 95 Hp / Diesel / K9K 846)
- Megane Coupe III (DZ0_) 2008 - current
- 1.5 dCi (1.5L / 95 Hp / Diesel / K9K 846)
- 1.5 dCi (1.5L / 110 Hp / Diesel / K9K 846)
- Kangoo II (KW0/1_) 2008 - current
- 1.5 dCi (1.5L / 90 Hp / Diesel / K9K 608)
- 1.5 dCi (1.5L / 75 Hp / Diesel / K9K 608)
- 1.5 dCi 115 (KW17) (1.5L / 115 Hp / Diesel / K9K 872)
- 1.5 dCi 80 (KW15) (1.5L / 80 Hp / Diesel / K9K 872)
- 1.5 dCi 95 (KW16) (1.5L / 95 Hp / Diesel / K9K 872)
- Laguna Coupe III (DT0/1_) 2008 - 2015
- 1.5 dCi (1.5L / 110 Hp / Diesel / K9K 846)
- Clio IV (BH/CH_) 2012 - current
- 1.5 dCi 90 (1.5L / 90 Hp / Diesel / K9K 608)
- Clio Grandtour IV (KH_) 2012 - current
- 1.5 dCi 90 (1.5L / 90 Hp / Diesel / K9K 608)
- Scenic IV (J9_) 2016 - current
- 1.5 dCi 95 (1.5L / 95 Hp / Diesel / K9K 846)
- Captur (H5_ / J5_) 2013 - current
- 1.5 dCi 90 (1.5L / 90 Hp / Diesel / K9K 608)
- Megane Grandtour IV (K9A/M) 2016 - current
- 1.5 Blue dCi 95 (K9A2) (1.5L / 95 Hp / Diesel / K9K 872)
- 1.5 Blue dCi 115 (K9A6) (1.5L / 116 Hp / Diesel / K9K 872)
- Megane Hatch IV (B9A/M) 2015 - current
- 1.5 Blue dCi 115 (B9A6) (1.5L / 116 Hp / Diesel / K9K 872)
- 1.5 Blue dCi 95 (B9A2) (1.5L / 95 Hp / Diesel / K9K 872)
- Dacia
- Dokker Express 2012 - current
- 1.5 Blue dCi 95 (FEJL) (1.5L / 95 Hp / Diesel / K9K 872)
- 1.5 dCi (1.5L / 75 Hp / Diesel / K9K 872)
- Dokker (KE_) 2012 - current
- 1.5 dCi (1.5L / 75 Hp / Diesel / K9K 872)
- 1.5 Blue dCi 95 (KEJL) (1.5L / 95 Hp / Diesel / K9K 872)
- Logan MCV II 2013 - current
- 1.5 Blue dCi 95 (K8JL) (1.5L / 95 Hp / Diesel / K9K 872)
- Logan II 2012 - current
- 1.5 Blue dCi 95 (L8JL) (1.5L / 95 Hp / Diesel / K9K 872)
- 1.5 dCi (1.5L / 75 Hp / Diesel / K9K 872)
- Sandero II 2012 - current
- 1.5 Blue dCi 95 (B8JL) (1.5L / 95 Hp / Diesel / K9K 872)
- 1.5 dCi (1.5L / 75 Hp / Diesel / K9K 872)
- Lodgy (JS_) 2012 - current
- 1.5 dCi (1.5L / 109 Hp / Diesel / K9K 846)
- 1.5 dCi (1.5L / 107 Hp / Diesel / K9K 846)
Specific References
New
Number in pack:
1Big end diameter: 47.614-47.625
Center-to-center length: 142.300
Bore-to-bore length: 105.500
Pin diameter: 26.020-26.035
Weight: 560 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 20 Nm + 45 degree
Notice: Used in forged-steel piston engines
1Big end diameter: 47.614-47.625
Center-to-center length: 142.300
Bore-to-bore length: 105.500
Pin diameter: 26.020-26.035
Weight: 560 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 20 Nm + 45 degree
Notice: Used in forged-steel piston engines
