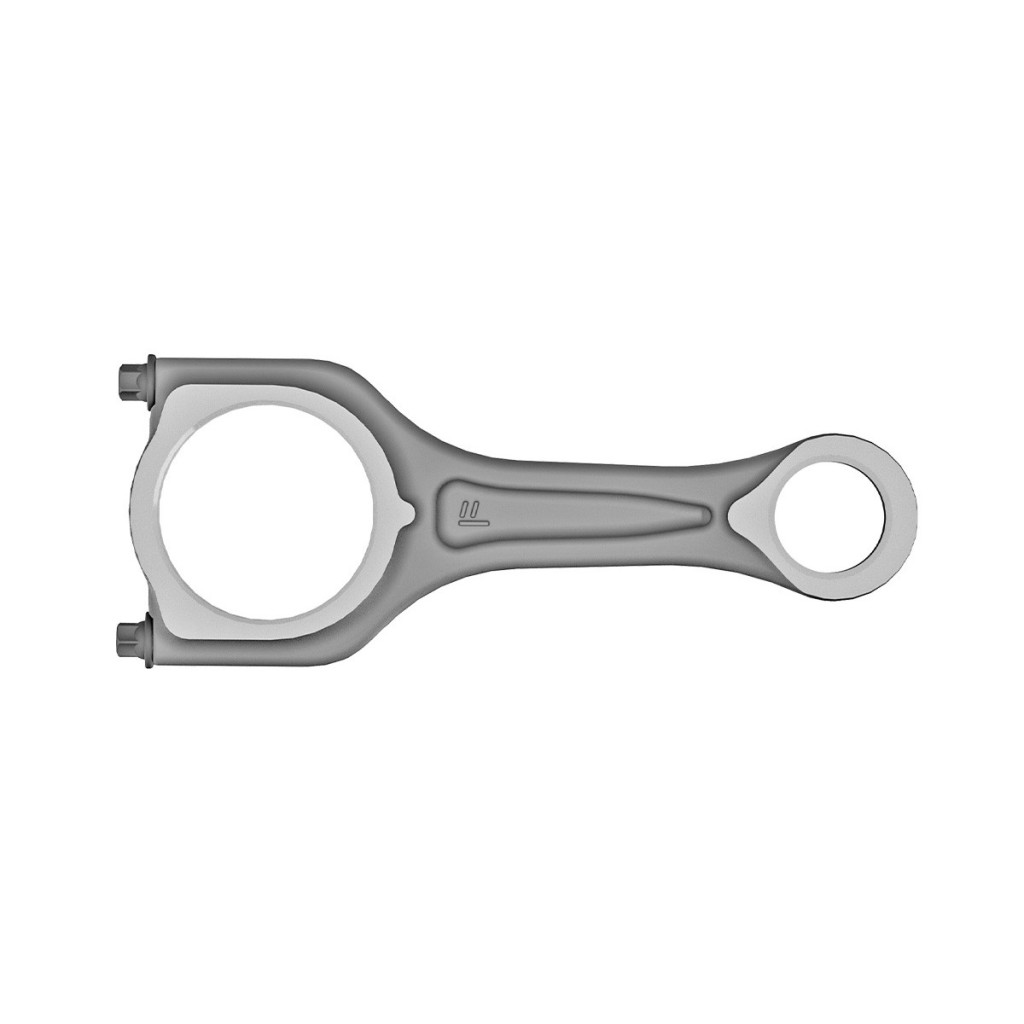

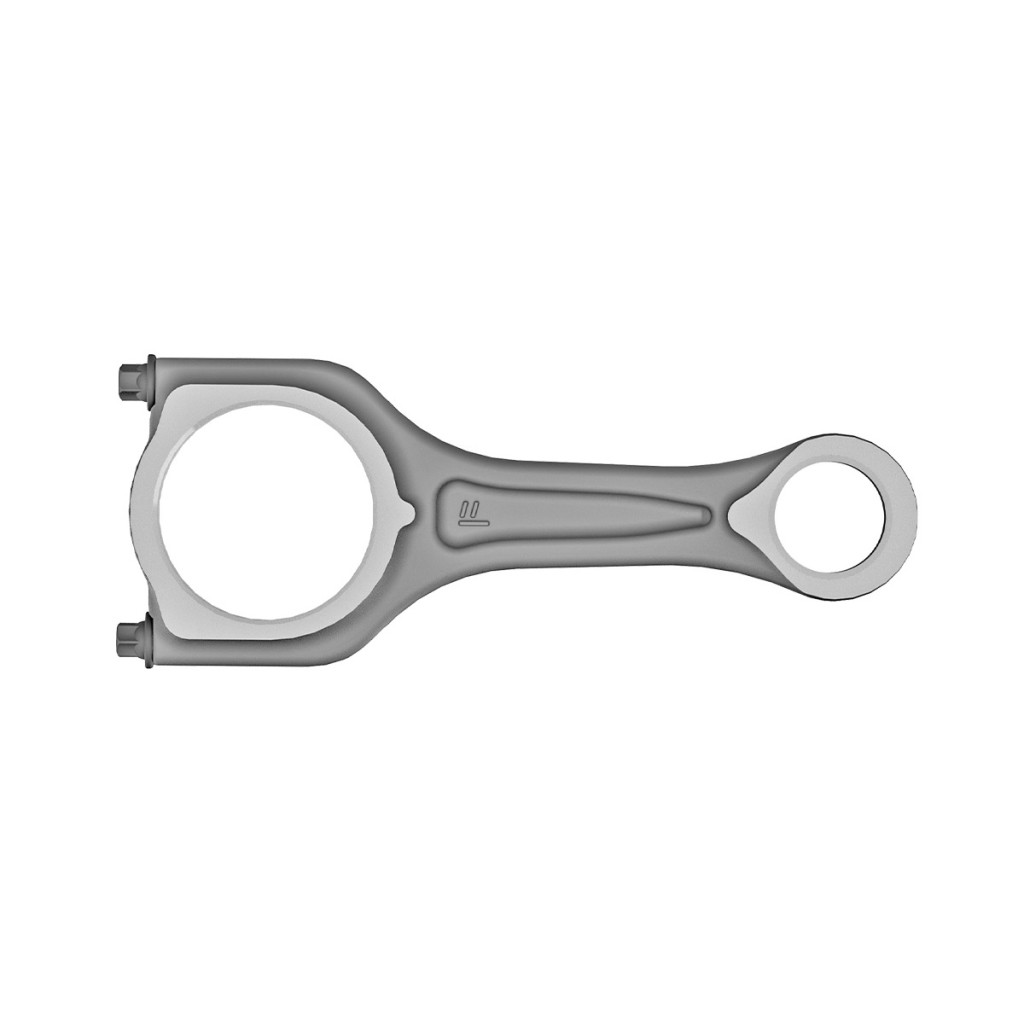

Connecting rod fits Peugeot 1007 206 207 307 C2 C3 1.4 HDi 2001-
€49.19
VAT included
Number in pack:

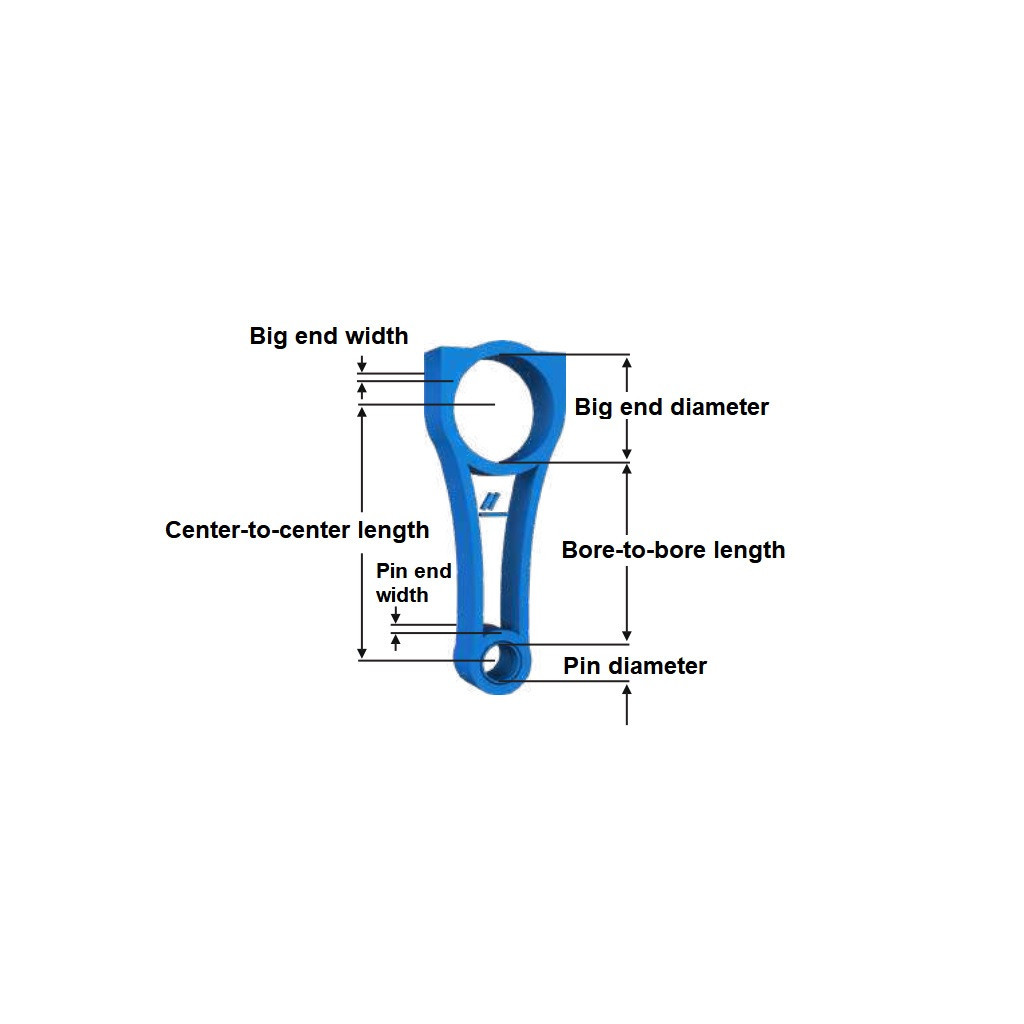

1Big end width: 20.800
Big end diameter: 48.660-48.680
Center-to-center length: 126.800
Bore-to-bore length: 89.960
Pin end width: 20.800
Pin diameter: 25.020-25.032
Weight: 500 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 5 Nm + 10 Nm + 130 degree
Last items in stock1Big end width: 20.800
Big end diameter: 48.660-48.680
Center-to-center length: 126.800
Bore-to-bore length: 89.960
Pin end width: 20.800
Pin diameter: 25.020-25.032
Weight: 500 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 5 Nm + 10 Nm + 130 degree
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0806 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0806
4 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- 7S6Q-6200-AC
0603.88
0603A8
1509473
- Ford
- Fiesta Estate VI 2001 - 2008
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JA)
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JB)
- Fiesta Hatch VII (JJ_ / JG_ / KD_ / KC_) 2008 - current
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JB)
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JD)
- 1.4 TDCi (1.4L / 70 Hp / Diesel / KVJA)
- 1.4 TDCi (1.4L / 70 Hp / Diesel / F6JD)
- Fusion Estate (JU_) 2002 - 2012
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JB)
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JA)
- Fiesta Hatch VI (JH_ / JD_) 2001 - 2008
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JB)
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JA)
- Fiesta Estate VII 2008 - current
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JB)
- 1.4 TDCi (1.4L / 70 Hp / Diesel / F6JD)
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JD)
- 1.4 TDCi (1.4L / 70 Hp / Diesel / KVJA)
- Mazda
- Mazda2 Hatch (DY) 2003 - 2007
- 1.4 CD (1.4L / 68 Hp / Diesel / F6JA)
- Peugeot
- 206 Hatch (2A/C) 1998 - 2012
- 1.4 HDi eco 70 (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 206 SW (2E/K) 2002 - 2008
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 206+ Hatch (T3E) 2009 - 2013
- 1.4 HDi eco 70 (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 307 Break (3E) 2002 - 2010
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 307 SW (3H) 2002 - 2010
- 1.4 HDi 70 (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 1.4 HDi (1.4L / 69 Hp / Diesel / 8HZ (DV4TD))
- 207 Hatch (WA_ / WC_) 2006 - 2012
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 206 Saloon (2B) 2006 - current
- 1.4 HDi eco 70 (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 307 Hatch (3A/C) 2000 - 2010
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 1007 (KM_) 2005 - 2010
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 207 Estate (WA_ / WC_) 2006 - current
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 206 Van (2S) 1999 - 2008
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- Citroen
- C3 (FC_) 2002 - 2009
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- 1.4 HDi (1.4L / 70 Hp / Diesel / 8HZ (DV4TD))
- 1.4 16V HDi (1.4L / 90 Hp / Diesel / 8HY (DV4TED4))
- C3 II (A51) 2009 - 2016
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- C2 (JM_) 2003 - current
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- C2 (JM_) 2003 - 2017
- 1.4 HDi (1.4L / 68 Hp / Diesel / 8HZ (DV4TD))
- Ford Asia
- Fiesta Saloon II 2005 - current
- 1.4 TDCi (1.4L / 68 Hp / Diesel / F6JA)
- Ikon Saloon (L) 1999 - current
- 1.4 Duratorq TDCi (1.4L / 68 Hp / Diesel / F6JA)
Specific References
New
Number in pack:
1Big end width: 20.800
Big end diameter: 48.660-48.680
Center-to-center length: 126.800
Bore-to-bore length: 89.960
Pin end width: 20.800
Pin diameter: 25.020-25.032
Weight: 500 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 5 Nm + 10 Nm + 130 degree
1Big end width: 20.800
Big end diameter: 48.660-48.680
Center-to-center length: 126.800
Bore-to-bore length: 89.960
Pin end width: 20.800
Pin diameter: 25.020-25.032
Weight: 500 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 5 Nm + 10 Nm + 130 degree
