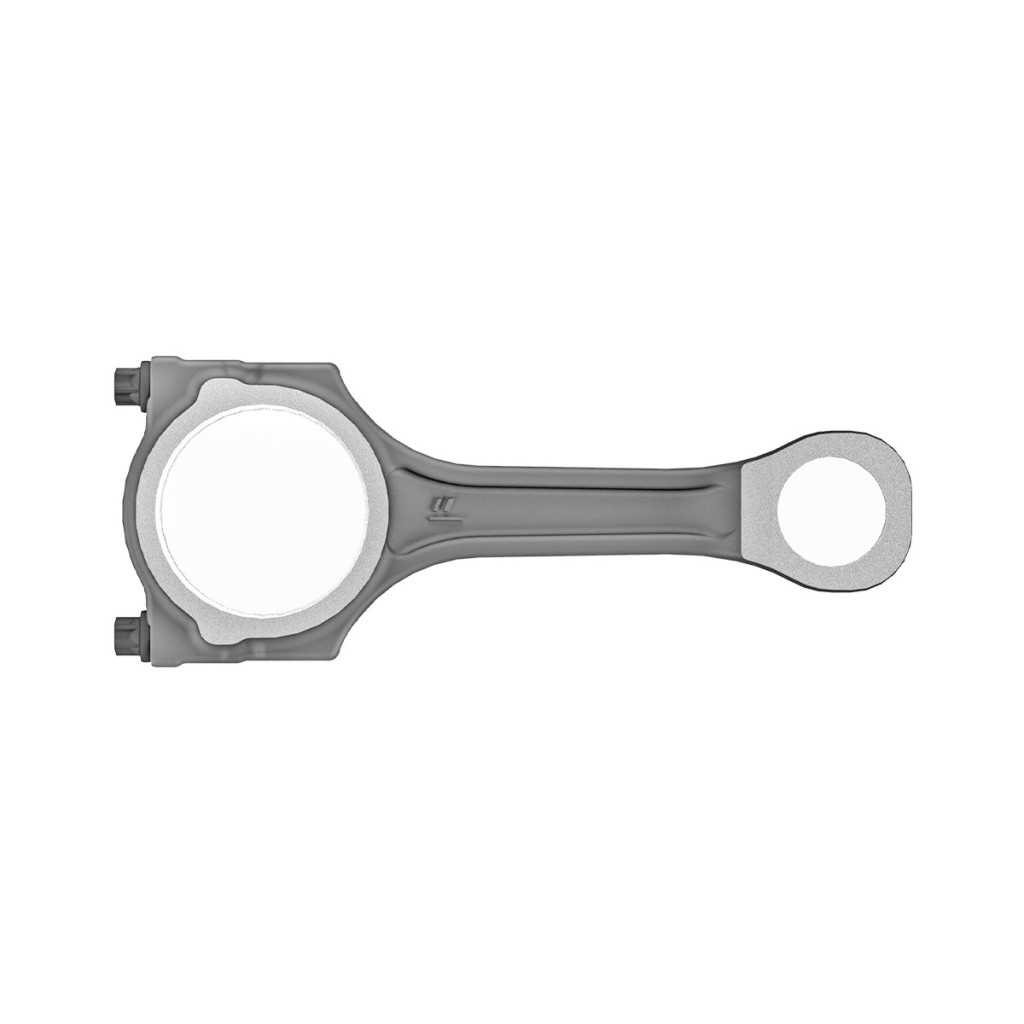

Connecting rod 160mm fits Ford P22DTE Boxer Jumper Ducato Transit 2.2 HDi TDCi
€58.99
VAT included
Number in pack:
1Big end width: 28.800
Big end diameter: 55.995-56.016
Center-to-center length: 160.000
Bore-to-bore length: 117.000
Pin end width: 28.800
Pin diameter: 30.020-30.035
Weight: 873 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 30 Nm + 100 degree
Notice: Suitable for pistons with a compression height of 43.42 mm
1Big end width: 28.800
Big end diameter: 55.995-56.016
Center-to-center length: 160.000
Bore-to-bore length: 117.000
Pin end width: 28.800
Pin diameter: 30.020-30.035
Weight: 873 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 30 Nm + 100 degree
Notice: Suitable for pistons with a compression height of 43.42 mm
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0805 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0805
16 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- 1S7Q-6200-CAA
1S7Q-6200-CBA
1S7Q-6200-CCA
0603.97
0603.98
0603.99
1377616
1377618
1377620
1548564
1614885
9659672280
9661857980
9661858180
9667060880
9667061080
C2S39972
C2S39983
C2S39984
JDE4637
JDE4641
JDE4642
Specific References
New
Number in pack:
1Big end width: 28.800
Big end diameter: 55.995-56.016
Center-to-center length: 160.000
Bore-to-bore length: 117.000
Pin end width: 28.800
Pin diameter: 30.020-30.035
Weight: 873 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 30 Nm + 100 degree
Notice: Suitable for pistons with a compression height of 43.42 mm
1Big end width: 28.800
Big end diameter: 55.995-56.016
Center-to-center length: 160.000
Bore-to-bore length: 117.000
Pin end width: 28.800
Pin diameter: 30.020-30.035
Weight: 873 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
2nd Torque option: 30 Nm + 100 degree
Notice: Suitable for pistons with a compression height of 43.42 mm
