Connecting rod fits Mercedes A-CLA-GLA-160-180-200 1.6L 2011-2019 M270.910
€72.29
VAT included
Number in pack:

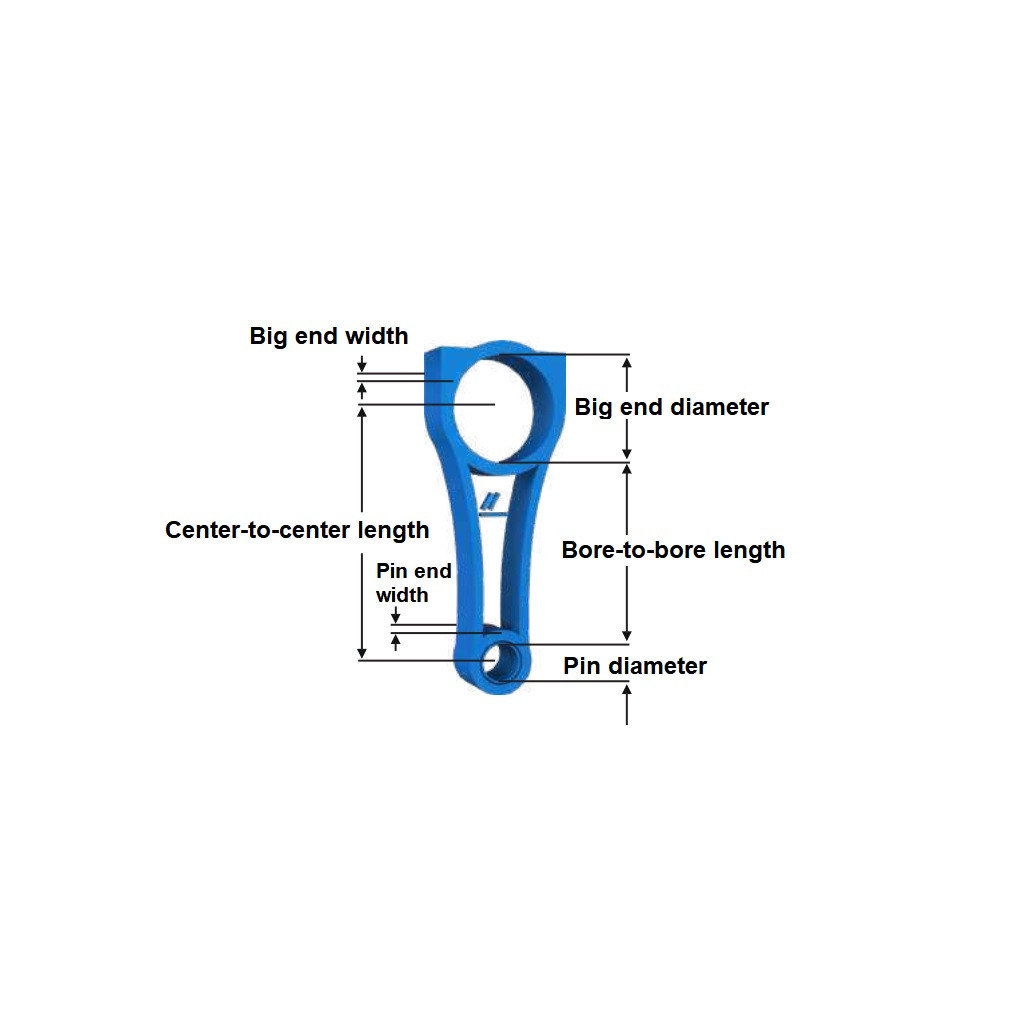

1Big end width: 20.000
Big end diameter: 45.000-45.014
Center-to-center length: 152.150
Bore-to-bore length: 119.650
Pin end width: 20.000
Pin diameter: 20.000-20.014
Weight: 440 gr

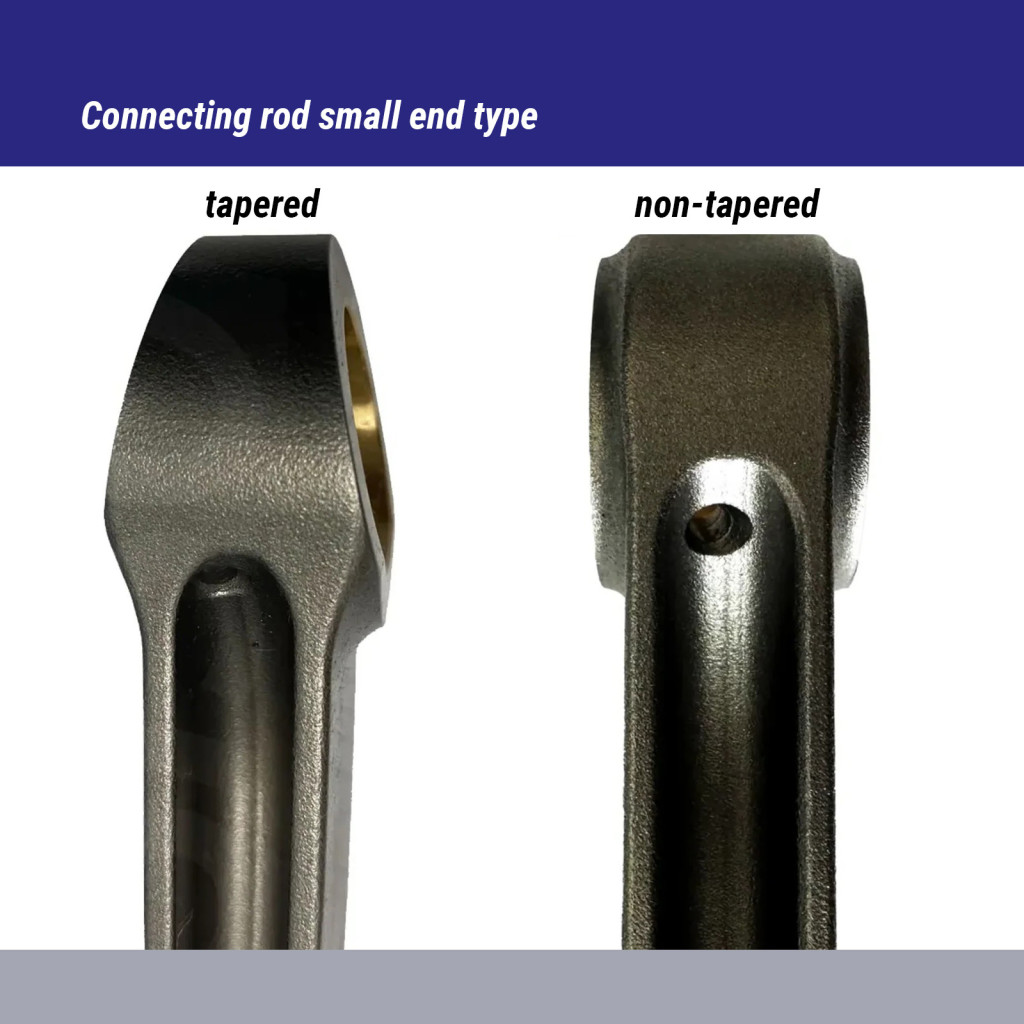

Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 20.000
Big end diameter: 45.000-45.014
Center-to-center length: 152.150
Bore-to-bore length: 119.650
Pin end width: 20.000
Pin diameter: 20.000-20.014
Weight: 440 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm

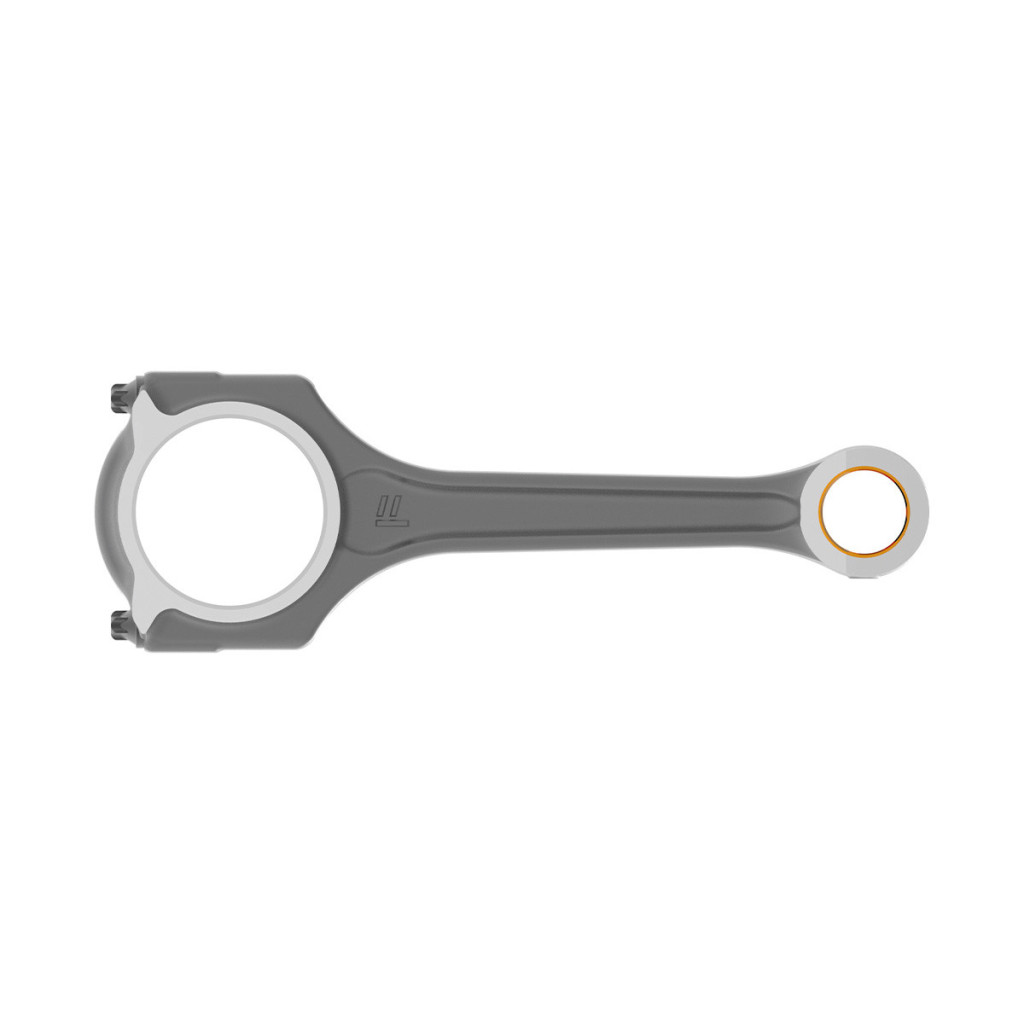

Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0717 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0717-1
14 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- A2700300020
A2700300320
A2700300420
A2700300520
A2700300820
- Mercedes
- C Estate III (S204) 2007 - 2014
- C 180 CGI (1.6L / 156 Hp / Petrol / M 274.910)
- C Saloon III (W204) 2007 - 2013
- C 180 CGI (1.6L / 156 Hp / Petrol / M 274.910)
- E Saloon IV (W212) 2009 - 2016
- E 180 (1.8L / 158 Hp / Petrol / M 270.910)
- E 180 (1.8L / 158 Hp / Petrol / M 274.910)
- C Coupe II (C204) 2011 - 2015
- C 180 (1.6L / 156 Hp / Petrol / M 274.910)
- C Saloon IV (W205) 2013 - current
- C 160 (1.6L / 129 Hp / Petrol / M 270.910)
- C 160 (1.6L / 129 Hp / Petrol / M 274.910)
- C 180 (1.6L / 150 Hp / Petrol / M 274.910)
- C 180 (1.6L / 156 Hp / Petrol / M 274.910)
- C Estate IV (S205) 2014 - current
- C 160 (1.6L / 129 Hp / Petrol / M 270.910)
- C 180 (1.6L / 156 Hp / Petrol / M 274.910)
- C 160 (1.6L / 129 Hp / Petrol / M 274.910)
- C Cabrio IV (A205) 2014 - current
- C 180 (1.6L / 150 Hp / Petrol / M 270.910)
- C 180 (1.6L / 150 Hp / Petrol / M 274.910)
- C Coupe III (C205) 2014 - current
- C 180 (1.6L / 150 Hp / Petrol / M 274.910)
- CLA Shooting Brake (X117) 2015 - 2019
- CLA 180 (1.6L / 122 Hp / Petrol / M 270.910)
- CLA 200 (1.6L / 156 Hp / Petrol / M 270.910)
- B II (W246) 2011 - 2018
- B 180 (1.6L / 122 Hp / Petrol / M 270.910)
- B 200 (1.6L / 156 Hp / Petrol / M 270.910)
- B 160 (1.6L / 102 Hp / Petrol / M 270.910)
- GLA (X156) 2013 - 2019
- GLA 200 (1.6L / 150-156 Hp / Petrol / M 270.910)
- GLA 180 (1.6L / 122 Hp / Petrol / M 270.910)
- GLA 200 (1.6L / 150 Hp / Petrol / M 270.910)
- CLA (C117) 2013 - 2019
- CLA 200 (1.6L / 156 Hp / Petrol / M 270.910)
- CLA 180 (1.6L / 122 Hp / Petrol / M 270.910)
- CLA 200 (1.6L / 150 Hp / Petrol / M 270.910)
- A III (W176) 2012 - 2018
- A 160 (1.6L / 102 Hp / Petrol / M 270.910)
- A 200 (1.6L / 156 Hp / Petrol / M 270.910)
- A 180 (1.6L / 122 Hp / Petrol / M 270.910)
- SLC (R172) 2016 - current
- SLC 180 (1.6L / 156 Hp / Petrol / M 270.910)
- SLC 180 (1.6L / 156 Hp / Petrol / M 274.910)
- SLC (R172) 2015 - 2020
- SLC 180 (1.6L / 156 Hp / Petrol / M 270.910)
- SLC 180 (1.6L / 156 Hp / Petrol / M 274.910)
Specific References
New
Number in pack:
1Big end width: 20.000
Big end diameter: 45.000-45.014
Center-to-center length: 152.150
Bore-to-bore length: 119.650
Pin end width: 20.000
Pin diameter: 20.000-20.014
Weight: 440 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 20.000
Big end diameter: 45.000-45.014
Center-to-center length: 152.150
Bore-to-bore length: 119.650
Pin end width: 20.000
Pin diameter: 20.000-20.014
Weight: 440 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
