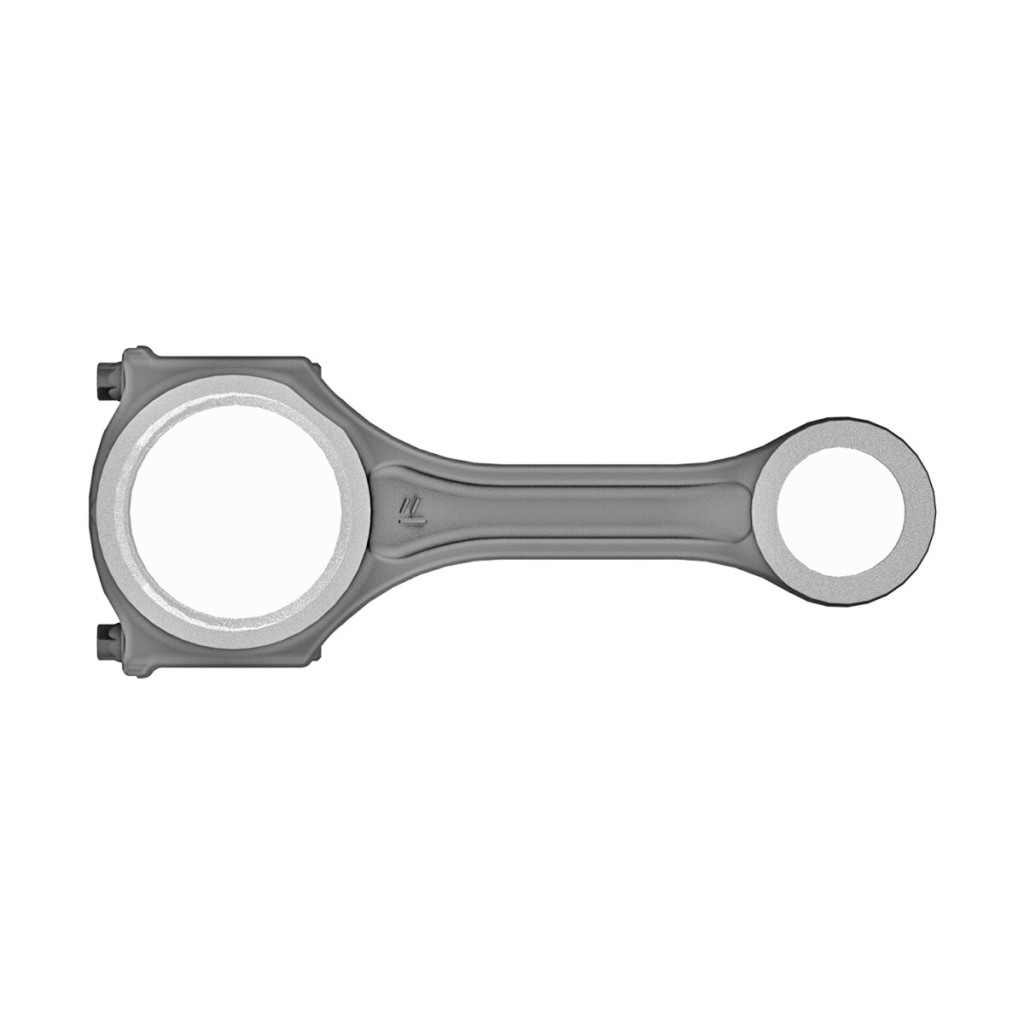

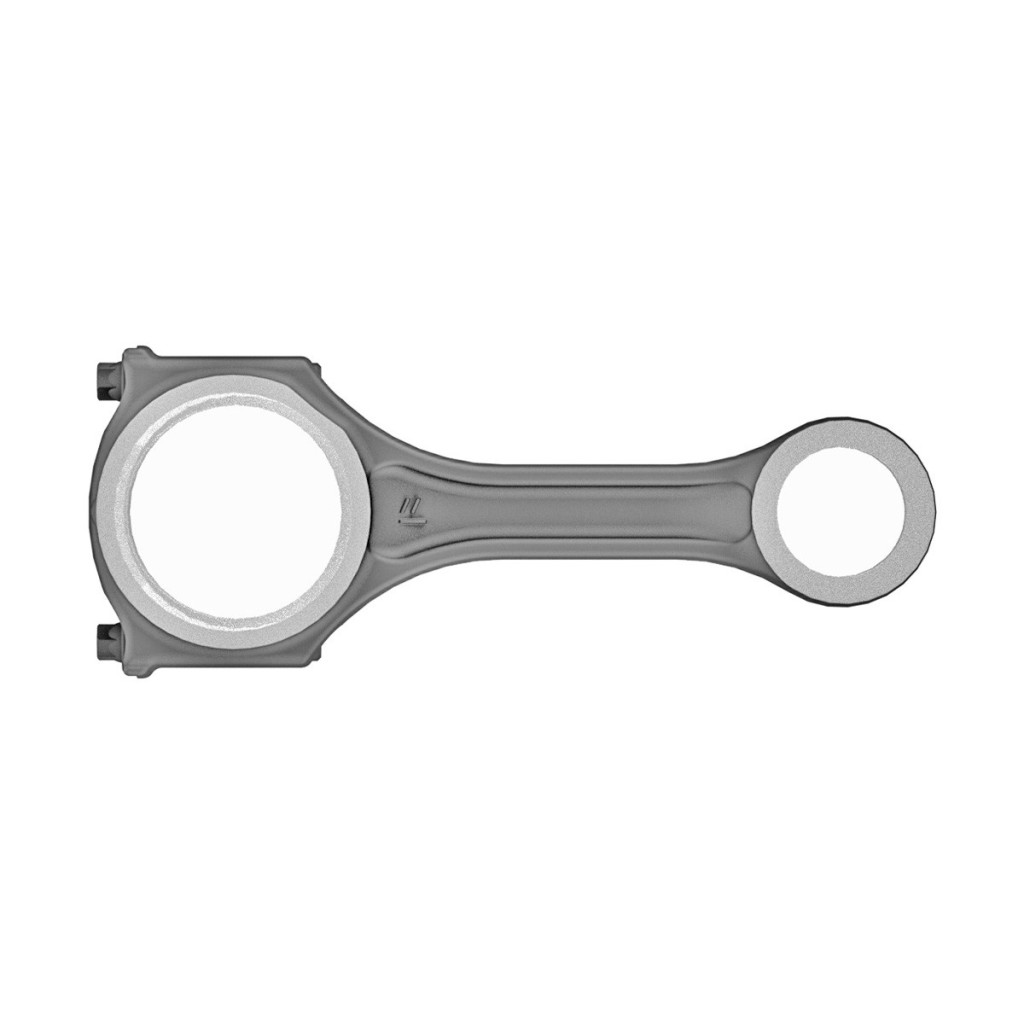

Connecting rod 113mm fits Isuzu D-Max 2.5d 3.0d 2005-2011 4JK1 4JJ1
€82.39
VAT included
Number in pack:

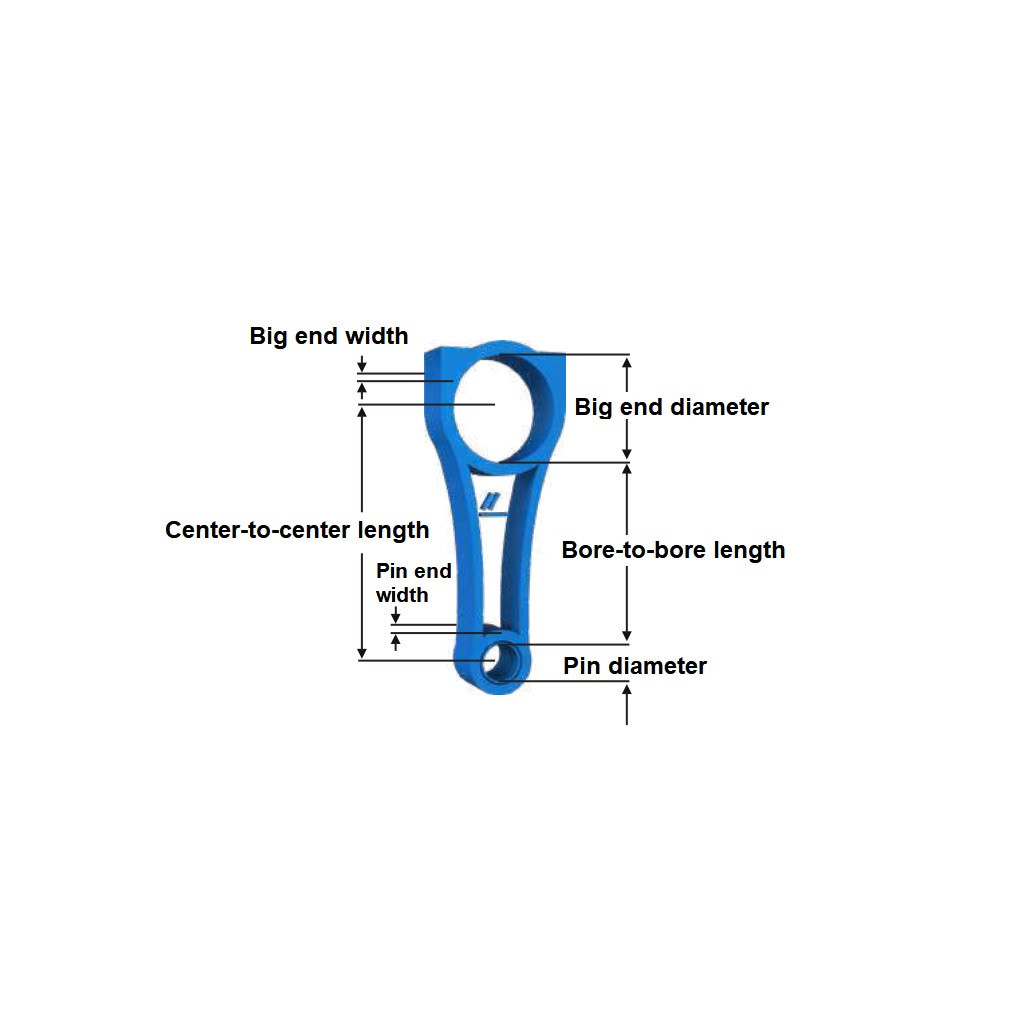

1Big end width: 32.900
Big end diameter: 55.985-56.010
Center-to-center length: 158.000
Bore-to-bore length: 113.000
Pin end width: 32.900
Pin diameter: 34.020-34.035
Weight: 1170 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
1Big end width: 32.900
Big end diameter: 55.985-56.010
Center-to-center length: 158.000
Bore-to-bore length: 113.000
Pin end width: 32.900
Pin diameter: 34.020-34.035
Weight: 1170 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0408 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0408
8 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- 8973577163
8975240240
Specific References
New
Number in pack:
1Big end width: 32.900
Big end diameter: 55.985-56.010
Center-to-center length: 158.000
Bore-to-bore length: 113.000
Pin end width: 32.900
Pin diameter: 34.020-34.035
Weight: 1170 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
1Big end width: 32.900
Big end diameter: 55.985-56.010
Center-to-center length: 158.000
Bore-to-bore length: 113.000
Pin end width: 32.900
Pin diameter: 34.020-34.035
Weight: 1170 gr
Specifications: Forged; Cracked; Tapered
Torque: 80 Nm
