Connecting rod fits Land Rover Velar Evoque Discovery Defender XF 2016- 204DTA
€78.69
VAT included
Number in pack:

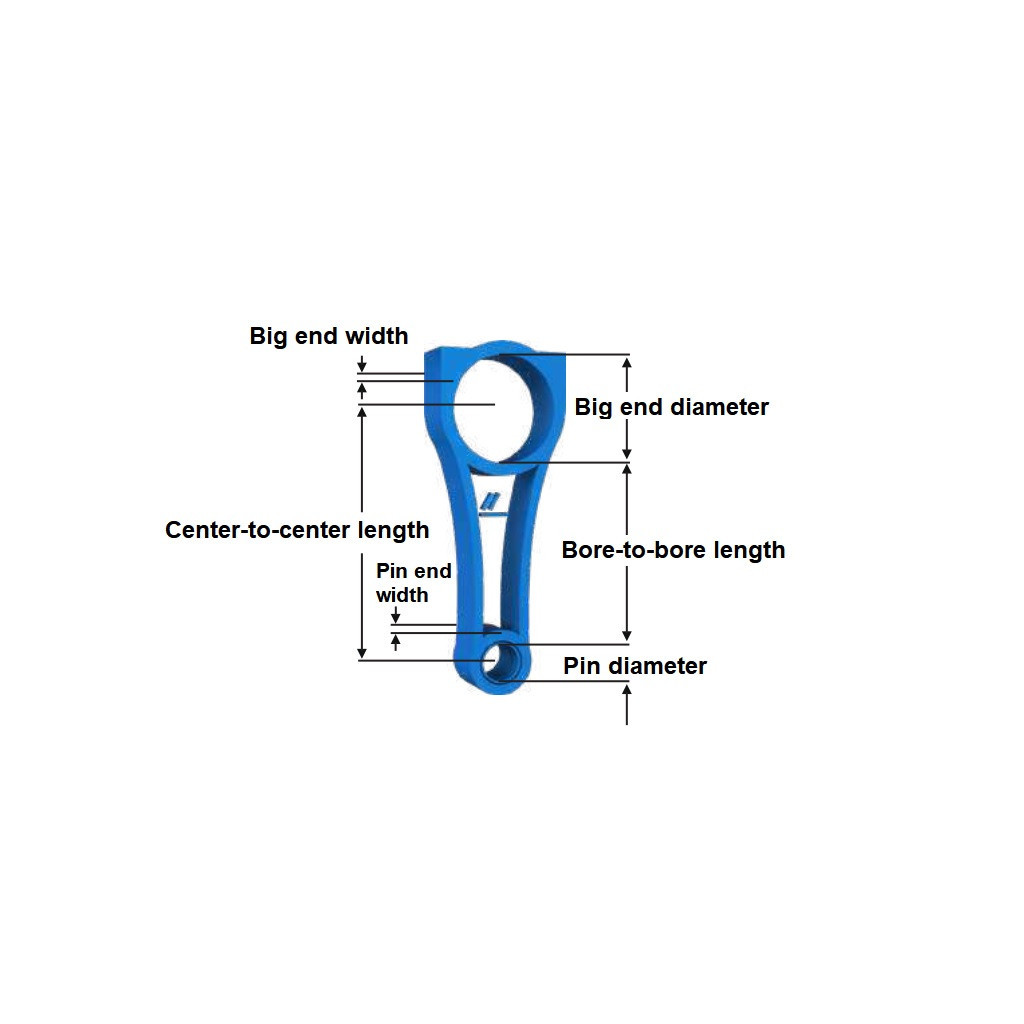

1Big end width: 24.650
Big end diameter: 58.000-58.018
Center-to-center length: 140.000
Bore-to-bore length: 95.000
Pin end width: 24.650
Pin diameter: 32.020-32.035
Weight: 817 gr
Specifications: Forged; Cracked; Tapered
Torque: 50 Nm
2nd Torque option: 20 Nm + 80 degree
1Big end width: 24.650
Big end diameter: 58.000-58.018
Center-to-center length: 140.000
Bore-to-bore length: 95.000
Pin end width: 24.650
Pin diameter: 32.020-32.035
Weight: 817 gr
Specifications: Forged; Cracked; Tapered
Torque: 50 Nm
2nd Torque option: 20 Nm + 80 degree

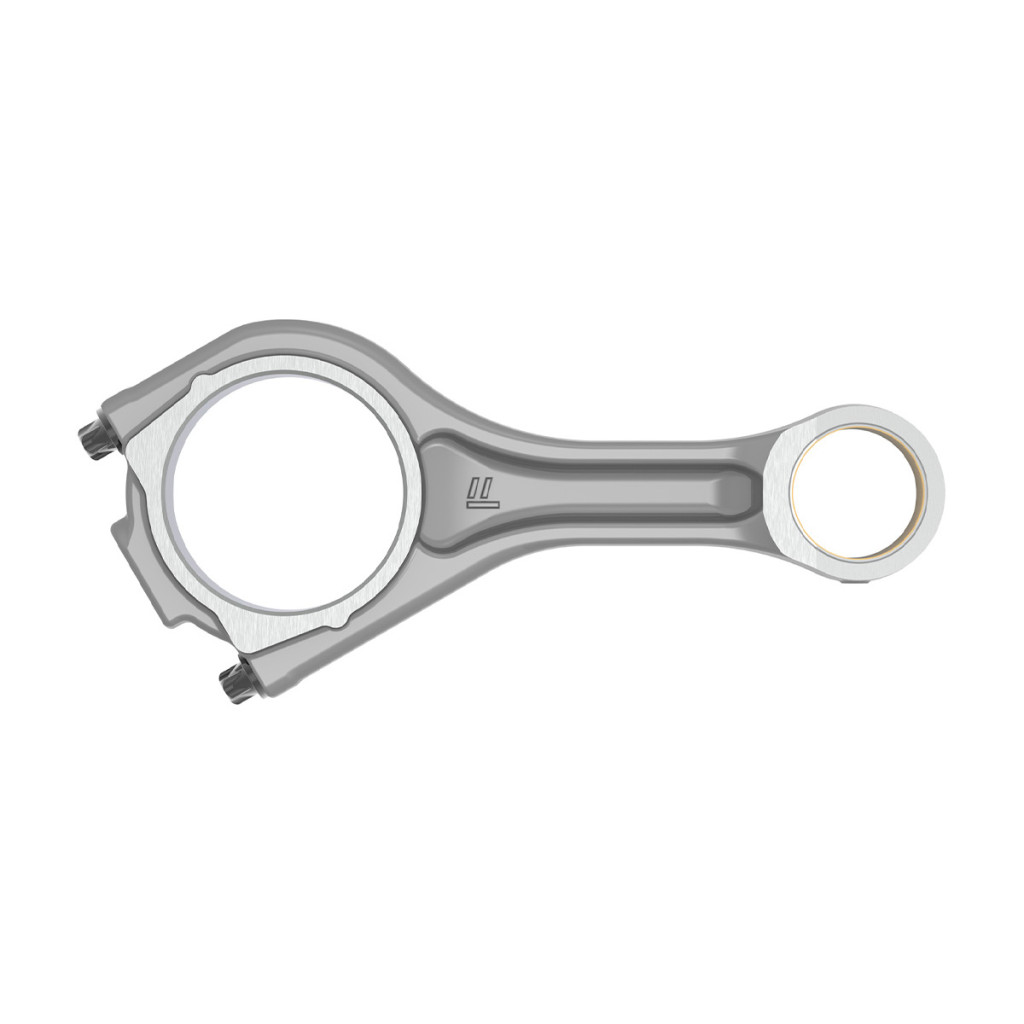

Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0203 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
Number in pack:
1Big end width: 24.650
Big end diameter: 58.000-58.018
Center-to-center length: 140.000
Bore-to-bore length: 95.000
Pin end width: 24.650
Pin diameter: 32.020-32.035
Weight: 817 gr
Specifications: Forged; Cracked; Tapered
Torque: 50 Nm
2nd Torque option: 20 Nm + 80 degree
1Big end width: 24.650
Big end diameter: 58.000-58.018
Center-to-center length: 140.000
Bore-to-bore length: 95.000
Pin end width: 24.650
Pin diameter: 32.020-32.035
Weight: 817 gr
Specifications: Forged; Cracked; Tapered
Torque: 50 Nm
2nd Torque option: 20 Nm + 80 degree
