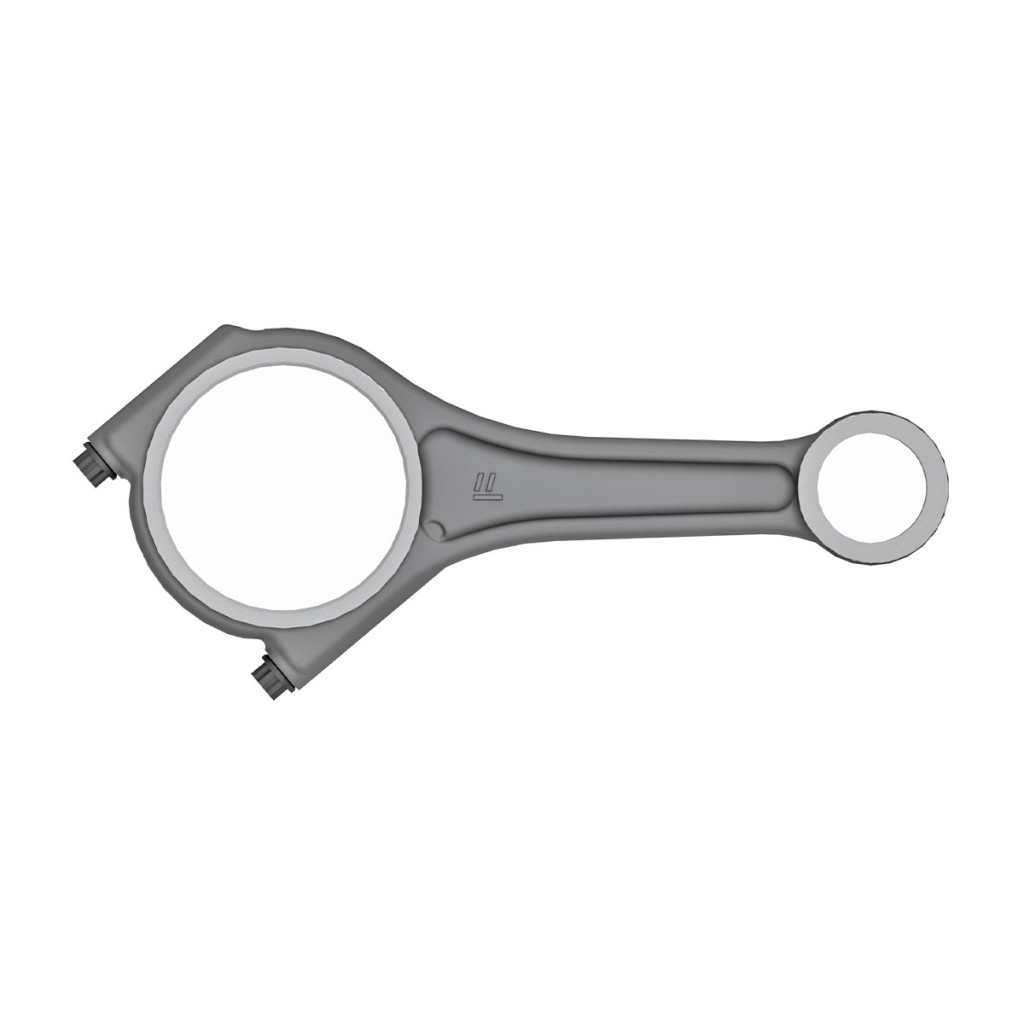

Connecting rod fits Land Rover Discovery Range Rover 3.0 2009- 306DT
€82.69
VAT included
Number in pack:

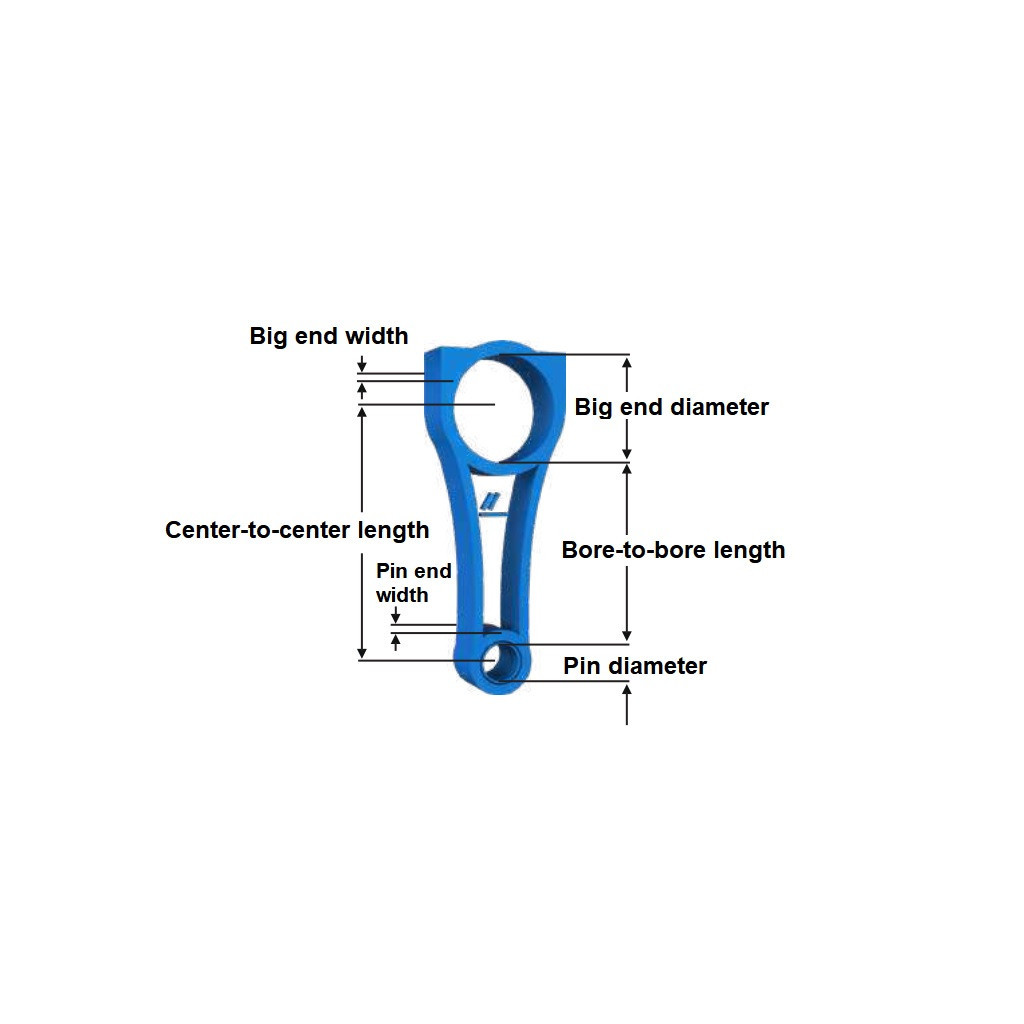

1Big end width: 18.300
Big end diameter: 65.995-66.020
Center-to-center length: 160.000
Bore-to-bore length: 112.000
Pin end width: 23.200
Pin diameter: 30.020-30.035
Weight: 712 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 80 degree
1Big end width: 18.300
Big end diameter: 65.995-66.020
Center-to-center length: 160.000
Bore-to-bore length: 112.000
Pin end width: 23.200
Pin diameter: 30.020-30.035
Weight: 712 gr
Specifications: Forged; Cracked; Tapered
Torque: 45 Nm
2nd Torque option: 20 Nm + 80 degree
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY0202 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY0202
16 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- DA6626
LR038168
LR051508
Specific References
