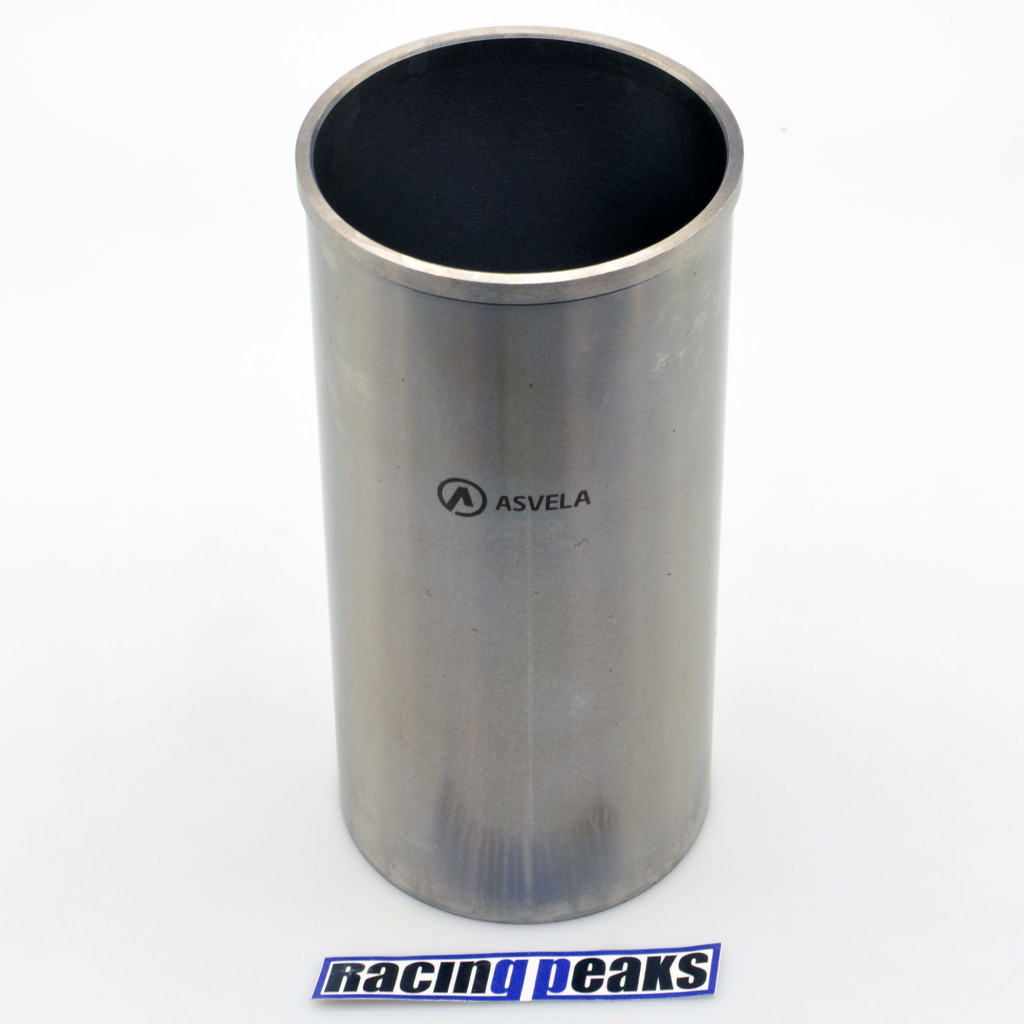

Cylinder liner fits 104.00mm piston d109.05mm L220.00mm Semi-Finish
$65.73
VAT included

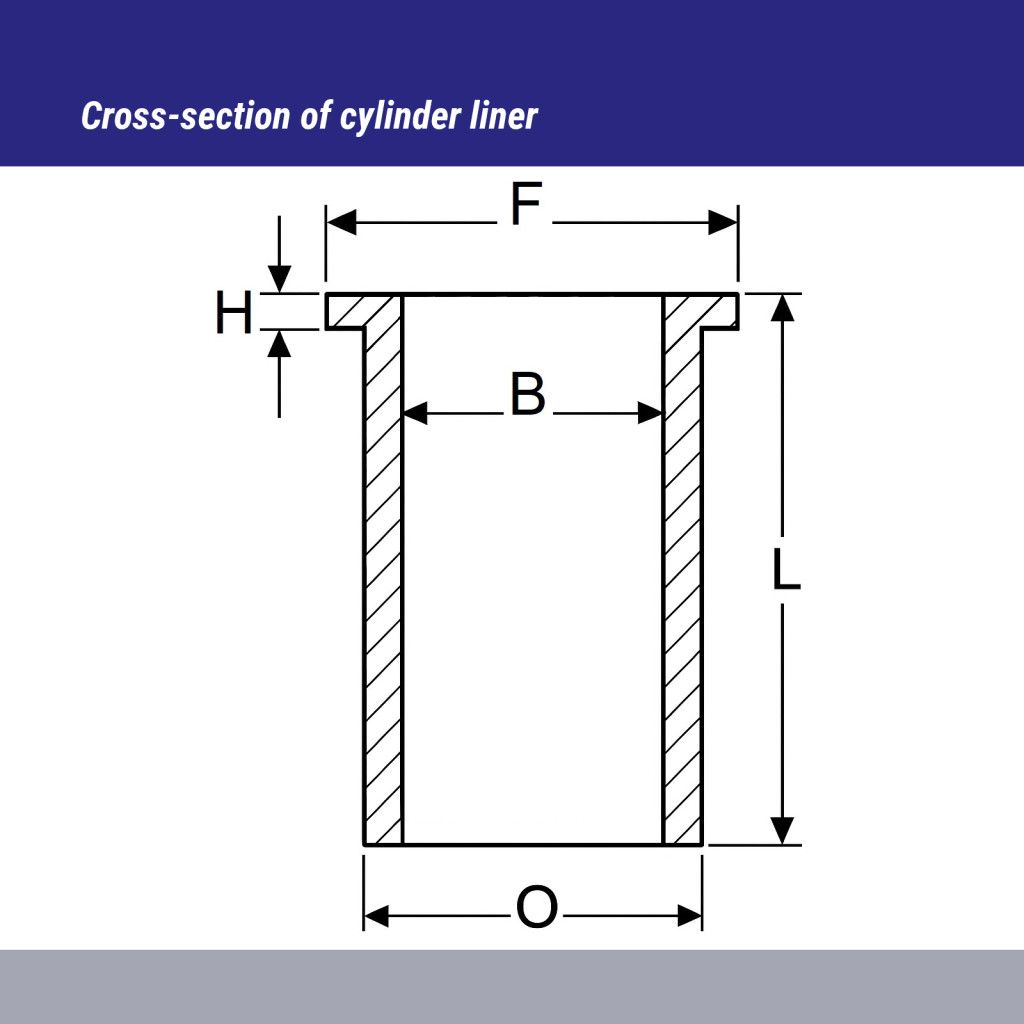

Inner diameter (B): 103.50mm for 104.00mm
Outside diameter (O): 109.05mm
Flange outside diameter (F): 113.00mm
Flange height (H): 4.70mm
Total length (L): 220.00mm
Outside diameter (O): 109.05mm
Flange outside diameter (F): 113.00mm
Flange height (H): 4.70mm
Total length (L): 220.00mm

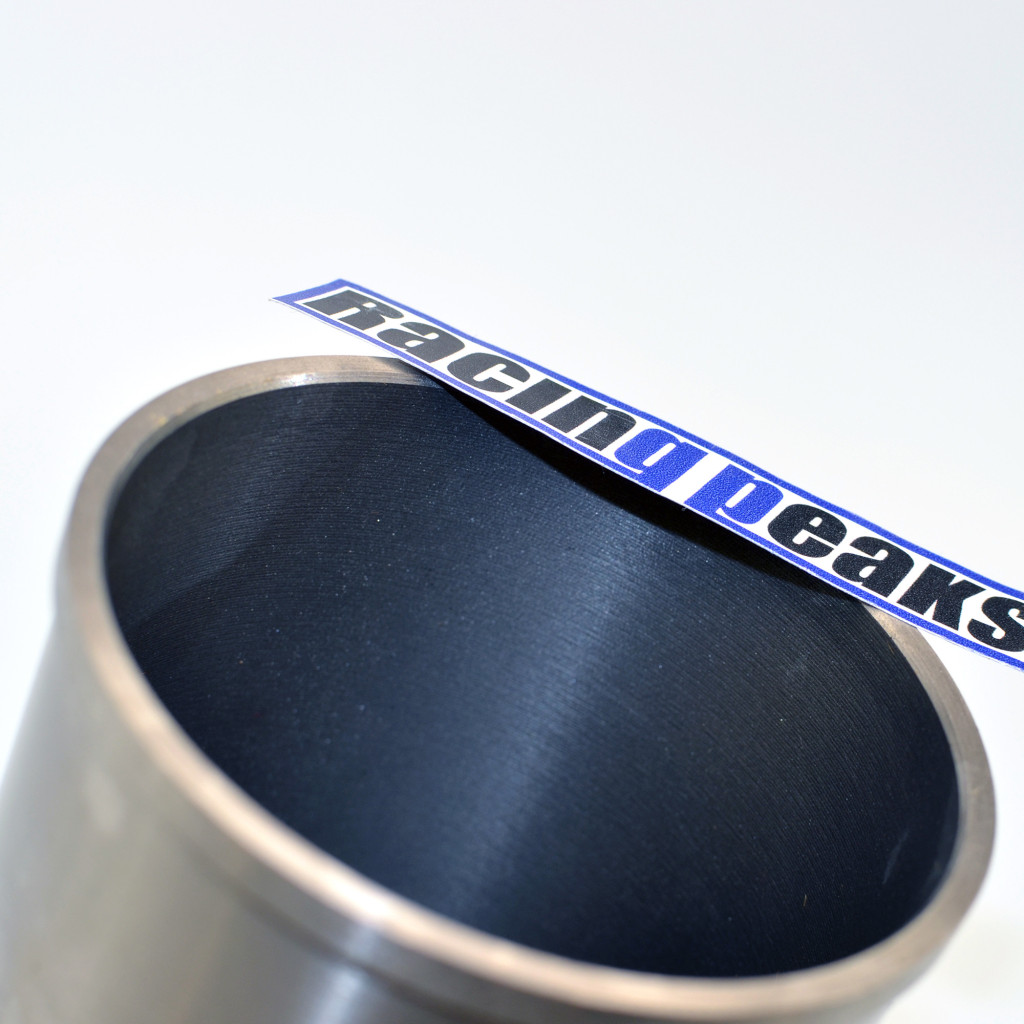

Semi-finished liners 104.1 are used in engine cylinder blocks where final machining is required after installation. They are supplied with a rough inner surface and must undergo boring and honing to achieve the correct diameter and surface finish for proper piston fit. The outer diameter is pre-finished with a 0.05 mm oversize to ensure a secure locking fit in the cylinder block.
Inner diameter (B): 103.50mm for 104.00mm
Outside diameter (O): 109.05mm
Flange outside diameter (F): 113.00mm
Flange height (H): 4.70mm
Total length (L): 220.00mm
Outside diameter (O): 109.05mm
Flange outside diameter (F): 113.00mm
Flange height (H): 4.70mm
Total length (L): 220.00mm
