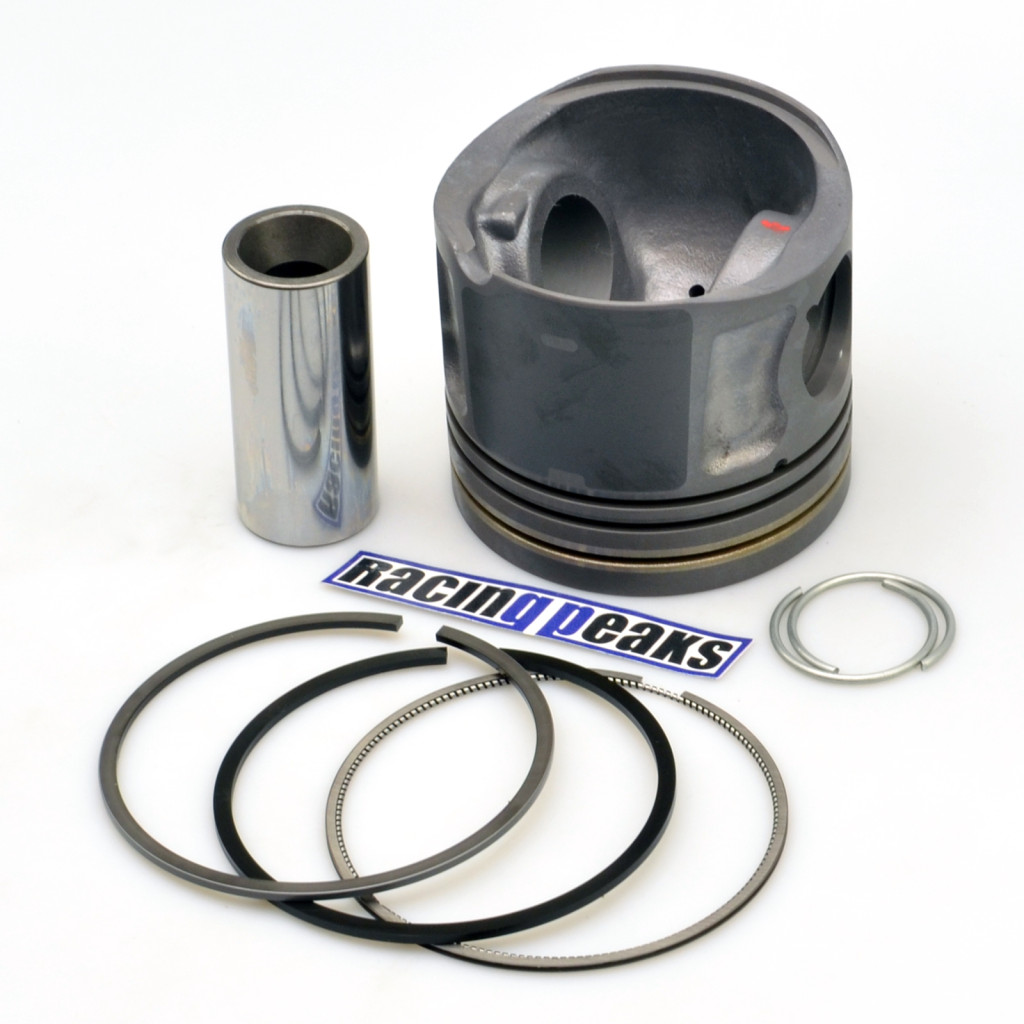

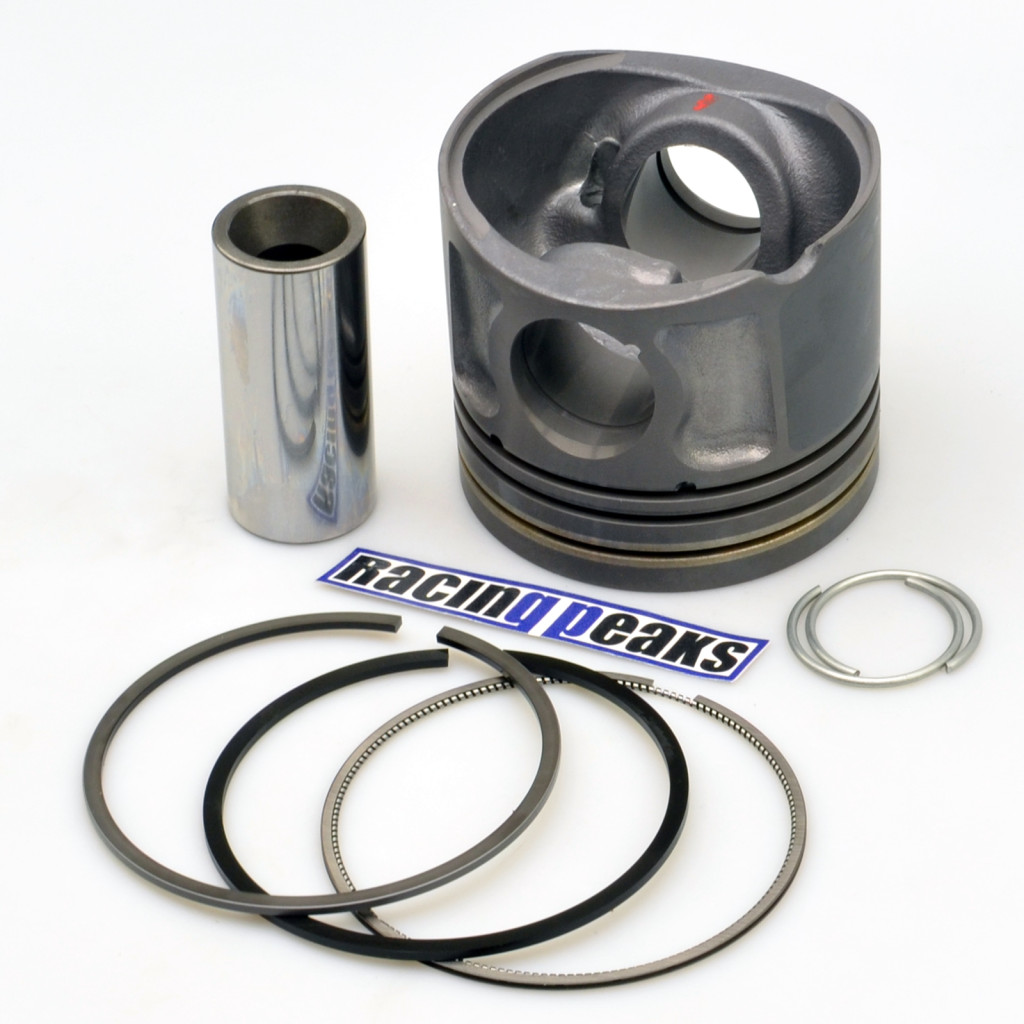

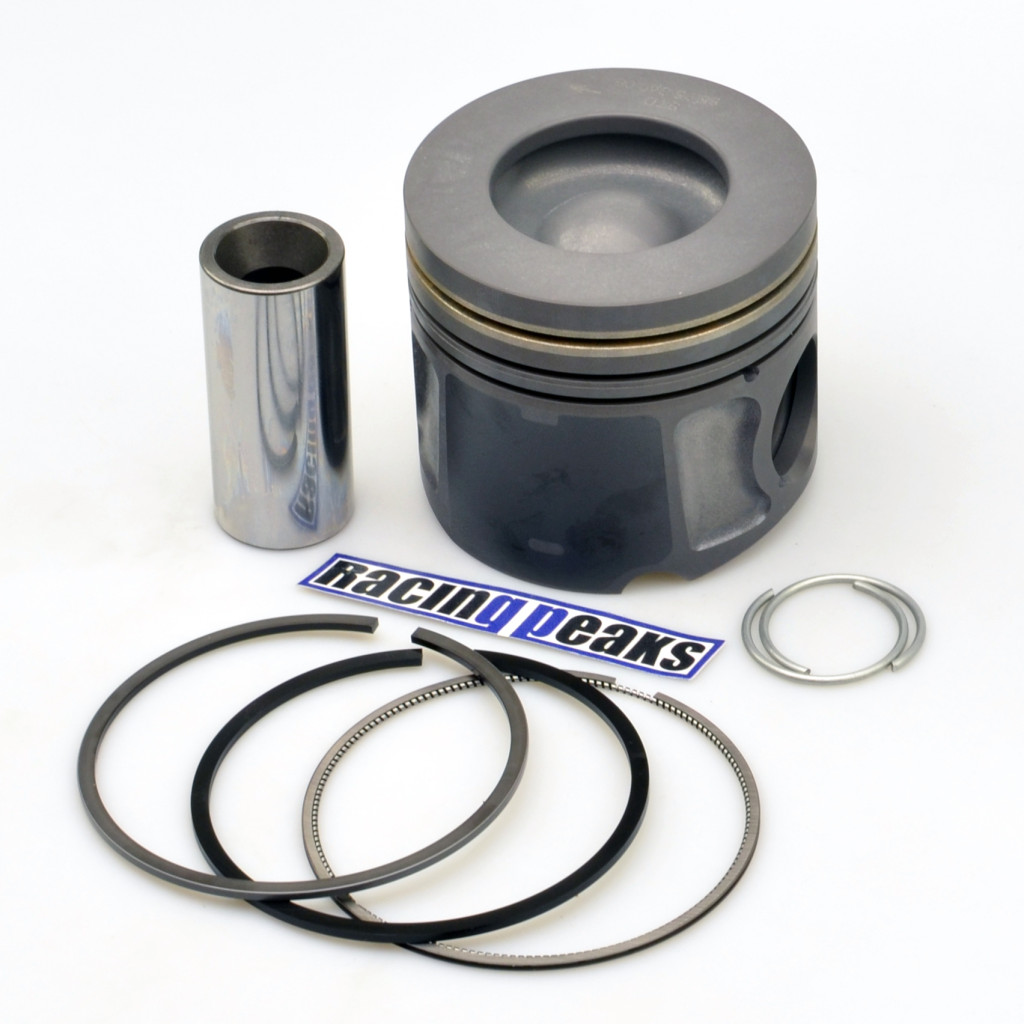

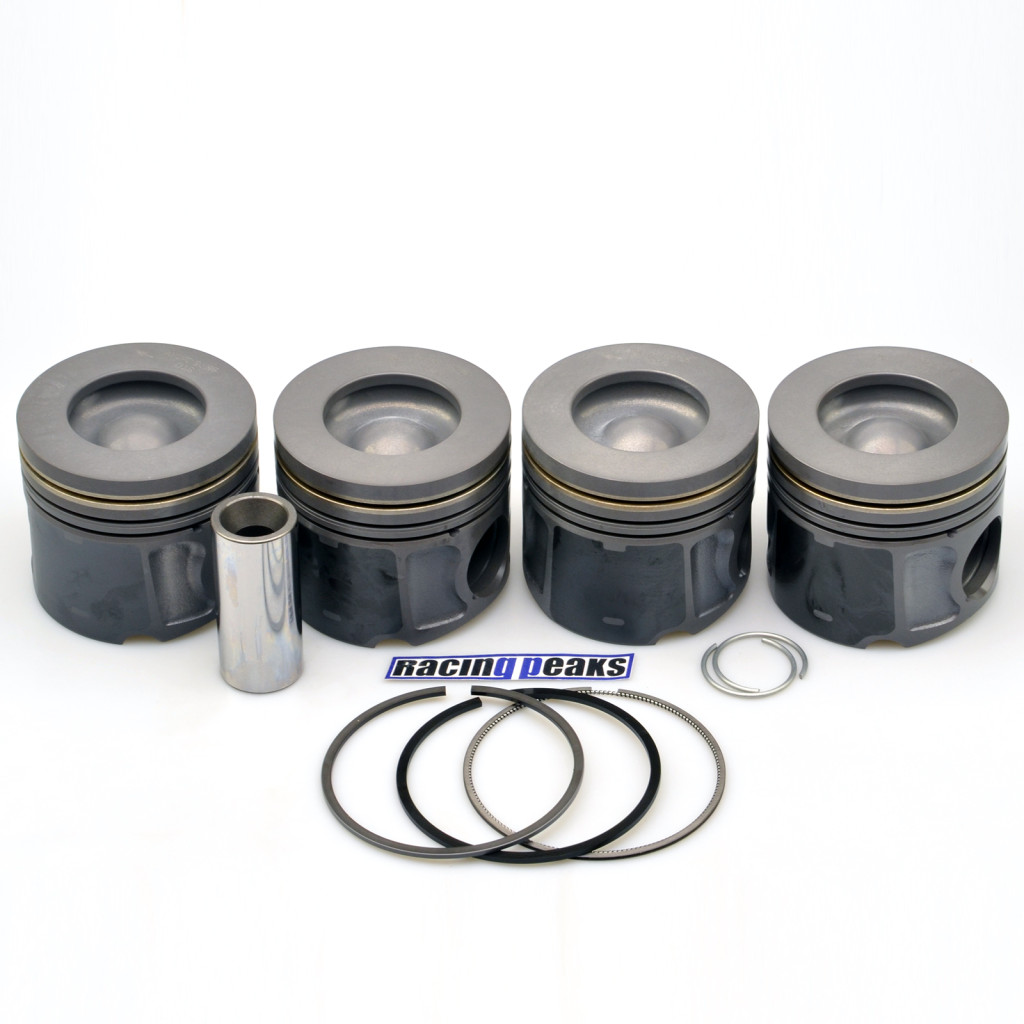

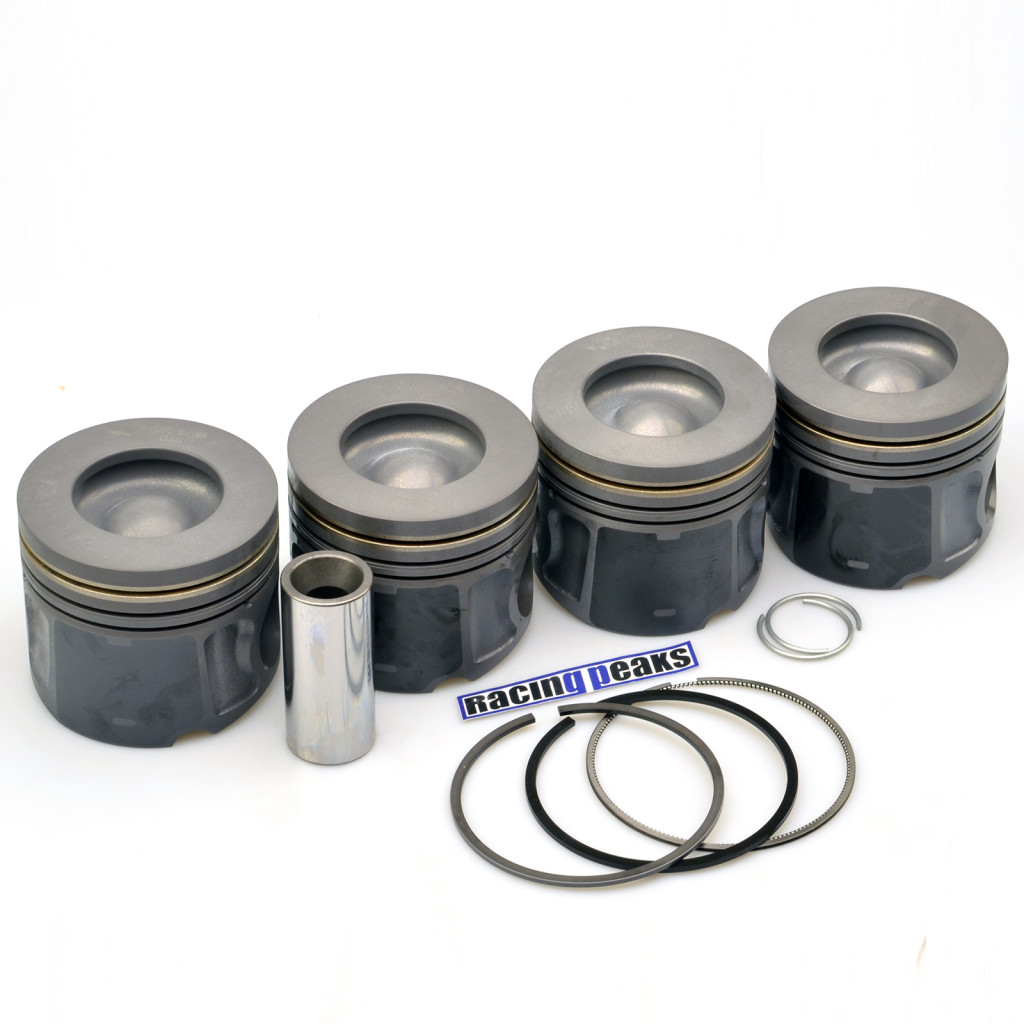

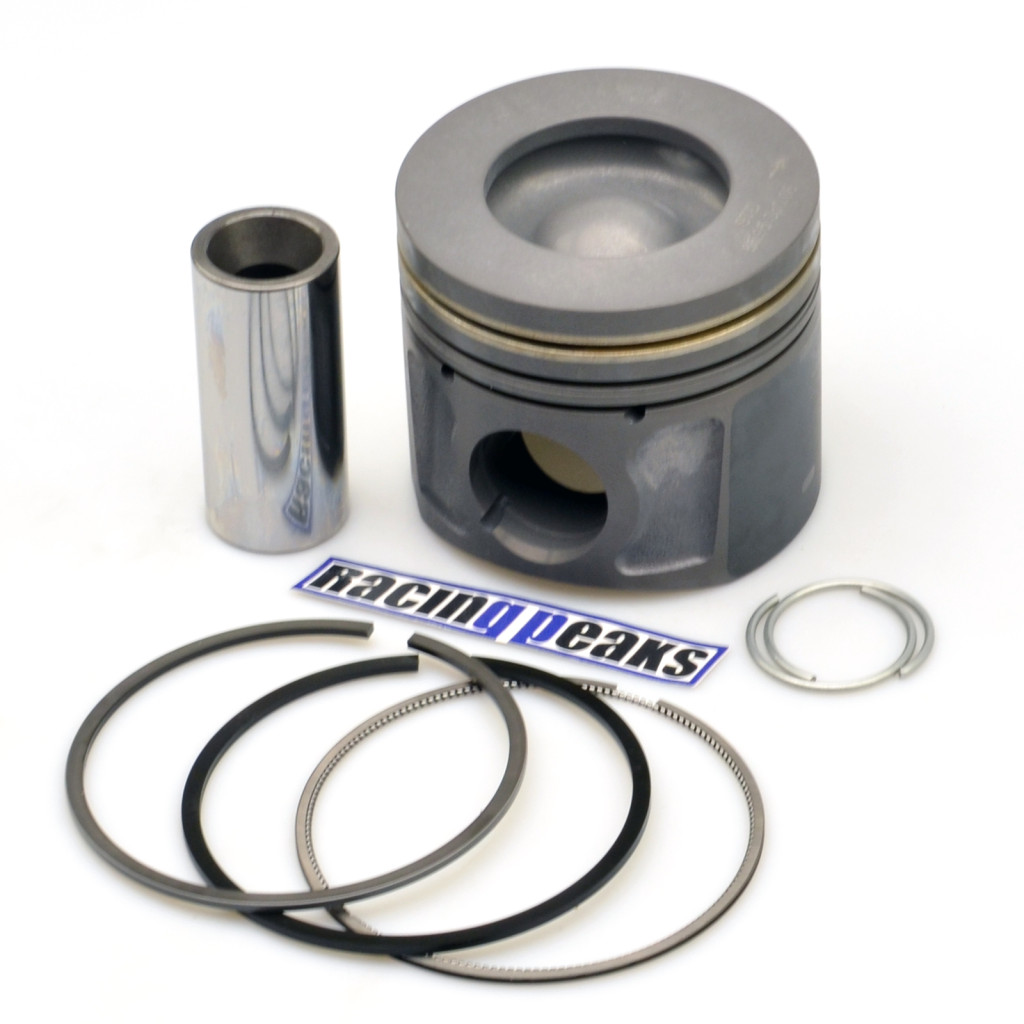

Piston set fits Ford Ranger Transit 2.2TDCi 2011- GBVAJQJ CVF5 P22DTE
€215.03
VAT included
Cyl.Bore: 86.00mm is STD
Compression Height: 48.4mm
Length: 74.8mm

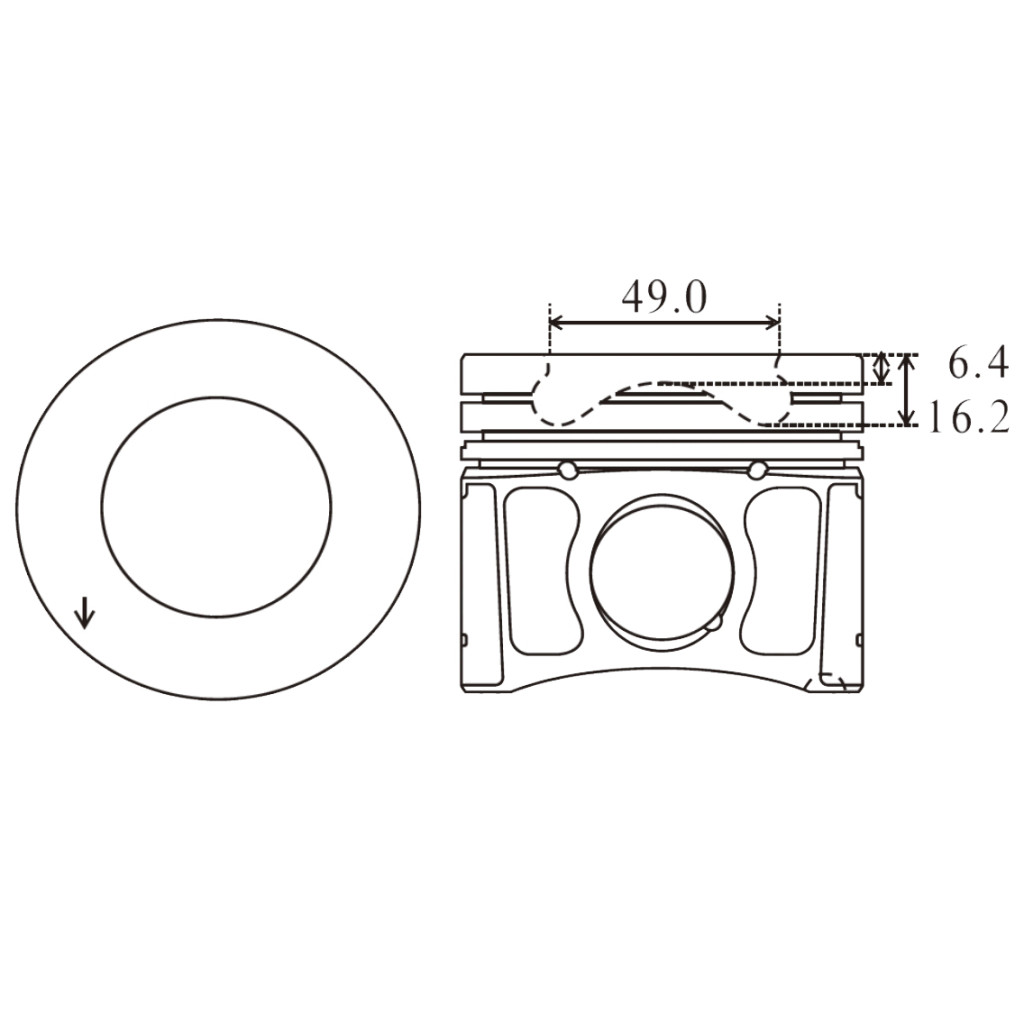

Recess Depth: -6.4/-16.2mm
Recess Diameter: 49.0mm
Bolt d.: 30.0mm
Bolt Length: 67.0mm
Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod
Piston rings: 2.00x2.00x2.00mm
Pistons with rings for enhance engine efficiency, precision, and durability for an improved driving experience
PKFO408605DB 0.00
2 Items
Data sheet
- Region
- Taiwan
- Reference OE/OEM Number
- 9800484180
9800484380
9800484580
BK2Q6105
- Ford
- Ranger III (2G / 2P) 2011 - current
- 2.2 TDCi 4WD (2.2L / 150 Hp / Diesel / GBVAJQJ)
- Volkswagen
- Passat Variant VIII (3G5) 2014 - current
- 2.0 TSI (2.0L / 190 Hp / Petrol / DRFA)
- Passat Saloon VIII (3G2 / A33 / CB2) 2014 - current
- 2.0 TFSI (2.0L / 190 Hp / Petrol / DRFA)
Specific References
- MPN
- PKFO408605DB 0.50
New
Cyl.Bore: 86.00mm is STD
Compression Height: 48.4mm
Length: 74.8mm
Recess Depth: -6.4/-16.2mm
Recess Diameter: 49.0mm
Bolt d.: 30.0mm
Bolt Length: 67.0mm
Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod
Piston rings: 2.00x2.00x2.00mm
