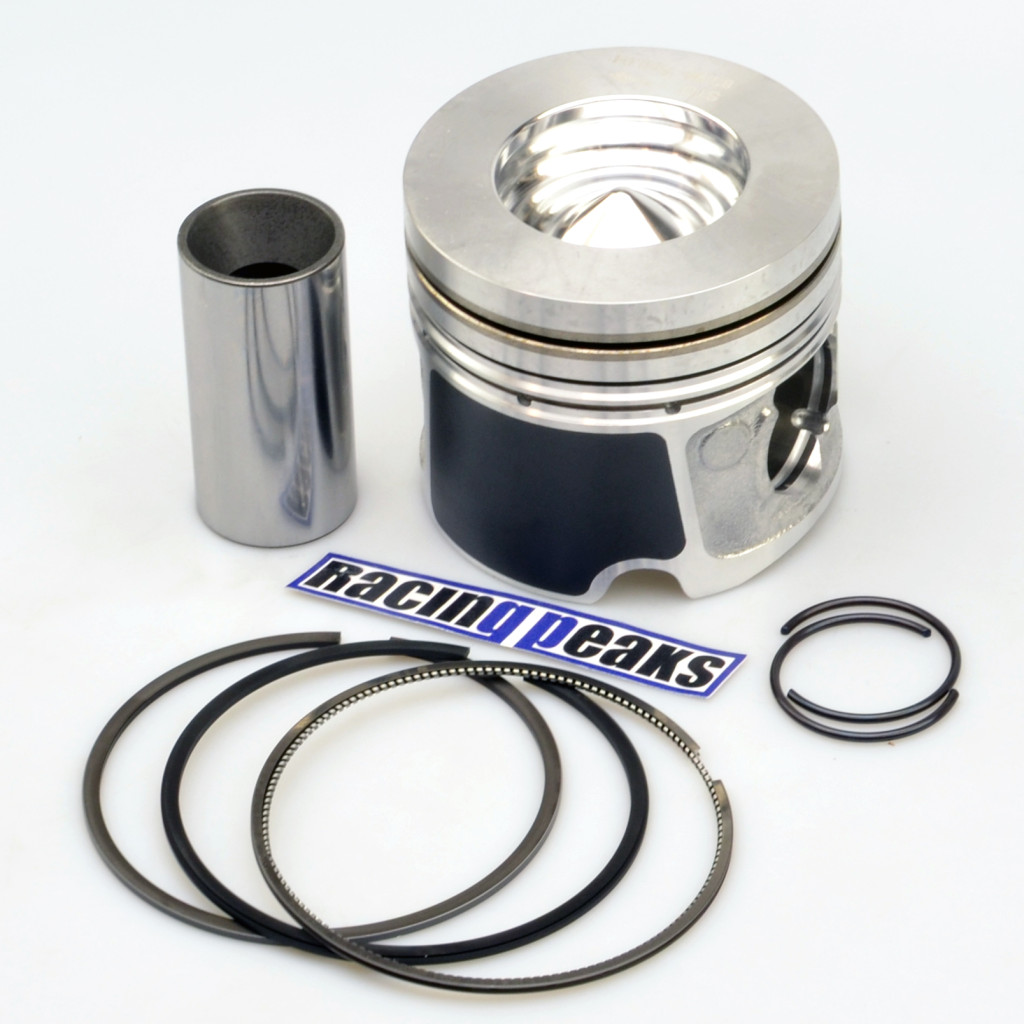

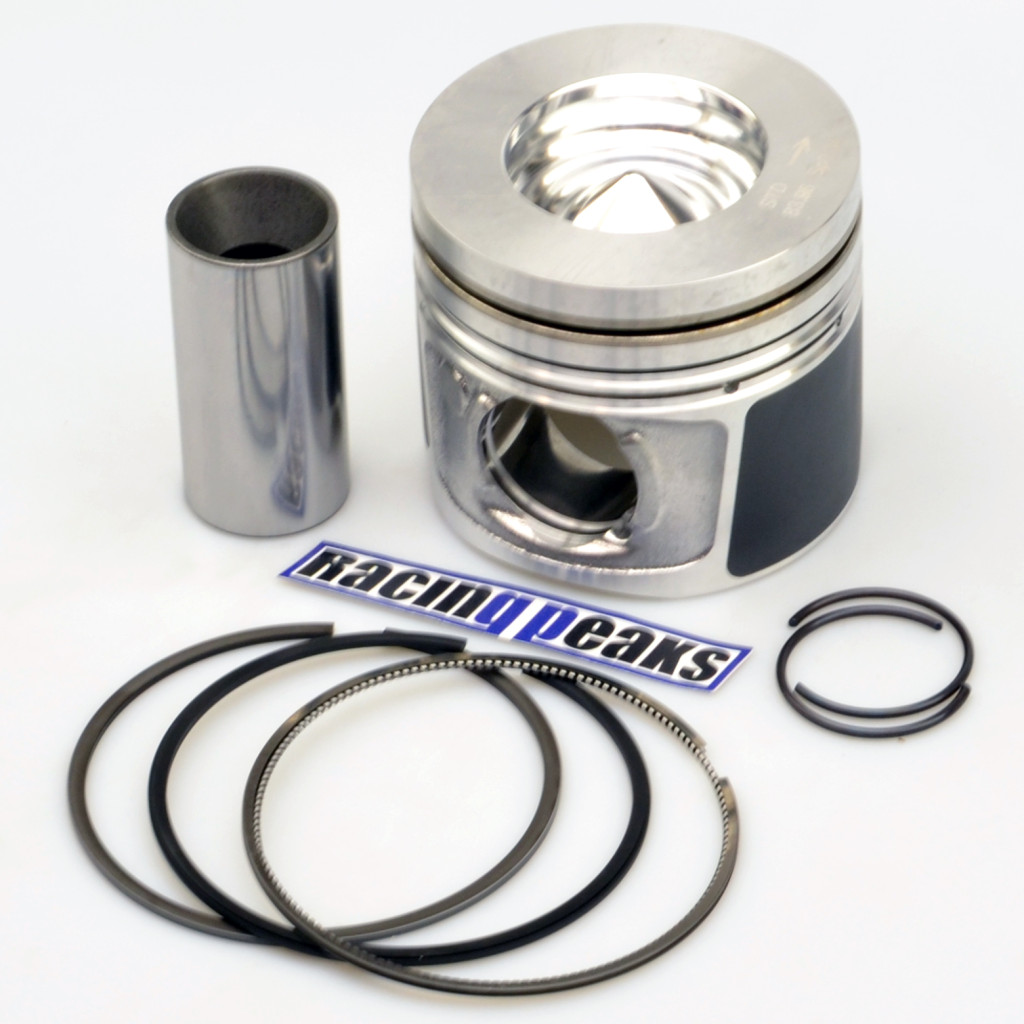

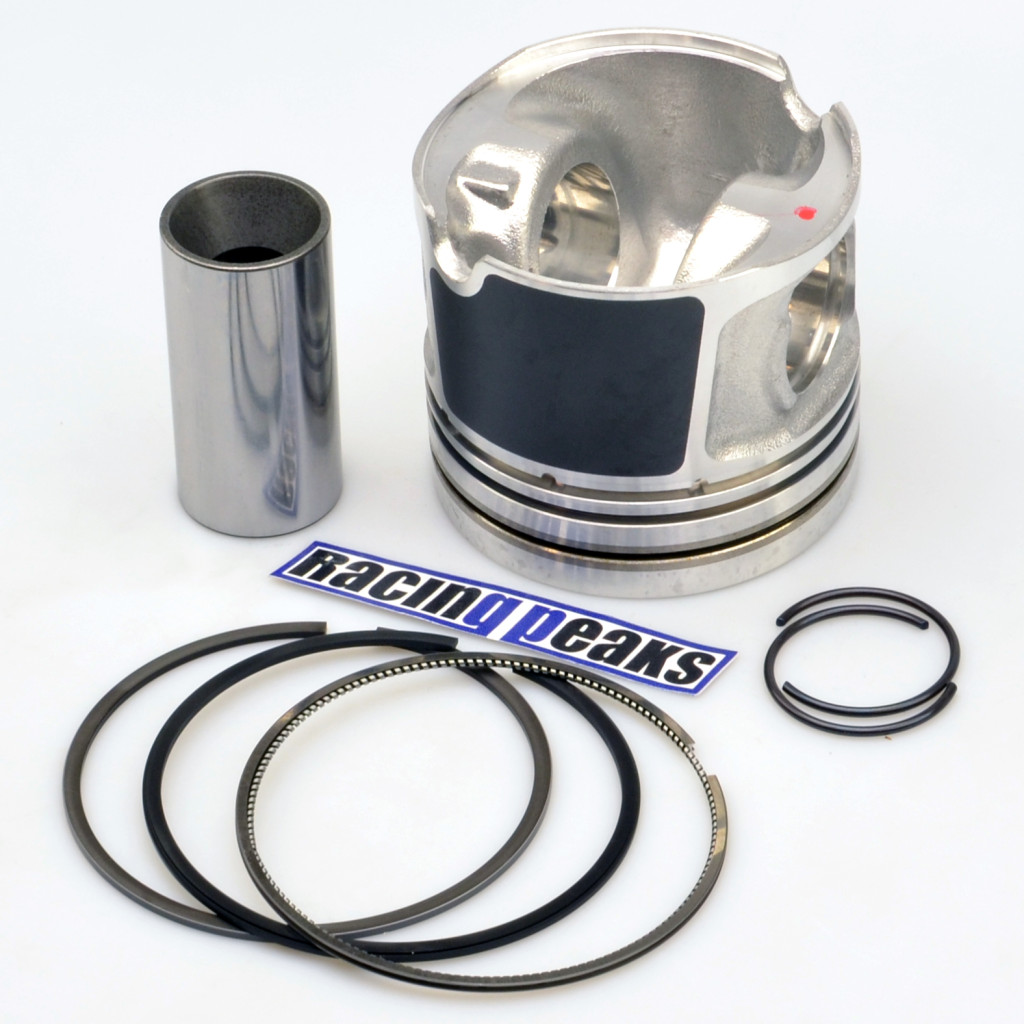

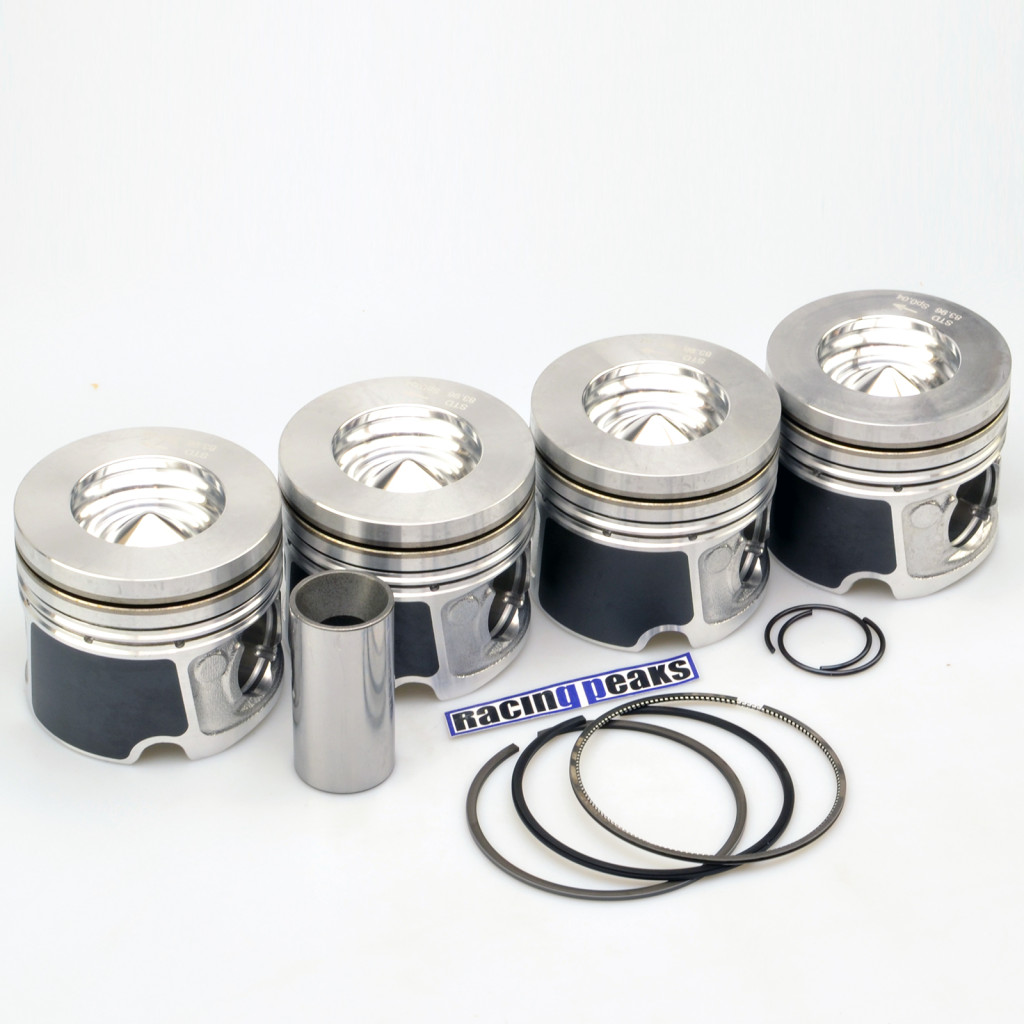

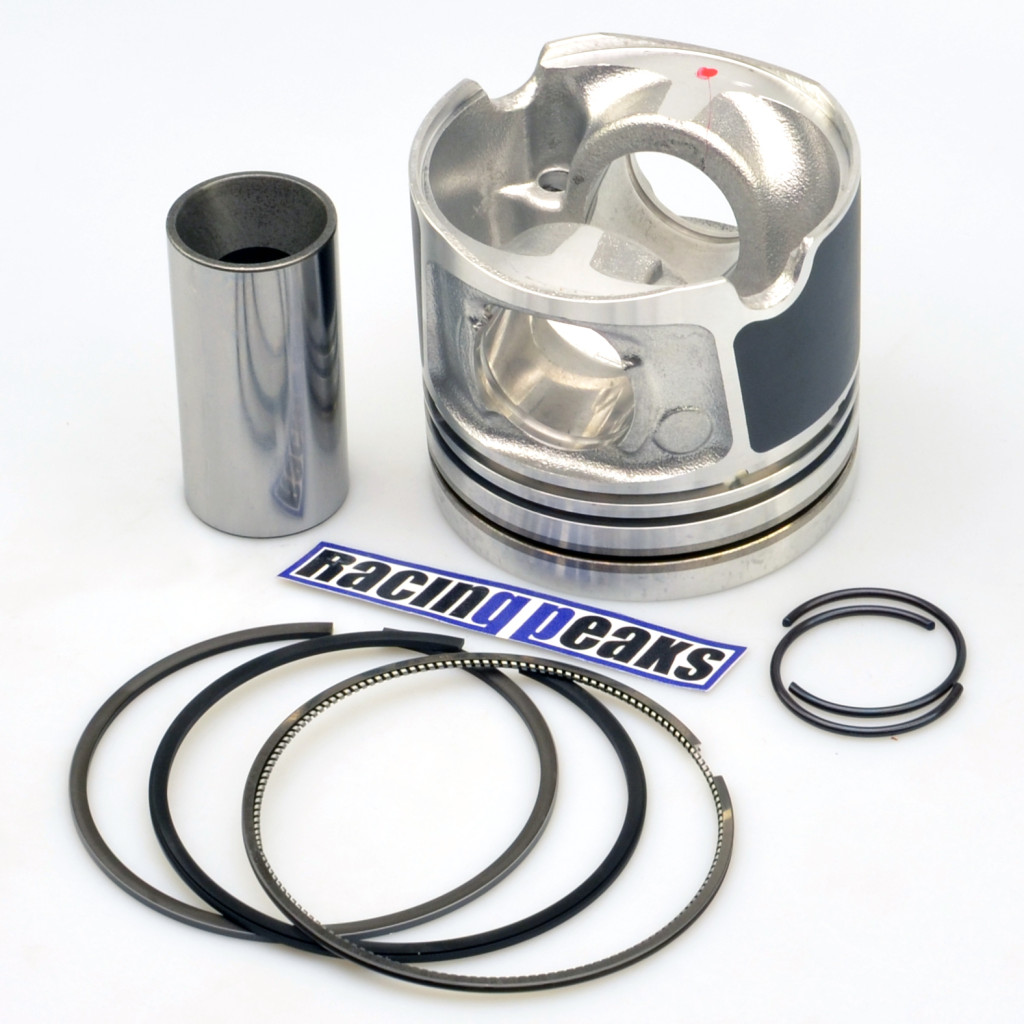

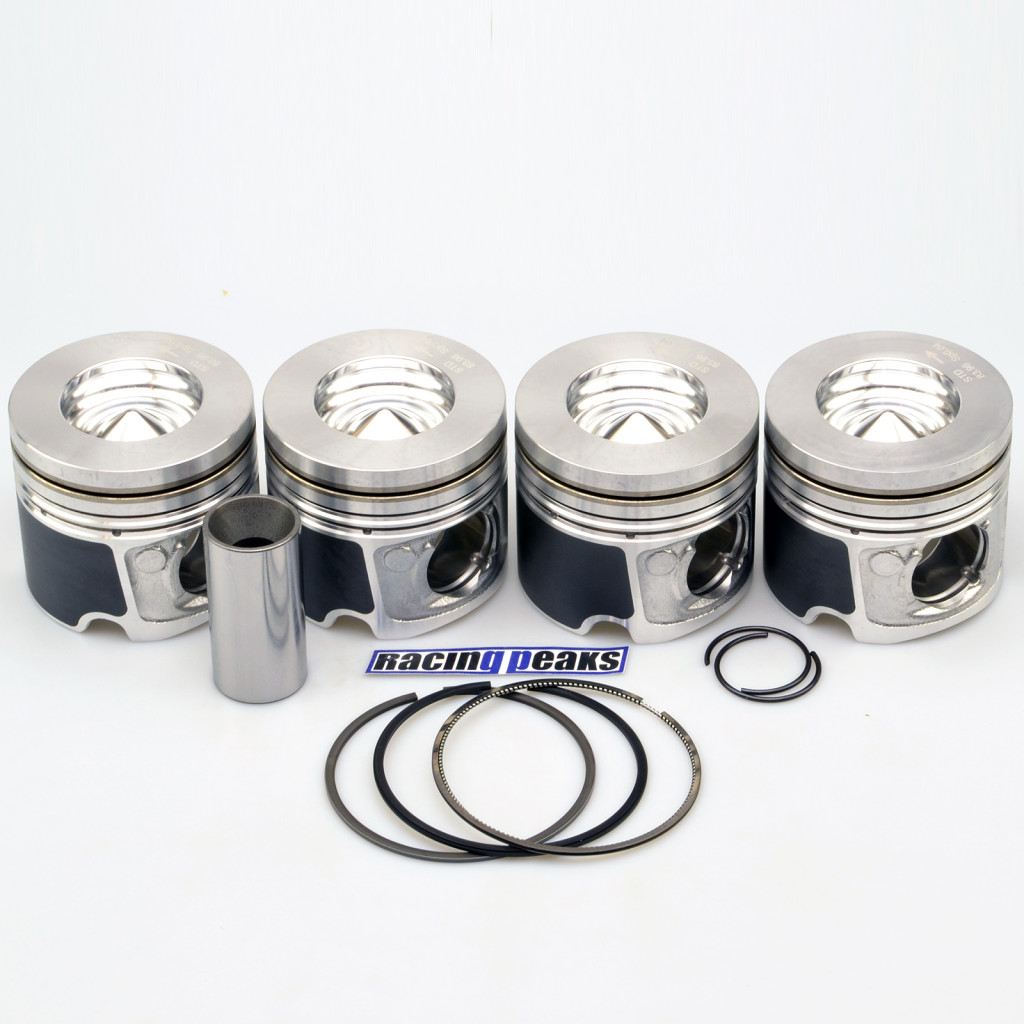

Piston set fits BMW 120d 318d 320d 420d 520d X1 X3 18d 20d 2005- N47D20

€250.09

VAT included

Cyl.Bore: 84.00mm is STD
Compression Height: 47.0mm
Length: 73.0mm

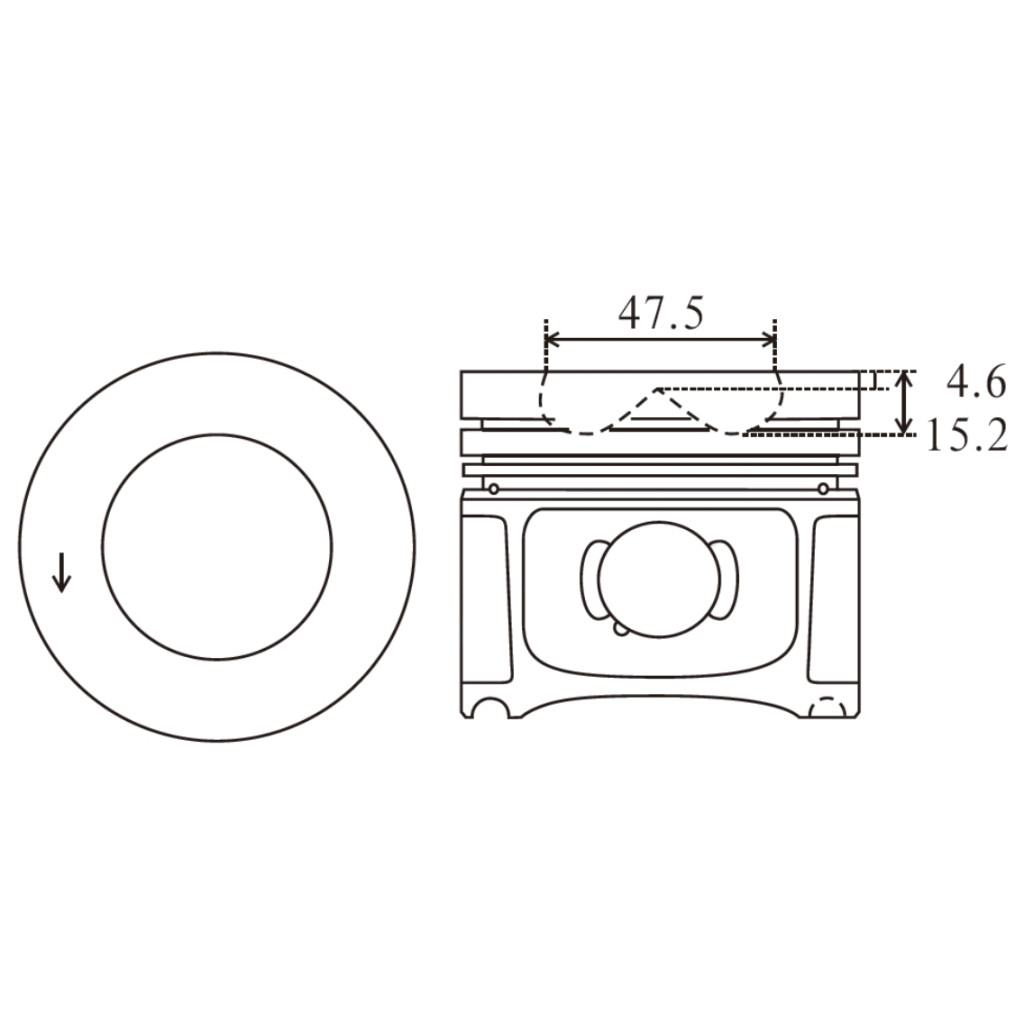

Recess Depth: -4.6/-15.2mm
Recess Diameter: 47.5mm
Bolt d.: 32.0mm
Bolt Length: 64.0mm
Info: Alfin and with oil gallery, skirt MoS2 treated, fits tapered connecting rod
Piston rings: 1.75x1.75x2.00mm

Last items in stock

Description
Product Details

Pistons with rings for enhance engine efficiency, precision, and durability for an improved driving experience

Reference PKBM408402DB 0.00

In stock4 Items

Data sheet

Region: Taiwan
Reference OE/OEM Number: 11257810825
11257810827

Compatibility With Cars

3 Estate V (E91 / E91N) 2004 - 2011

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 A)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 163 Hp / Diesel / N47 D20 A)

320 d (2.0L / 163 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 197 Hp / Diesel / N47 D20 C)

2.0 320 d xDrive (2.0L / 163 Hp / Diesel / N47 D20 C)

318 d (2.0L / 136 Hp / Diesel / N47 D20 A)

318 d (2.0L / 136 Hp / Diesel / N47 D20 C)

320 d (2.0L / 197 Hp / Diesel / N47 D20 A)

320 d (2.0L / 197 Hp / Diesel / N47 D20 C)

2 Coupe (F22 / F87) 2012 - current

220 d (2.0L / 184 Hp / Diesel / N47 D20 C)

218 d (2.0L / 143 Hp / Diesel / N47 D20 C)

3 Coupe V (E92 / E92N) 2005 - 2013

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

320 xd (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 197 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 163 Hp / Diesel / N47 D20 A)

320 d (2.0L / 163 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 197 Hp / Diesel / N47 D20 A)

320 d (2.0L / 197 Hp / Diesel / N47 D20 C)

4 Coupe (F32 / F82) 2013 - current

420 d (2.0L / 184 Hp / Diesel / N47 D20 C)

420 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

3 Cabrio V (E93 / E93N) 2006 - 2013

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 C)

320 d (2.0L / 200 Hp / Diesel / N47 D20 A)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 197 Hp / Diesel / N47 D20 A)

320 d (2.0L / 197 Hp / Diesel / N47 D20 C)

3 Saloon VI (F30 / F80) 2011 - 2018

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

318 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d EfficientDynamics Edition (2.0L / 163 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

3 Gran Turismo VI (F34) 2012 - current

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

4 Cabrio (F33 / F83) 2013 - current

420 d (2.0L / 184 Hp / Diesel / N47 D20 C)

5 Estate VI (F11) 2009 - current

520 d (2.0L / 184 Hp / Diesel / N47 D20 C)

520 d (2.0L / 200 Hp / Diesel / N47 D20 C)

520 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

518 d (2.0L / 143 Hp / Diesel / N47 D20 C)

520 d xDrive (2.0L / 200 Hp / Diesel / N47 D20 C)

5 Saloon VI (F10 / F18) 2009 - 2016

520 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

518 d (2.0L / 143 Hp / Diesel / N47 D20 C)

520 d (2.0L / 184 Hp / Diesel / N47 D20 C)

4 Gran Coupe (F36) 2014 - current

418 d (2.0L / 143 Hp / Diesel / N47 D20 C)

420 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

420 d (2.0L / 184 Hp / Diesel / N47 D20 C)

X1 (E84) 2009 - 2015

sDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)

sDrive 16 d (2.0L / 116 Hp / Diesel / N47 D20 C)

sDrive 20 d ed (2.0L / 163 Hp / Diesel / N47 D20 C)

sDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)

sDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)

X3 II (F25) 2010 - 2017

xDrive 28 d (2.0L / 182 Hp / Diesel / N47 D20 C)

sDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 184 Hp / Diesel / N47 D20 C)

1 Coupe (E82) 2006 - 2013

120 d (2.0L / 177 Hp / Diesel / N47 D20 C)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

5 Gran Turismo VI (F07) 2009 - 2017

520 d (2.0L / 184 Hp / Diesel / N47 D20 C)

1 Hatch 3-door (E81) 2004 - 2011

118 d (2.0L / 143 Hp / Diesel / N47 D20 A)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

116 d (2.0L / 116 Hp / Diesel / N47 D20 A)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

X3 (E83 / E83N) 2003 - 2010

2.0 d (2.0L / 177 Hp / Diesel / N47 D20 A)

2.0 d (2.0L / 177 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 A)

xDrive 18 d (2.0L / 143 Hp / Diesel / N47 D20 C)

xDrive 20 d (2.0L / 177 Hp / Diesel / N47 D20 C)

1 Cabrio (E88) 2007 - 2013

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

118 d (2.0L / 143 Hp / Diesel / N47 D20 A)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

120 d (2.0L / 177 Hp / Diesel / N47 D20 C)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

1 Hatch 5-door (E87 / E87N) 2003 - 2011

116 d (2.0L / 116 Hp / Diesel / N47 D20 A)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

118 d (2.0L / 143 Hp / Diesel / N47 D20 A)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d (2.0L / 177 Hp / Diesel / N47 D20 A)

120 d (2.0L / 177 Hp / Diesel / N47 D20 C)

123 d (2.0L / 204 Hp / Diesel / N47 D20 B)

5 Estate V (E61 / E61N) 2004 - 2010

520 d (2.0L / 177 Hp / Diesel / N47 D20 C)

520 d (2.0L / 177 Hp / Diesel / N47 D20 A)

5 Saloon V (E60 / E60N) 2001 - 2009

520 d (2.0L / 177 Hp / Diesel / N47 D20 A)

520 d (2.0L / 177 Hp / Diesel / N47 D20 C)

3 Estate VI (F31) 2012 - 2019

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

318 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d EfficientDynamics Edition (2.0L / 163 Hp / Diesel / N47 D20 C)

1 Hatch 3-door II (F21) 2011 - current

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

118 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d (2.0L / 184 Hp / Diesel / N47 D20 C)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

1 Hatch 5-door II (F20) 2011 - 2019

118 d xDrive (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

116 d (2.0L / 116 Hp / Diesel / N47 D20 C)

118 d (2.0L / 143 Hp / Diesel / N47 D20 C)

120 d (2.0L / 184 Hp / Diesel / N47 D20 C)

3 Saloon V (E90 / E90N) 2004 - 2012

318 d (2.0L / 136 Hp / Diesel / N47 D20 A)

318 d (2.0L / 136 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d xDrive (2.0L / 177 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 163 Hp / Diesel / N47 D20 C)

320 xd (2.0L / 177 Hp / Diesel / N47 D20 C)

316 d (2.0L / 116 Hp / Diesel / N47 D20 C)

318 d (2.0L / 143 Hp / Diesel / N47 D20 A)

318 d (2.0L / 143 Hp / Diesel / N47 D20 C)

320 d (2.0L / 163 Hp / Diesel / N47 D20 A)

320 d (2.0L / 163 Hp / Diesel / N47 D20 C)

320 d (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d xDrive (2.0L / 184 Hp / Diesel / N47 D20 C)

320 d (2.0L / 177 Hp / Diesel / N47 D20 A)

320 d (2.0L / 177 Hp / Diesel / N47 D20 C)

Alpina

D3 Estate (E90) 2005 - 2013

2 (2.0L / 214 Hp / N47 D20 C)

D3 Saloon (E90) 2005 - 2014

2 (2.0L / 214 Hp / N47 D20 C)

D3 Coupe (E90) 2008 - 2013

2 (2.0L / 214 Hp / Diesel / N47 D20 C)

Specific References

MPN: PKBM408402DB 0.50

Condition New
