      Engine piston set for Peugeot 208 2008 3008 Citroen C3 C4 DS3 DS4 1.2THP HNZ EB2

      €205.09
      VAT included

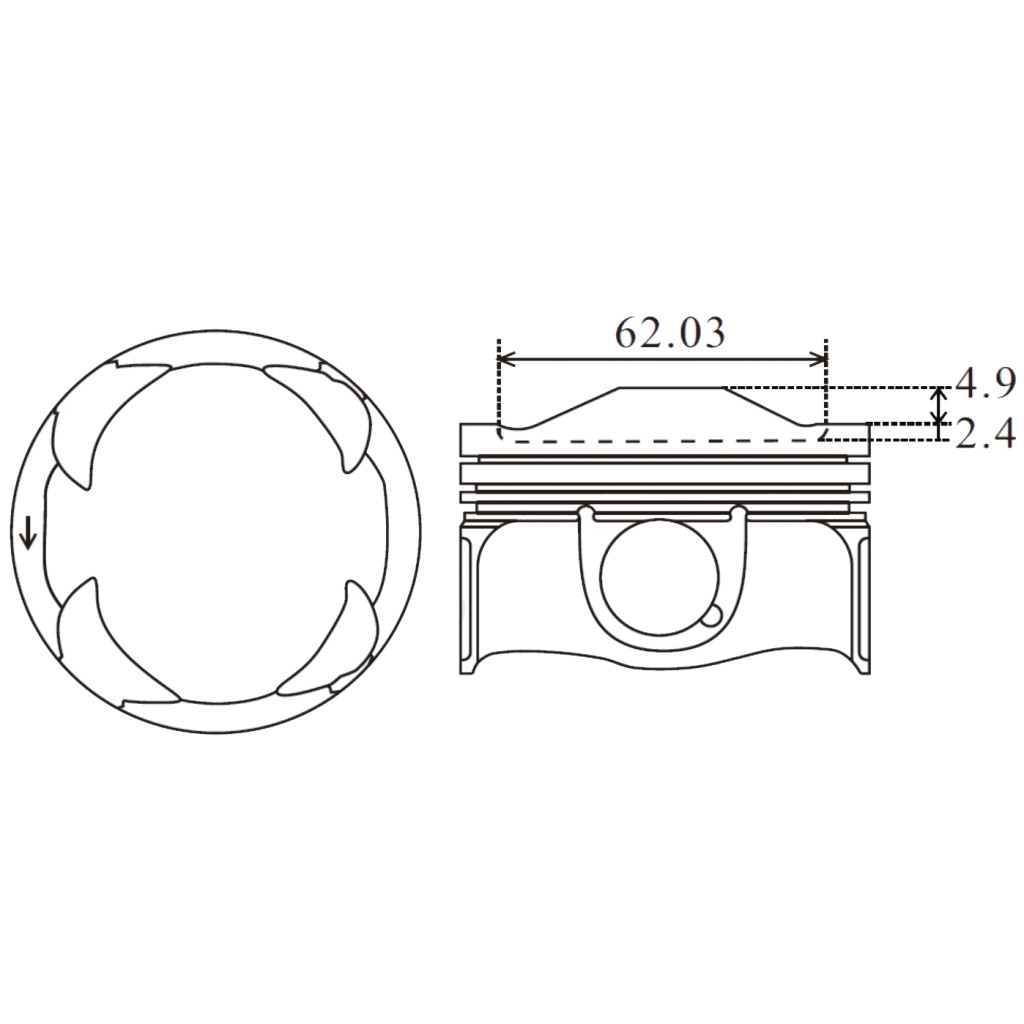

      Cyl.Bore: 75.00mm is STD
      Compression Height: 26.2mm
      Length: 42.2mm
      Recess Depth: +2.6/-1.6mm
      Bolt d.: 17.0mm
      Bolt Length: 44.0mm
      Info: Top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod
      Recommended piston to bore clearance is 0.05mm when measured at 7.0mm above the skirt
      Piston rings: 1.20x1.00x2.00mm
      Product available with different options
      Variation
      Quantity


      Security policy



      Delivery policy



      Shipping outside the EU



      Return policy

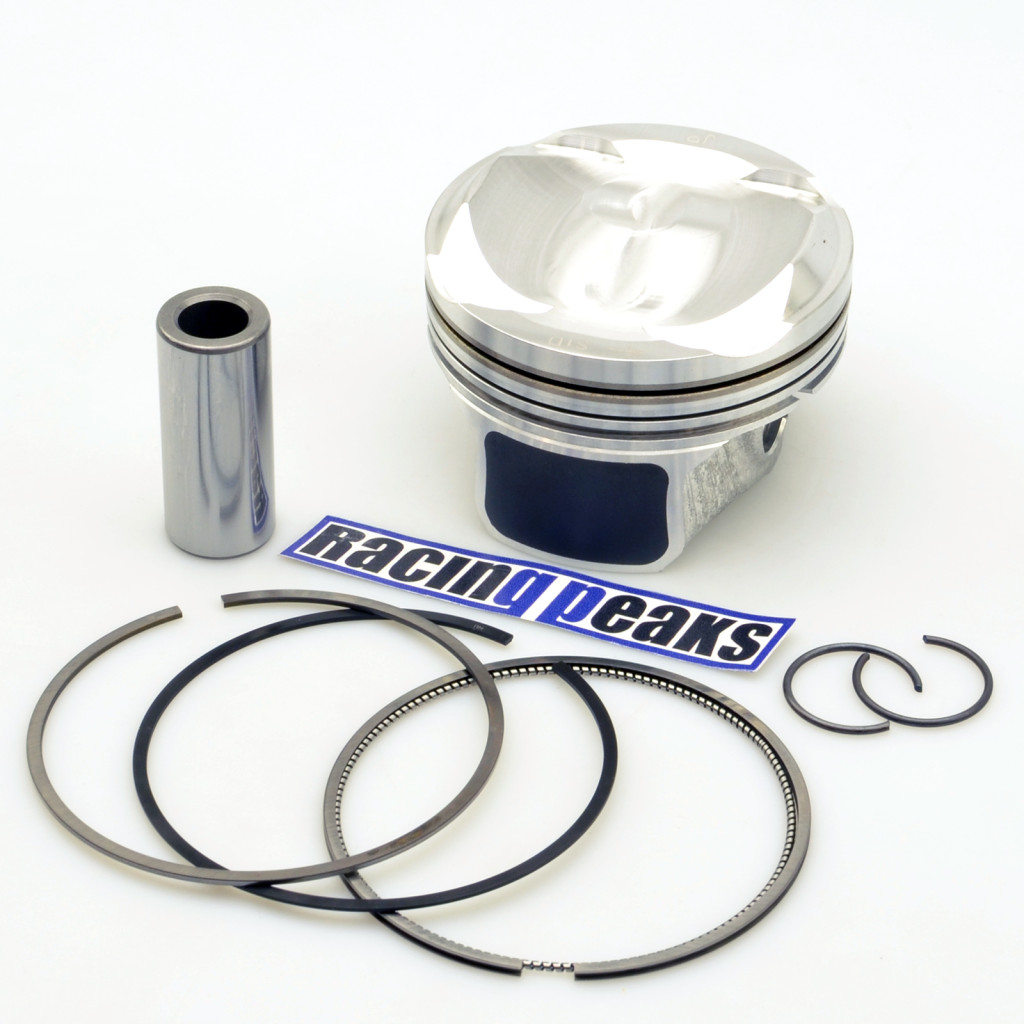

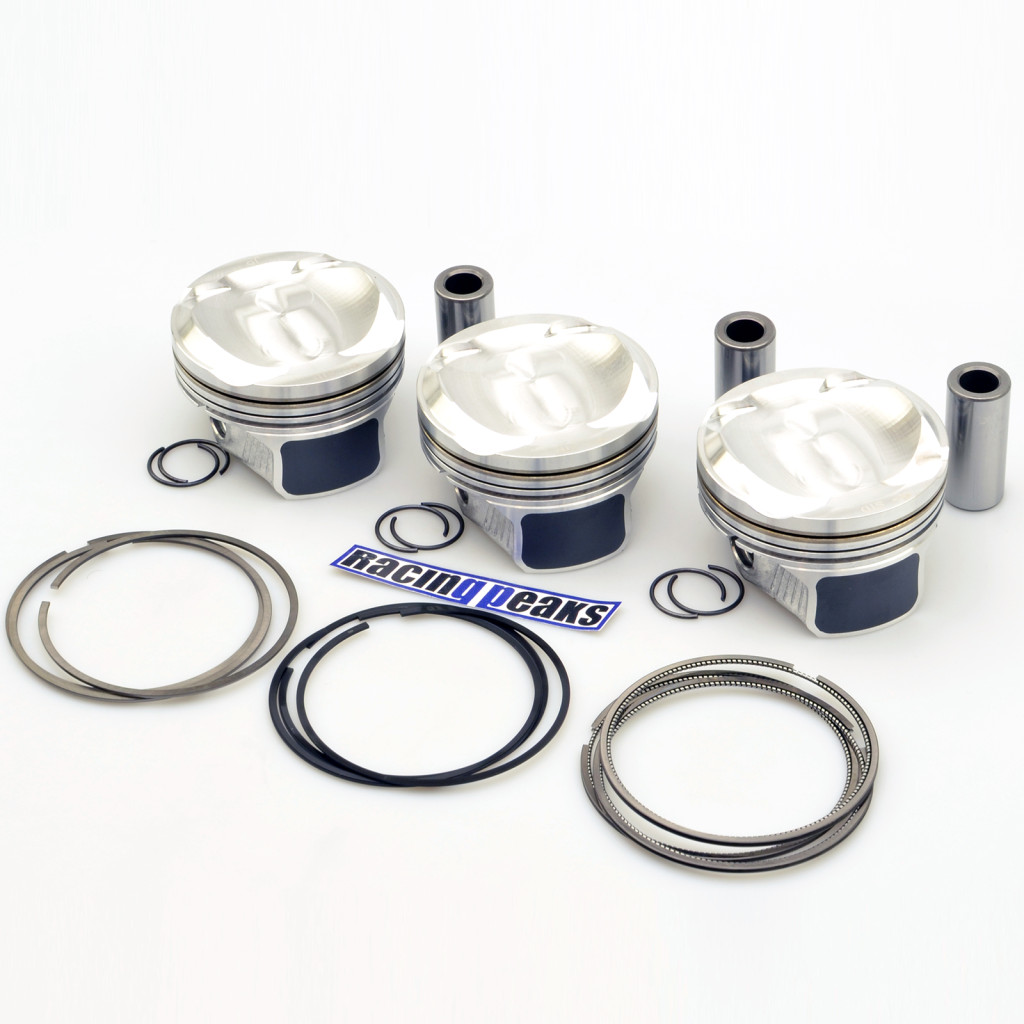

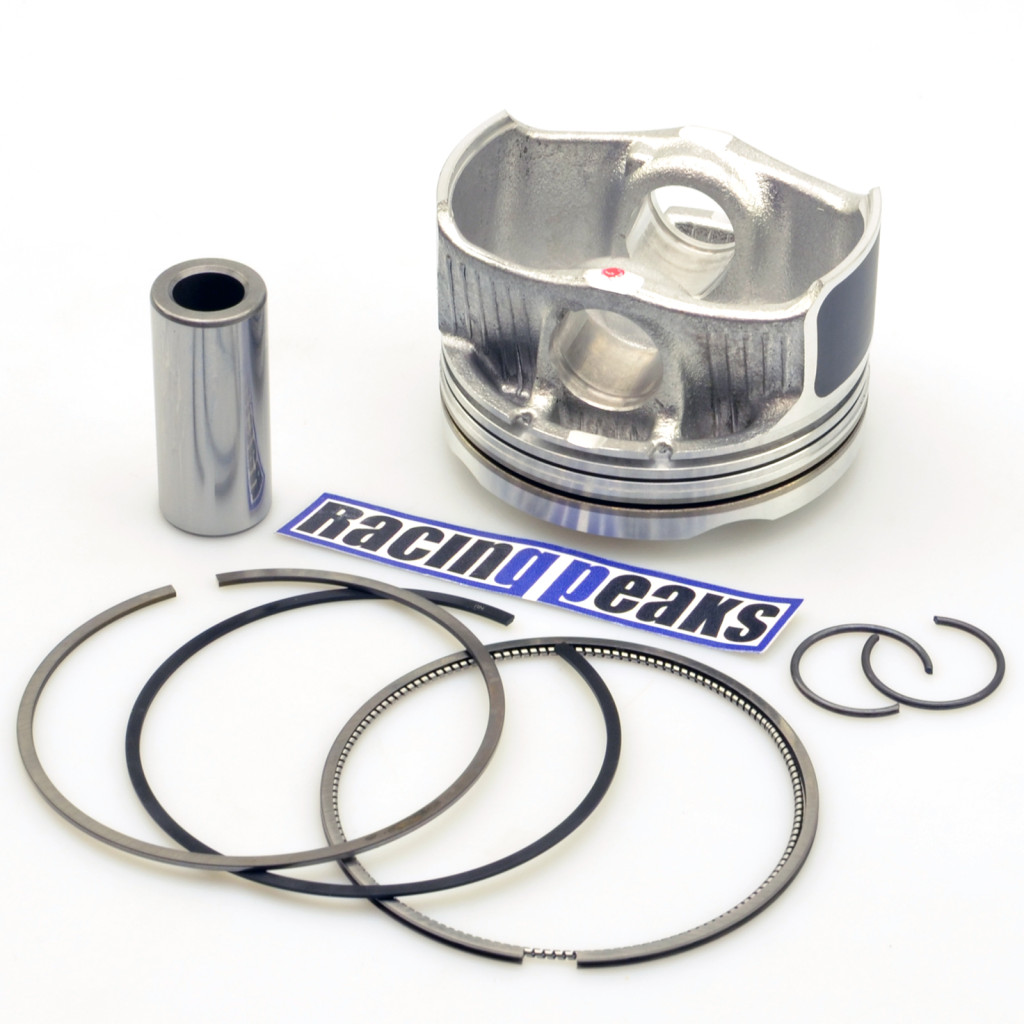

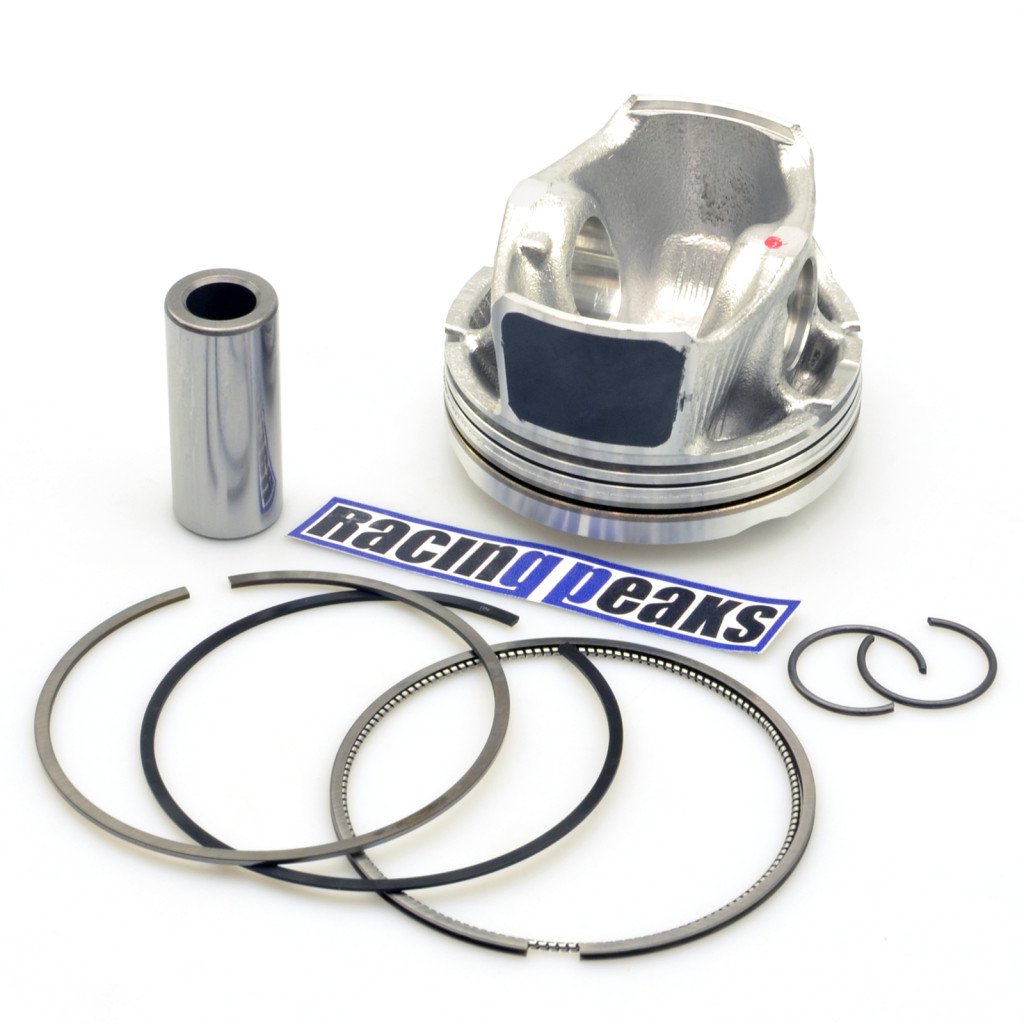

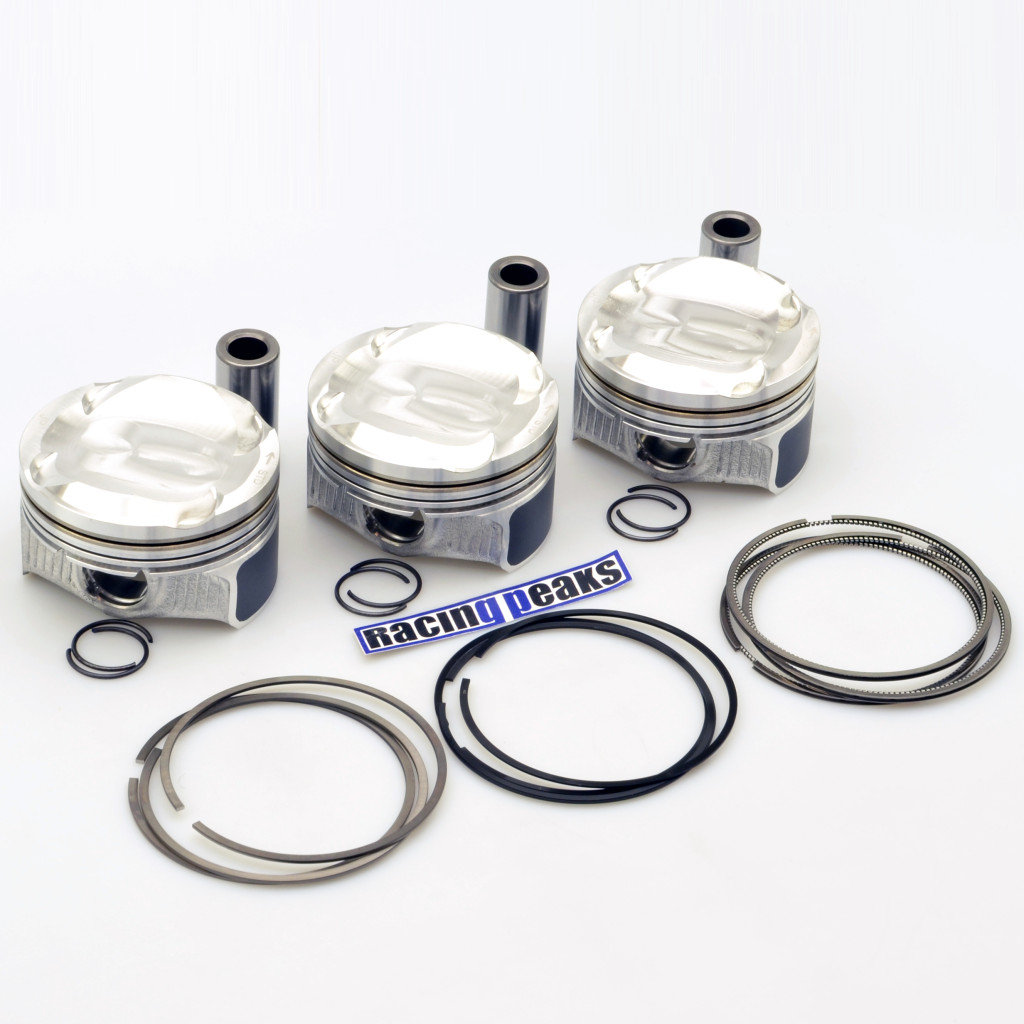

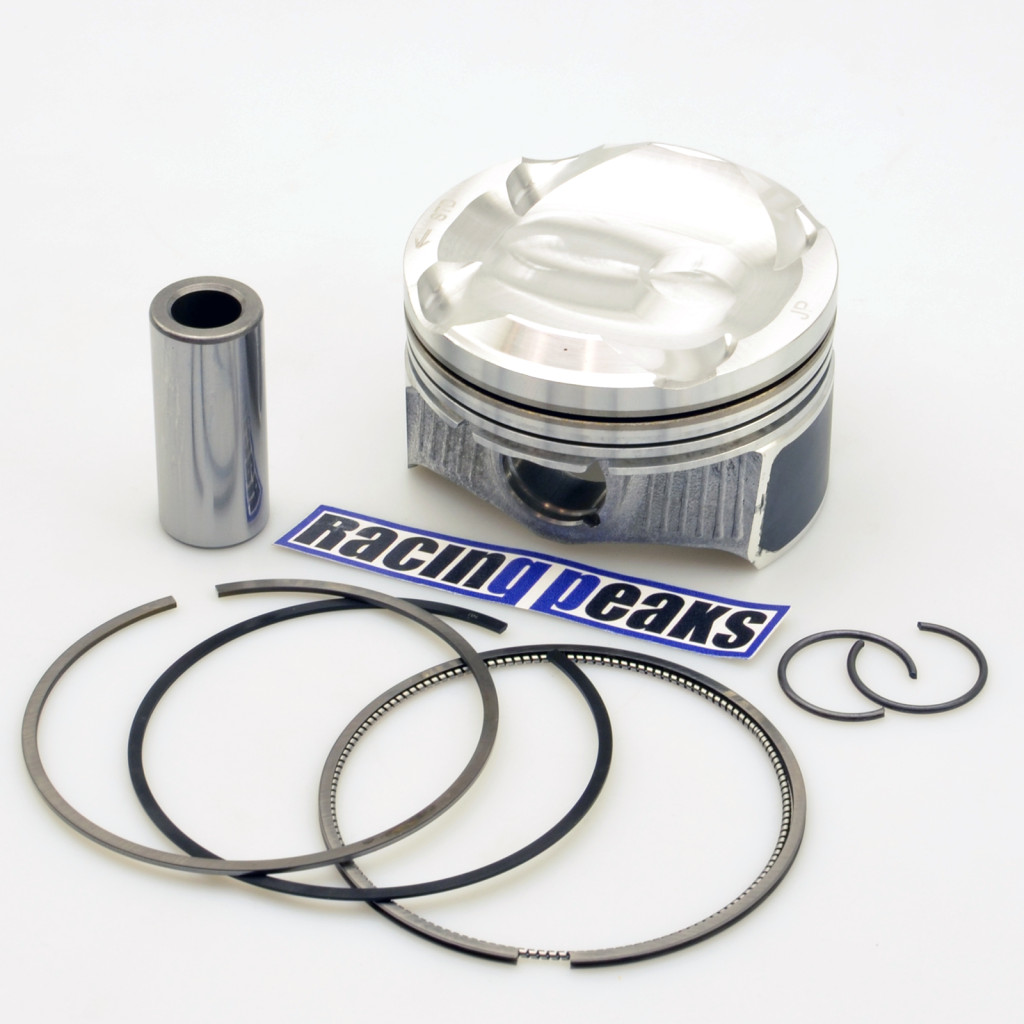

      Pistons with rings for enhance engine efficiency, precision, and durability for an improved driving experience. Package contains set of 3 pistons with rings and pin
      PKPG307504GA
      0 Items

      Data sheet

      Region
      Taiwan
      Fitment
      Direct Replacement
      Reference OE/OEM Number
      1610815680
      MPN
      PKPG307504GA
      • Peugeot
        • Partner Tepee (B9) 2008 - current
          • 1.2 THP (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
          • 208 (CA_ / CC_) 2012 - current
            • 1.2 THP (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
            • 3008 (0U_) 2009 - 2017
              • 1.2 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
              • 5008 (0E_ / 0U_) 2009 - 2017
                • 1.2 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                • 308 Hatch II (L3_ / LB_ / LH_ / LP_ / LW_) 2013 - current
                  • 1.2 THP 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                    • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                      • 1.2 THP 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                      • 308 SW II (L4_ / LC_ / LJ_ / LR_ / LX_) 2014 - current
                        • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                          • 1.2 THP 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                          • 308 Hatch II 2013 - current
                            • 1.2 THP 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                              • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                • 1.2 THP 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                • 308 SW II 2014 - current
                                  • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                    • 1.2 THP 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                    • Rifter 2018 - current
                                      • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                                      • 2008 (CU_) 2013 - current
                                        • 1.2 THP 130 (1.2L / 130 Hp / Petrol / HNS (EB2ADTS))
                                          • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                            • 1.2 THP 130 (1.2L / 130 Hp / Petrol / HNY (EB2DTS))
                                            • 3008 II (M_) 2016 - current
                                              • 1.2 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                                                • 1.2 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                                • 208 II (UB_ / UP_ / UW_) 2019 - current
                                                  • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                                    • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                                                    • PARTNER Estate III (K9) 2018 - current
                                                      • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                                                      • 2008 II (U_) 2019 - current
                                                        • 1.2 PureTech 130 (1.2L / 130 Hp / HNS (EB2ADTS))
                                                      • Citroen
                                                        • DS4 (NX_) 2011 - current
                                                          • 1.2 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                                          • DS4 2011 - current
                                                            • 1.2 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                                            • C4 Cactus 2014 - current
                                                              • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                              • C3 Aircross II (2C_ / 2R_) 2017 - current
                                                                • 1.2 Puretech 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                • Grand C4 Spacetourer (3A_ / 3E_) 2018 - current
                                                                  • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                                                                    • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                                                    • C4 Spacetourer (3D_) 2018 - current
                                                                      • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNY (EB2DTS))
                                                                      • C5 Aircross 2018 - current
                                                                        • 1.2 PureTech 130 (1.2L / 131 Hp / Petrol / HNS (EB2ADTS))
                                                                        • C3 III (SX) 2016 - current
                                                                          • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                          • C3 II (A51) 2009 - 2016
                                                                            • 1.2 VTi 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                            • C3 Picasso (SH_) 2009 - current
                                                                              • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                              • C4 Hatch II (B7) 2011 - current
                                                                                • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                                  • 1.2 VTi 82 (1.2L / 130 Hp / Petrol / HNY (EB2DTS))
                                                                                  • DS3 2009 - 2016
                                                                                    • 1.2 VTi 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                                    • DS3 Cabrio 2013 - 2015
                                                                                      • 1.2 VTi 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                                      • C4 Picasso II (3D_) 2013 - current
                                                                                        • 1.2 THP 110 (1.2L / 110 Hp / Petrol / HNZ (EB2DT))
                                                                                          • 1.2 THP 130 (1.2L / 130 Hp / Petrol / HNY (EB2DTS))
                                                                                          • C4 Grand Picasso II (3A_) 2013 - current
                                                                                            • 1.2 THP 130 (1.2L / 130 Hp / Petrol / HNY (EB2DTS))

                                                                                          Specific References

                                                                                          MPN
                                                                                          PKPG307504GA
