Piston set for KIA Ceed ProCeed Rio Soul Cerato Seltos 1.6MPi G4FG 2011-
€183.49
VAT included
Cyl.Bore: 77.00mm is STD
Compression Height: 27.0mm
Length: 44.0mm
Recess Depth: -0.9mm
Bolt d.: 18.0mm
Bolt Length: 52.5mm
Info: top and 2nd ring lands anodized, skirt MoS2 treated
Piston rings: 1.20x1.50x2.00mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy

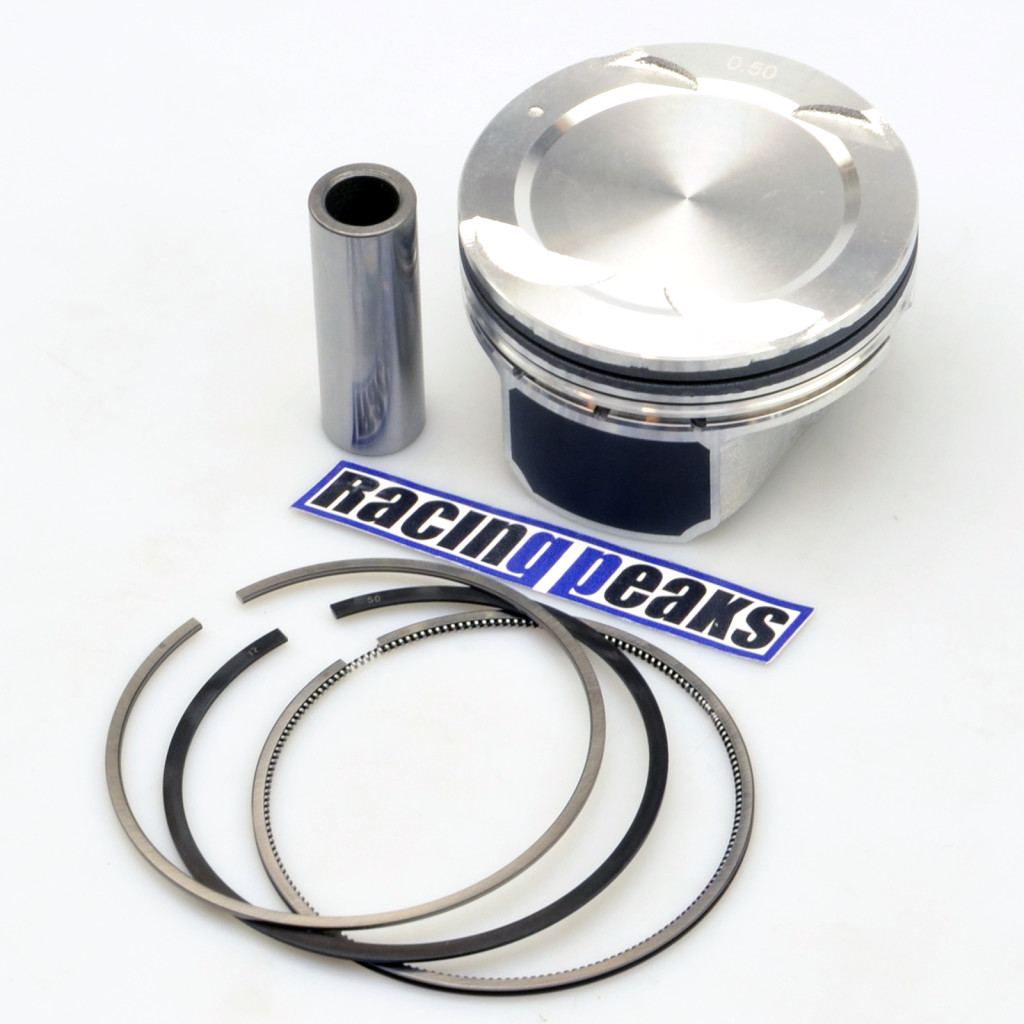

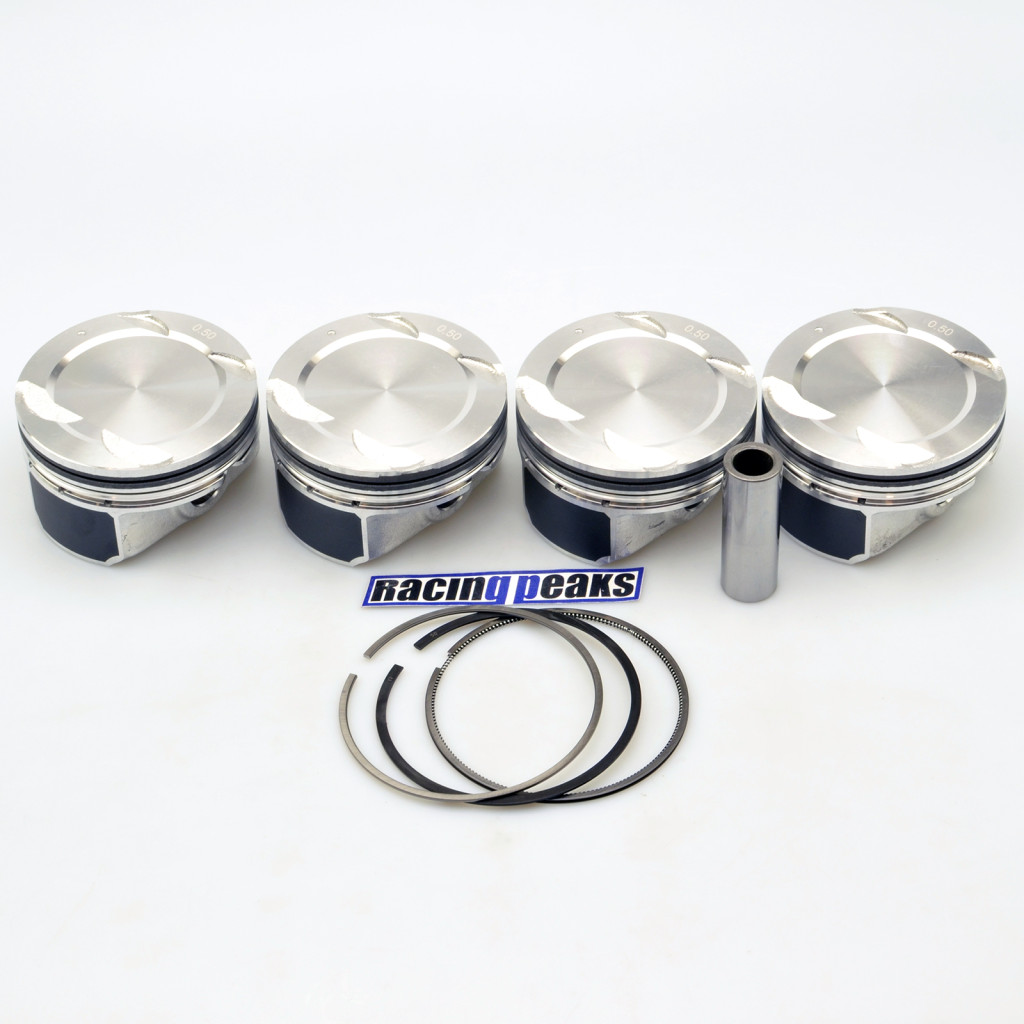

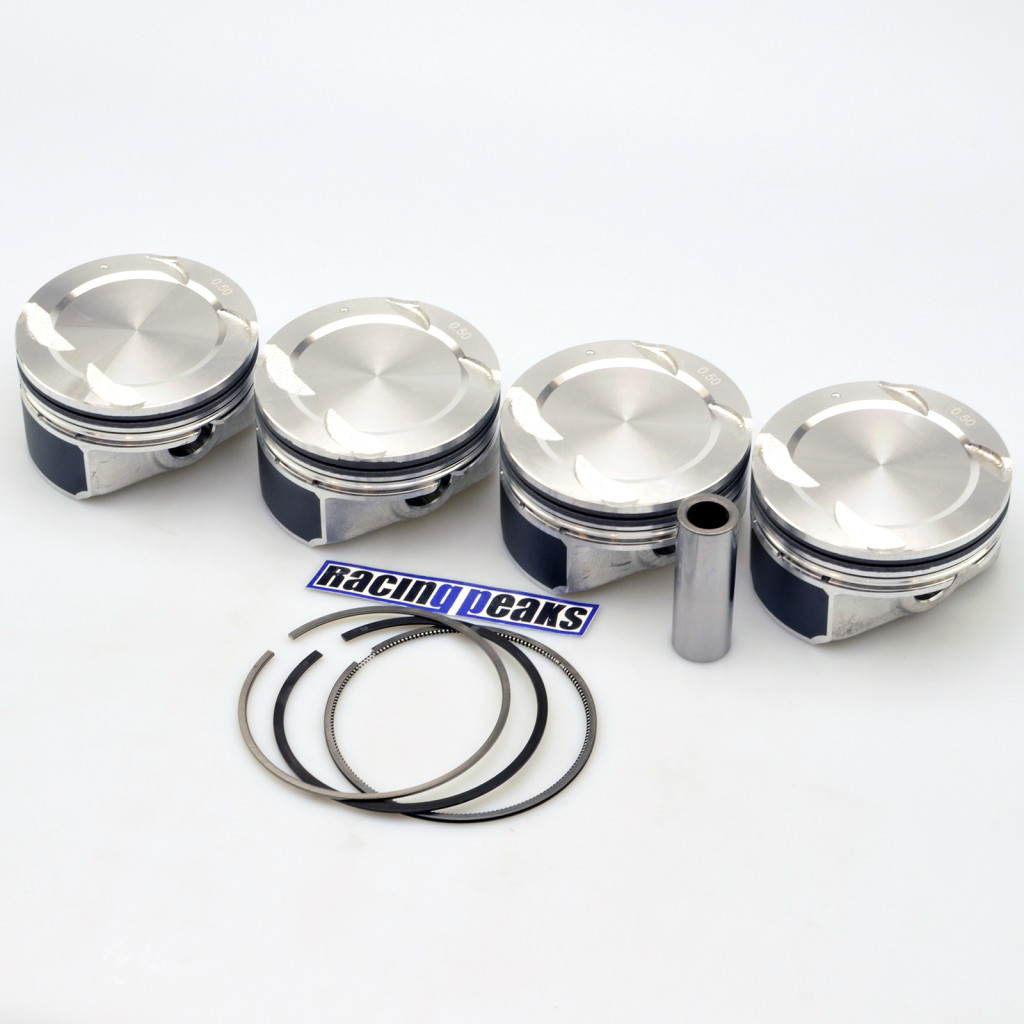

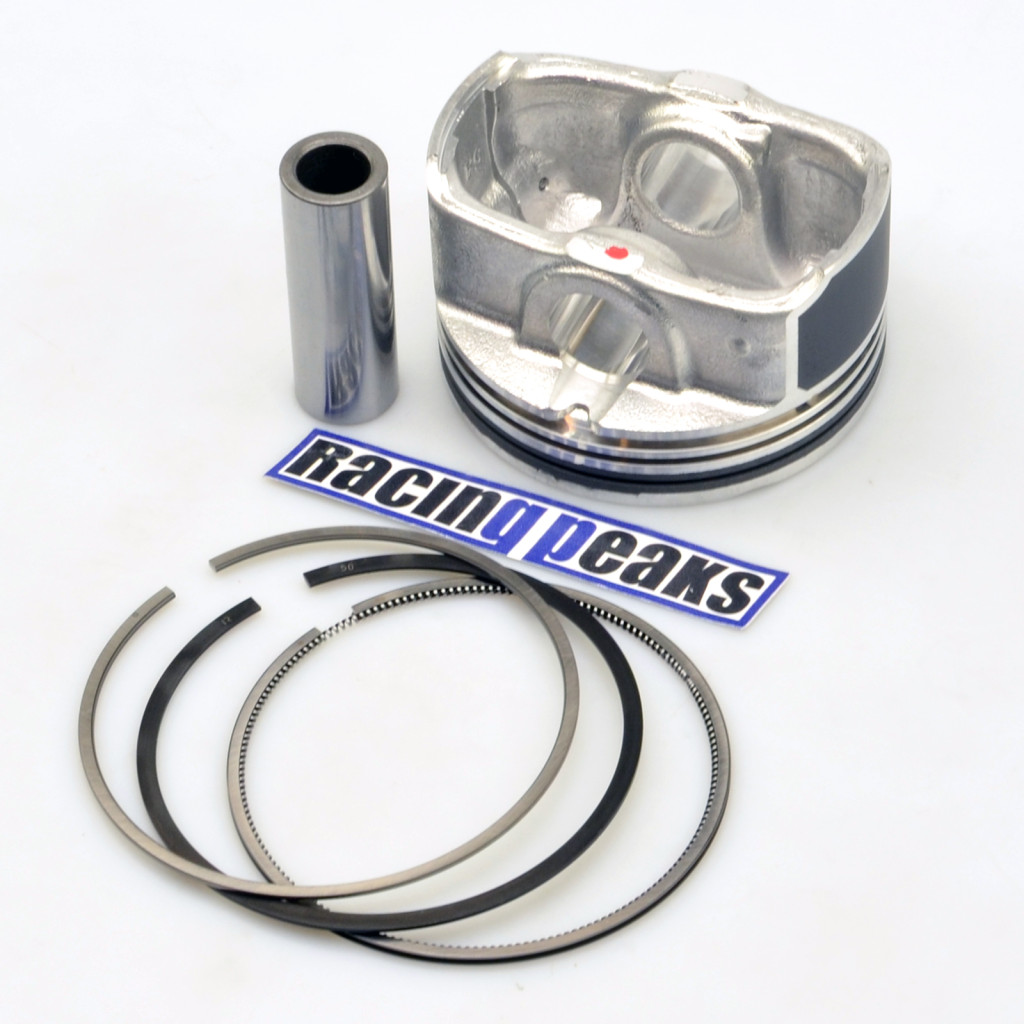

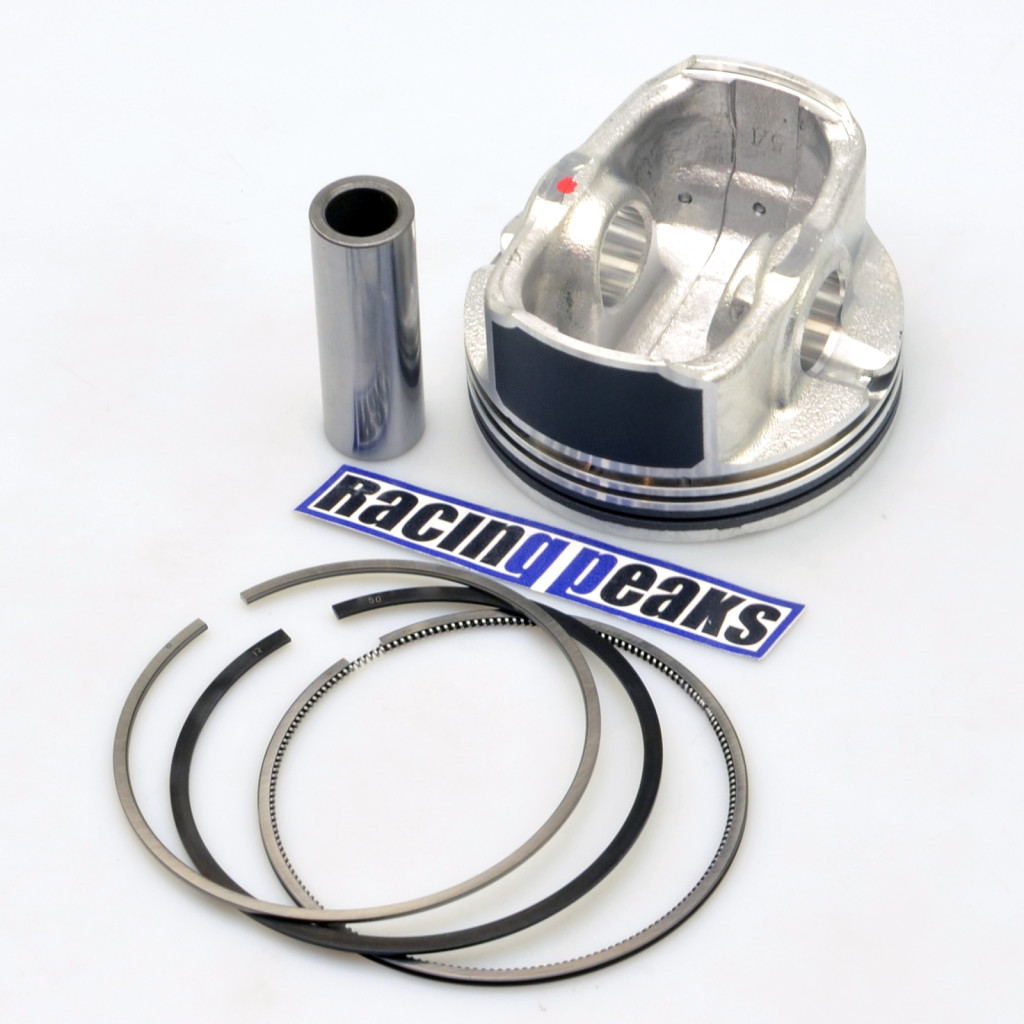

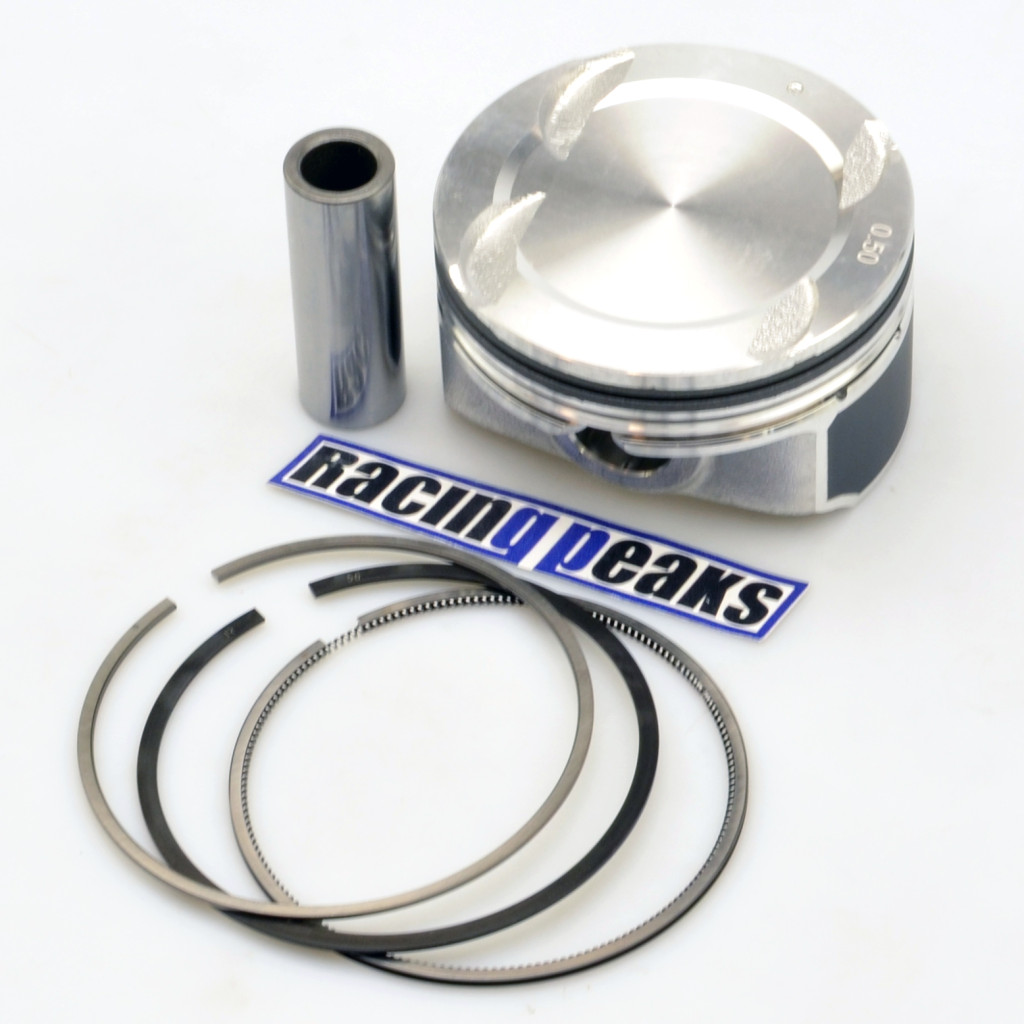

Pistons with rings for enhance engine efficiency, precision, and durability for an improved driving experience. Package contains set of 4 pistons with rings and pin
PKHD407707G-1
0 Item
Data sheet
- Region
- Taiwan
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 23040-2B600
23040-2B650
23040-2B800
23040-2B950
23041-2B900
23041-2B901
23041-2B910
23041-2B911
23041-2B920
23041-2B921 - MPN
- PKHD407707G-1
- Hyundai
- Veloster (FS) 2011 - 2017
- 1.6 GDI (1.6L / 132 Hp / G4FG)
- 1.6 (1.6L / 128-132 Hp / G4FG)
- i30 Hatch II (GD) 2011 - 2017
- 1.6 (1.6L / 130 Hp / Petrol / G4FG)
- i30 CW Estate II (GD) 2012 - 2017
- 1.6 (1.6L / 120 Hp / Petrol / G4FG)
- 1.6 (1.6L / 129 Hp / Petrol / G4FG)
- Creta 2015 - current
- 1.6 4WD (1.6L / 123 Hp / G4FG)
- 1.6 (1.6L / 123 Hp / G4FG)
- Elantra Saloon VI (AD) 2015 - 2020
- 1.6 LPI (1.6L / 128 Hp / G4FG)
- Elantra Saloon V (MD) 2010 - 2015
- 1.6 (1.6L / 132 Hp / Petrol / G4FG)
- 1.6 (1.6L / 130-132 Hp / Petrol / G4FG)
- Solaris Saloon II (HCR) 2017 - current
- 1.6 (1.6L / 123 Hp / G4FG)
- Kia
- Soul II (PS) 2013 - current
- 1.6 MPI (1.6L / 124 Hp / Petrol / G4FG)
- 1.6 GDI (1.6L / 136 Hp / Petrol / G4FG)
- Cerato Saloon III (YD) 2012 - current
- 1.6 (1.6L / 128-129 Hp / G4FG)
- 1.6 (1.6L / 128-129 Hp / Petrol / G4FG)
- Soul (AM) 2008 - 2014
- 1.6 CVVT (1.6L / 129 Hp / Petrol / G4FG)
- 1.6 (1.6L / 124 Hp / Petrol / G4FG)
- Pro Cee'd II (JD) 2013 - 2018
- 1.6 (1.6L / 130 Hp / Petrol / G4FG)
- Cee'd Hatch II (JD) 2012 - 2018
- 1.6 CVVT (1.6L / 130 Hp / Petrol / G4FG)
- Soul III (SK) 2019 - current
- 1.6 (1.6L / 123 Hp / G4FG)
- Cerato Saloon IV (BD) 2018 - current
- 1.6 (1.6L / 128 Hp / G4FG)
- Rio Saloon IV (FB / SC) 2017 - current
- 1.6 (1.6L / 123 Hp / G4FG)
- Rio Hatch IV (FB) 2017 - current
- 1.6 (1.6L / 123 Hp / G4FG)
- Ceed Estate III (CD) 2018 - current
- 1.6 MPI (1.6L / 128 Hp / G4FG)
- Ceed Hatch III (CD) 2018 - current
- 1.6MPI (1.6L / 128 Hp / G4FG)
Specific References
- MPN
- PKHD407707G-1
New
Cyl.Bore: 77.00mm is STD
Compression Height: 27.0mm
Length: 44.0mm
Recess Depth: -0.9mm
Bolt d.: 18.0mm
Bolt Length: 52.5mm
Info: top and 2nd ring lands anodized, skirt MoS2 treated
Piston rings: 1.20x1.50x2.00mm
