Piston set fits Ford Focus Kuga Escape Fusion Mondeo C-S-Max 1.5 EcoBoost 2014-
€177.99
VAT included
Cyl.Bore: 79.00mm is STD
Compression Height: 28.7mm
Length: 53.9mm

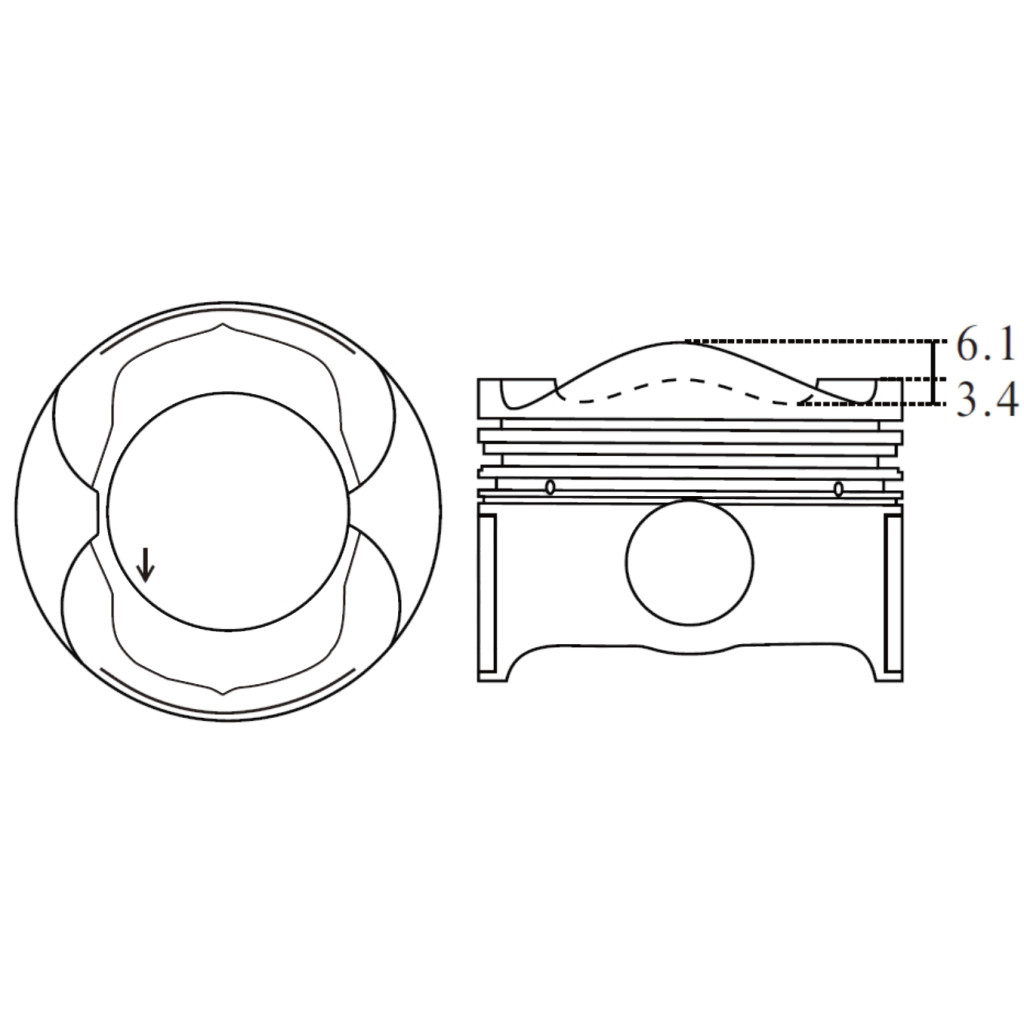

Recess Depth: +6.1/-3.4mm
Bolt d.: 21.0mm
Bolt Length: 46.0mm
Info: head, top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod
Piston rings: 1.20x1.20x2.00mm

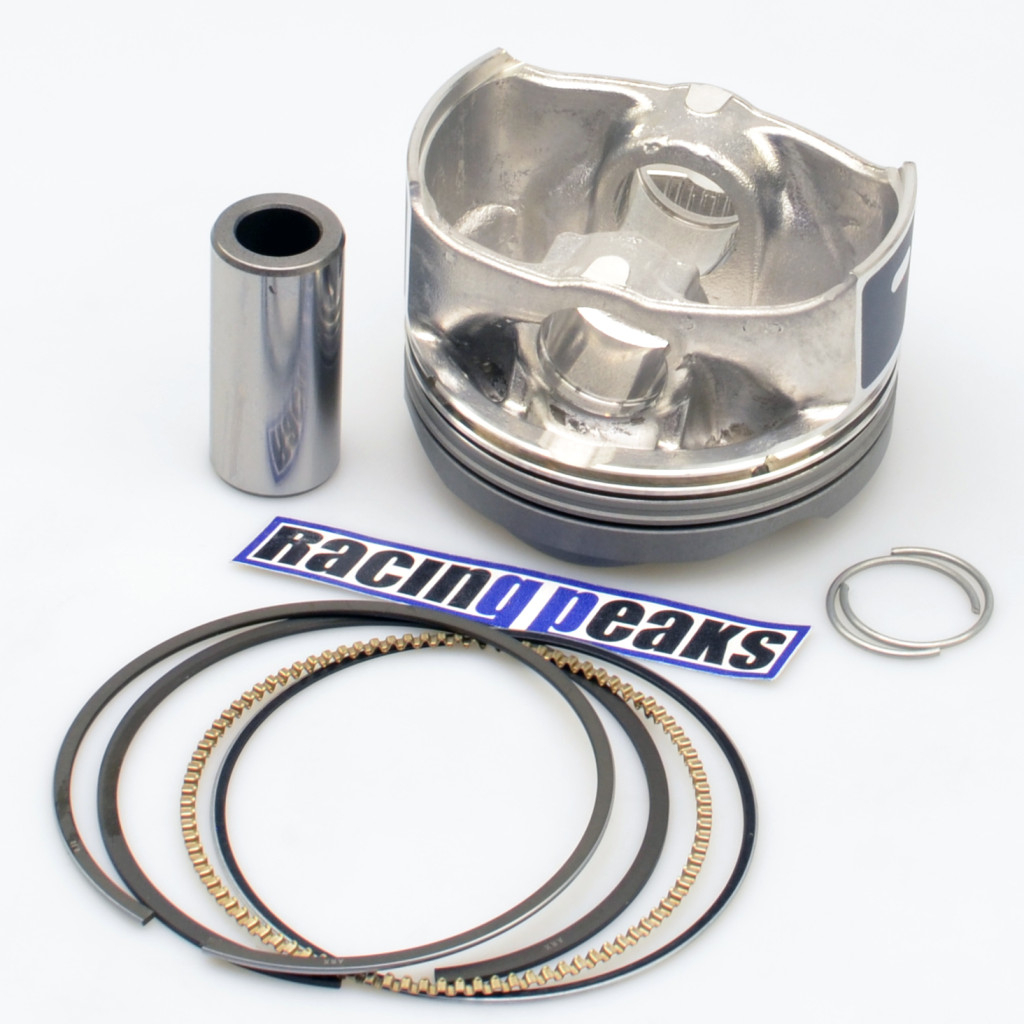

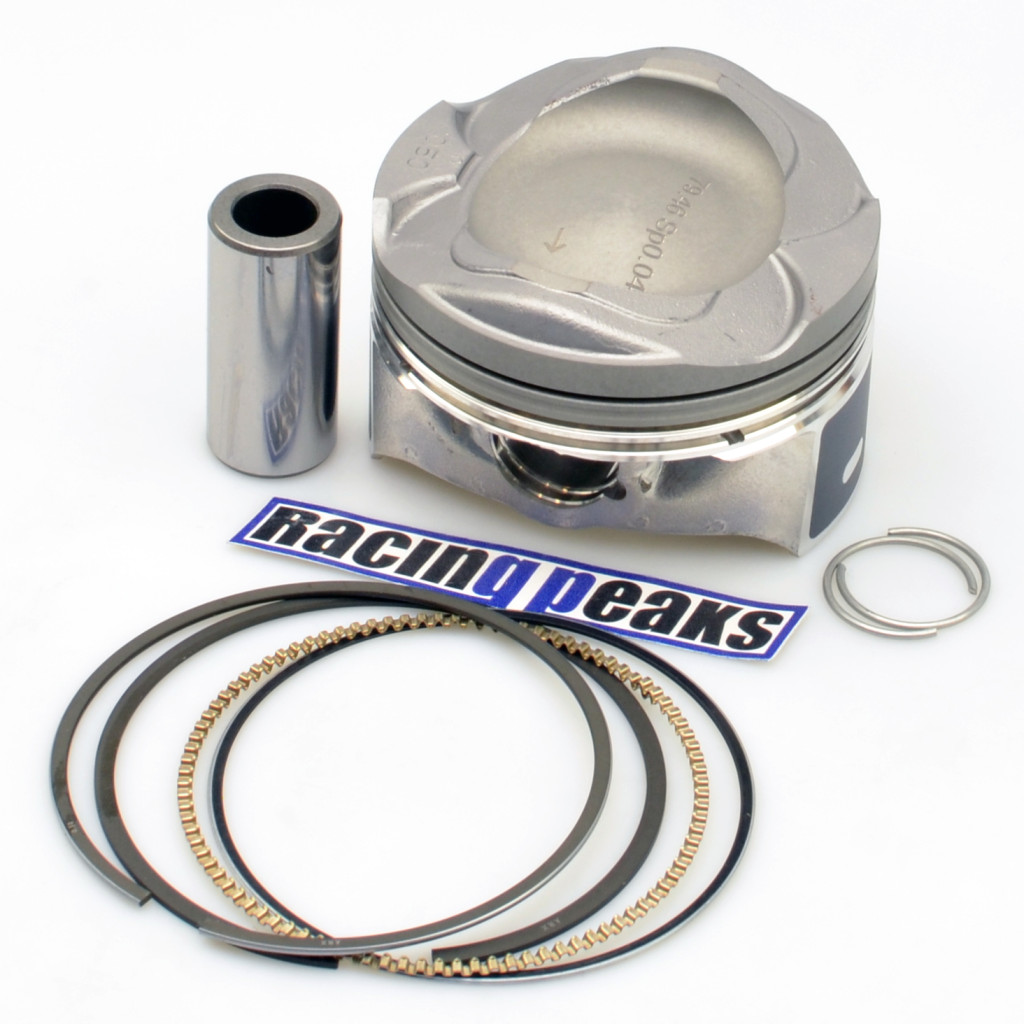

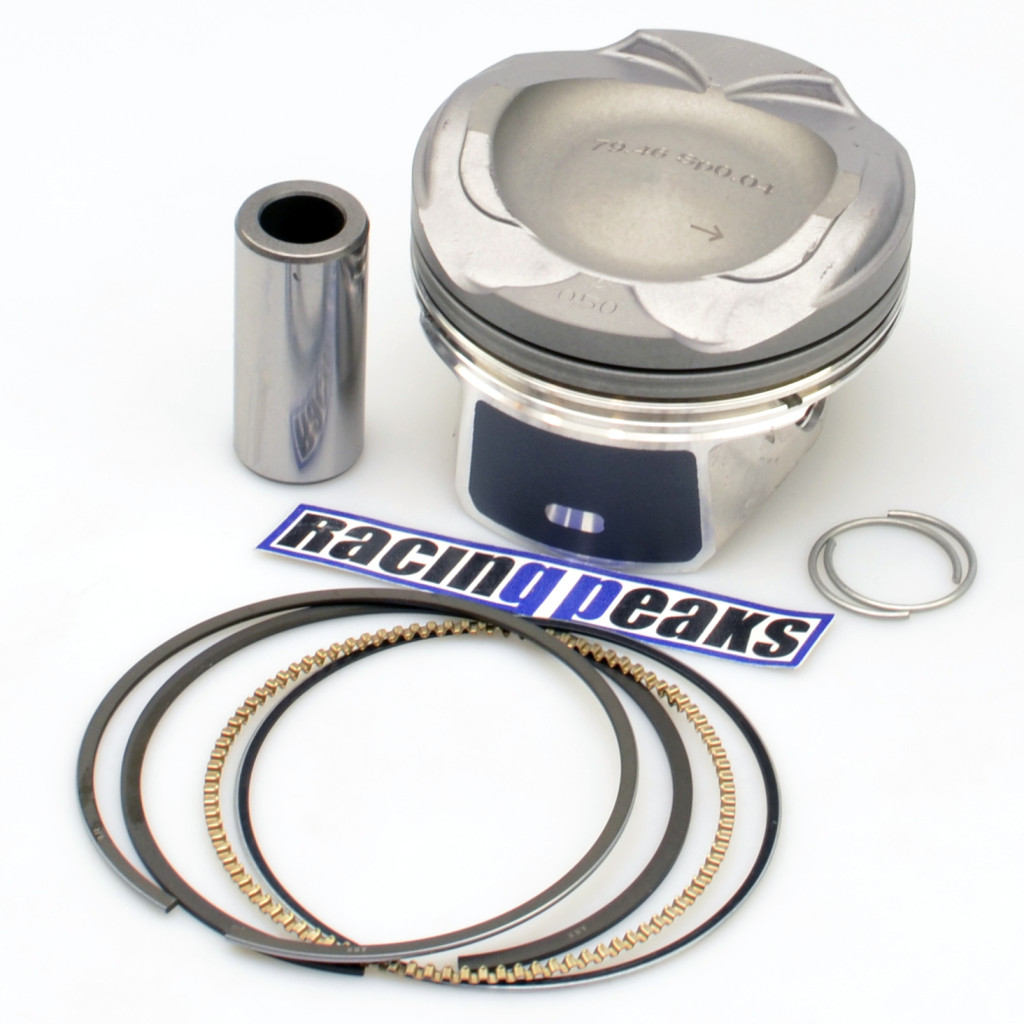

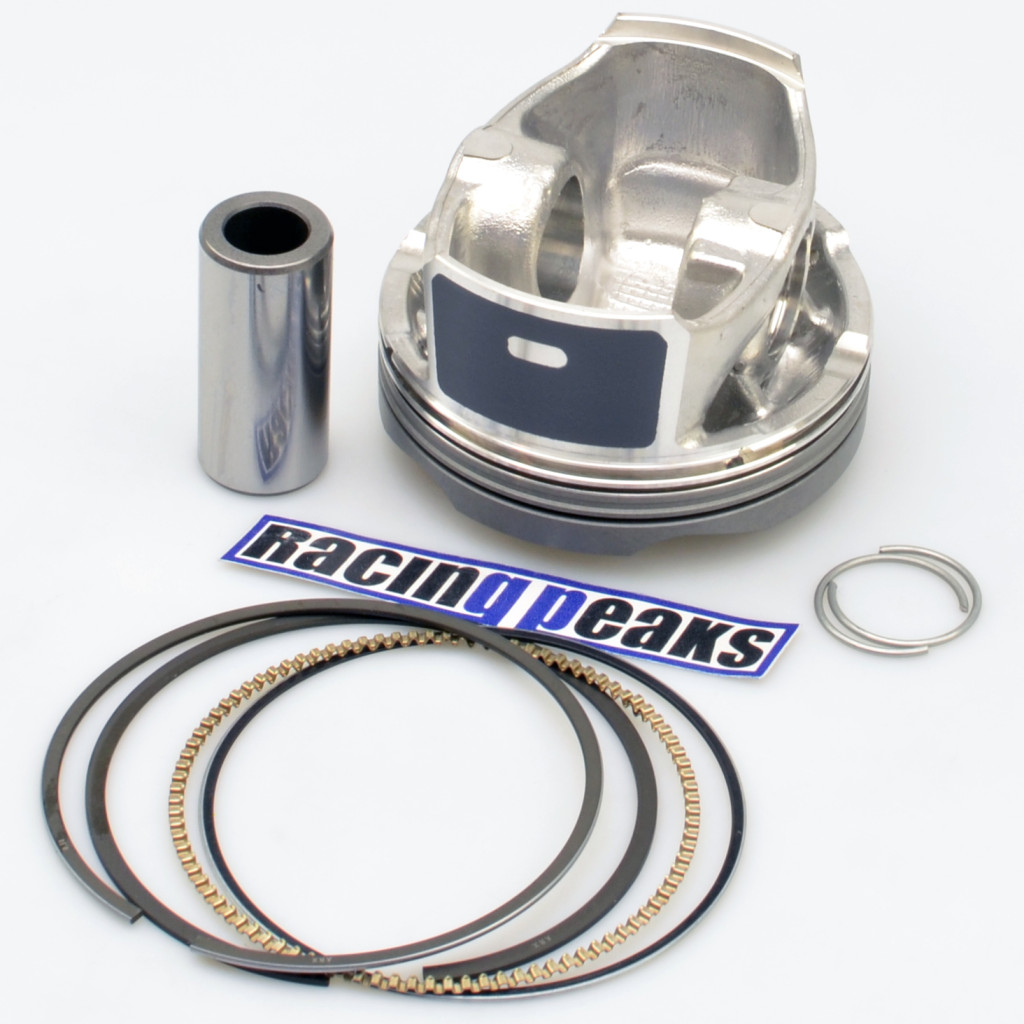

Pistons with rings for enhance engine efficiency, precision, and durability for an improved driving experience. Package contains set of 4 pistons with rings and pin
PKFO407906G
0 Items
Data sheet
- Region
- Taiwan
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- DS7G-6105FA
- MPN
- PKFO407906G
- Ford
- Focus Estate III (BL) 2010 - current
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8DA)
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8DB)
- 1.5 EcoBoost (1.5L / 182 Hp / Petrol / M9DB)
- Focus Saloon III (BM_) 2010 - current
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8DA)
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8DB)
- Focus Hatch III (BK) 2010 - current
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8DA)
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8DB)
- 1.5 EcoBoost (1.5L / 182 Hp / Petrol / M9DB)
- Mondeo Estate V (CF) 2014 - current
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCA)
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCB)
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCE)
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCF)
- Mondeo Hatch V (CE) 2014 - current
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCA)
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCB)
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCE)
- 1.5 EcoBoost (1.5L / 160 Hp / Petrol / UNCF)
- Kuga II (MA) 2012 - current
- 1.5 EcoBoost (1.5L / 150 Hp / Petrol / M8MA)
- 1.5 EcoBoost 4WD (1.5L / 150 Hp / Petrol / M8MA)
Specific References
- MPN
- PKFO407906G
New
Cyl.Bore: 79.00mm is STD
Compression Height: 28.7mm
Length: 53.9mm
Recess Depth: +6.1/-3.4mm
Bolt d.: 21.0mm
Bolt Length: 46.0mm
Info: head, top and 2nd ring lands anodized, skirt MoS2 treated, fits tapered connecting rod
Piston rings: 1.20x1.20x2.00mm
