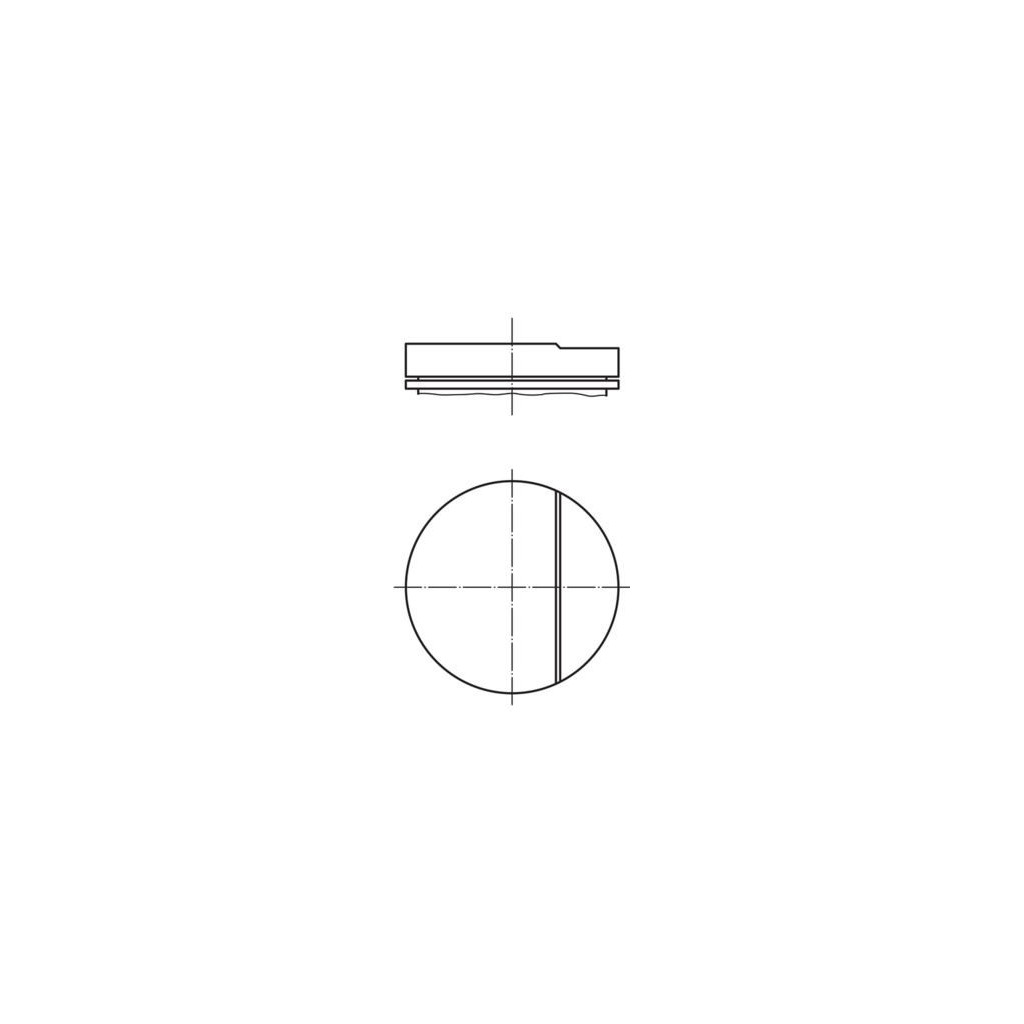

MAHLE piston 87.50 x1 for Mercedes 280-300 S-SE-SEL Coupe Pagode 1967-1972 M130
€116.59
VAT included
Bore: 87.50mm
Length: 80.6 mm
Compression Height: 48.6 mm
Pin Length: 75 mm
Pin Diameter: 25 mm
Recess Depth 1: 1.3 mm
Surface: Tin-plated
Top Land Height: 13.4 mm
Production Number: 86 V 13
Piston Clearance: 0.02 mm
Piston rings: 2.00x2.50x4.00mm
Length: 80.6 mm
Compression Height: 48.6 mm
Pin Length: 75 mm
Pin Diameter: 25 mm
Recess Depth 1: 1.3 mm
Surface: Tin-plated
Top Land Height: 13.4 mm
Production Number: 86 V 13
Piston Clearance: 0.02 mm
Piston rings: 2.00x2.50x4.00mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy
MAHLE pistons are Germany and manufacturer OE quality products. Precision-engineered for maximum power and reliability in your engine..
0017502
12 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 130 030 00 18
130 030 03 18
130 030 06 18
130 030 16 17
130 030 20 17
130 030 24 17
130 030 37 17
130 030 47 17
130 030 57 17
130 030 62 17
130 030 71 17
130 030 77 17
130 030 86 18
130 030 97 17
A130 030 00 18
A130 030 03 18
A130 030 06 18
A130 030 16 17
A130 030 20 17
A130 030 24 17
A130 030 37 17
A130 030 47 17
A130 030 57 17
A130 030 62 17
A130 030 71 17
A130 030 77 17
A130 030 86 18
A130 030 97 17 - MPN
- 0017502
- Mercedes
- S (W108 / W109) 1966 - 1972
- S 280 S (2.8L / 140 Hp / M 130.920)
- S 280 SE/SEL (2.8L / 160 Hp / M 130.980)
- S 300 SEL (2.7L / 160 Hp / M 130.981)
- Coupe (W111) 1961 - 1971
- 280 SE (2.8L / 160 Hp / M 130.980)
- 280 SE (2.8L / 160 Hp / M 130.984)
- Pagode (W113) 1963 - 1971
- 280 SL (2.8L / 170 Hp / M 130.983)
Specific References
New
Bore: 87.50mm
Length: 80.6 mm
Compression Height: 48.6 mm
Pin Length: 75 mm
Pin Diameter: 25 mm
Recess Depth 1: 1.3 mm
Surface: Tin-plated
Top Land Height: 13.4 mm
Production Number: 86 V 13
Piston Clearance: 0.02 mm
Piston rings: 2.00x2.50x4.00mm
Length: 80.6 mm
Compression Height: 48.6 mm
Pin Length: 75 mm
Pin Diameter: 25 mm
Recess Depth 1: 1.3 mm
Surface: Tin-plated
Top Land Height: 13.4 mm
Production Number: 86 V 13
Piston Clearance: 0.02 mm
Piston rings: 2.00x2.50x4.00mm
