- New

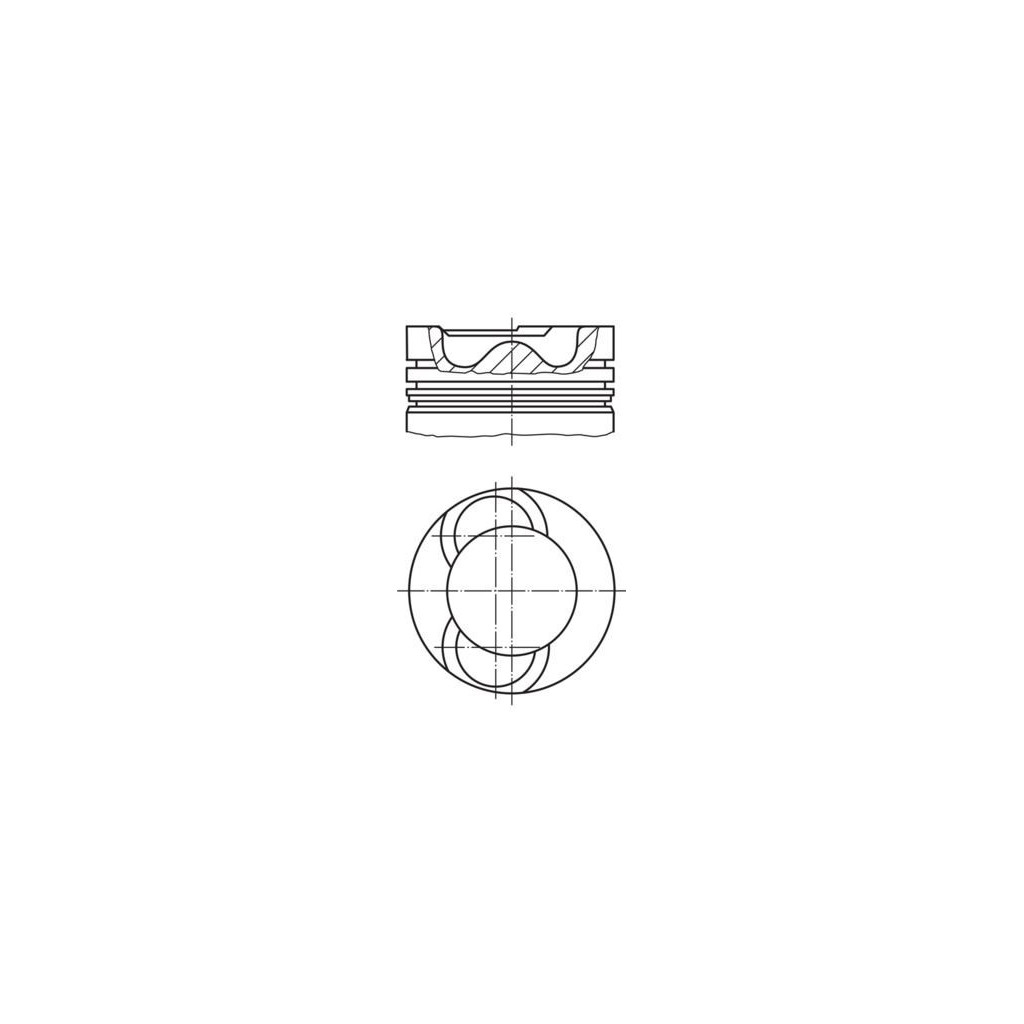

MAHLE piston 81.00 x1 for VW Crafter 30-50 2.5TDi 2006-2013 BJL BJM CECA CECB
€110.09
VAT included
Bore: 81.01mm
Length: 69.8 mm
Compression Height: 45.75 mm
Pin Length: 66 mm
Pin Diameter: 26 mm
Recess Depth 1: 16.6 mm
Recess Diameter: 46 mm
Valve Pocket Depth 1: 1.3 mm
Valve Pocket Depth 2: 1.3 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier, with cooling duct
Top Land Height: 12 mm
Production Number: 81 L 98
Piston Clearance: 0.05 mm
Piston rings: 2.50x2.00x3.00mm
Length: 69.8 mm
Compression Height: 45.75 mm
Pin Length: 66 mm
Pin Diameter: 26 mm
Recess Depth 1: 16.6 mm
Recess Diameter: 46 mm
Valve Pocket Depth 1: 1.3 mm
Valve Pocket Depth 2: 1.3 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier, with cooling duct
Top Land Height: 12 mm
Production Number: 81 L 98
Piston Clearance: 0.05 mm
Piston rings: 2.50x2.00x3.00mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy
MAHLE pistons are Germany and manufacturer OE quality products. Precision-engineered for maximum power and reliability in your engine..
0280900
5 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 076107065A
076107065C - MPN
- 0280900
Specific References
New
Bore: 81.01mm
Length: 69.8 mm
Compression Height: 45.75 mm
Pin Length: 66 mm
Pin Diameter: 26 mm
Recess Depth 1: 16.6 mm
Recess Diameter: 46 mm
Valve Pocket Depth 1: 1.3 mm
Valve Pocket Depth 2: 1.3 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier, with cooling duct
Top Land Height: 12 mm
Production Number: 81 L 98
Piston Clearance: 0.05 mm
Piston rings: 2.50x2.00x3.00mm
Length: 69.8 mm
Compression Height: 45.75 mm
Pin Length: 66 mm
Pin Diameter: 26 mm
Recess Depth 1: 16.6 mm
Recess Diameter: 46 mm
Valve Pocket Depth 1: 1.3 mm
Valve Pocket Depth 2: 1.3 mm
Machined: with cut-out for oil jet
Surface: Coated
Supplementary Article/Info 2: with piston ring carrier, with cooling duct
Top Land Height: 12 mm
Production Number: 81 L 98
Piston Clearance: 0.05 mm
Piston rings: 2.50x2.00x3.00mm
