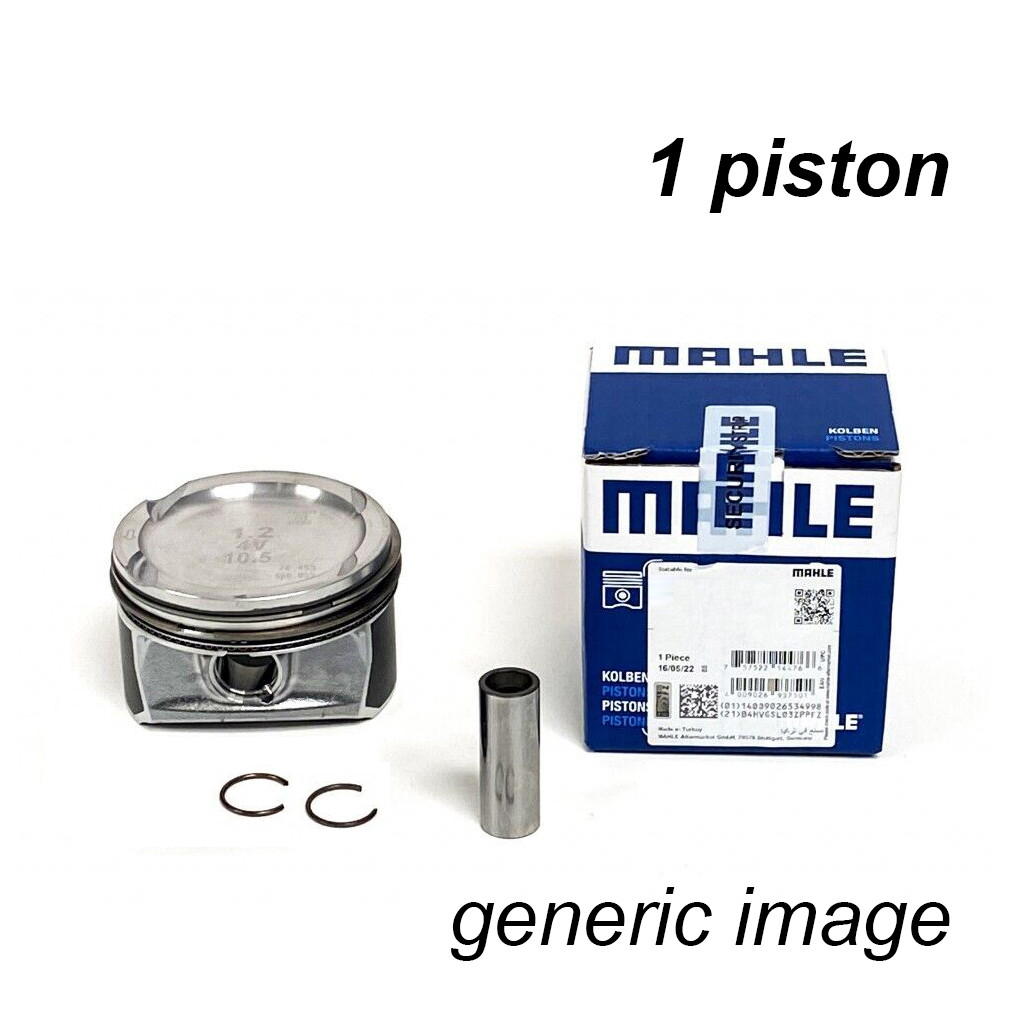

MAHLE piston 76.50 STD x1 for VW Audi A3 Golf Jetta Passat Tiguan 1.4TSI CAXA
€52.89
VAT included
Bore: 76.51mm
Length: 50.2 mm
Compression Height: 29.2 mm
Pin Length: 52 mm
Pin Diameter: 19 mm
Recess Depth 1: 4.6 mm
Valve Pocket Depth 1: 3.6 mm
Valve Pocket Depth 2: 0.8 mm
Surface: Hard Anodized
Top Land Height: 5.7 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 76 L 135
Piston Clearance: 0.07 mm
Piston rings: 1.20x1.20x2.00mm
Length: 50.2 mm
Compression Height: 29.2 mm
Pin Length: 52 mm
Pin Diameter: 19 mm
Recess Depth 1: 4.6 mm
Valve Pocket Depth 1: 3.6 mm
Valve Pocket Depth 2: 0.8 mm
Surface: Hard Anodized
Top Land Height: 5.7 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 76 L 135
Piston Clearance: 0.07 mm
Piston rings: 1.20x1.20x2.00mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy
MAHLE pistons are Germany and manufacturer OE quality products. Precision-engineered for maximum power and reliability in your engine..

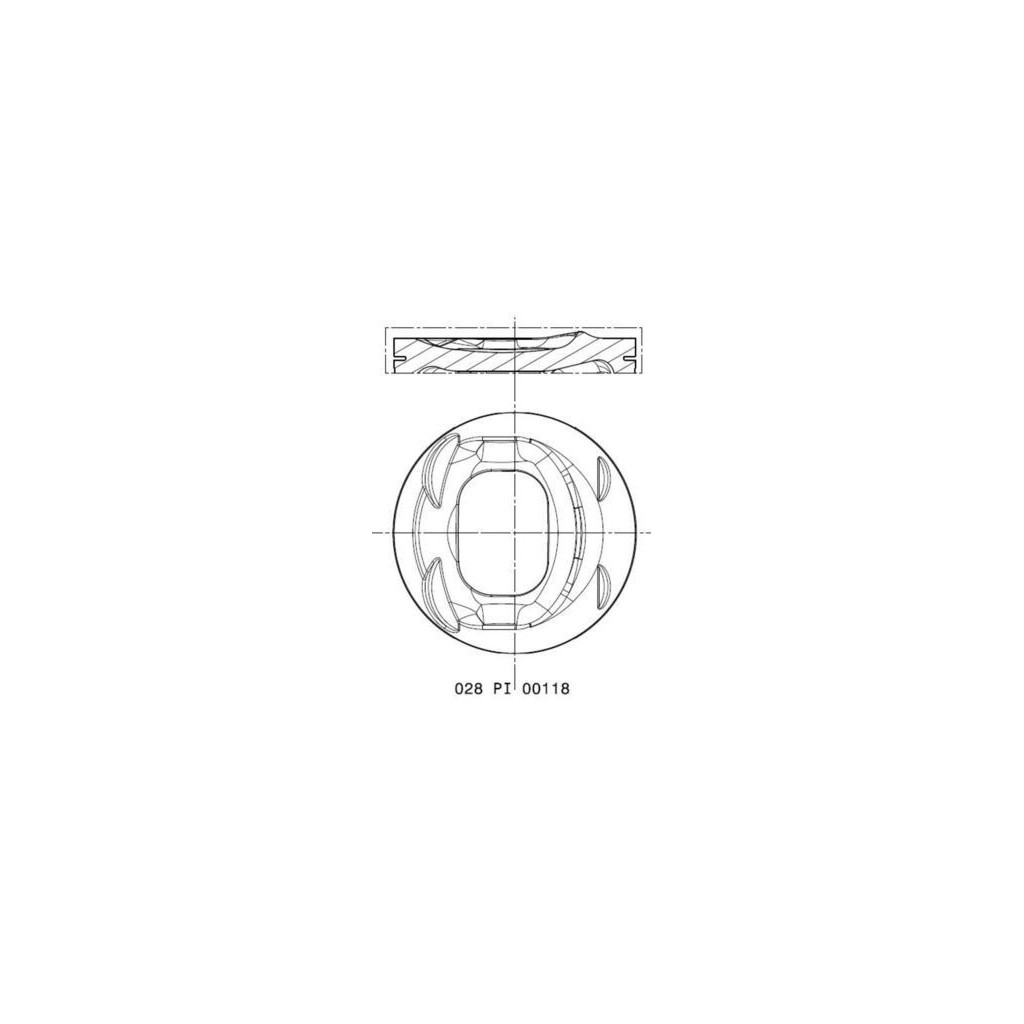

028PI00118000
12 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 06H107065AB
06H107065AM
06H107065BE - MPN
- 028PI00118000
- Audi
- A3 Sportback II (8PA) 2004 - 2015
- 1.4 TFSI (1.4L / 125 Hp / Petrol / CAXC)
- 1.4 TFSI (1.4L / 125 Hp / Petrol / CMSA)
- A3 Hatch II (8P1) 2003 - 2013
- 1.4 TFSI (1.4L / 125 Hp / Petrol / CAXC)
- 1.4 TFSI (1.4L / 125 Hp / Petrol / CMSA)
- A3 Cabrio II (8P7) 2008 - 2013
- 1.4 TFSI (1.4L / 125 Hp / Petrol / CAXC)
- A1 Sportback (8XA / 8XF) 2011 - 2018
- 1.4 TFSI (1.4L / 122 Hp / Petrol / CNVA)
- 1.4 TFSI (1.4L / 122 Hp / Petrol / CAXA)
- A1 (8X1 / 8XK) 2010 - 2018
- 1.4 TFSI (1.4L / 122 Hp / Petrol / CNVA)
- 1.4 TFSI (1.4L / 122 Hp / Petrol / CAXA)
- Volkswagen
- Golf Hatch V (1K1 / 9B3) 2003 - 2009
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Golf Hatch V (1K1 / 9B3) 2003 - 2010
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Passat Variant VI (3C5) 2005 - 2010
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Passat Saloon VI (3C2) 2005 - 2010
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Eos (1F7 / 1F8) 2006 - 2015
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Jetta Saloon VI (162 / 163 / AV2 / AV3) 2008 - 2018
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- 1.4 TSI (1.4L / 122 Hp / Petrol / CMSB)
- Passat Saloon VII (362 / A32 / A42) 2010 - 2015
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Passat Variant VII (365) 2010 - 2014
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Golf Cabriolet VI (517) 2011 - 2015
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Scirocco III (137138) 2008 - 2017
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- 1.4 TSI (1.4L / 122 Hp / Petrol / CMSB)
- Golf Hatch VI (5K1) 2008 - 2014
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Golf Variant VI (AJ5) 2009 - 2014
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Golf Plus VI (521) 2009 - 2014
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Golf Plus V (5M1) 2004 - 2008
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Tiguan (5N1 / 5N2) 2007 - 2017
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Golf Variant V (1K5) 2007 - 2009
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Jetta Saloon V (1K2) 2004 - 2010
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Seat
- Leon Hatch II (1P1) 2005 - 2012
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
- Altea Freetrack Off-Road Vehicle (5P5 / 5P8) 2007 - current
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
- Toledo Hatch IV (KG3) 2012 - 2019
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Altea VAN (5P1) 2004 - current
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
- Toledo Hatch III (5P2) 2004 - 2009
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
- Altea XL VAN (5P5) 2006 - current
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
- Skoda
- Superb Estate II (3T5) 2009 - 2015
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
- Yeti (5L6 / 5L7 / 676 / 677) 2009 - 2018
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Rapid Spaceback Estate II (NH1) 2012 - 2019
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Rapid II (NH3 / NK3) 2012 - 2019
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Rapid Spaceback Estate II (NH1) 2012 - current
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Octavia II (1Z3 / 933) 2004 - 2013
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Octavia Estate II (1Z5) 2004 - 2013
- 1.4 TSI (1.4L / 122 Hp / Petrol / CAXA)
- Superb II (3T4) 2008 - 2015
- 1.4 TSI (1.4L / 125 Hp / Petrol / CAXC)
Specific References
New
Bore: 76.51mm
Length: 50.2 mm
Compression Height: 29.2 mm
Pin Length: 52 mm
Pin Diameter: 19 mm
Recess Depth 1: 4.6 mm
Valve Pocket Depth 1: 3.6 mm
Valve Pocket Depth 2: 0.8 mm
Surface: Hard Anodized
Top Land Height: 5.7 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 76 L 135
Piston Clearance: 0.07 mm
Piston rings: 1.20x1.20x2.00mm
Length: 50.2 mm
Compression Height: 29.2 mm
Pin Length: 52 mm
Pin Diameter: 19 mm
Recess Depth 1: 4.6 mm
Valve Pocket Depth 1: 3.6 mm
Valve Pocket Depth 2: 0.8 mm
Surface: Hard Anodized
Top Land Height: 5.7 mm
Connecting Rod Design: Trapezoidal Connecting Rod
Production Number: 76 L 135
Piston Clearance: 0.07 mm
Piston rings: 1.20x1.20x2.00mm
