- New

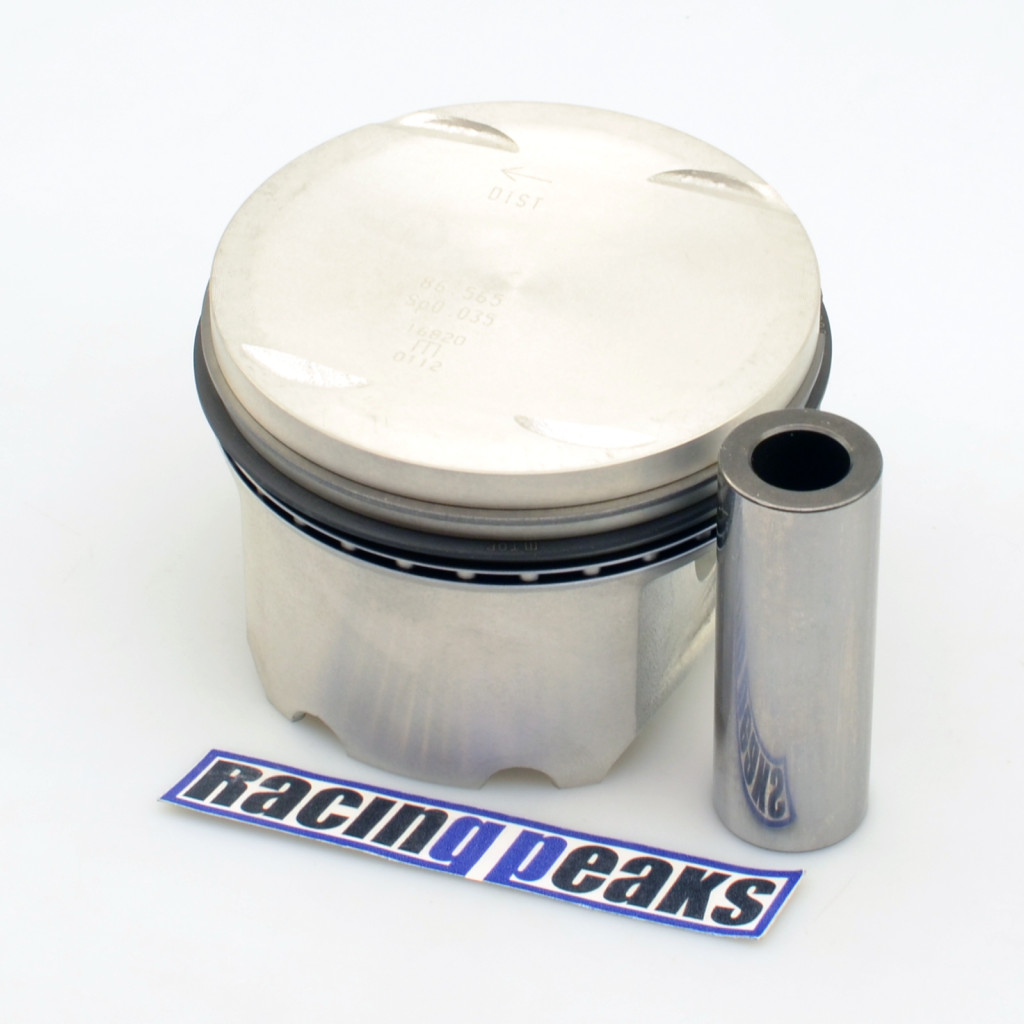

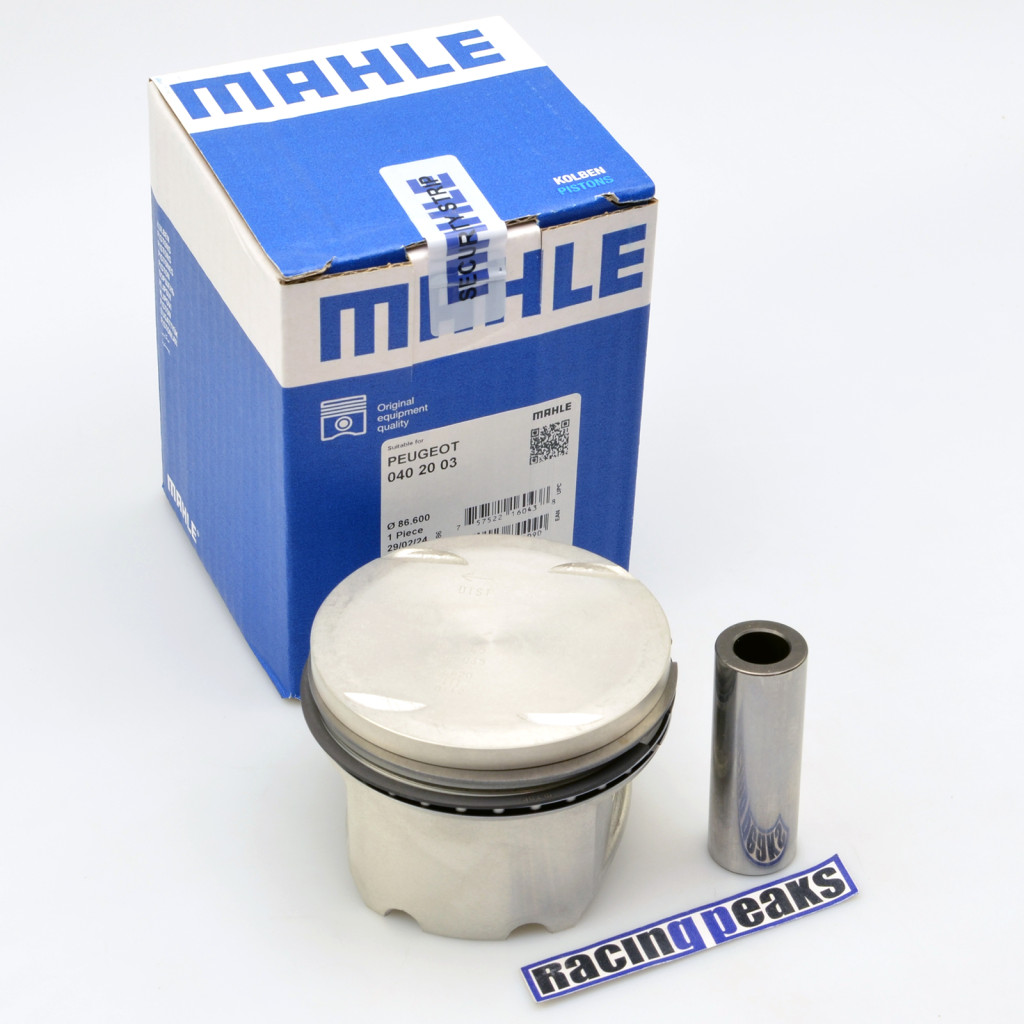

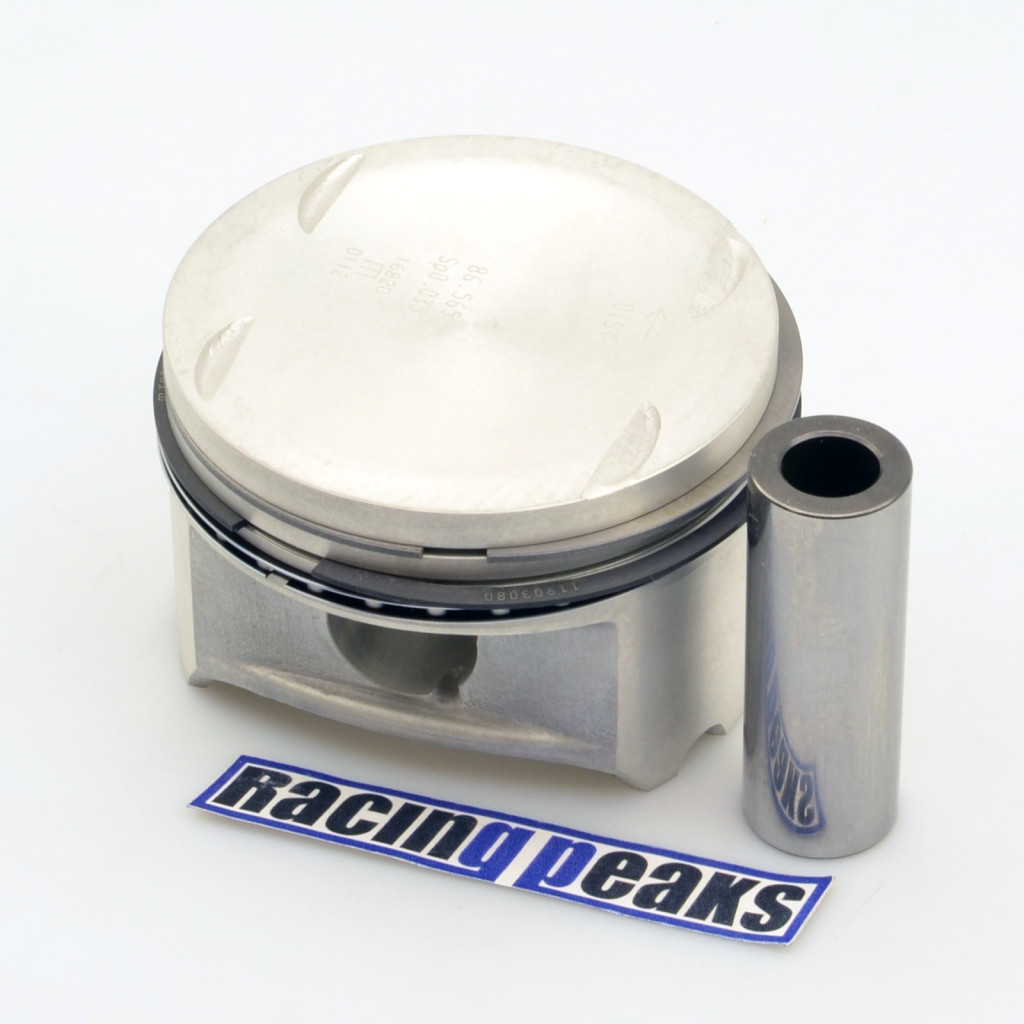

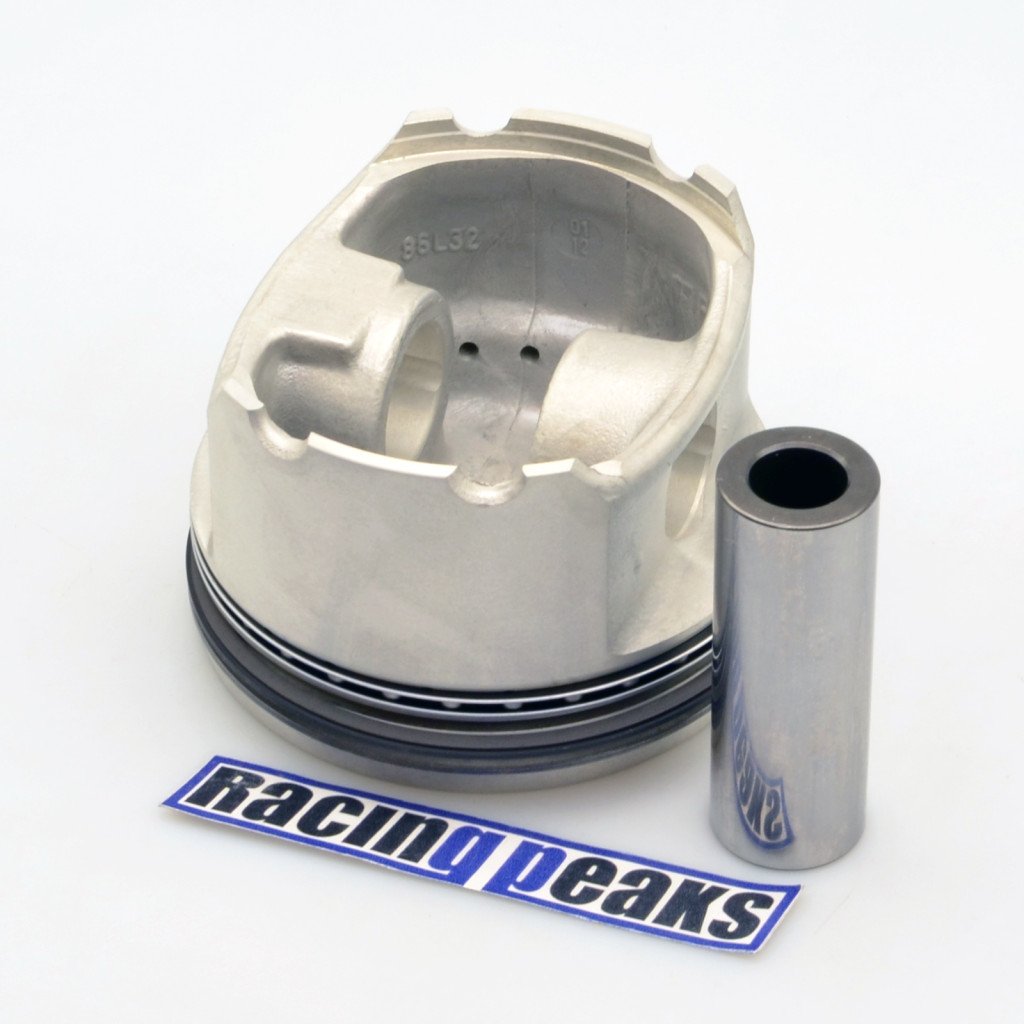

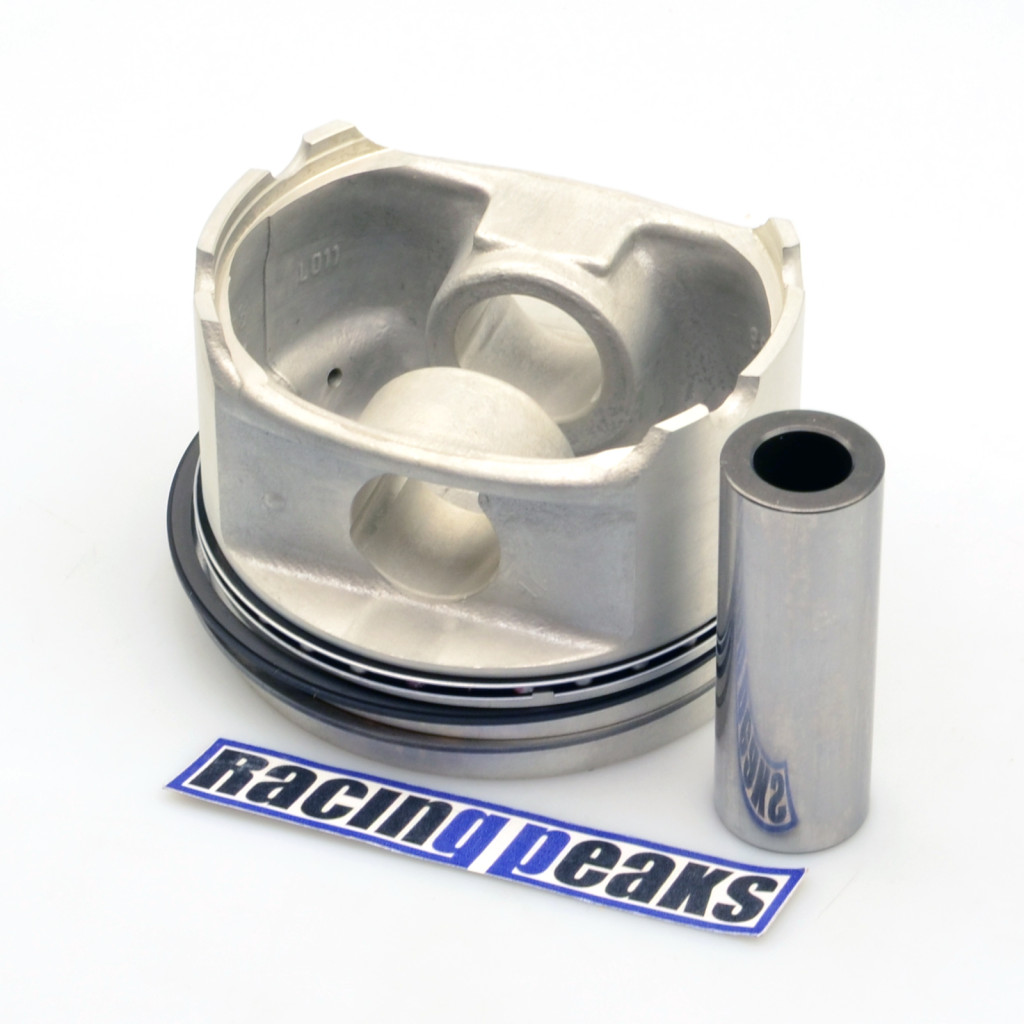

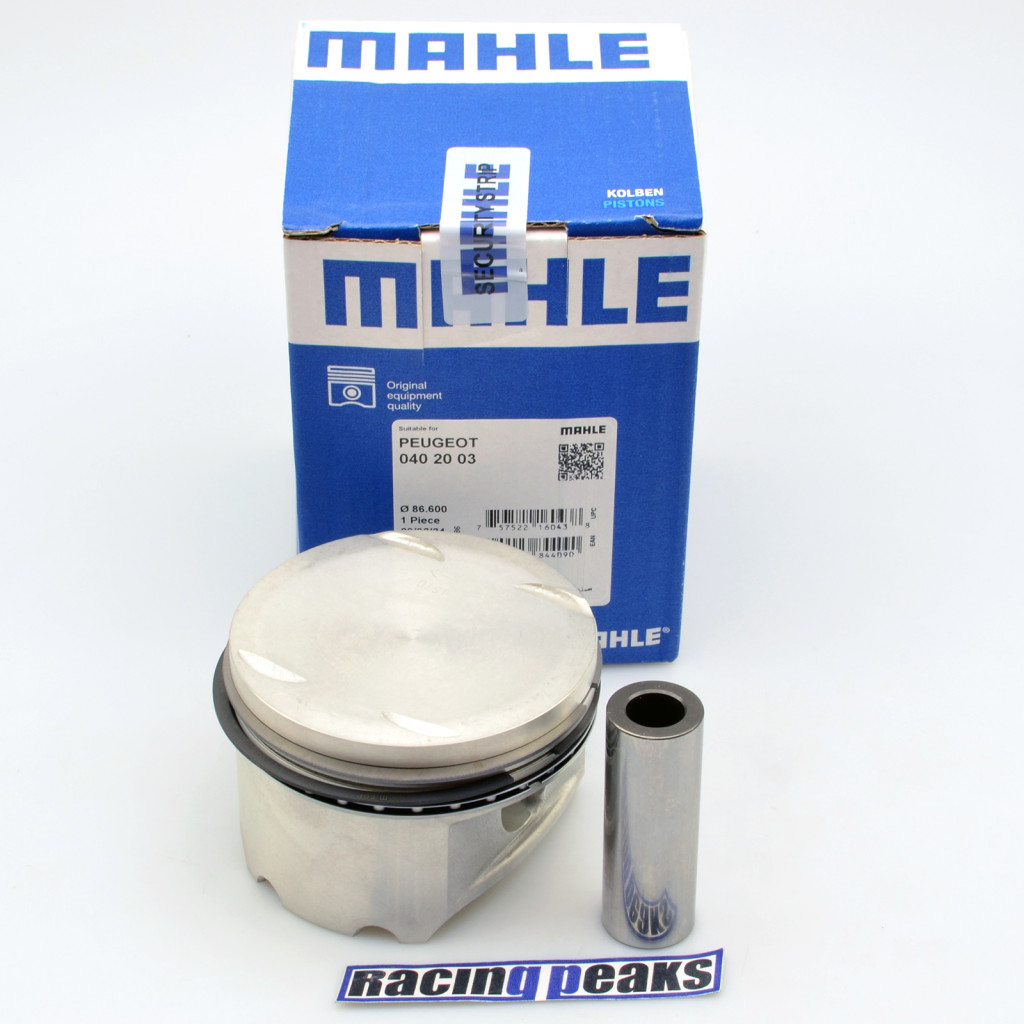

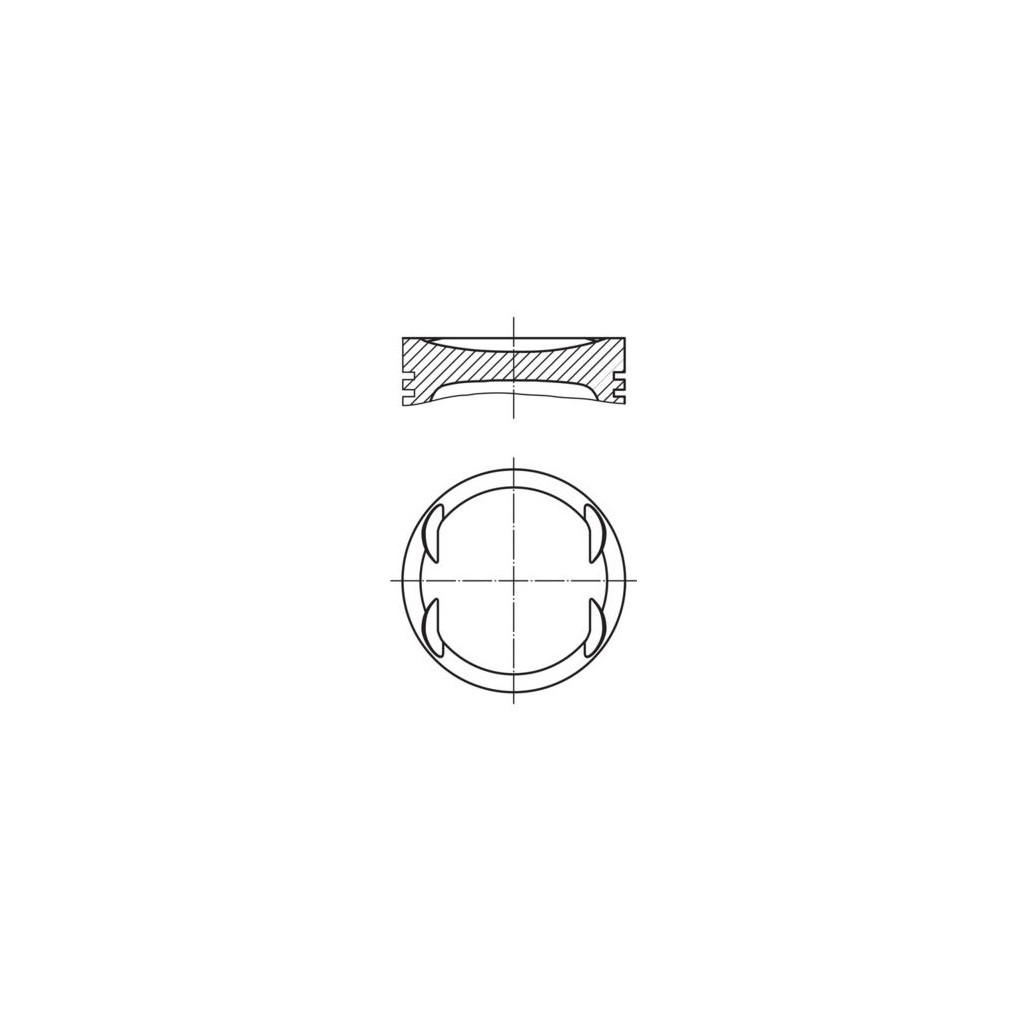

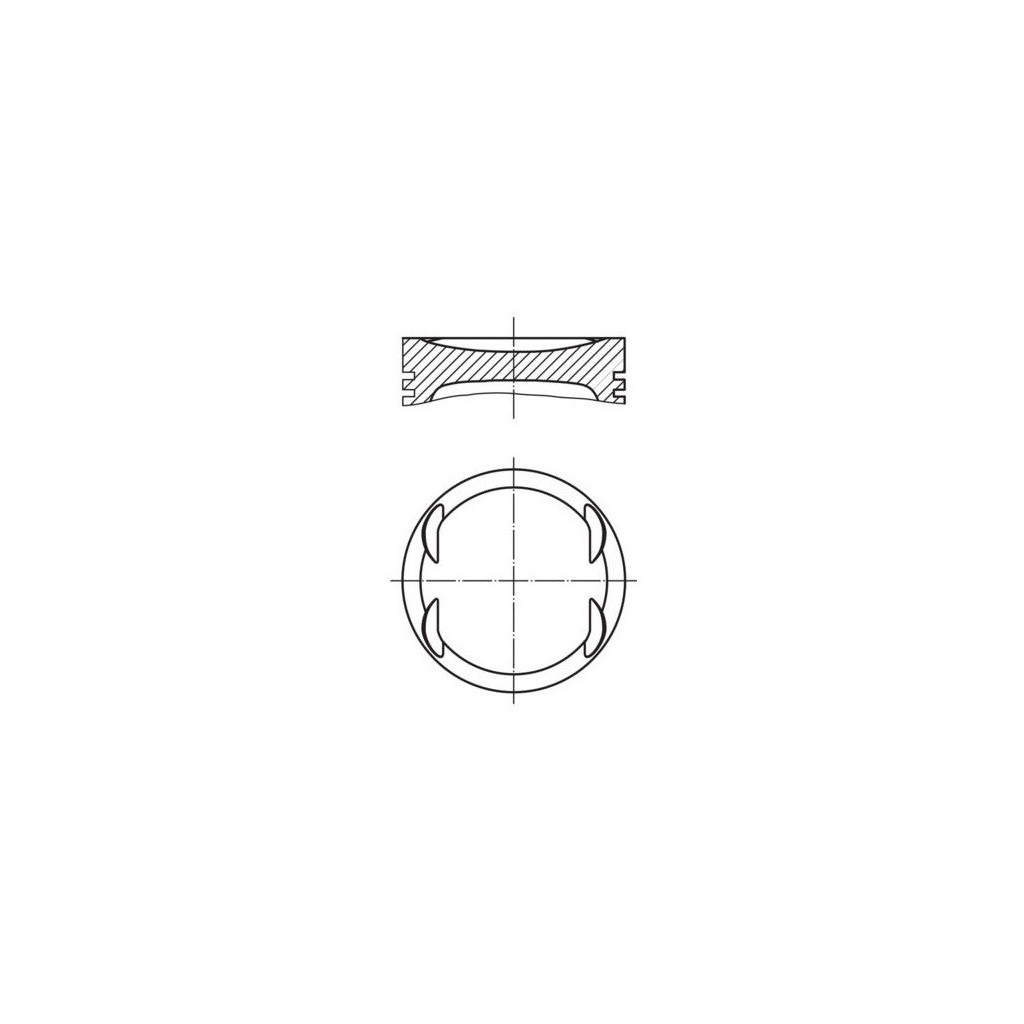

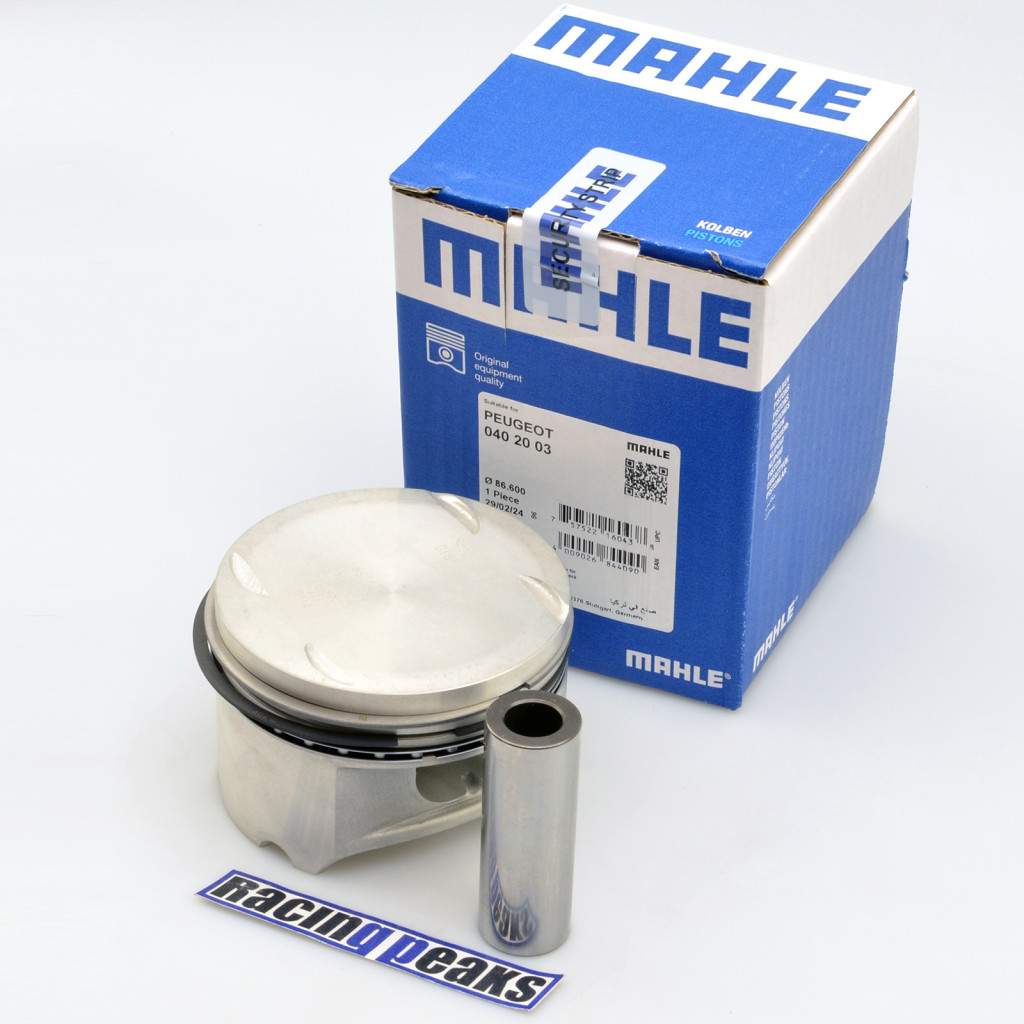

MAHLE piston 86.60 x1 for Citroen Peugeot 306 Xsara ZX 2.0 16v S16 RFS XU10J4RS
€82.69
VAT included
Bore: 86.60mm
Length: 58.4 mm
Compression Height: 33.9 mm
Pin Length: 62 mm
Pin Diameter: 22 mm
Recess Depth 1: 2 mm
Recess Diameter: 71.92 mm
Valve Pocket Depth 1: 1.74 mm
Valve Pocket Depth 2: 1.35 mm
Machined: with cut-out for oil jet
Surface: Tin-plated
Production Number: 86 L 32
Piston Clearance: 0.035 mm
Piston rings: 1.50x1.50x3.00mm
Last items in stockLength: 58.4 mm
Compression Height: 33.9 mm
Pin Length: 62 mm
Pin Diameter: 22 mm
Recess Depth 1: 2 mm
Recess Diameter: 71.92 mm
Valve Pocket Depth 1: 1.74 mm
Valve Pocket Depth 2: 1.35 mm
Machined: with cut-out for oil jet
Surface: Tin-plated
Production Number: 86 L 32
Piston Clearance: 0.035 mm
Piston rings: 1.50x1.50x3.00mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy
MAHLE pistons are Germany and manufacturer OE quality products. Precision-engineered for maximum power and reliability in your engine..
0402003
4 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 0628C6
- MPN
- 0402003
- Peugeot
- 306 Hatch (7A / 7C / N3 / N5) 1993 - 2003
- 2.0 S16 (2.0L / 163 Hp / Petrol / RFS (XU10J4RS))
- Citroen
- ZX (N2) 1991 - 1999
- 2 (2.0L / 166 Hp / Petrol / RFS (XU10J4RS))
- 2.0 i 16V (2.0L / 163 Hp / Petrol / RFS (XU10J4RS))
- Xsara Hatch 3-door (N0) 1998 - 2005
- 2.0 i 16V (2.0L / 163 Hp / Petrol / RFS (XU10J4RS))
- Xsara Hatch 5-door (N1) 1997 - 2005
- 2.0 16V (2.0L / 163 Hp / Petrol / RFS (XU10J4RS))
Specific References
New
Bore: 86.60mm
Length: 58.4 mm
Compression Height: 33.9 mm
Pin Length: 62 mm
Pin Diameter: 22 mm
Recess Depth 1: 2 mm
Recess Diameter: 71.92 mm
Valve Pocket Depth 1: 1.74 mm
Valve Pocket Depth 2: 1.35 mm
Machined: with cut-out for oil jet
Surface: Tin-plated
Production Number: 86 L 32
Piston Clearance: 0.035 mm
Piston rings: 1.50x1.50x3.00mm
Length: 58.4 mm
Compression Height: 33.9 mm
Pin Length: 62 mm
Pin Diameter: 22 mm
Recess Depth 1: 2 mm
Recess Diameter: 71.92 mm
Valve Pocket Depth 1: 1.74 mm
Valve Pocket Depth 2: 1.35 mm
Machined: with cut-out for oil jet
Surface: Tin-plated
Production Number: 86 L 32
Piston Clearance: 0.035 mm
Piston rings: 1.50x1.50x3.00mm
