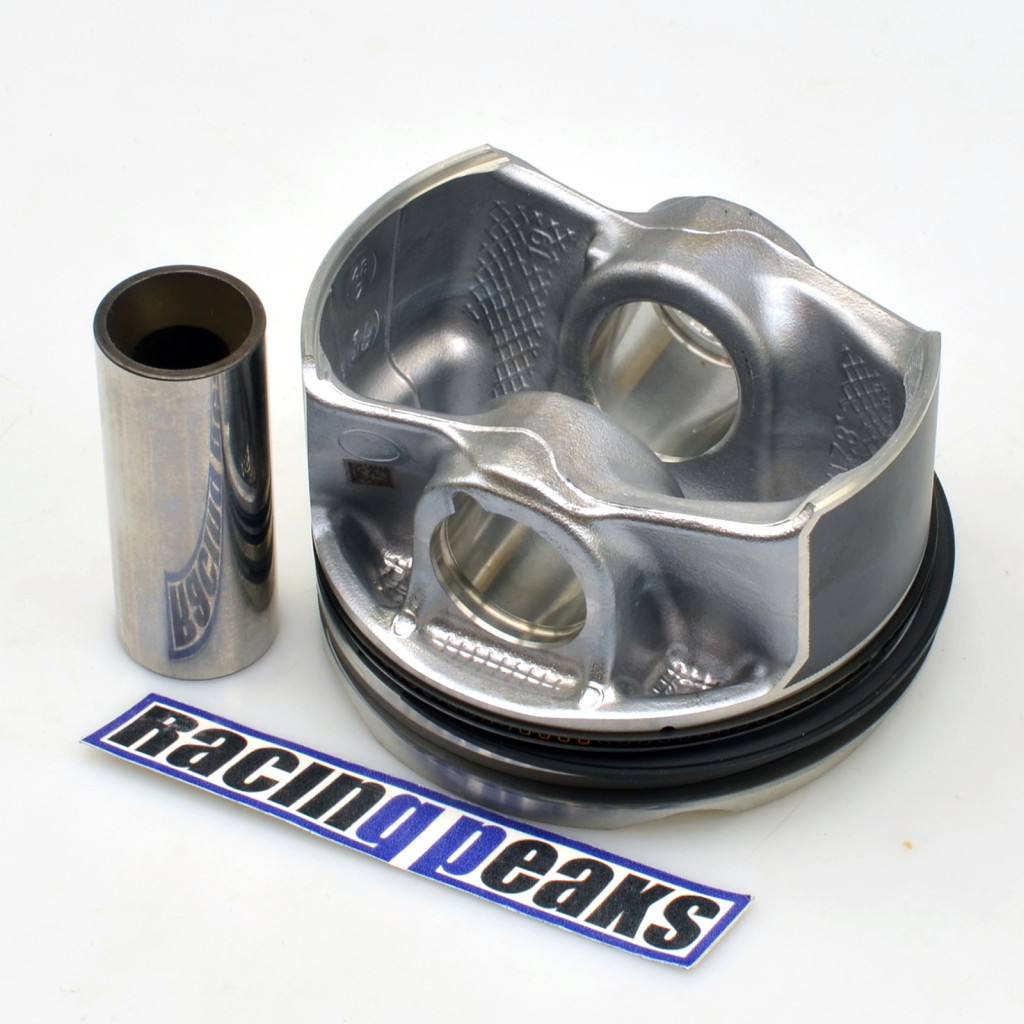

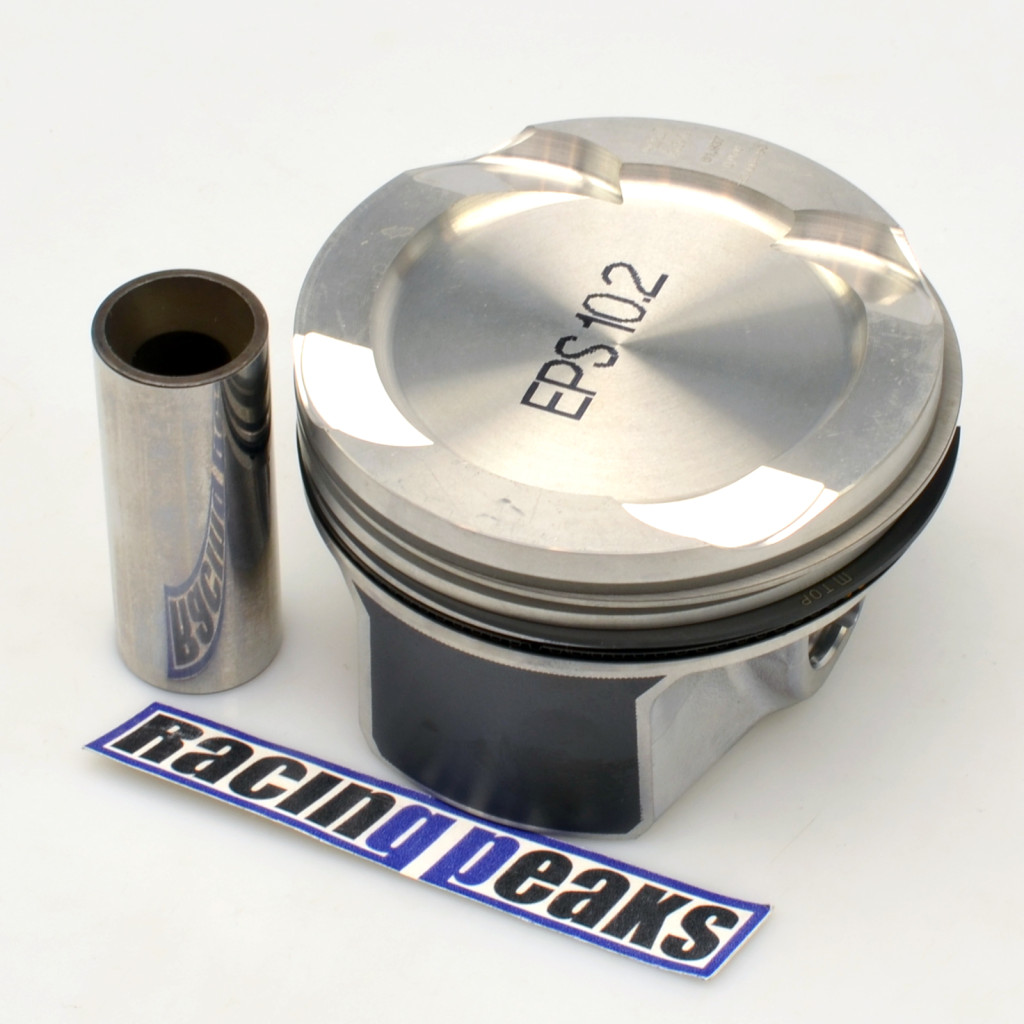

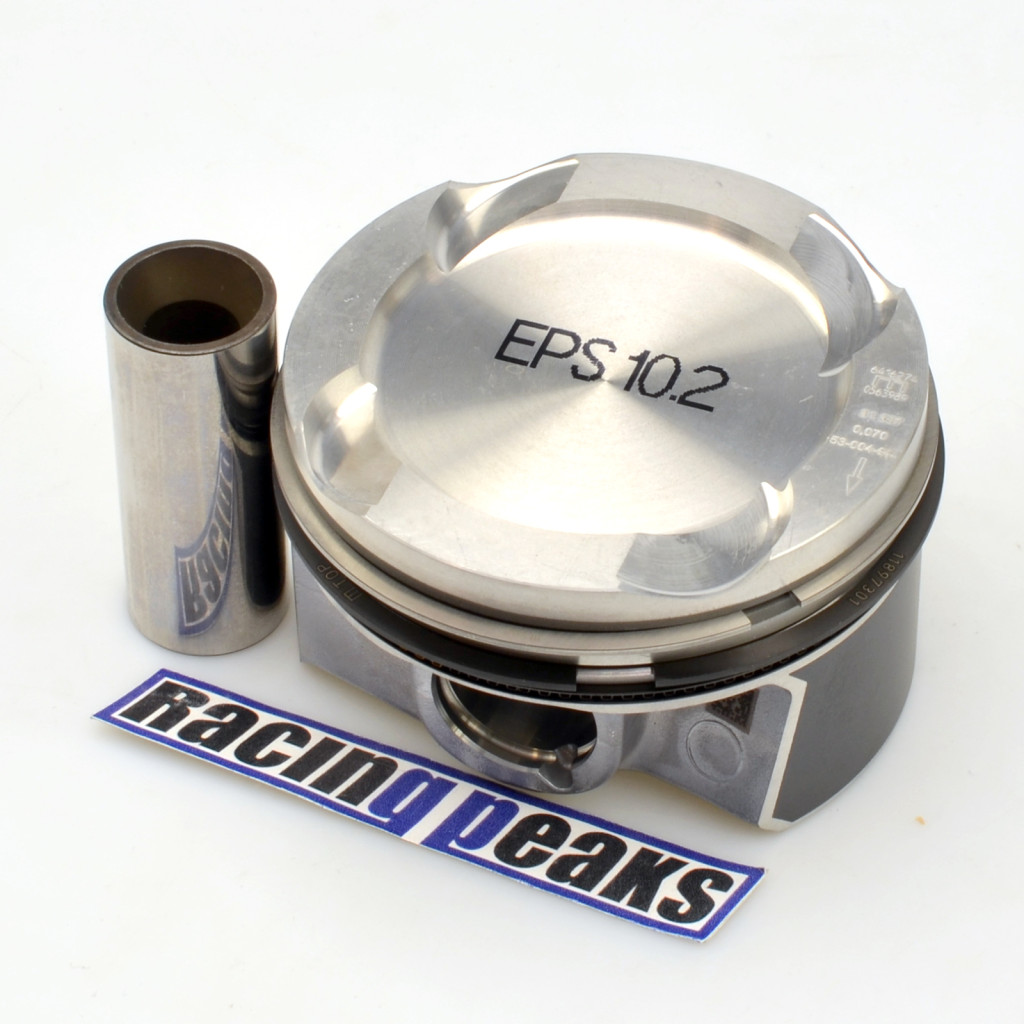

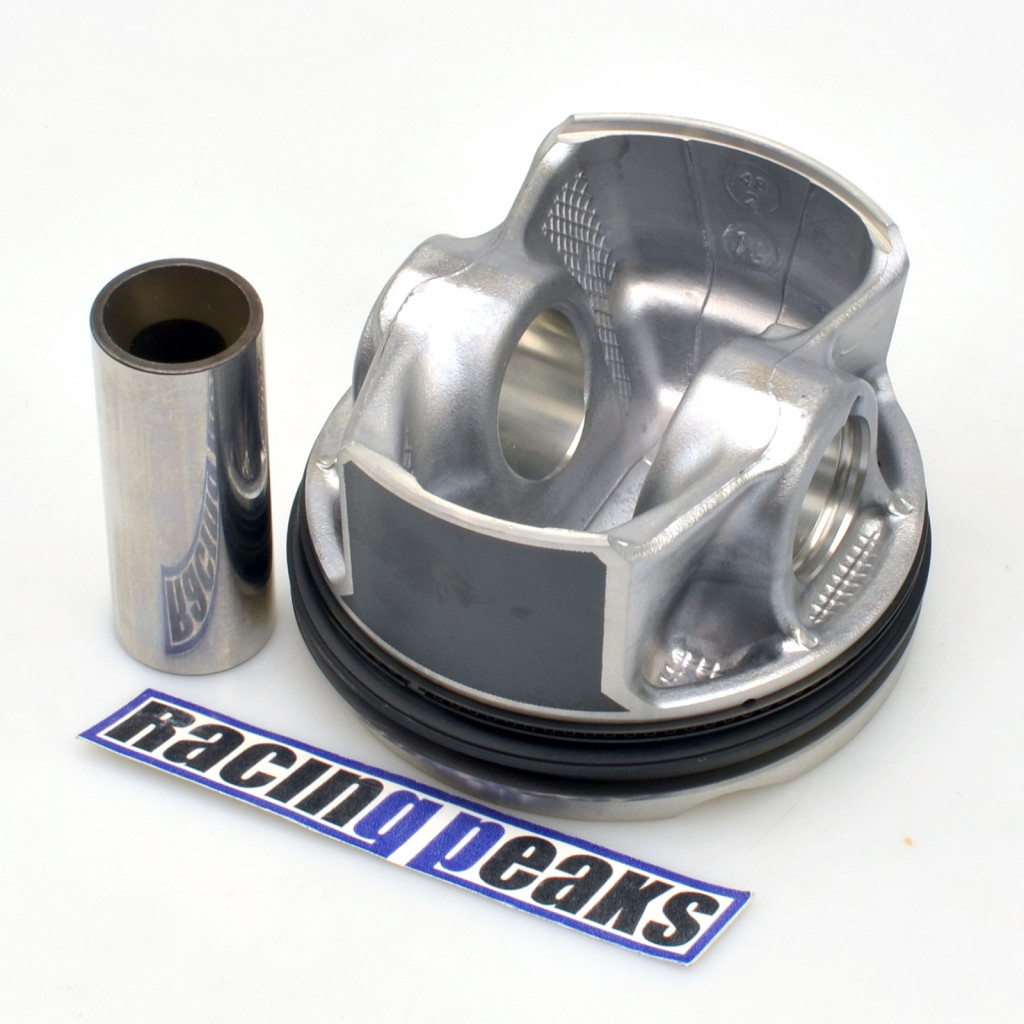

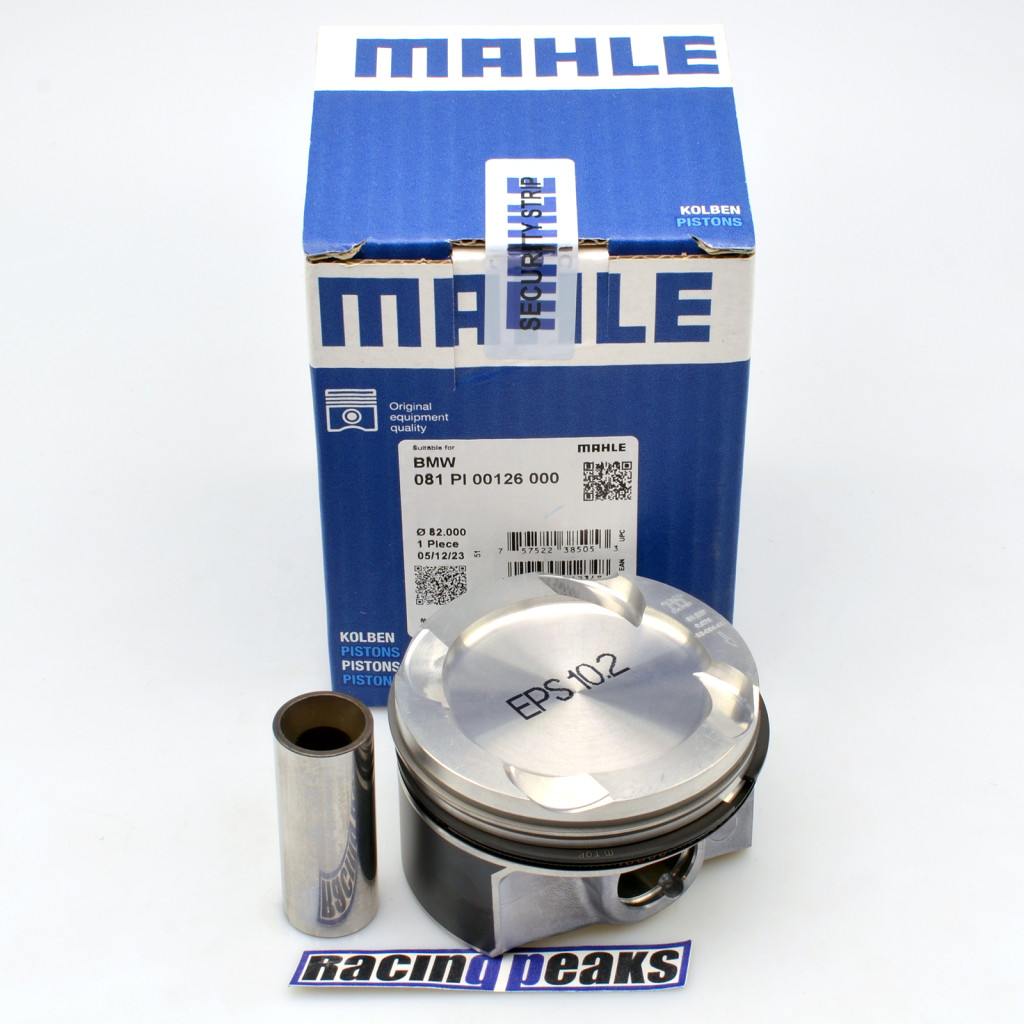

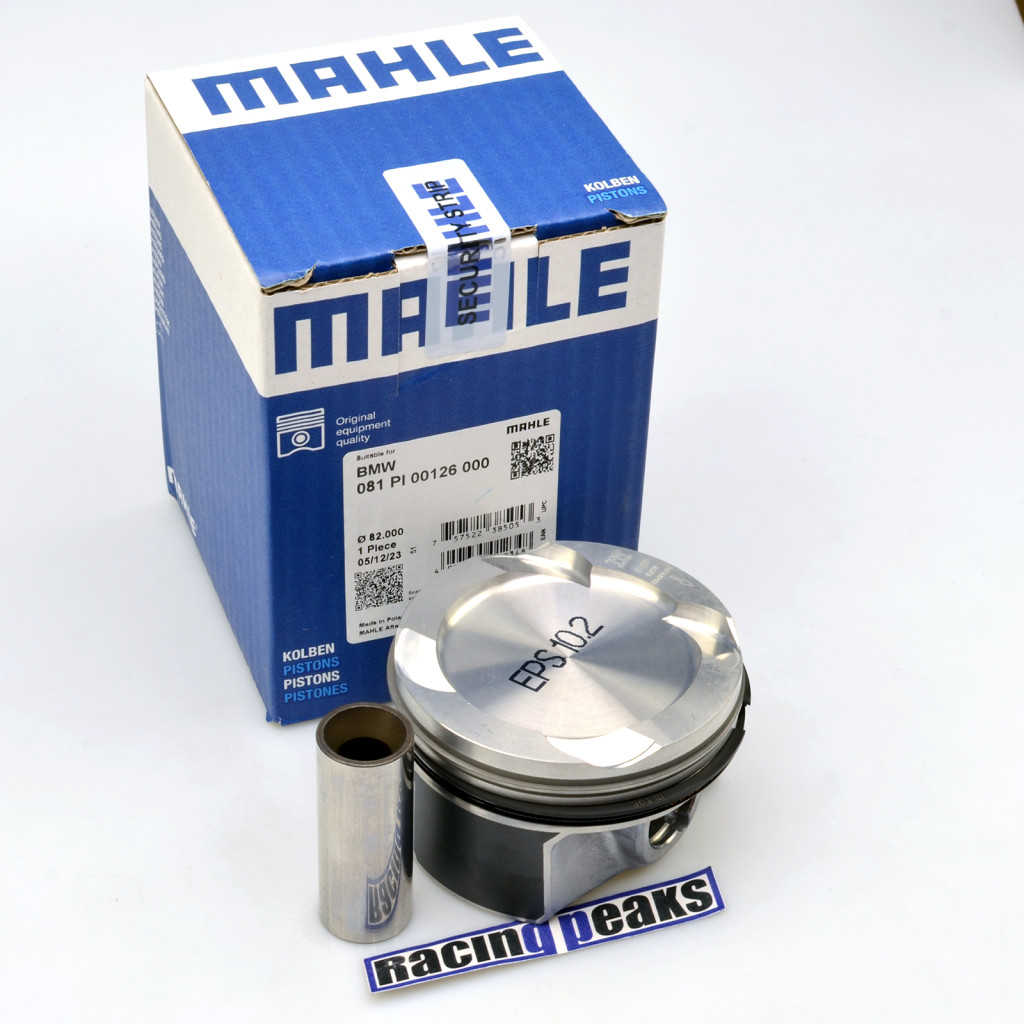

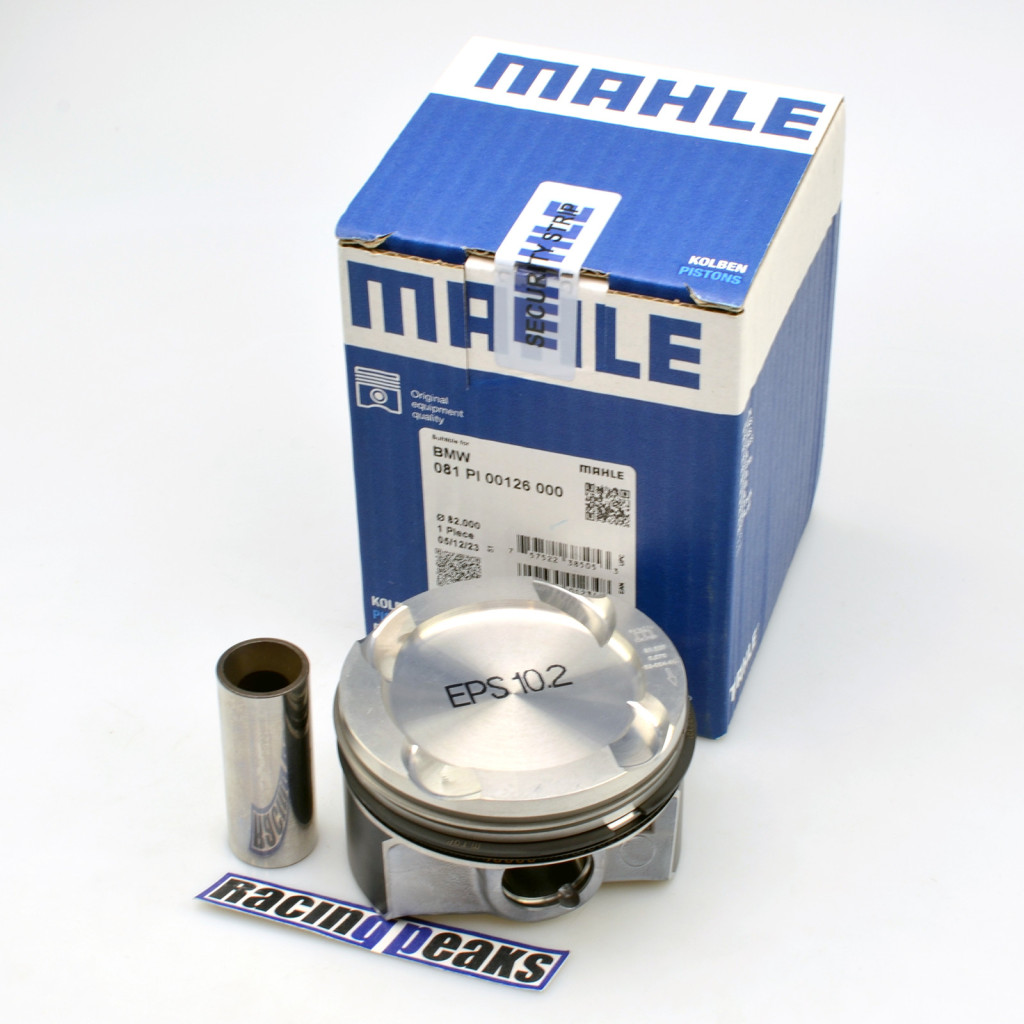

MAHLE piston x1 for BMW 230i 320i 330i 430i 520i 530e X1 X3 2.0 B46B20 B48A20
€121.09
VAT included
Bore: 82.00mm
Length: 51.2 mm
Compression Height: 33.2 mm
Pin Length: 55 mm
Pin Diameter: 22 mm
Recess Depth 1: 3.57 mm
Recess Diameter: 62 mm
Valve Pocket Depth 1: 4.79 mm
Valve Pocket Depth 2: 4.37 mm
Top Land Height: 7 mm
Production Number: 82L177
Piston rings: 1.20x1.50x2.00mm
Length: 51.2 mm
Compression Height: 33.2 mm
Pin Length: 55 mm
Pin Diameter: 22 mm
Recess Depth 1: 3.57 mm
Recess Diameter: 62 mm
Valve Pocket Depth 1: 4.79 mm
Valve Pocket Depth 2: 4.37 mm
Top Land Height: 7 mm
Production Number: 82L177
Piston rings: 1.20x1.50x2.00mm
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy
MAHLE pistons are Germany and manufacturer OE quality products. Precision-engineered for maximum power and reliability in your engine..
081PI00126000
12 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Superseded Part Number
- 82L177
- Reference OE/OEM Number
- 11258618503
11258638450
11259468869 - MPN
- 081PI00126000
- BMW
- X3 III (G01 / F97) 2017 - current
- xDrive 30 e Plug-in-Hybrid (2.0L / 231 Hp / B46 B20 B)
- xDrive 30 e Plug-in-Hybrid (2.0L / 184 Hp / B46 B20 B)
- xDrive 30 e Plug-in-Hybrid (2.0L / 252 Hp / B46 B20 B)
- xDrive 30 e Plug-in-Hybrid (2.0L / 163 Hp / B46 B20 B)
- xDrive 30 I (2.0L / 249 Hp / Petrol / B46 B20 B)
- xDrive 30 e Plug-in-Hybrid (2.0L / 231 Hp / B48 B20 A)
- xDrive 30 e Plug-in-Hybrid (2.0L / 184 Hp / B48 B20 A)
- xDrive 30 e Plug-in-Hybrid (2.0L / 252 Hp / B48 B20 A)
- xDrive 30 e Plug-in-Hybrid (2.0L / 163 Hp / B48 B20 A)
- xDrive 20 I (2.0L / 184 Hp / Petrol / B48 B20 A)
- sDrive 20 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- xDrive 20 I (2.0L / 184 Hp / Petrol / B48 B20 B)
- xDrive 30 I (2.0L / 249 Hp / Petrol / B48 B20 B)
- 3 Saloon VII (G20) 2018 - current
- 330 i (2.0L / 258 Hp / Petrol / B46 B20 B)
- 320 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 320 i xDrive (2.0L / 184 Hp / Petrol / B48 B20 A)
- 320 i (2.0L / 184 Hp / Petrol / B48 B20 B)
- 330 i (2.0L / 258 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 258 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 258 Hp / Petrol / B46 B20 B)
- 2 Coupe (F22 / F87) 2012 - current
- 220 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 230 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 230 i (2.0L / 252 Hp / Petrol / B46 B20 B)
- 5 Estate VII (G31) 2016 - current
- 520 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 530 i (2.0L / 252 Hp / Petrol / B46 B20 B)
- 530 e Plug-in-Hybrid (2.0L / 292 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid (2.0L / 272 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid (2.0L / 163 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid (2.0L / 184 Hp / B48 B20 A)
- 520 i Mild-Hybrid (2.0L / 184 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid xDrive (2.0L / 163 Hp / B48 B20 A)
- 520 i (2.0L / 211 Hp / Petrol / B48 B20 A)
- 520 i Mild-Hybrid (2.0L / 163 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid xDrive (2.0L / 272 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid xDrive (2.0L / 184 Hp / B48 B20 A)
- 530 i Mild-Hybrid (2.0L / 252 Hp / B48 B20 B)
- 530 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 530 i Mild-Hybrid xDrive (2.0L / 252 Hp / B48 B20 B)
- 530 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- 4 Coupe (F32 / F82) 2013 - current
- 430 i xDrive (2.0L / 252 Hp / Petrol / B46 B20 B)
- 430 i (2.0L / 249 Hp / Petrol / B48 B20 B)
- 430 i xDrive (2.0L / 249 Hp / Petrol / B48 B20 B)
- 430 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 430 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 A)
- 420 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 420 i xDrive (2.0L / 184 Hp / Petrol / B48 B20 A)
- 430 i (2.0L / 252 Hp / Petrol / B48 B20 A)
- 430 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- 430 i (2.0L / 252 Hp / Petrol / B46 B20 B)
- X4 II (G02 / F98) 2018 - current
- xDrive 20 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- xDrive 30 i (2.0L / 252 Hp / Petrol / B46 B20 B)
- xDrive 30 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- xDrive 30 i (3.0L / 249 Hp / Petrol / B48 B20 B)
- 3 Saloon VI (F30 / F80) 2011 - 2018
- 330 i (2.0L / 252 Hp / Petrol / B46 B20 B)
- 330 e (2.0L / 252 Hp / Hybrid / B48 B20 A)
- 320 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 330 i (2.0L / 252 Hp / Petrol / B48 B20 A)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 A)
- 320 i xDrive (2.0L / 184 Hp / Petrol / B48 B20 A)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- 330 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B46 B20 B)
- 3 Touring (G21) 2019 - current
- 320 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 330 i (2.0L / 258 Hp / Petrol / B48 B20 B)
- 320 i (2.0L / 184 Hp / Petrol / B46 B20 B)
- 4 Cabrio (F33 / F83) 2013 - current
- 430 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 430 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- 420 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 6 Gran Turismo IV (G32) 2017 - current
- 630 i Mild-Hybrid (2.0L / 258 Hp / B48 B20 B)
- 630 i (2.0L / 249 Hp / Petrol / B48 B20 B)
- 630 i (2.0L / 258 Hp / Petrol / B48 B20 B)
- 3 Estate VI (F31) 2012 - 2019
- 330 i (2.0L / 252 Hp / Petrol / B48 B20 A)
- 320 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 A)
- 320 i xDrive (2.0L / 184 Hp / Petrol / B48 B20 A)
- 330 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- Z4 Roadster (G29) 2018 - current
- sDrive 30 i (2.0L / 258 Hp / B48 B20 B)
- sDrive 20 i (2.0L / 197 Hp / B48 B20 B)
- sDrive 20 i (2.0L / 163 Hp / B48 B20 B)
- sDrive 30 i (2.0L / 258 Hp / B46 B20 B)
- sDrive 20 i (2.0L / 197 Hp / B46 B20 B)
- sDrive 20 i (2.0L / 163 Hp / B46 B20 B)
- 1 Hatch 3-door II (F21) 2011 - current
- 120 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 125 i (2.0L / 224 Hp / Petrol / B48 B20 B)
- 120 i (2.0L / 184 Hp / Petrol / B48 B20 B)
- 1 Hatch 5-door II (F20) 2011 - 2019
- 120 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 125 i (2.0L / 224 Hp / Petrol / B48 B20 B)
- 3 Gran Turismo VI (F34) 2012 - current
- 320 i xDrive (2.0L / 184 Hp / Petrol / B48 B20 A)
- 320 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 330 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 249 Hp / Petrol / B48 B20 B)
- 330 i xDrive (2.0L / 252 Hp / Petrol / B46 B20 B)
- 2 Cabrio (F23) 2014 - current
- 230 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 220 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 230 i (2.0L / 252 Hp / Petrol / B46 B20 B)
- 4 Gran Coupe (F36) 2014 - current
- 420 i xDrive (2.0L / 184 Hp / Petrol / B48 B20 A)
- 420 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 430 i xDrive (2.0L / 249 Hp / Petrol / B48 B20 B)
- 430 i (2.0L / 252 Hp / Petrol / B48 B20 B)
- 430 i xDrive (2.0L / 252 Hp / Petrol / B48 B20 B)
- 5 Saloon VII (G30) 2016 - current
- 530 e Plug-in-Hybrid xDrive (2.0L / 184 Hp / B46 B20 B)
- 530 e iPerformance (2.0L / 184 Hp / Hybrid / B48 B20 A)
- 530 e Plug-in-Hybrid (2.0L / 231 Hp / B48 B20 A)
- 530 i xDrive (2.0L / 249-252 Hp / Petrol / B46 B20 B)
- 530 e Plug-in-Hybrid xDrive (2.0L / 292 Hp / B48 B20 A)
- 530 e iPerformance (2.0L / 252 Hp / Hybrid / B48 B20 B)
- 530 e iPerformance xDrive (2.0L / 252 Hp / Hybrid / B46 B20 B)
- 530 e iPerformance (2.0L / 252 Hp / Hybrid / B48 B20 A)
- 530 e iPerformance xDrive (2.0L / 184 Hp / Hybrid / B48 B20 B)
- 530 i (2.0L / 249-252 Hp / Petrol / B46 B20 B)
- 530 e Plug-in-Hybrid (2.0L / 292 Hp / B48 B20 A)
- 530 i xDrive (2.0L / 249 Hp / Petrol / B48 B20 B)
- 530 e iPerformance (2.0L / 184 Hp / Hybrid / B46 B20 B)
- 530 e iPerformance xDrive (2.0L / 184 Hp / Hybrid / B48 B20 A)
- 530 i Mild-Hybrid xDrive (2.0L / 252 Hp / B48 B20 B)
- 530 e Plug-in-Hybrid xDrive (2.0L / 184 Hp / B48 B20 A)
- 530 i Mild-Hybrid (2.0L / 252 Hp / B48 B20 B)
- 530 e Plug-in-Hybrid xDrive (2.0L / 231 Hp / B48 B20 A)
- 520 i (2.0L / 184 Hp / Petrol / B48 B20 B)
- 530 e Plug-in-Hybrid (2.0L / 272 Hp / B48 B20 A)
- 530 i xDrive (2.0L / 249-252 Hp / Petrol / B48 B20 B)
- 520 i (2.0L / 184 Hp / Petrol / B48 B20 A)
- 530 e iPerformance xDrive (2.0L / 252 Hp / Hybrid / B48 B20 B)
- 520 i Mild-Hybrid (2.0L / 184 Hp / B48 B20 A)
- 530 i (2.0L / 249-252 Hp / Petrol / B48 B20 B)
- 530 e Plug-in-Hybrid xDrive (2.0L / 272 Hp / B48 B20 A)
- 520 i (2.0L / 211 Hp / Petrol / B48 B20 B)
- 520 i Mild-Hybrid (2.0L / 163 Hp / B48 B20 A)
- 530 e iPerformance (2.0L / 184 Hp / Hybrid / B48 B20 B)
- 530 e iPerformance xDrive (2.0L / 252 Hp / Hybrid / B48 B20 A)
- 530 e iPerformance (2.0L / 252 Hp / Hybrid / B46 B20 B)
- 530 e Plug-in-Hybrid xDrive (2.0L / 163 Hp / B48 B20 A)
- 530 e Plug-in-Hybrid (2.0L / 292 Hp / B46 B20 B)
- 530 e Plug-in-Hybrid (2.0L / 163 Hp / B48 B20 A)
- 530 e iPerformance xDrive (2.0L / 184 Hp / Hybrid / B46 B20 B)
- 520 i (2.0L / 211 Hp / Petrol / B48 B20 A)
- 7 VI (G11 / G12) 2015 - current
- 730 i/Li (2.0L / 265 Hp / Petrol / B48 B20 B)
- 740 Le xDrive ( / 326 Hp / Hybrid / B48 B20 B)
- 730 i (2.0L / 249 Hp / Petrol / B48 B20 B)
- 740 e/Le ( / 326 Hp / Hybrid / B48 B20 B)
- 730 i/Li (2.0L / 258 Hp / Petrol / B48 B20 B)
- 2 Active Tourer (F45) 2013 - current
- 225 i xDrive (2.0L / 231 Hp / Petrol / B48 A20 B)
- 225 i (2.0L / 231 Hp / Petrol / B48 A20 B)
- 1 III (F40) 2019 - current
- 128 ti (2.0L / 245 Hp / Petrol / B48 A20 B)
- X1 II (F48) 2015 - current
- xDrive 25 i (2.0L / 231 Hp / Petrol / B46 A20 B)
- xDrive 25 i (2.0L / 231 Hp / Petrol / B48 A20 B)
- xDrive 20 i (2.0L / 192 Hp / Petrol / B48 A20 B)
- sDrive 20 i (2.0L / 192 Hp / Petrol / B42 S20 A)
- xDrive 25 i (2.0L / 231 Hp / Petrol / B42 S20 A)
- MINI
- Hatch III (F56) 2013 - current
- John Cooper Works (2.0L / 231 Hp / Petrol / B46 A20 B)
- John Cooper Works (2.0L / 231 Hp / Petrol / B48 A20 B)
- Clubman II (F54 / F54N) 2014 - current
- John Cooper Works (2.0L / 231 Hp / Petrol / B48 A20 B)
- Cabrio III (F57) 2014 - current
- John Cooper Works (2.0L / 231 Hp / Petrol / B48 A20 B)
Specific References
New
Bore: 82.00mm
Length: 51.2 mm
Compression Height: 33.2 mm
Pin Length: 55 mm
Pin Diameter: 22 mm
Recess Depth 1: 3.57 mm
Recess Diameter: 62 mm
Valve Pocket Depth 1: 4.79 mm
Valve Pocket Depth 2: 4.37 mm
Top Land Height: 7 mm
Production Number: 82L177
Piston rings: 1.20x1.50x2.00mm
Length: 51.2 mm
Compression Height: 33.2 mm
Pin Length: 55 mm
Pin Diameter: 22 mm
Recess Depth 1: 3.57 mm
Recess Diameter: 62 mm
Valve Pocket Depth 1: 4.79 mm
Valve Pocket Depth 2: 4.37 mm
Top Land Height: 7 mm
Production Number: 82L177
Piston rings: 1.20x1.50x2.00mm
