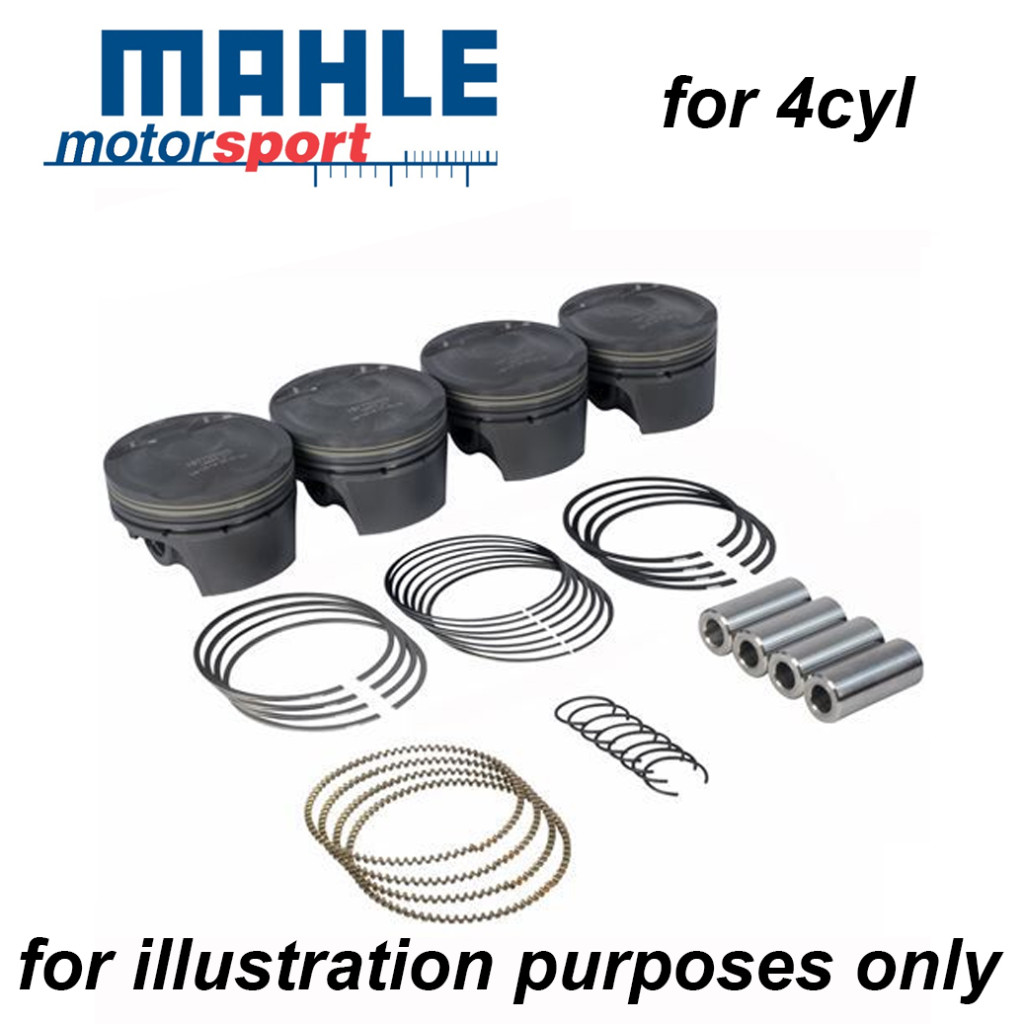

MAHLE Motorsport piston set fits Mitsubishi 4G63 2.0T Lancer Evo 2003-2009
€778.79
VAT included
Bore: 85.50mm (stock 85.00mm)
Stroke: 88.00mm
Compression height: 34.7mm
Compression ratio: 8.7
Pin: 22x58.1mm
Rings: 1.20x1.20x2.80mm
Crown volume: -10.0cc
Weight: 321g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .236
Min .0025 Max .0033
Package: 4 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
Out-of-StockStroke: 88.00mm
Compression height: 34.7mm
Compression ratio: 8.7
Pin: 22x58.1mm
Rings: 1.20x1.20x2.80mm
Crown volume: -10.0cc
Weight: 321g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .236
Min .0025 Max .0033
Package: 4 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
MAHLE Motorsport pistons 929925866 are USA and manufacturer high quality products. Precision-engineered for maximum power and reliability in your engine..
929925866
Data sheet
- Region
- USA
- Reference OE/OEM Number
- 7 bolt
1110A223
1110A224
1110A225
1110B073
1110B074
1110B075
CT9A
Evo
MD375689
MD375690
MD375691
MN183229
MN183230
MN183231
- Mitsubishi
- Galant Saloon V (E1_A) 1983 - 1990
- 2.0 Turbo ECi (2.0L / 150 Hp / Petrol / 4G63 T)
- Outlander (CU_W) 2002 - 2008
- 2.0 Turbo 4WD (2.0L / 202 Hp / 4 G 63 T)
- Galant Saloon VI (E3_A) 1987 - 1993
- 2.0 I VR4 Turbo AWD (2.0L / 201 Hp / Petrol / 4 G 63 T)
- Eclipse Coupe II (D3_) 1994 - 1999
- 2.0 Turbo 4WD (2.0L / 214 Hp / 4 G 63 T)
- 2 (2.0L / 214 Hp / 4 G 63 T)
- 2.0 Turbo 4WD (2.0L / 200 Hp / 4 G 63 T)
- 2.0 Turbo (2.0L / 200 Hp / 4 G 63 T)
- 2000 GT 16V (2.0L / 214 Hp / 4 G 63 T)
- Eclipse Coupe (D2_A) 1989 - 1995
- 2.0 RHD 4WD (2.0L / 200 Hp / 4 G 63 T)
- 2.0 Turbo (2.0L / 214 Hp / 4 G 63 T)
- 2.0 Turbo 4WD (2.0L / 214 Hp / 4 G 63 T)
- Lancer Saloon VIII (CK_A / CJ_A / CN_9A / CP_9A) 1995 - 2003
- 2.0 16V EVO (2.0L / 280 Hp / Petrol / 4G63 Turbo)
- Lancer Saloon VII (CB/D_A) 1991 - 2000
- 2.0 EVO I (2.0L / 248 Hp / Petrol / 4G63 Turbo)
- 2.0 EVO III (2.0L / 269 Hp / Petrol / 4G63 Turbo)
- 2.0 EVO II (2.0L / 261 Hp / Petrol / 4G63 Turbo)
- Pajero (L04_G / L14_G) 1982 - 1991
- 2.0 Turbo 4WD (2.0L / 145 Hp / Petrol / 4G63 T)
- Starion (A18_A) 1982 - 1990
- 2.0 Turbo ECi (2.0L / 150 Hp / 4G63 T)
- Lancer Saloon II (A17_) 1979 - 1987
- 2.0 Turbo ECi (2.0L / 170 Hp / 4G63 T)
- Lancer Evolution IX (CT9A) 2000 - 2007
- 2.0 16V EVO IX (2.0L / 280 Hp / Petrol / 4G63 Turbo)
Specific References
New
Bore: 85.50mm (stock 85.00mm)
Stroke: 88.00mm
Compression height: 34.7mm
Compression ratio: 8.7
Pin: 22x58.1mm
Rings: 1.20x1.20x2.80mm
Crown volume: -10.0cc
Weight: 321g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .236
Min .0025 Max .0033
Package: 4 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
Stroke: 88.00mm
Compression height: 34.7mm
Compression ratio: 8.7
Pin: 22x58.1mm
Rings: 1.20x1.20x2.80mm
Crown volume: -10.0cc
Weight: 321g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .236
Min .0025 Max .0033
Package: 4 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
