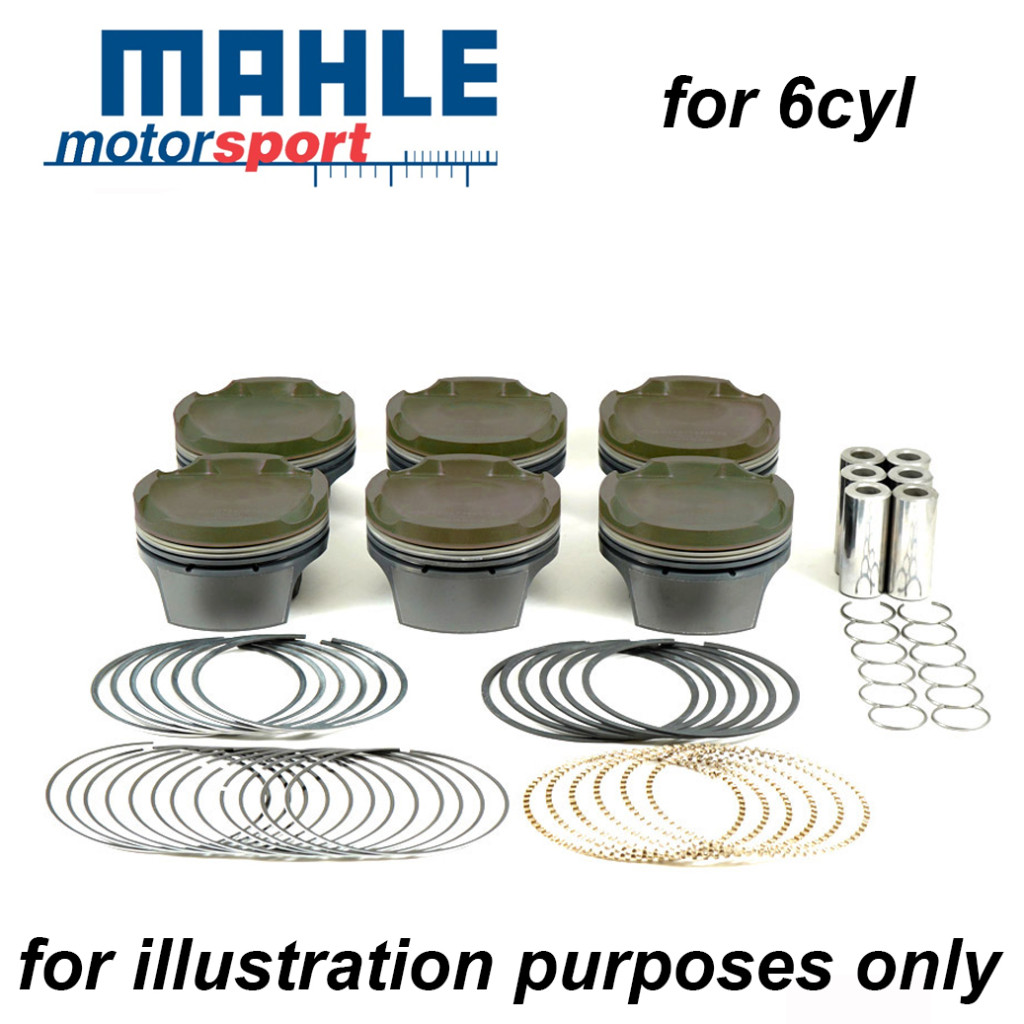

MAHLE Motorsport piston set fits BMW S54B32 M3 Z3 Z4 M 3.2 PowerPak 87.25
€1,128.69
VAT included
Bore: 87.25mm (stock 87.00mm)
Stroke: 91.00mm
Compression height: 32.3mm
Compression ratio: 12.5
Pin: 21x50.0mm
Rings: 1.20x1.20x2.80mm
Crown volume: -9.2cc
Weight: 354g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .250
Min .0020 Max .0027
Package: 6 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
Out-of-StockStroke: 91.00mm
Compression height: 32.3mm
Compression ratio: 12.5
Pin: 21x50.0mm
Rings: 1.20x1.20x2.80mm
Crown volume: -9.2cc
Weight: 354g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .250
Min .0020 Max .0027
Package: 6 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
MAHLE Motorsport pistons 930000135 are USA and manufacturer high quality products. Precision-engineered for maximum power and reliability in your engine..
930000135
Data sheet
- Region
- USA
- Reference OE/OEM Number
- 11257834017
11257834018
11257834019
Specific References
New
Bore: 87.25mm (stock 87.00mm)
Stroke: 91.00mm
Compression height: 32.3mm
Compression ratio: 12.5
Pin: 21x50.0mm
Rings: 1.20x1.20x2.80mm
Crown volume: -9.2cc
Weight: 354g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .250
Min .0020 Max .0027
Package: 6 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
Stroke: 91.00mm
Compression height: 32.3mm
Compression ratio: 12.5
Pin: 21x50.0mm
Rings: 1.20x1.20x2.80mm
Crown volume: -9.2cc
Weight: 354g
Alloy: 2618 PowerPak
Clearance guide: Measuring point .250
Min .0020 Max .0027
Package: 6 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
