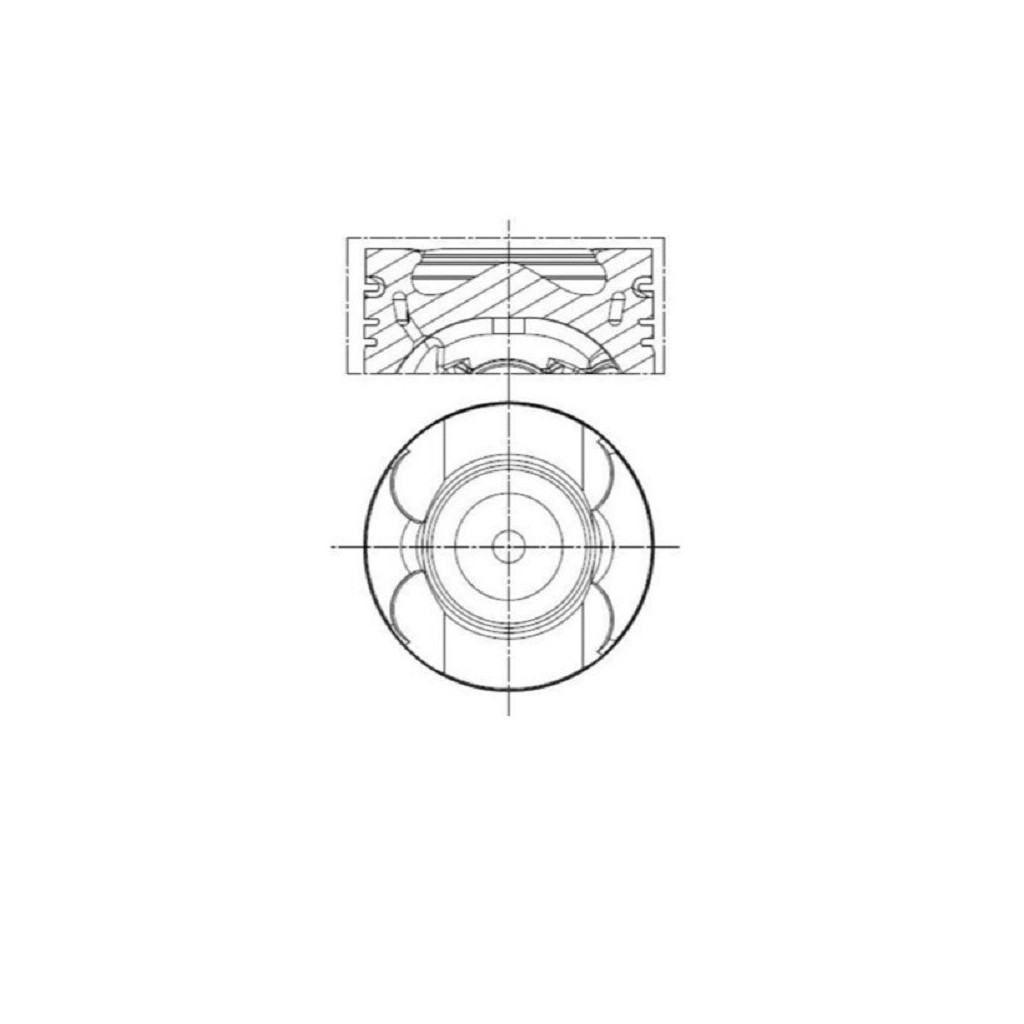

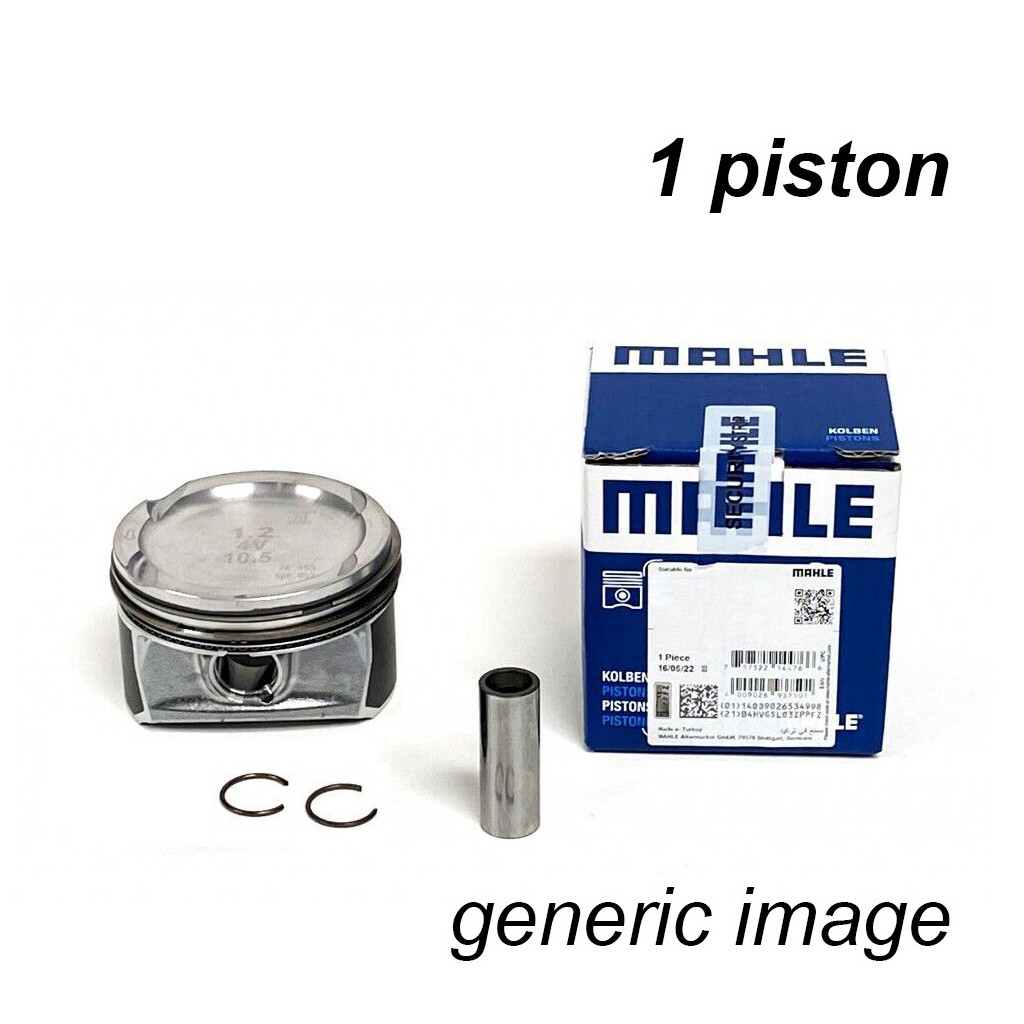

MAHLE piston 84.50 x1 fits Ford Focus Galaxy S-Max Kuga Transit 2.0 EcoBlue
€76.79
VAT included
Bore: 84.51mm
Length: 73.2 mm
Compression Height: 48.4 mm
Pin Length: 63.65 mm
Pin Diameter: 30 mm
Recess Depth 1: 14.4 mm
Recess Diameter: 48.23 mm
Top Land Height: 9.6 mm
Info: with cut-out for oil jet, coated
Production Number: 84 L 195
Piston rings: 2.00x2.00x2.00mm
Length: 73.2 mm
Compression Height: 48.4 mm
Pin Length: 63.65 mm
Pin Diameter: 30 mm
Recess Depth 1: 14.4 mm
Recess Diameter: 48.23 mm
Top Land Height: 9.6 mm
Info: with cut-out for oil jet, coated
Production Number: 84 L 195
Piston rings: 2.00x2.00x2.00mm
MAHLE pistons are Germany and manufacturer OE quality products. Precision-engineered for maximum power and reliability in your engine..
013PI00156002
8 Items
Data sheet
- Region
- Germany
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- GK2Q 6K100 DA
- MPN
- 013PI00156002
Specific References
New
Bore: 84.51mm
Length: 73.2 mm
Compression Height: 48.4 mm
Pin Length: 63.65 mm
Pin Diameter: 30 mm
Recess Depth 1: 14.4 mm
Recess Diameter: 48.23 mm
Top Land Height: 9.6 mm
Info: with cut-out for oil jet, coated
Production Number: 84 L 195
Piston rings: 2.00x2.00x2.00mm
Length: 73.2 mm
Compression Height: 48.4 mm
Pin Length: 63.65 mm
Pin Diameter: 30 mm
Recess Depth 1: 14.4 mm
Recess Diameter: 48.23 mm
Top Land Height: 9.6 mm
Info: with cut-out for oil jet, coated
Production Number: 84 L 195
Piston rings: 2.00x2.00x2.00mm
