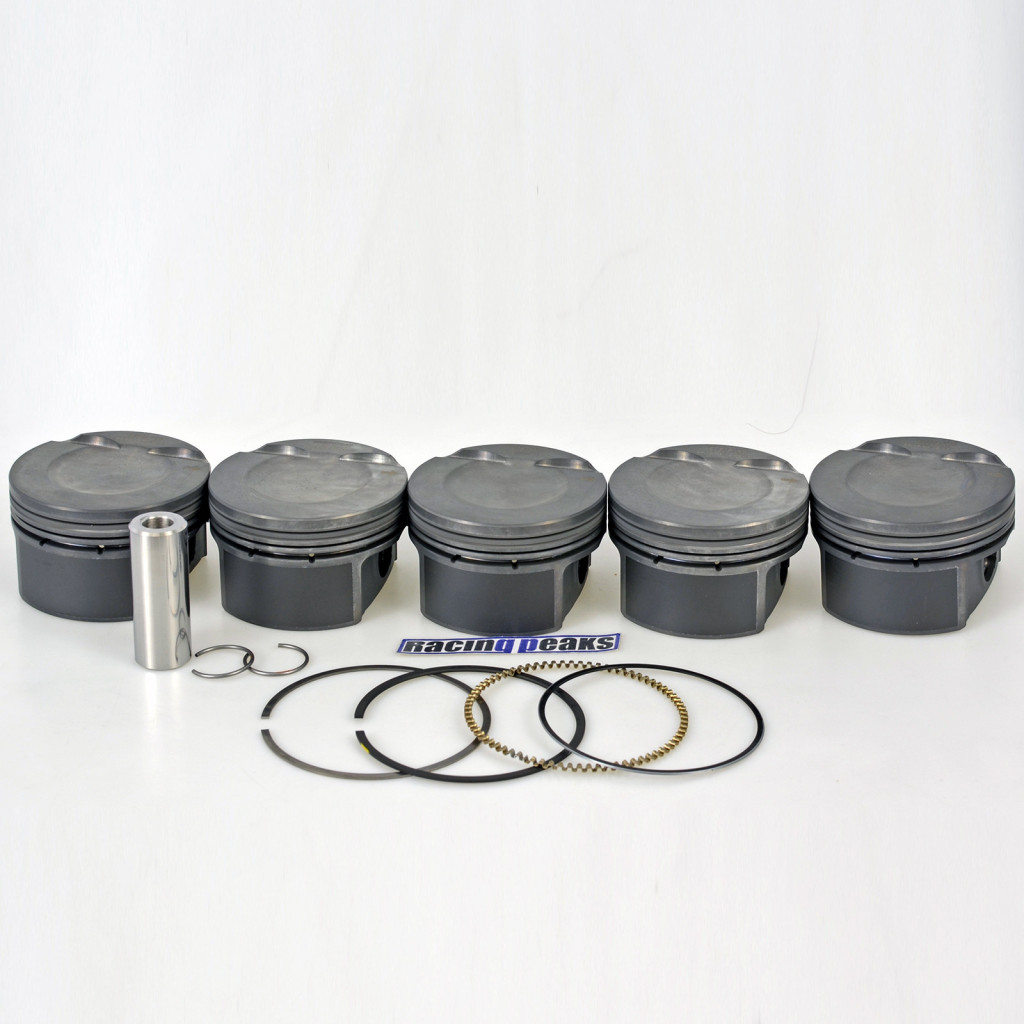

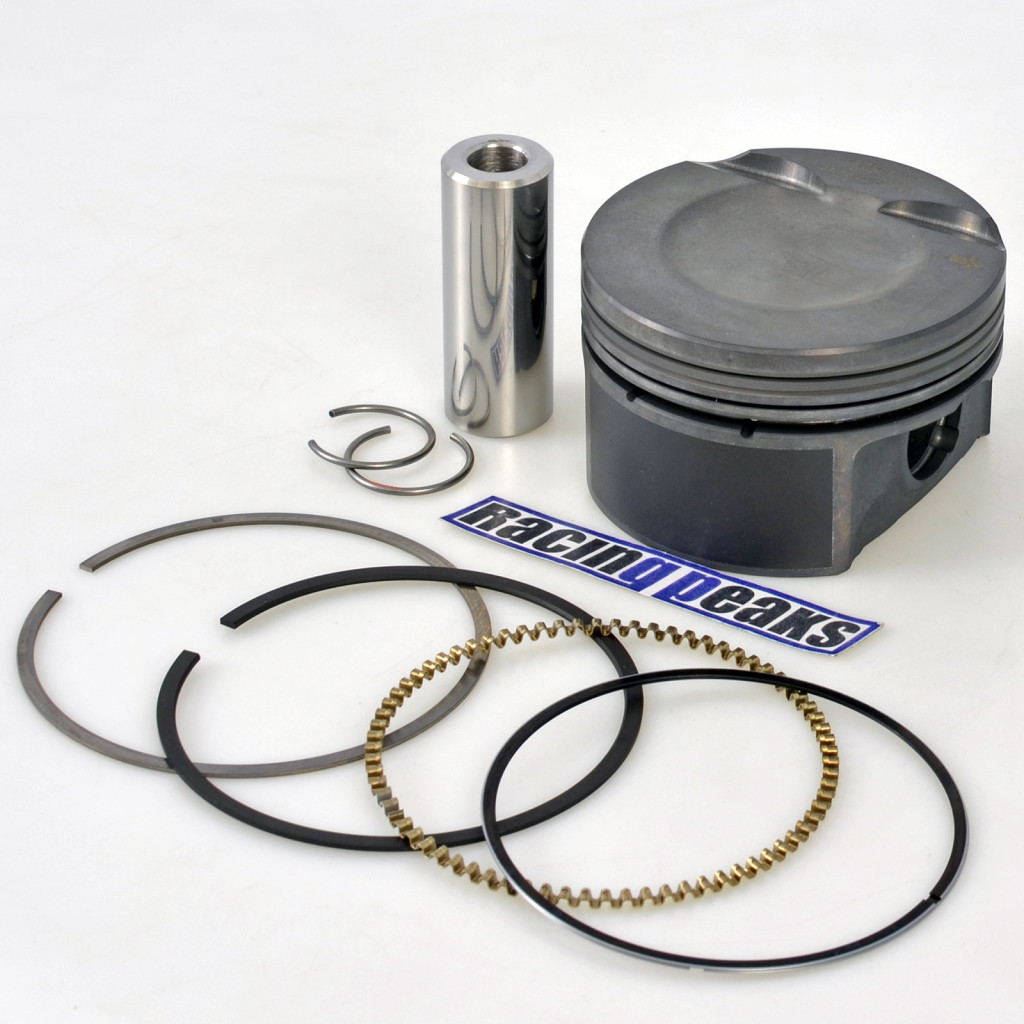

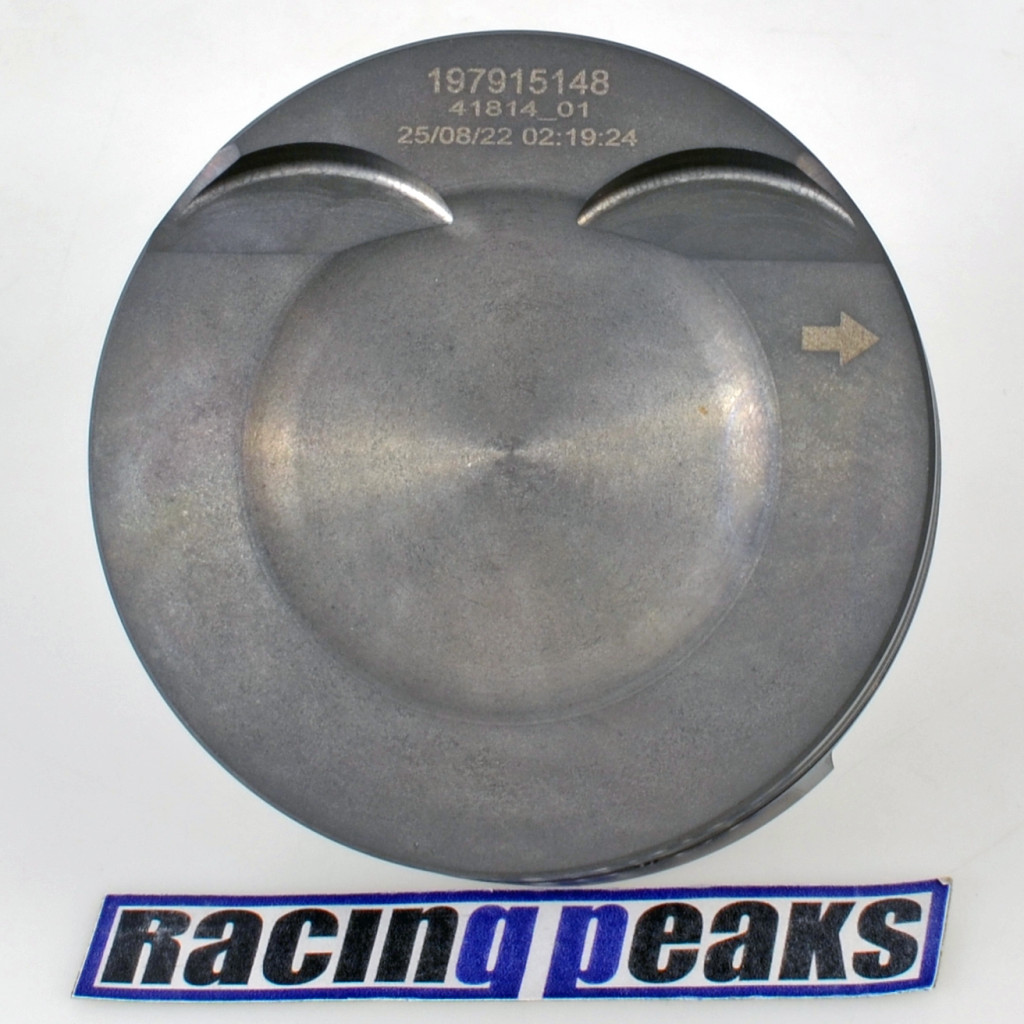

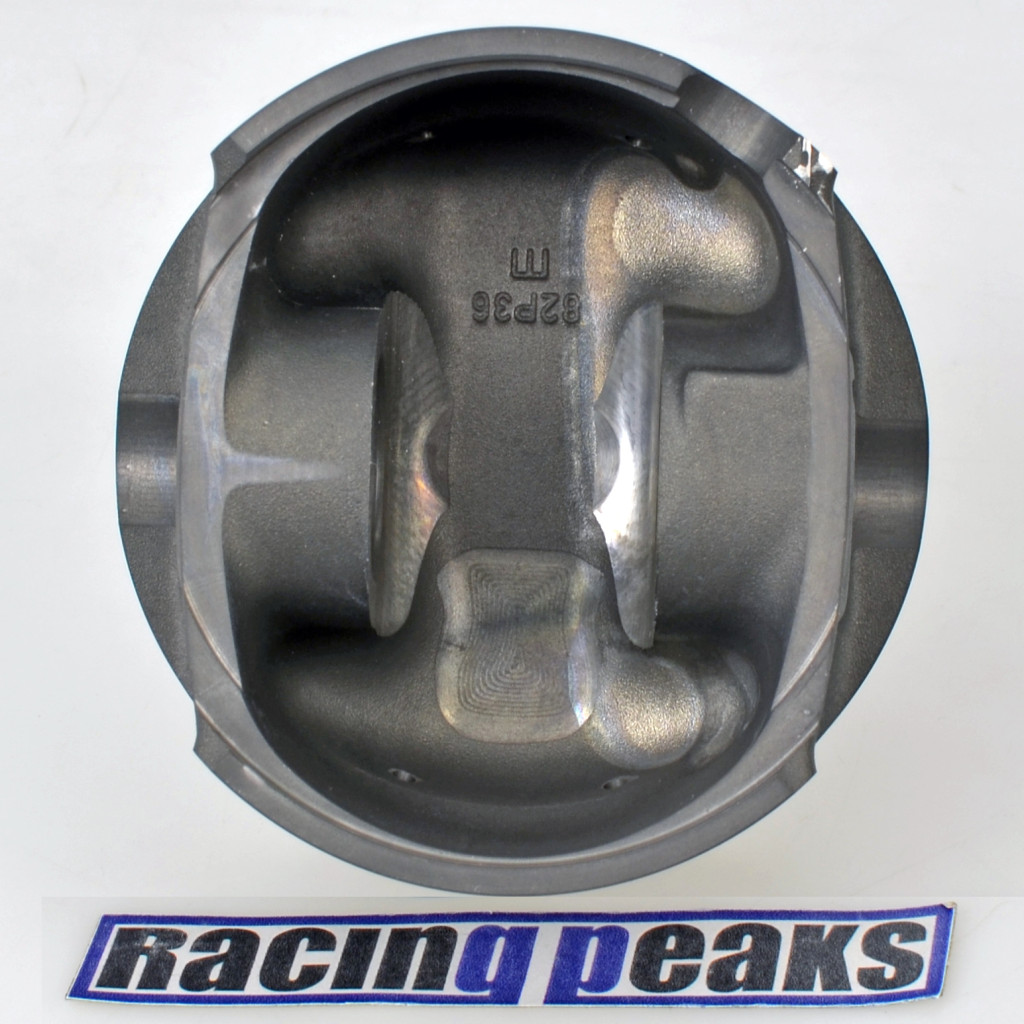

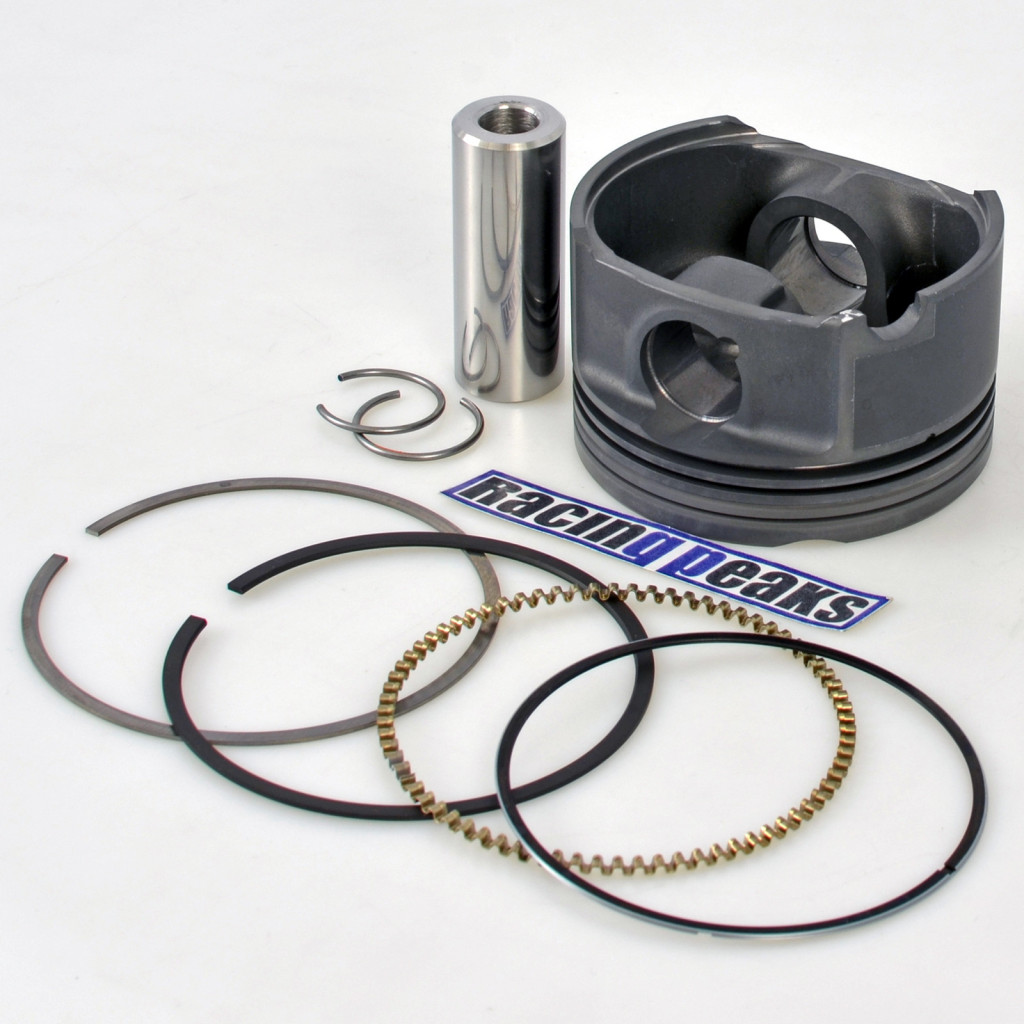

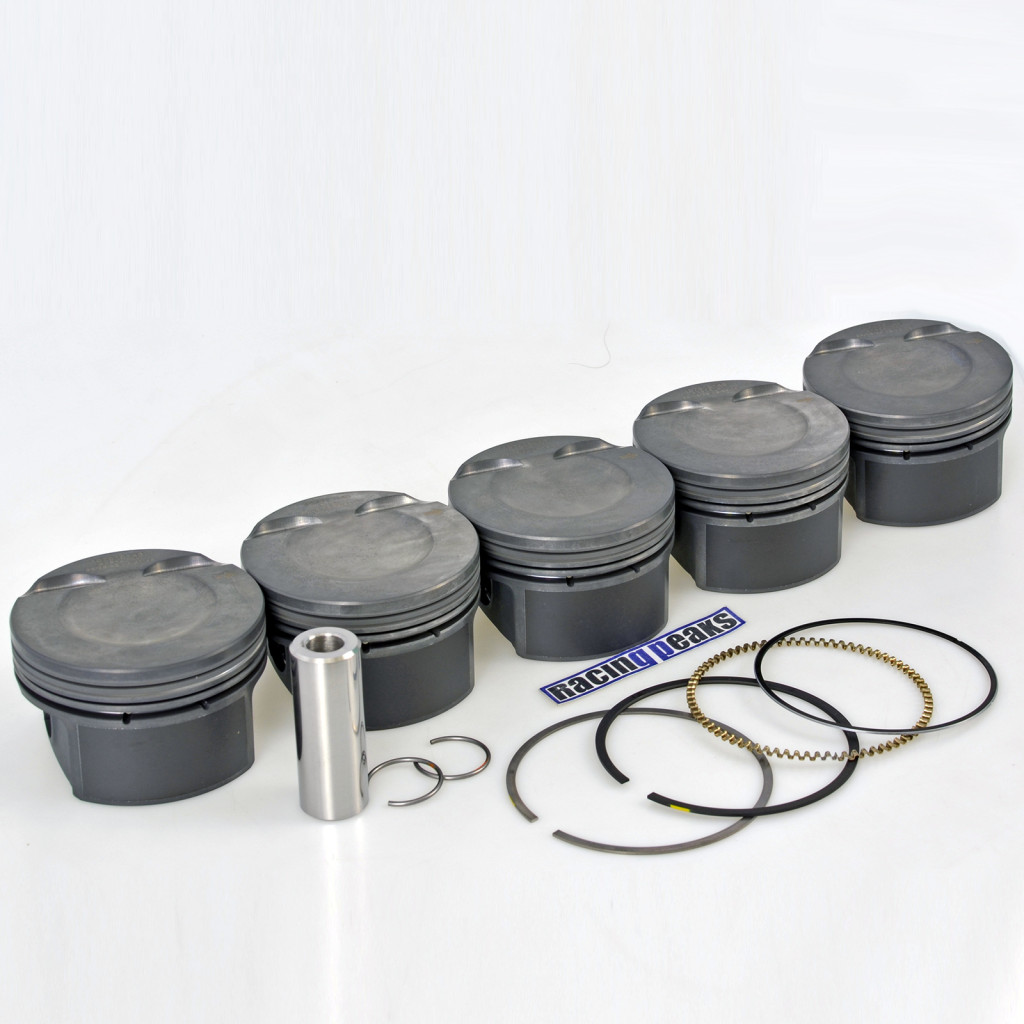

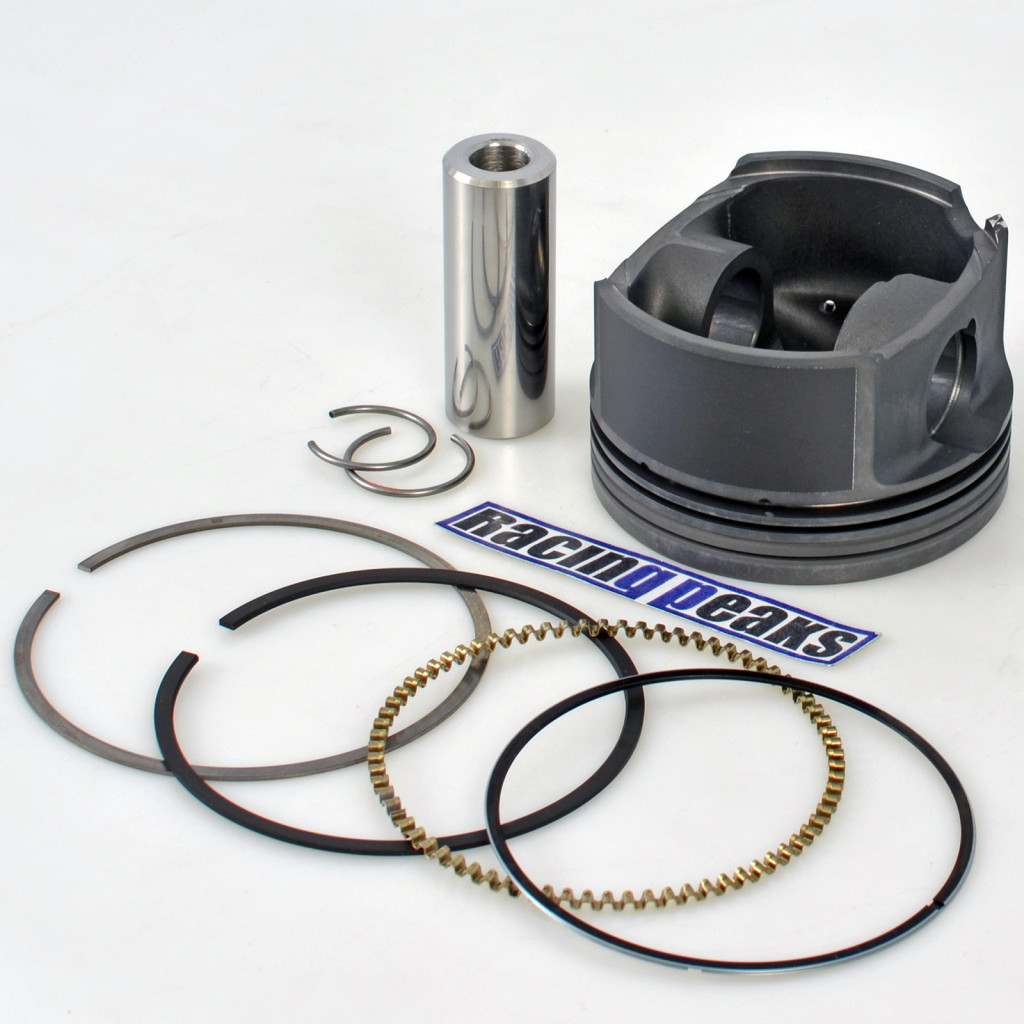

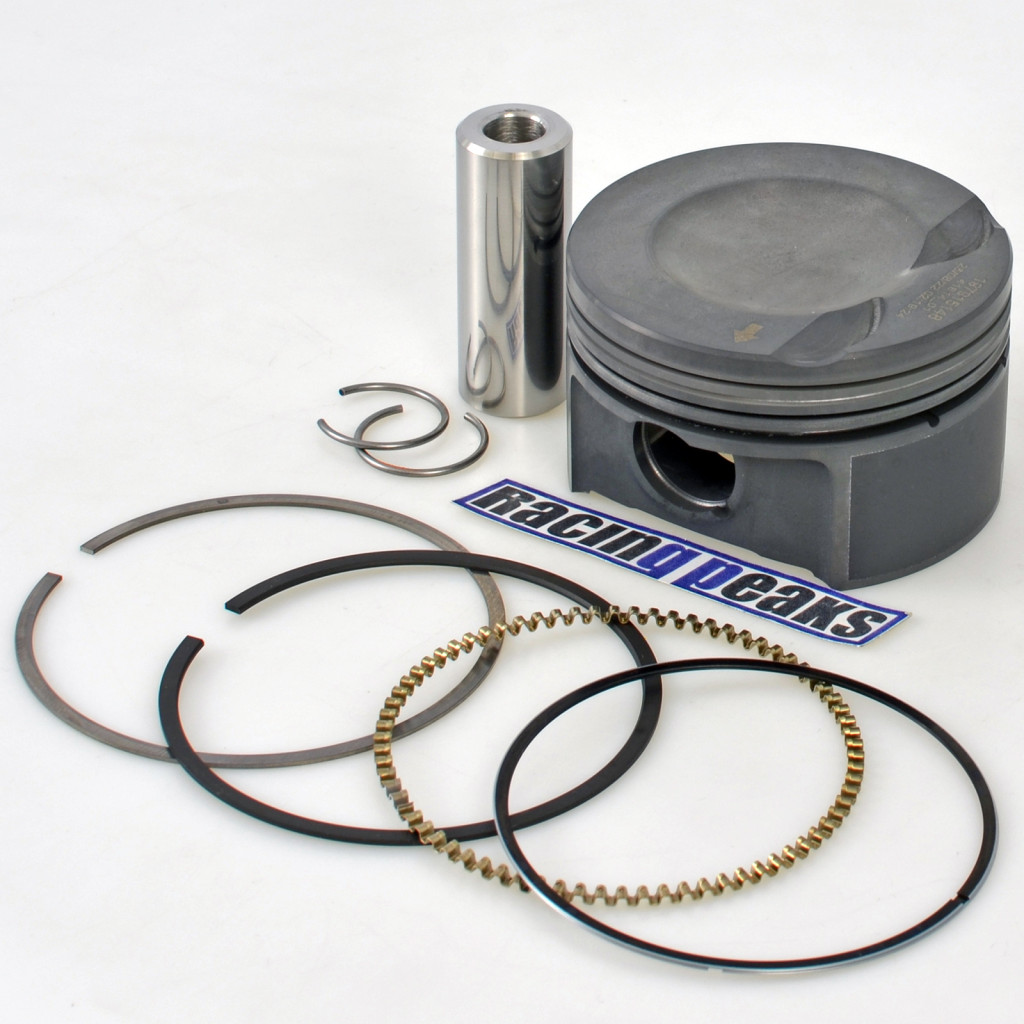

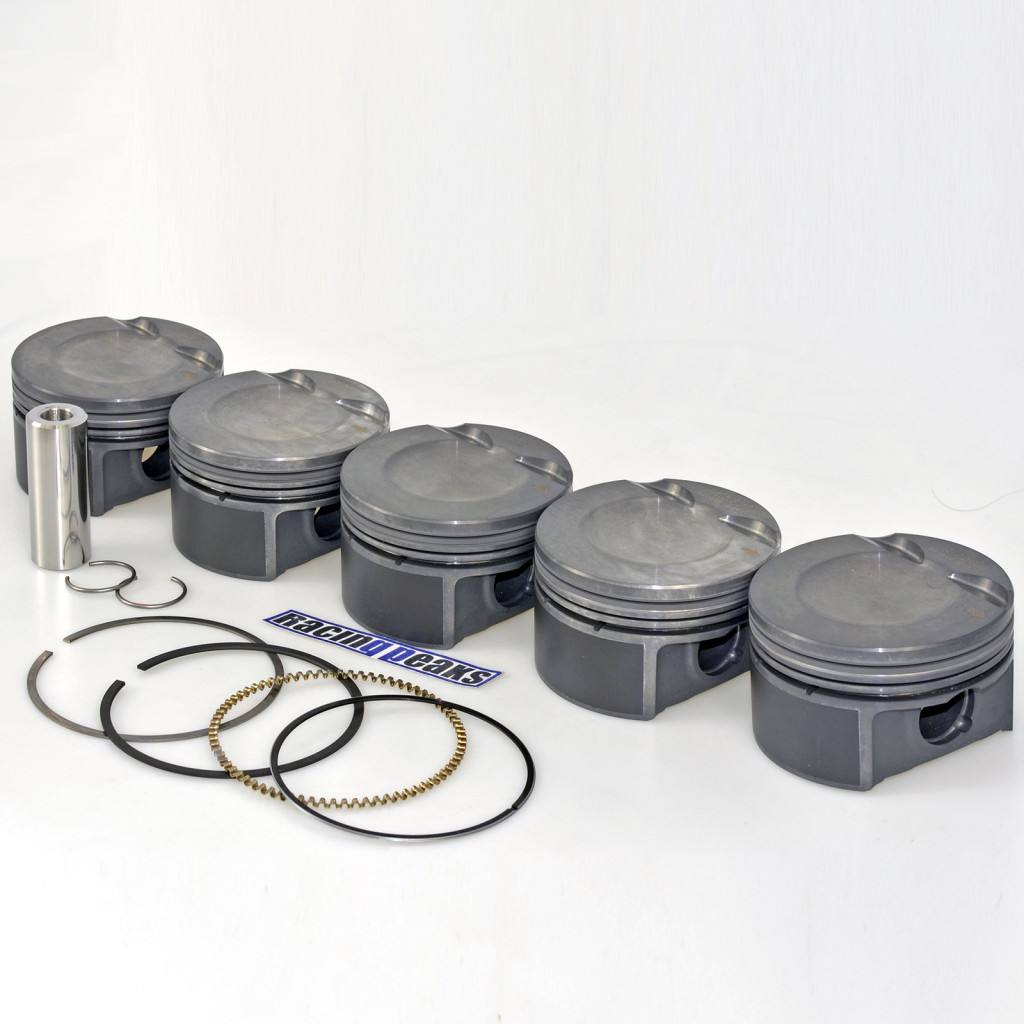

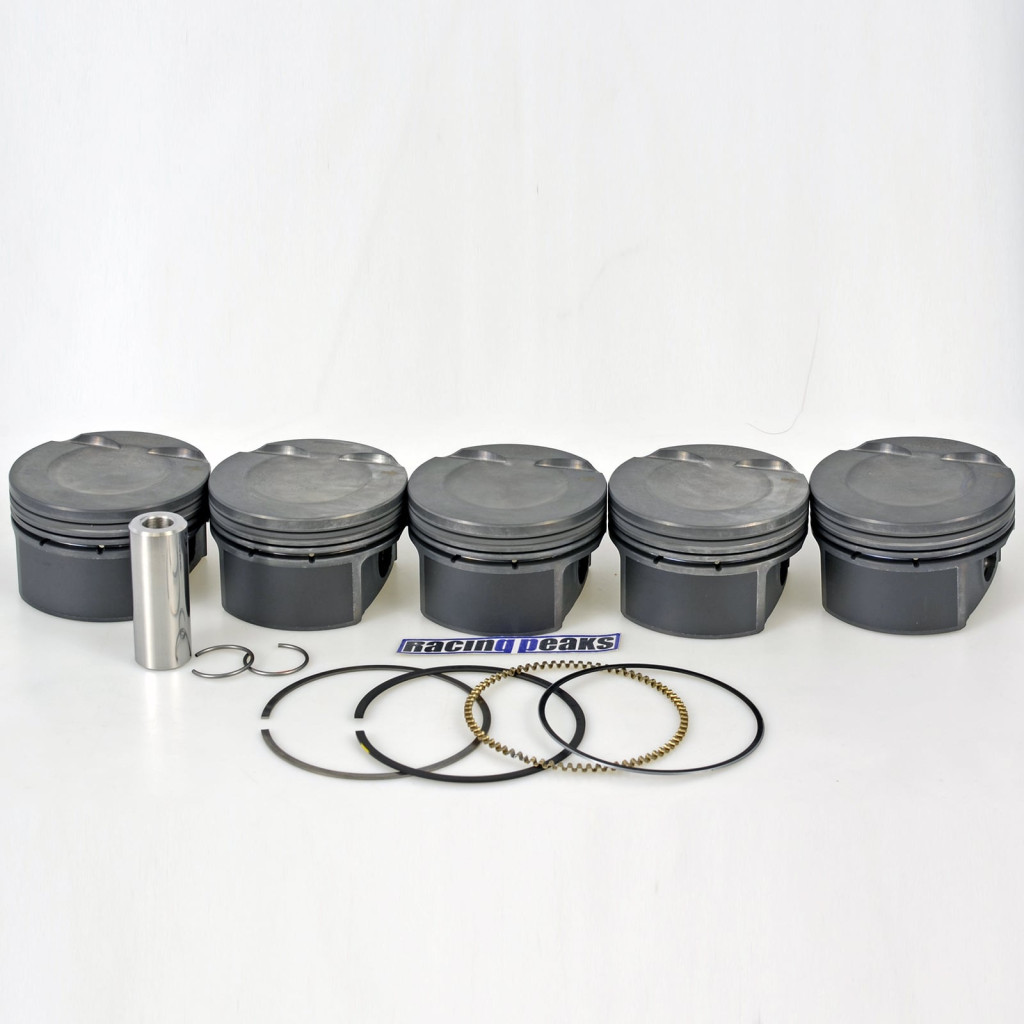

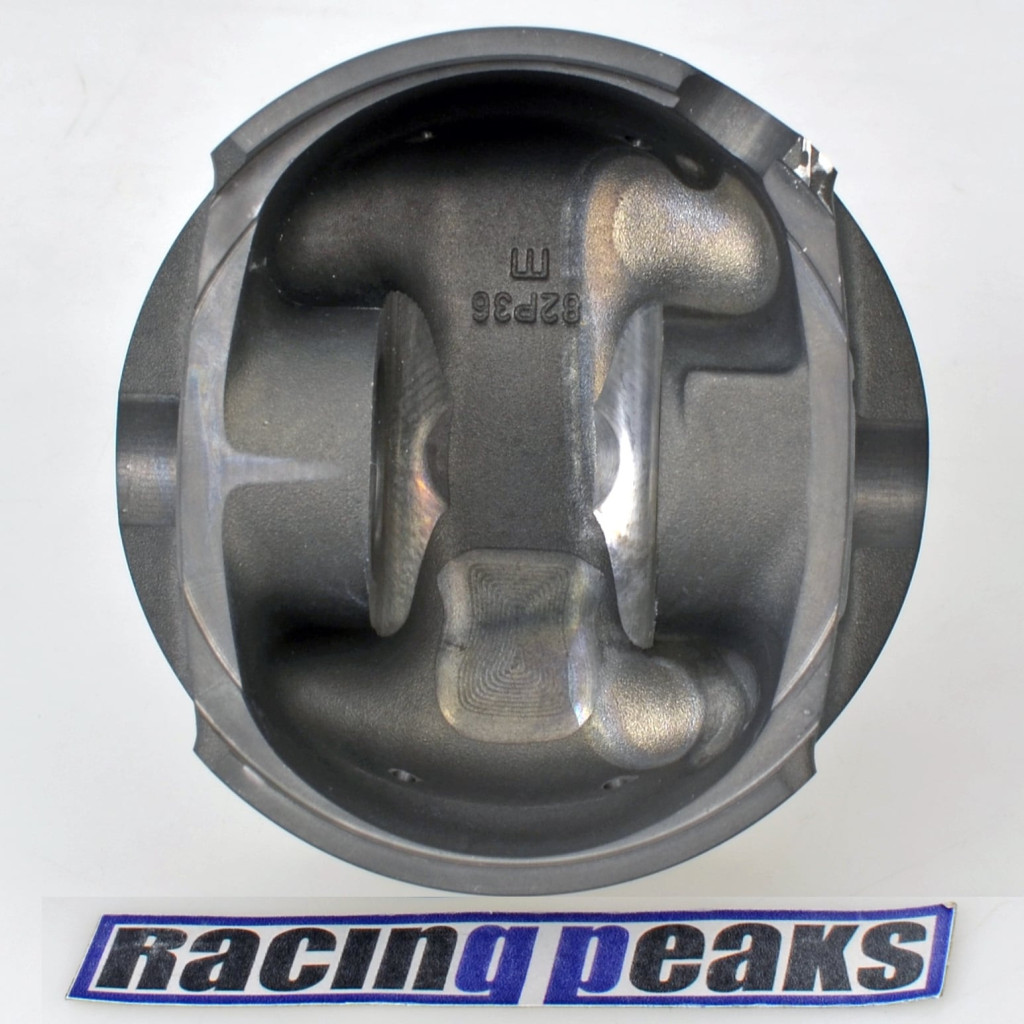

MAHLE Motorsport piston set fits Audi RS3 TTRS 2.5 TFSI EA855 EVO DAZA DNWA 2016-
€782.29
VAT included
Bore: 82.50mm (stock 82.50mm)
Stroke: 92.80mm
Compression height: 29.60mm
Compression ratio: 10.0
Pin: 22mm
Rings: 1.00x1.20x2.80mm
Hard Anodized Top Ring Groove For Extreme Duty Applications
Crown volume: -5.0cc
Weight: 322g
Alloy: M142P
Clearance guide: Measuring point: .250
Min: .0016 Max: .0024/td>Package: 5 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
Last items in stockStroke: 92.80mm
Compression height: 29.60mm
Compression ratio: 10.0
Pin: 22mm
Rings: 1.00x1.20x2.80mm
Hard Anodized Top Ring Groove For Extreme Duty Applications
Crown volume: -5.0cc
Weight: 322g
Alloy: M142P
Clearance guide: Measuring point: .250
Min: .0016 Max: .0024/td>Package: 5 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
MAHLE Motorsport pistons 197883929 are USA and manufacturer high quality products. Precision-engineered for maximum power and reliability in your engine.
197915148
1 Item
Data sheet
- Region
- USA
- Reference OE/OEM Number
- 06J198151R
07K107065AB
07K107065AC
- Audi
- Q3 (8UB / 8UG) 2011 - 2018
- 2.5 RS quattro (2.5L / 367 Hp / Petrol / CZGB)
- A3 Sportback III (8VA / 8VF) 2012 - current
- 2.5 RS3 quattro (2.5L / 367 Hp / Petrol / CZGB)
- 2.5 RS3 quattro (2.5L / 400 Hp / Petrol / DAZA)
- 2.5 RS3 quattro (2.5L / 400 Hp / Petrol / DNWA)
- A3 Sportback III (8VA / 8VF) 2012 - 2020
- 2.5 RS3 quattro (2.5L / 367 Hp / Petrol / CZGB)
- 2.5 RS3 quattro (2.5L / 400 Hp / Petrol / DAZA)
- 2.5 RS3 quattro (2.5L / 400 Hp / Petrol / DNWA)
- A3 Saloon III (8VS / 8VM) 2013 - current
- 2.5 RS3 quattro (2.5L / 400 Hp / Petrol / DAZA)
- 2.5 RS3 quattro (2.5L / 400 Hp / Petrol / DNWA)
- TT Coupe III (FV3 / FVP) 2014 - current
- 2.5 TTRS quattro (2.5L / 400 Hp / Petrol / DAZA)
- 2.5 TTRS quattro (2.5L / 400 Hp / Petrol / DNWA)
- Q3 II (F3B) 2018 - current
- 2.5 RS quattro (2.5L / 400 Hp / Petrol / DAZA)
- 2.5 RS quattro (2.5L / 400 Hp / Petrol / DNWA)
- TT Roadster Cabrio III (FV9 / FVR) 2014 - current
- 2.5 TTRS quattro (2.5L / 400 Hp / Petrol / DAZA)
- 2.5 TTRS quattro (2.5L / 400 Hp / Petrol / DNWA)
Specific References
New
Bore: 82.50mm (stock 82.50mm)
Stroke: 92.80mm
Compression height: 29.60mm
Compression ratio: 10.0
Pin: 22mm
Rings: 1.00x1.20x2.80mm
Hard Anodized Top Ring Groove For Extreme Duty Applications
Crown volume: -5.0cc
Weight: 322g
Alloy: M142P
Clearance guide: Measuring point: .250
Min: .0016 Max: .0024/td>Package: 5 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
Stroke: 92.80mm
Compression height: 29.60mm
Compression ratio: 10.0
Pin: 22mm
Rings: 1.00x1.20x2.80mm
Hard Anodized Top Ring Groove For Extreme Duty Applications
Crown volume: -5.0cc
Weight: 322g
Alloy: M142P
Clearance guide: Measuring point: .250
Min: .0016 Max: .0024/td>Package: 5 pistons with rings and pins
Warning: check for interference to piston motion from valves, oil squirters, etc. BEFORE running engine. These components may need adjustment in order to function properly with MAHLE pistons
