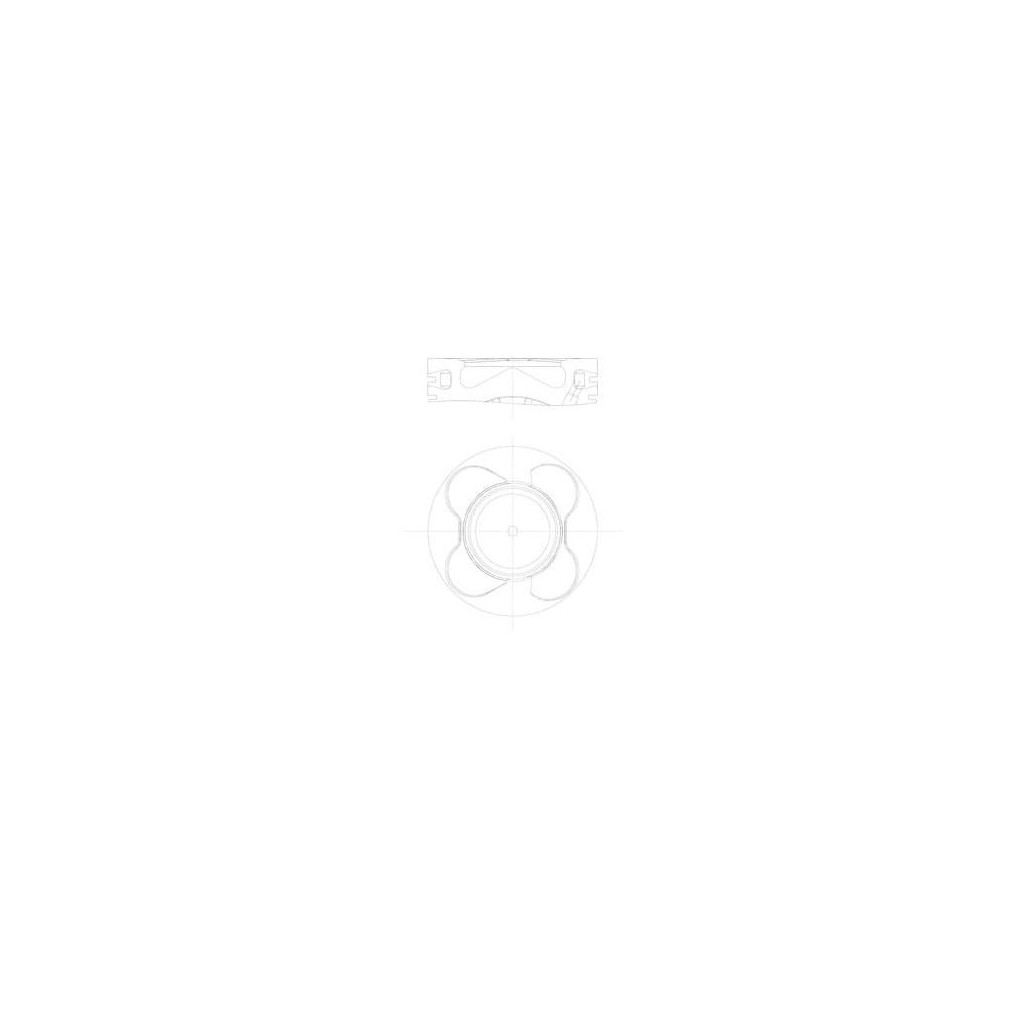

MAHLE Piston fits BMW M57D30 335d 535d X3 X5 X6 35d 306D5
€300.79
VAT included
Cyl.Bore: 84 mm
Length: 71 mm
Compression Height: 45 mm
Bolt Length: 64 mm
Bolt Ø: 30 mm
Recess Depth 1: 15.33 mm
Recess Diameter: 48.1 mm
Valve Pocket Depth 1: 1.6 mm
Valve Pocket Depth 2: 1.54 mm
Machined: with cut-out for oil jet
Supplementary Article/Supplementary Info 2: with piston ring carrier, with cooling duct
Top Land Height: 9.15 mm
Piston Rings: 2.50x2.00x2.00mm
Length: 71 mm
Compression Height: 45 mm
Bolt Length: 64 mm
Bolt Ø: 30 mm
Recess Depth 1: 15.33 mm
Recess Diameter: 48.1 mm
Valve Pocket Depth 1: 1.6 mm
Valve Pocket Depth 2: 1.54 mm
Machined: with cut-out for oil jet
Supplementary Article/Supplementary Info 2: with piston ring carrier, with cooling duct
Top Land Height: 9.15 mm
Piston Rings: 2.50x2.00x2.00mm
MAHLE pistons 081PI00112000 are OEM quality German brand products. Precision-engineered for maximum power and reliability in your engine.
081PI00112000
6 Items
Data sheet
- Region
- Germany
- Reference OE/OEM Number
- 11257788992
11257799883
- BMW
- 6 Coupe II (E63 / E63N) 2003 - 2010
- 635 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 5 Estate V (E61 / E61N) 2004 - 2010
- 535 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 5 Saloon V (E60 / E60N) 2001 - 2009
- 535 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 6 Cabrio II (E64 / E64N) 2003 - 2010
- 635 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 3 Saloon V (E90 / E90N) 2004 - 2012
- 335 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 3 Estate V (E91 / E91N) 2004 - 2011
- 335 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 3 Coupe V (E92 / E92N) 2005 - 2013
- 335 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- X6 (E71 / E72) 2007 - 2014
- xDrive 35 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- X5 II (E70) 2006 - 2013
- xDrive 35 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 3.0 sd (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- X3 (E83 / E83N) 2003 - 2010
- xDrive 35 d (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
- 3.0 sd (3.0L / 286 Hp / Diesel / M57 D30 (306D5))
Specific References
New
Cyl.Bore: 84 mm
Length: 71 mm
Compression Height: 45 mm
Bolt Length: 64 mm
Bolt Ø: 30 mm
Recess Depth 1: 15.33 mm
Recess Diameter: 48.1 mm
Valve Pocket Depth 1: 1.6 mm
Valve Pocket Depth 2: 1.54 mm
Machined: with cut-out for oil jet
Supplementary Article/Supplementary Info 2: with piston ring carrier, with cooling duct
Top Land Height: 9.15 mm
Piston Rings: 2.50x2.00x2.00mm
Length: 71 mm
Compression Height: 45 mm
Bolt Length: 64 mm
Bolt Ø: 30 mm
Recess Depth 1: 15.33 mm
Recess Diameter: 48.1 mm
Valve Pocket Depth 1: 1.6 mm
Valve Pocket Depth 2: 1.54 mm
Machined: with cut-out for oil jet
Supplementary Article/Supplementary Info 2: with piston ring carrier, with cooling duct
Top Land Height: 9.15 mm
Piston Rings: 2.50x2.00x2.00mm
