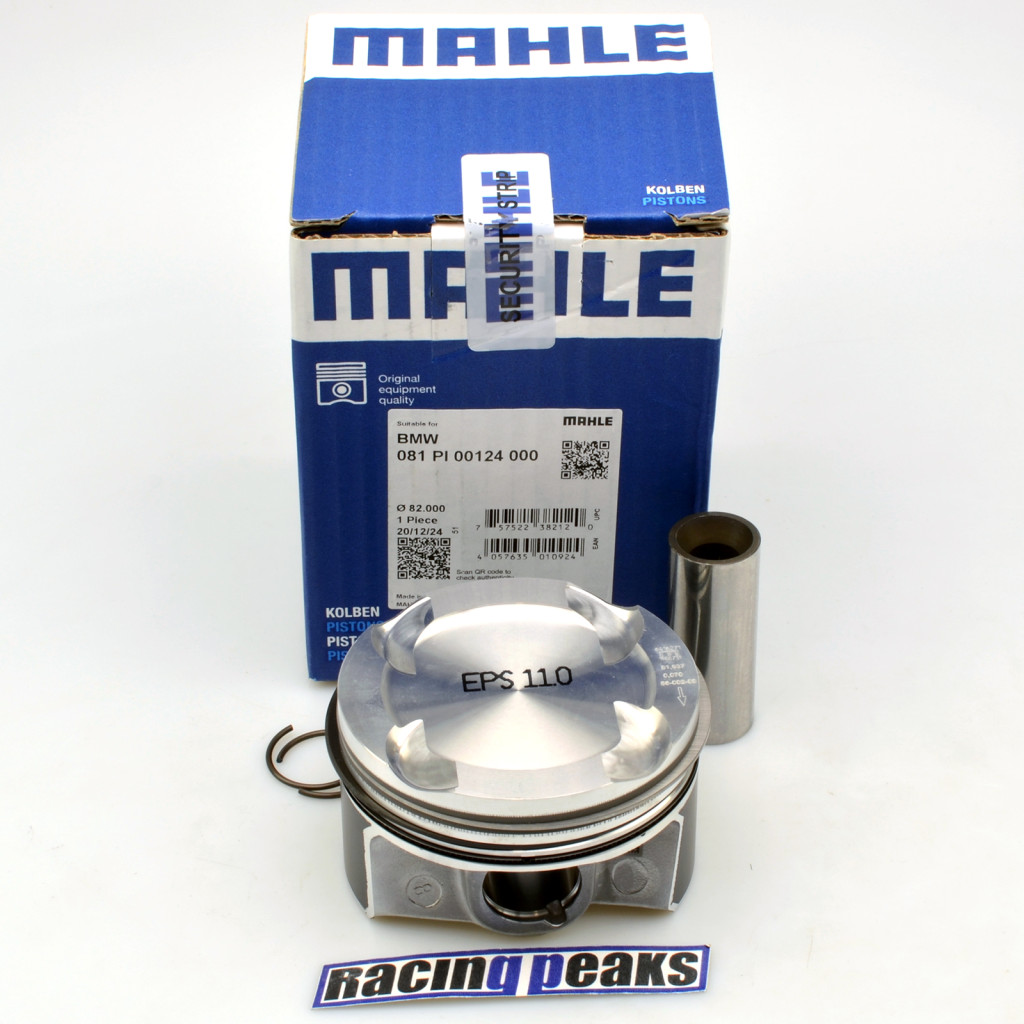

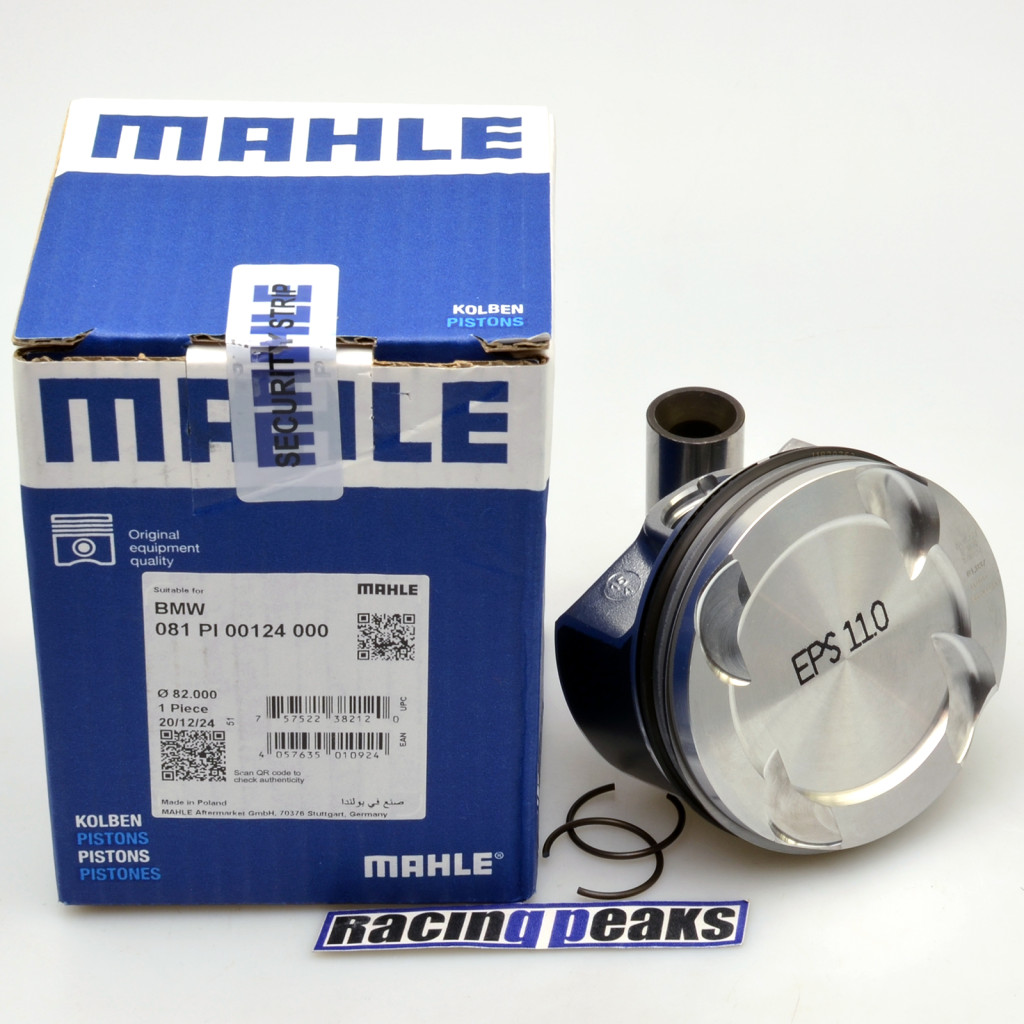

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 2.05 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L182 Piston Rings: 1.20x1.50x2.00mm Piston rings: 1.20x1.50x2.00mm

Bore: 82.51mm Length: 50.6 mm Compression Height: 29.6 mm Pin Length: 59 mm Pin Diameter: 20 mm Recess Depth 1: 6.2 mm Recess Diameter: 49.25 mm Valve Pocket Depth 1: 0.76 mm Machined: with cut-out for oil jet Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6.35 mm Connecting Rod Design:...

Bore: 82.51mm Length: 50.1 mm Compression Height: 29.6 mm Pin Length: 56 mm Pin Diameter: 21 mm Recess Depth 1: 6.2 mm Valve Pocket Depth 1: 3.5 mm Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 82 L 210 Piston Clearance:...

Bore: 83.01mm Length: 50.6 mm Compression Height: 29.6 mm Pin Length: 59 mm Pin Diameter: 20 mm Recess Depth 1: 6.2 mm Recess Diameter: 49.25 mm Valve Pocket Depth 1: 0.76 mm Machined: with cut-out for oil jet Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6.35 mm Connecting Rod Design:...

Bore: 83.01mm Length: 50.1 mm Compression Height: 29.6 mm Pin Length: 56 mm Pin Diameter: 21 mm Recess Depth 1: 6.2 mm Valve Pocket Depth 1: 3.5 mm Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 82 L 210 Piston Clearance:...

Bore: 83.01mm Length: 50.8 mm Compression Height: 29.1 mm Pin Length: 52 mm Pin Diameter: 20 mm Recess Depth 1: 5.8 mm Recess Diameter: 64.4 mm Machined: with cut-out for oil jet Surface: Coated Production Number: 82 L 78 Piston rings: 1.20x1.50x2.00mm

Bore: 84.50mm Length: 63.4 mm Compression Height: 34.2 mm Pin Length: 54 mm Pin Diameter: 22 mm Recess Depth 1: 6.7 mm Recess Diameter: 64.3 mm Valve Pocket Depth 1: 1.5 mm Valve Pocket Depth 2: 0.4 mm Surface: Tin-plated Top Land Height: 7.5 mm Production Number: 84 V 137 Piston Clearance: 0.02 mm Piston rings: 1.50x1.75x3.00mm

Bore: 84.51mm Length: 73.2 mm Compression Height: 48.4 mm Pin Length: 63.65 mm Pin Diameter: 30 mm Recess Depth 1: 14.4 mm Recess Diameter: 48.23 mm Top Land Height: 9.6 mm Info: with cut-out for oil jet, coated Production Number: 84 L 195 Piston rings: 2.00x2.00x2.00mm

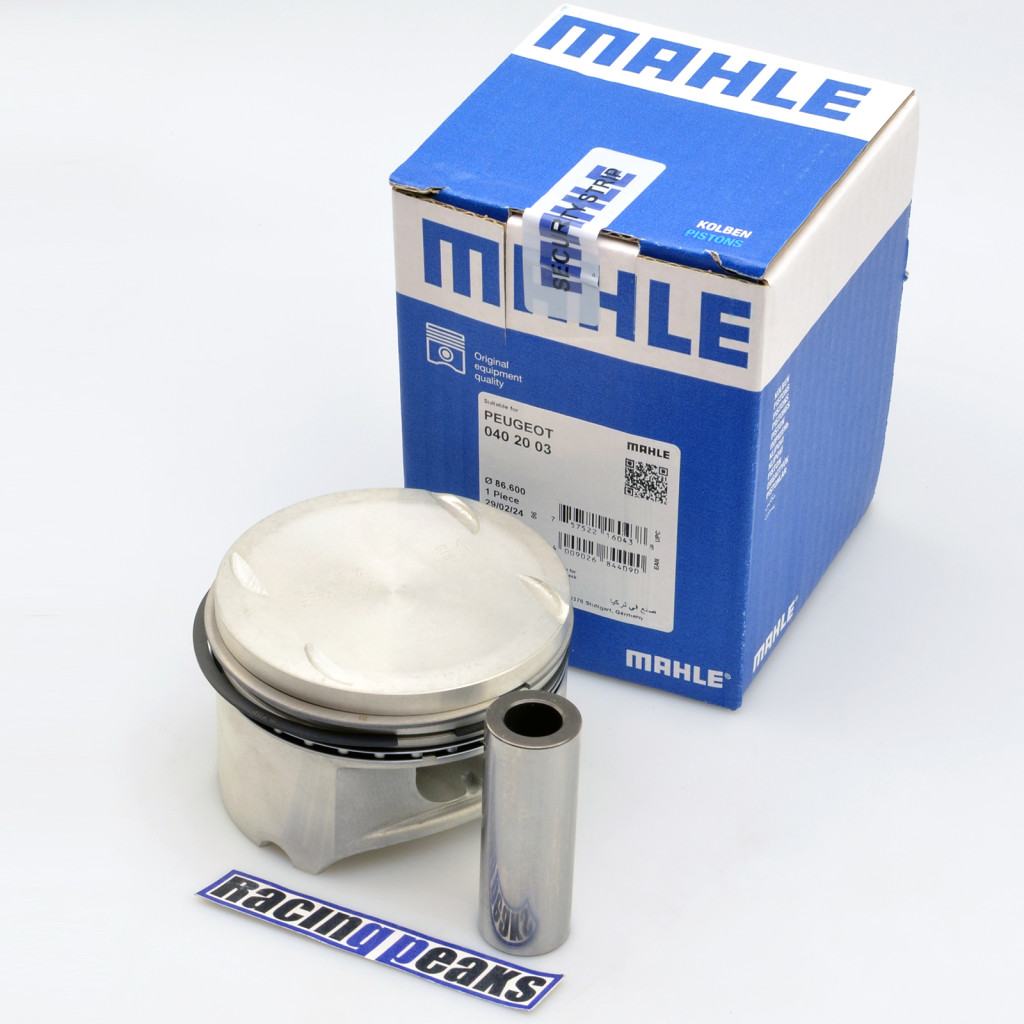

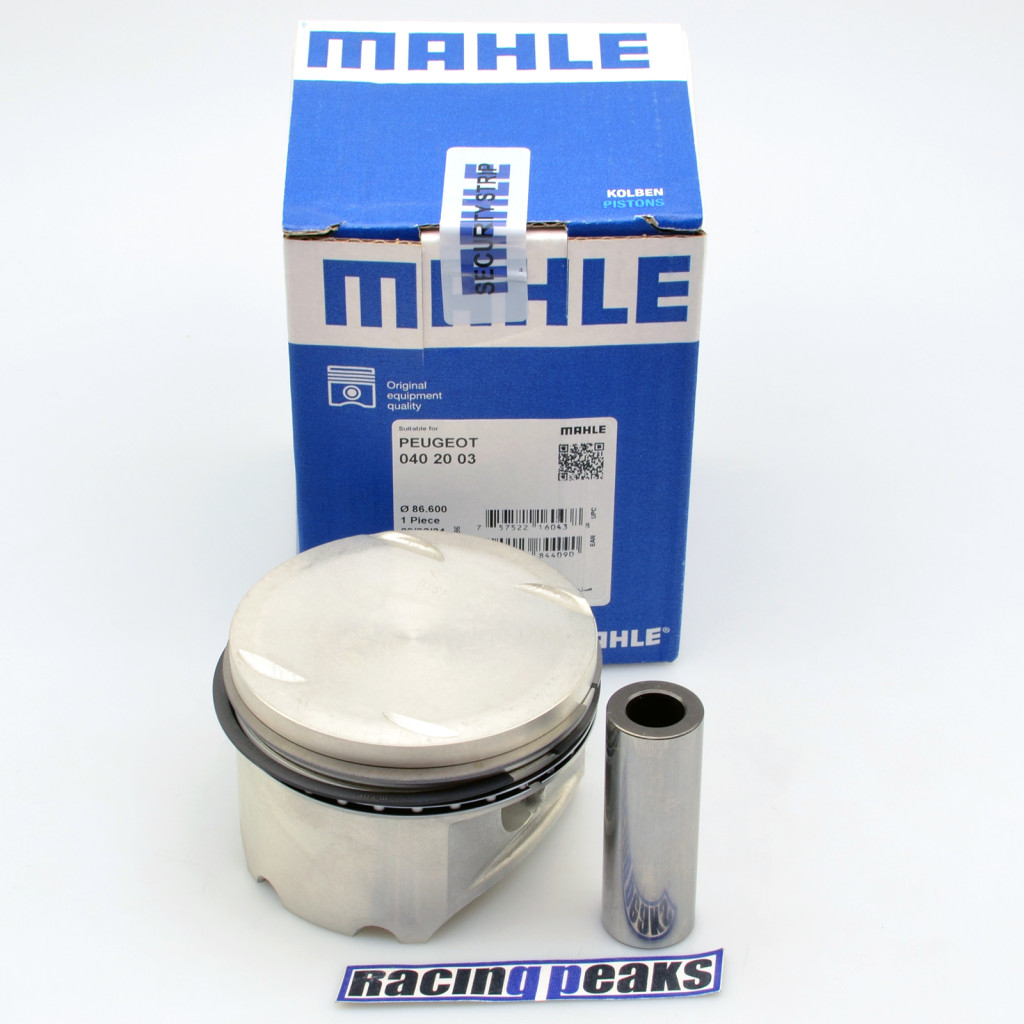

Bore: 86.60mm Length: 58.4 mm Compression Height: 33.9 mm Pin Length: 62 mm Pin Diameter: 22 mm Recess Depth 1: 2 mm Recess Diameter: 71.92 mm Valve Pocket Depth 1: 1.74 mm Valve Pocket Depth 2: 1.35 mm Machined: with cut-out for oil jet Surface: Tin-plated Production Number: 86 L 32 Piston Clearance: 0.035 mm Piston rings: 1.50x1.50x3.00mm

Bore: 87.50mm Length: 80.6 mm Compression Height: 48.6 mm Pin Length: 75 mm Pin Diameter: 25 mm Recess Depth 1: 1.3 mm Surface: Tin-plated Top Land Height: 13.4 mm Production Number: 86 V 13 Piston Clearance: 0.02 mm Piston rings: 2.00x2.50x4.00mm

Bore: 89.29mm Length: 71 mm Compression Height: 46 mm Pin Length: 79.3 mm Pin Diameter: 22 mm Top Land Height: 8 mm Production Number: 88 V 18 Piston Clearance: 0.04 mm Piston rings: 2.00x2.00x4.74mm

Bore: 89.67mm Length: 71 mm Compression Height: 46 mm Pin Length: 79.3 mm Pin Diameter: 22 mm Top Land Height: 8 mm Production Number: 88 V 18 Piston Clearance: 0.04 mm Piston rings: 2.00x2.00x4.74mm
