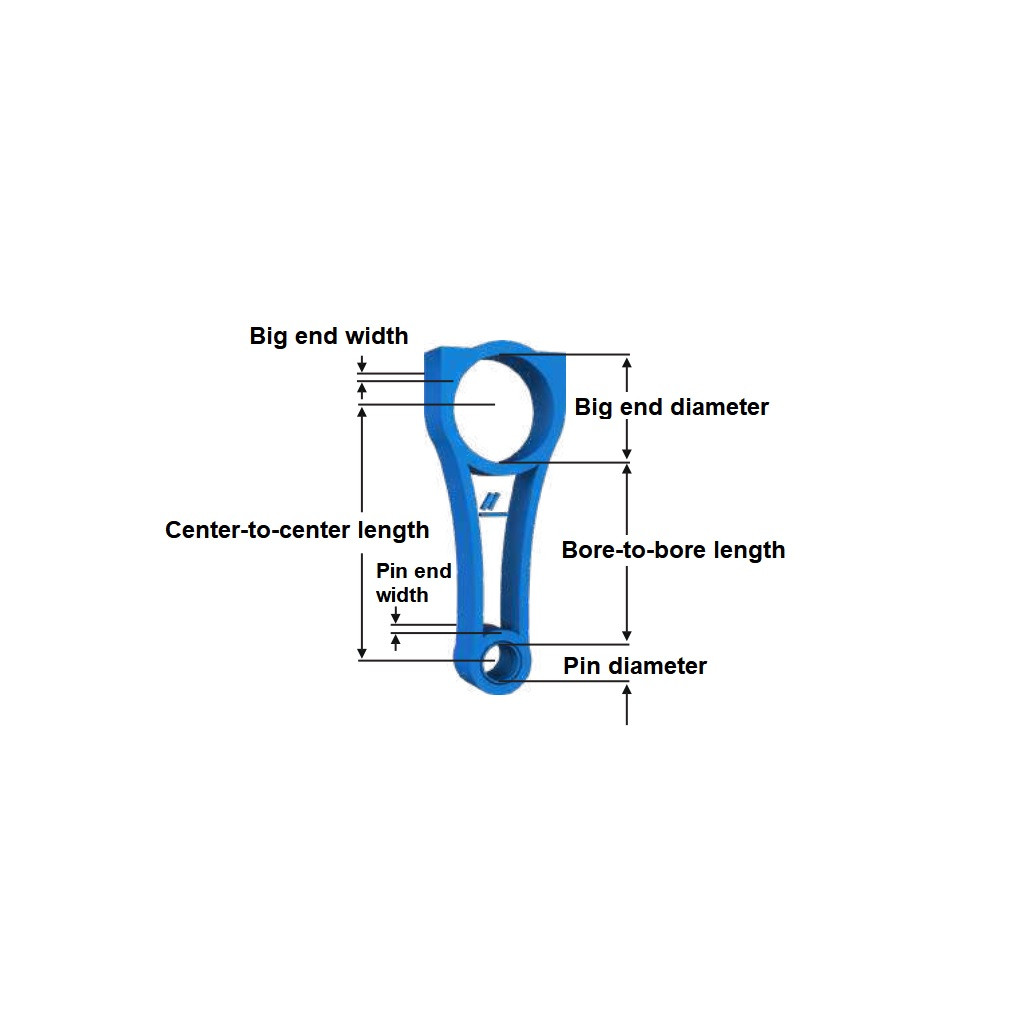

Number in pack: 1Big end width: 18.950 Big end diameter: 48.995-49.017 Center-to-center length: 140.000 Bore-to-bore length: 101.500 Pin end width: 18.950 Pin diameter: 28.020-28.035 Weight: 557 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 12.7 Nm + 90 degree

Number in pack: 1Big end width: 27.850 Big end diameter: 52.995-53.019 Center-to-center length: 145.800 Bore-to-bore length: 105.300 Pin end width: 27.850 Pin diameter: 28.020-28.035 Weight: 885 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 27.850 Big end diameter: 52.995-53.019 Center-to-center length: 145.800 Bore-to-bore length: 105.300 Pin end width: 27.850 Pin diameter: 28.020-28.035 Weight: 885 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm

Number in pack: 1Big end width: 21.900 Big end diameter: 55.600-55.615 Center-to-center length: 143.500 Bore-to-bore length: 100.700 Pin end width: 21.900 Pin diameter: 30.028-30.035 Weight: 760 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 25 Nm + 90 degree

Number in pack: 1Big end width: 20.000 Big end diameter: 45.000-45.014 Center-to-center length: 152.150 Bore-to-bore length: 119.650 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 440 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm

Number in pack: 1Big end width: 20.000 Big end diameter: 45.000-45.014 Center-to-center length: 152.150 Bore-to-bore length: 119.650 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 440 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm

Number in pack: 1Big end width: 20.000 Big end diameter: 51.600-51.619 Center-to-center length: 152.200 Bore-to-bore length: 116.400 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 470 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm; 2nd Torque Option: 5Nm+15Nm+90°

Number in pack: 1Big end width: 20.000 Big end diameter: 51.600-51.619 Center-to-center length: 152.200 Bore-to-bore length: 116.400 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 470 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm; 2nd Torque Option: 5Nm+15Nm+90°

Number in pack: 1Big end width: 20.000 Big end diameter: 51.600-51.619 Center-to-center length: 152.200 Bore-to-bore length: 116.400 Pin end width: 20.000 Pin diameter: 20.000-20.014 Weight: 470 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm; 2nd Torque Option: 5Nm+15Nm+90°

Number in pack: 1Big end width: 20.200 Big end diameter: 55.600-55.614 Center-to-center length: 154.100 Bore-to-bore length: 111.300 Pin end width: 22.000 Pin diameter: 30.015-30.028 Weight: 715 gr Specifications: Forged; Cracked; Tapered Torque: 45 Nm 2nd Torque option: 25 Nm + 90 degree

Number in pack: 1Big end width: 28.850 Big end diameter: 55.995-56.016 Center-to-center length: 155.000 Bore-to-bore length: 112.000 Pin end width: 28.850 Pin diameter: 30.020-30.035 Weight: 882 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 30 Nm + 100 degree Notice: Suitable for pistons with a compression height of 48.42 mm

Number in pack: 1Big end width: 28.800 Big end diameter: 55.995-56.016 Center-to-center length: 160.000 Bore-to-bore length: 117.000 Pin end width: 28.800 Pin diameter: 30.020-30.035 Weight: 873 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 30 Nm + 100 degree Notice: Suitable for pistons with a compression height of 43.42 mm
