Bolt length [mm]: 56 Bolt Ø [mm]: 21 Component Number: 63714; 63717; 63720 Compression Height [mm]: 29,6 Construction year to: 201303 Cylinder Piston Diameter [mm]: 82,76 Length [mm]: 50,1 Oversize [mm]: 0,25 Production Number: 082243 Quantity: 3 Recess Depth 1 [mm]: 6,2 Recess Diameter [mm]: 50 Valve pocket depth 1 [mm]: 3 Thickness [mm] 63714:...

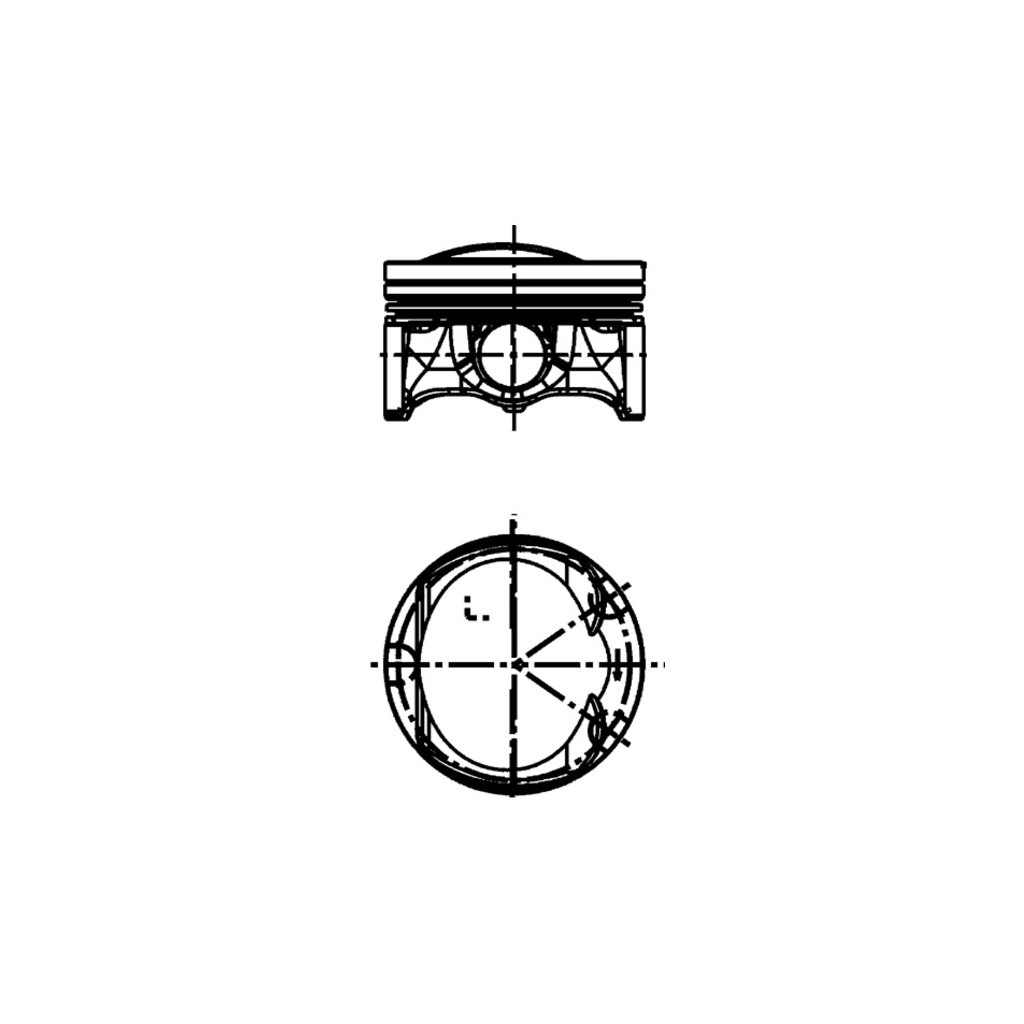

Cyl.Bore: 83.01mm Compression Height: 29.8mm Length: 55.98mm Piston Crown Clearance: 5.7mm Recess Depth 1: 4.75mm Recess Diameter: 67mm Component No.: 63718, 63715, 63721 Bolt d.: 21mm Bolt Length: 53mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

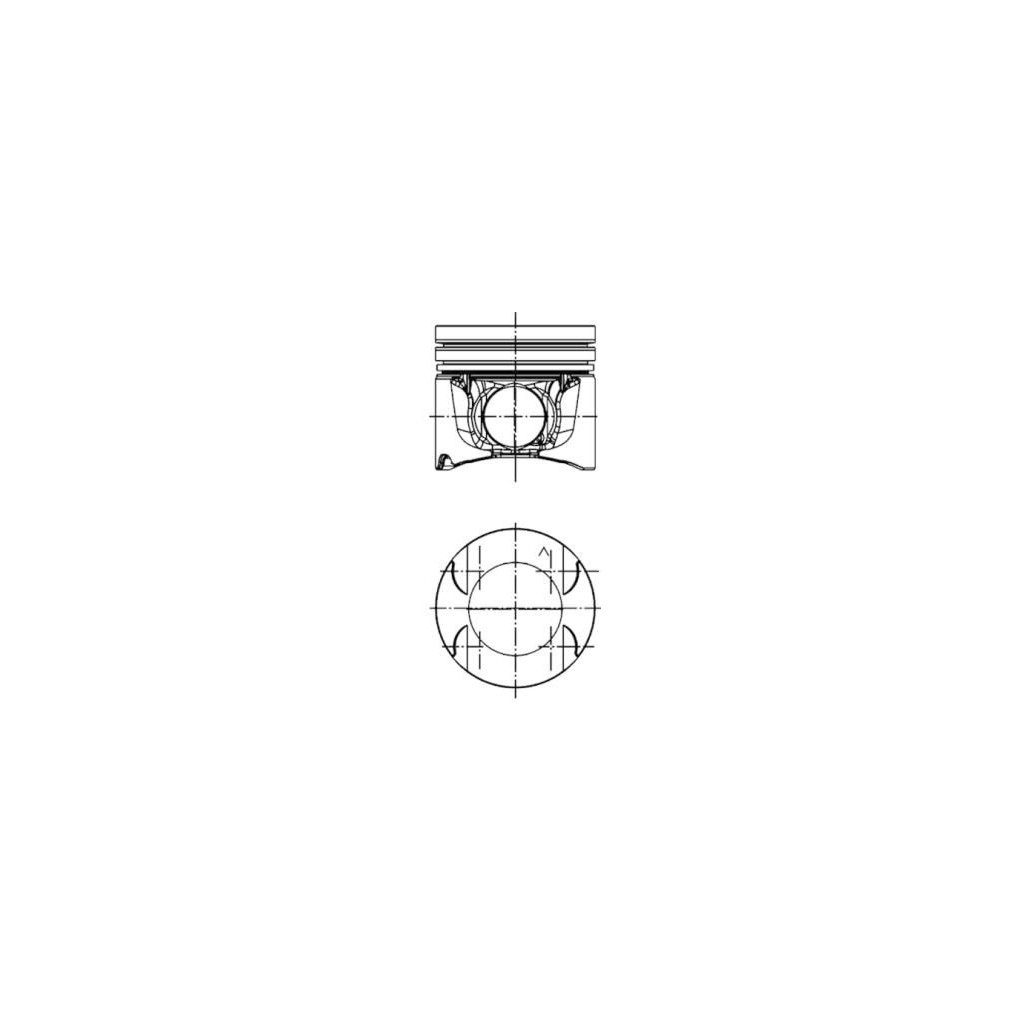

Cyl.Bore: 84.50mm Compression Height: 47.916mm Length: 76mm Recess Depth 1: 14.9mm Recess Diameter: 49.07mm Component No.: 62757, 62753, 62755 Bolt d.: 32mm Bolt Length: 65mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bolt length [mm]: 67 Bolt Ø [mm]: 31 Component Number: 63058; 63061; 63064 Compression Height [mm]: 57 Cylinder Piston Diameter [mm]: 88 Length [mm]: 84 Production Number: 088122 Quantity: 3 Recess Depth 1 [mm]: 13,75 Recess Diameter [mm]: 50,1 Thickness [mm] 63058: 3,8 Height [mm] 63058: 2,5 Material 63058: Cast Iron with Ductile Iron Surface 63058:...

Bolt length [mm]: 56 Bolt Ø [mm]: 22,5 Component Number: 86968 Compression Height [mm]: 32,8 Cylinder Piston Diameter [mm]: 87,515 Length [mm]: 53,8 Piston protrusion [mm]: 2,19 Production Number: 087144 Quantity: 1 Thickness [mm] 86968: 3,4 Height [mm] 86968: 1,2 Material 86968: Grey Cast Iron Surface 86968: Phosphatized Cylinder Piston Diameter [mm]...

Cyl.Bore: 81.51mm Compression Height: 45.55mm Length: 68.55mm Recess Depth 1: 13.1mm Recess Diameter: 50.88mm Component No.: 63509, 63503, 63506 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bolt length [mm]: 51 Bolt Ø [mm]: 18 Component Number: 63179; 63182; 63185 Compression Height [mm]: 24 Cylinder Piston Diameter [mm]: 73,4 Length [mm]: 45 Production Number: 073067 Quantity: 3 Recess Depth 1 [mm]: 0,82 Recess Diameter [mm]: 52 Valve pocket depth 1 [mm]: 1,33 Valve pocket depth 2 [mm]: 1,35 Thickness [mm] 63179: 2,95 Height [mm] 63179:...

Bolt length [mm]: 52 Bolt Ø [mm]: 18 Component Number: 61906; 63353; 88752 Compression Height [mm]: 26,73 Cylinder Piston Diameter [mm]: 79 Length [mm]: 48,73 Production Number: 079185 Quantity: 3 Thickness [mm] 61906: 3,3 Height [mm] 61906: 1,2 Material 61906: Grey Cast Iron Surface 61906: Phosphatized Cylinder Piston Diameter [mm] 61906: 79 Thickness...

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 63046; 63048; 87993 Compression Height [mm]: 45,55 Cylinder Piston Diameter [mm]: 81,51 Length [mm]: 68,8 Oversize [mm]: 0,50 Production Number: 081191 Quantity: 3 Recess Depth 1 [mm]: 17,5 Recess Diameter [mm]: 38 Valve pocket depth 1 [mm]: 0,7 Thickness [mm] 63046: 3,55 Height [mm] 63046:...

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 63046; 63048; 87993 Compression Height [mm]: 45,55 Cylinder Piston Diameter [mm]: 81,51 Length [mm]: 68,8 Oversize [mm]: 0,50 Production Number: 081191 Quantity: 3 Recess Depth 1 [mm]: 17,5 Recess Diameter [mm]: 38 Valve pocket depth 1 [mm]: 0,7 Thickness [mm] 63046: 3,55 Height [mm] 63046:...

Bolt length [mm]: 48 Bolt Ø [mm]: 20 Component Number: 61331; 61624; 61625 Compression Height [mm]: 29,35 Cylinder Piston Diameter [mm]: 84 Length [mm]: 49,6 Piston protrusion [mm]: 1,3 Production Number: 084201 Quantity: 3 Thickness [mm] 61331: 3,05 Height [mm] 61331: 1,2 Material 61331: Steel Surface 61331: Blank; Nitrified Cylinder Piston Diameter [mm]...

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 61608; 80007; 87647 Compression Height [mm]: 45,8 Cylinder Piston Diameter [mm]: 79,51 Length [mm]: 69,8 Production Number: 079155 Quantity: 3 Recess Depth 1 [mm]: 17,34 Recess Diameter [mm]: 38 Valve pocket depth 1 [mm]: 0,7 Thickness [mm] 61608: 3,4 Height [mm] 61608: 1,75 Material 61608: Cast Iron...
