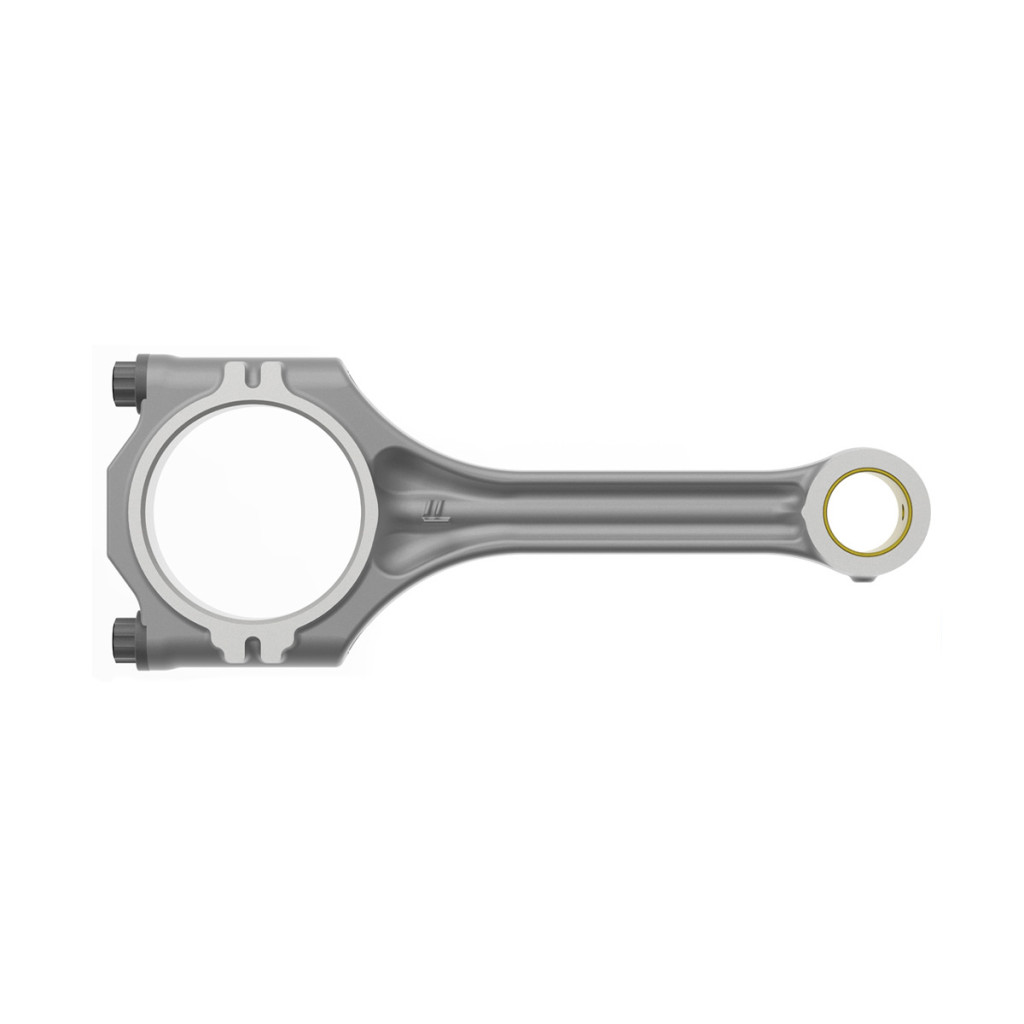

Number in pack: 1Big end diameter: 47.614-47.625 Center-to-center length: 142.300 Bore-to-bore length: 105.500 Pin diameter: 26.020-26.035 Weight: 560 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: Used in forged-steel piston engines

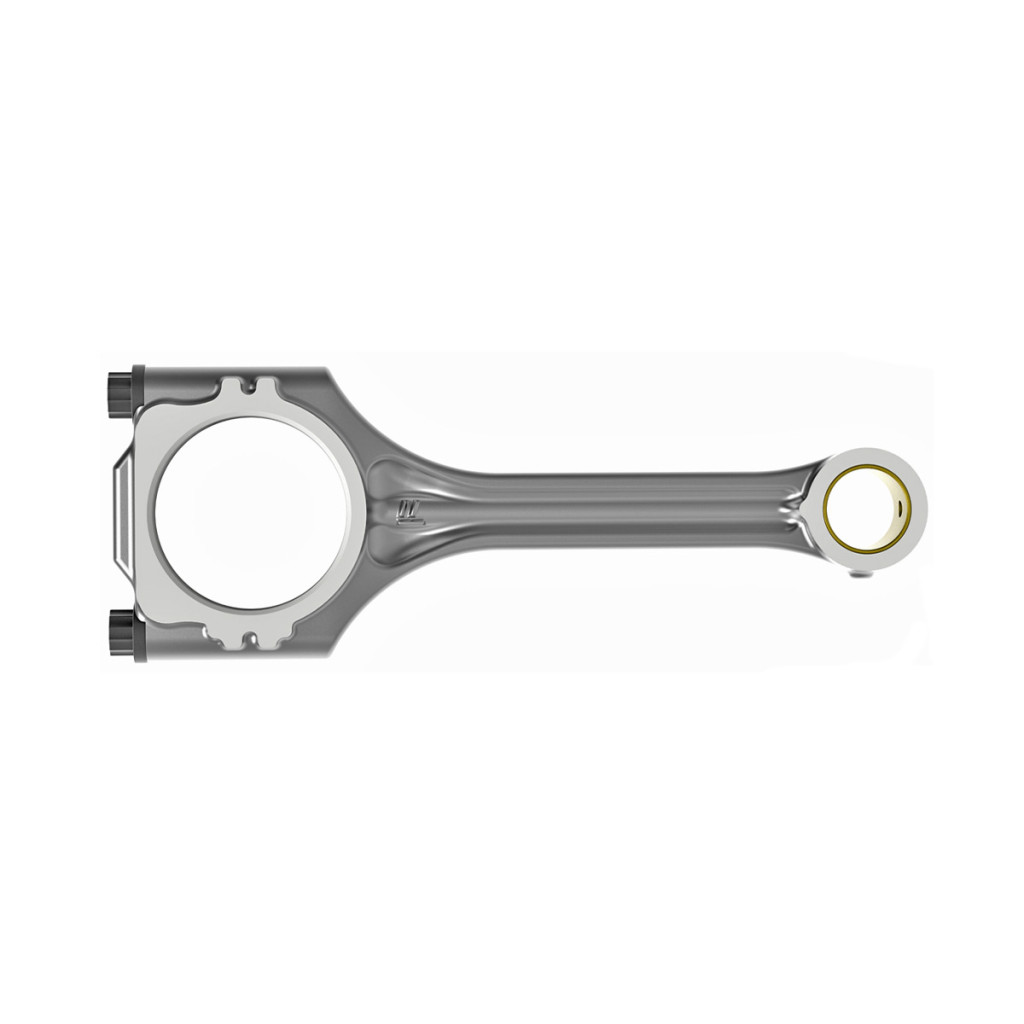

Number in pack: 1Big end diameter: 47.614-47.625 Center-to-center length: 142.300 Bore-to-bore length: 105.500 Pin diameter: 26.020-26.035 Weight: 560 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: Used in forged-steel piston engines

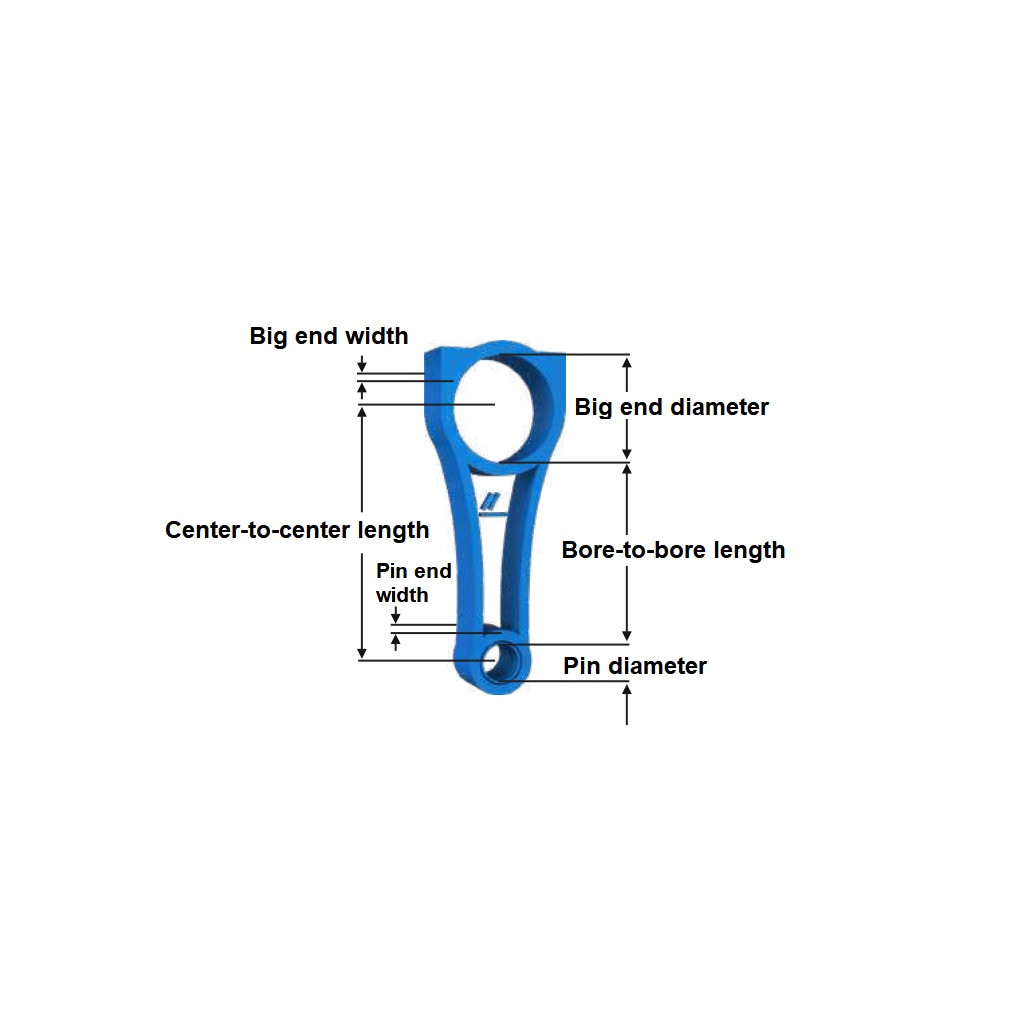

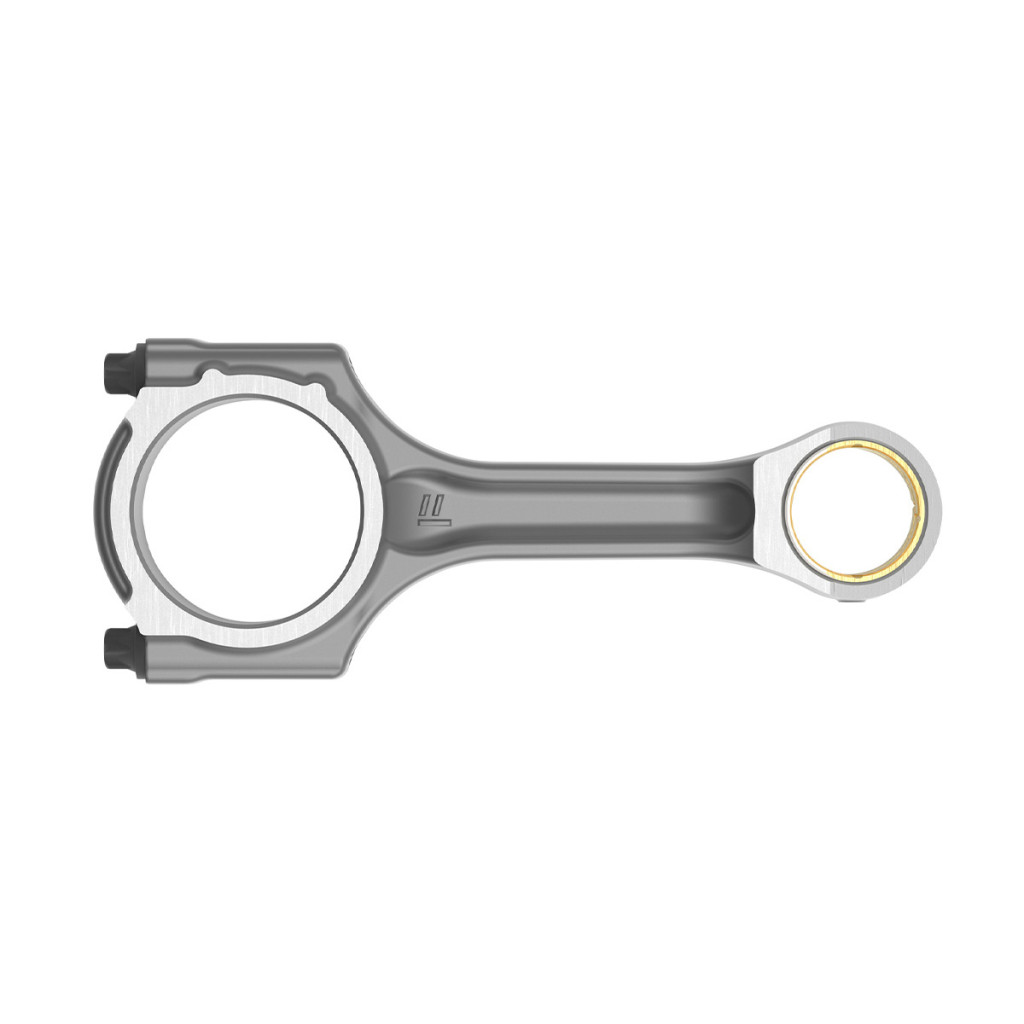

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 137.700 Bore-to-bore length: 96.900 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 675 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 25.900 Big end diameter: 56.587-56.606 Center-to-center length: 147.900 Bore-to-bore length: 104.100 Pin end width: 25.900 Pin diameter: 31.020-31.035 Weight: 870 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 23.950 Big end diameter: 55.595-55.615 Center-to-center length: 143.500 Bore-to-bore length: 99.700 Pin end width: 23.950 Pin diameter: 32.020-32.035 Weight: 730 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 23.950 Big end diameter: 56.587-56.610 Center-to-center length: 157.250 Bore-to-bore length: 112.950 Pin end width: 23.950 Pin diameter: 32.020-32.035 Weight: 805 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: with oil hole

Number in pack: 1Big end width: 25.550 Big end diameter: 51.595-51.620 Center-to-center length: 127.200 Bore-to-bore length: 86.400 Pin end width: 25.550 Pin diameter: 30.020-30.035 Weight: 655 gr Specifications: Forged; Cracked; Tapered Torque: 60 Nm 2nd Torque option: 20 Nm + 45 degree Notice: with oil hole

Number in pack: 1Big end width: 24.900 Big end diameter: 53.700-53.720 Center-to-center length: 144.000 Bore-to-bore length: 104.150 Pin end width: 24.900 Pin diameter: 26.020-26.035 Weight: 670 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm 2nd Torque option: 30 Nm + 90 degree

Number in pack: 1Big end width: 24.900 Big end diameter: 53.700-53.720 Center-to-center length: 144.000 Bore-to-bore length: 104.150 Pin end width: 24.900 Pin diameter: 26.020-26.035 Weight: 670 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm 2nd Torque option: 30 Nm + 90 degree
