Bore: 80.00mm Top ring: 2.00mm 2nd ring: 1.75mm 3rd ring: 2.00mm

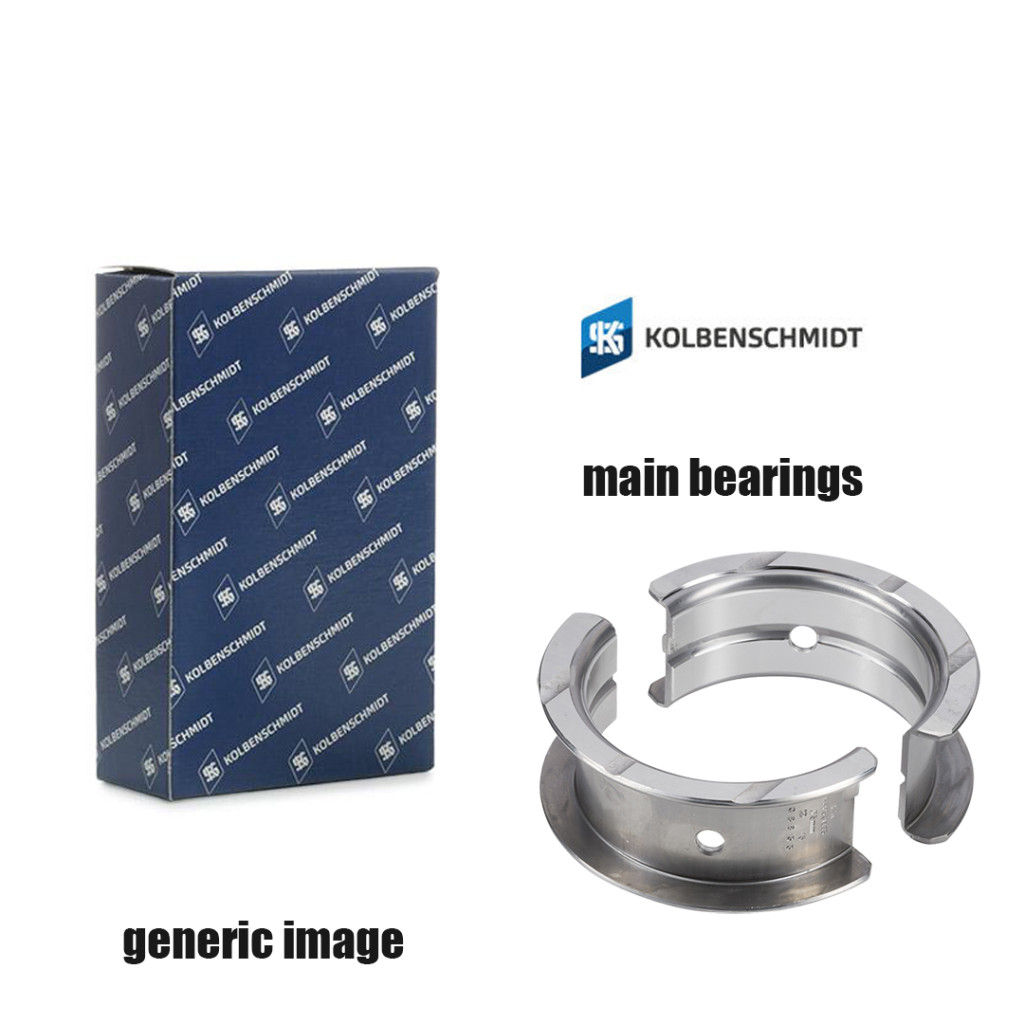

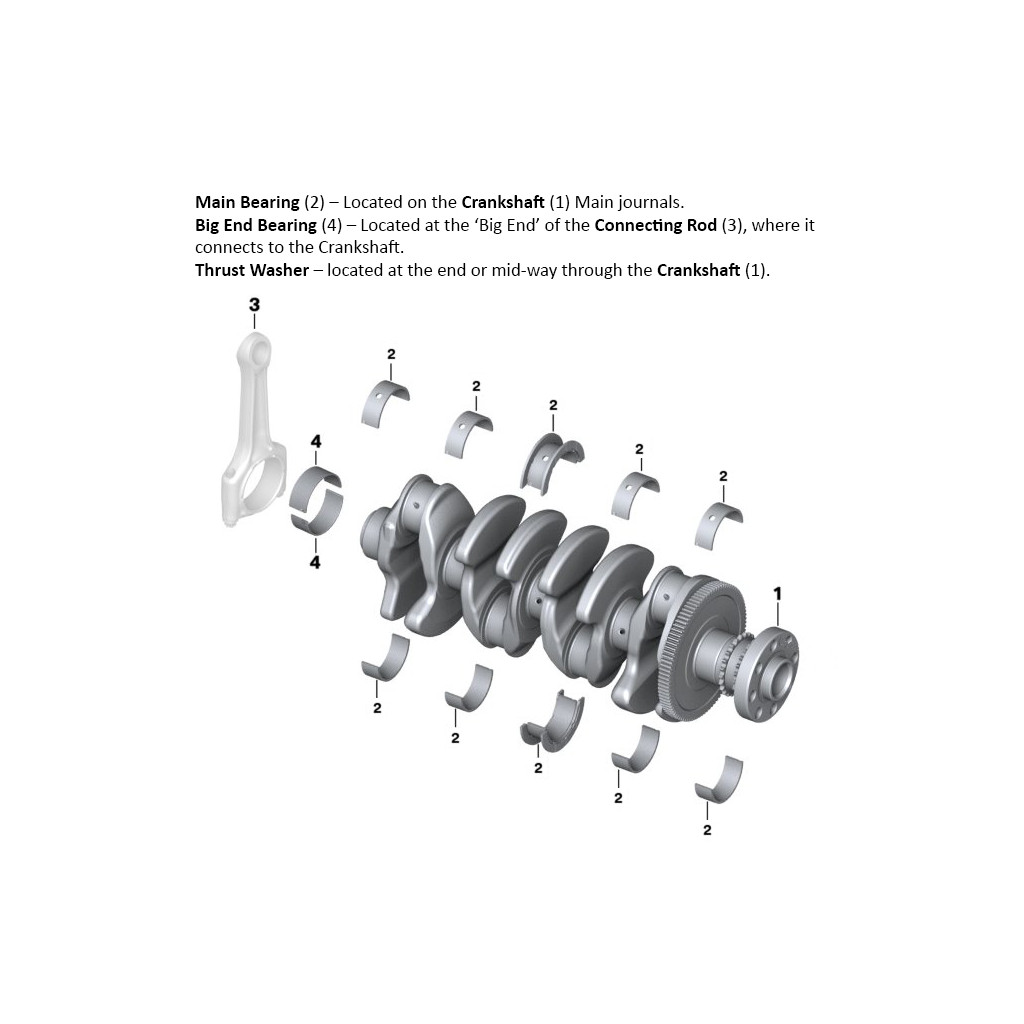

Position: Crankshaft Quantity: 1 pc Shaft diameter: 54.690 / 54.715mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.141mm Bearing width: 19.00mm Position: Crankshaft Quantity: 3 pcs Shaft diameter: 54.690 / 54.715mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.141mm Bearing width: 19.00mm Position: Crankshaft Quantity: 4 pcs Shaft...

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 51.485 / 51.500mm Housing bore: 55.497 / 55.511 m Wall thickness: 1.985mm Bearing width: 17.00mm

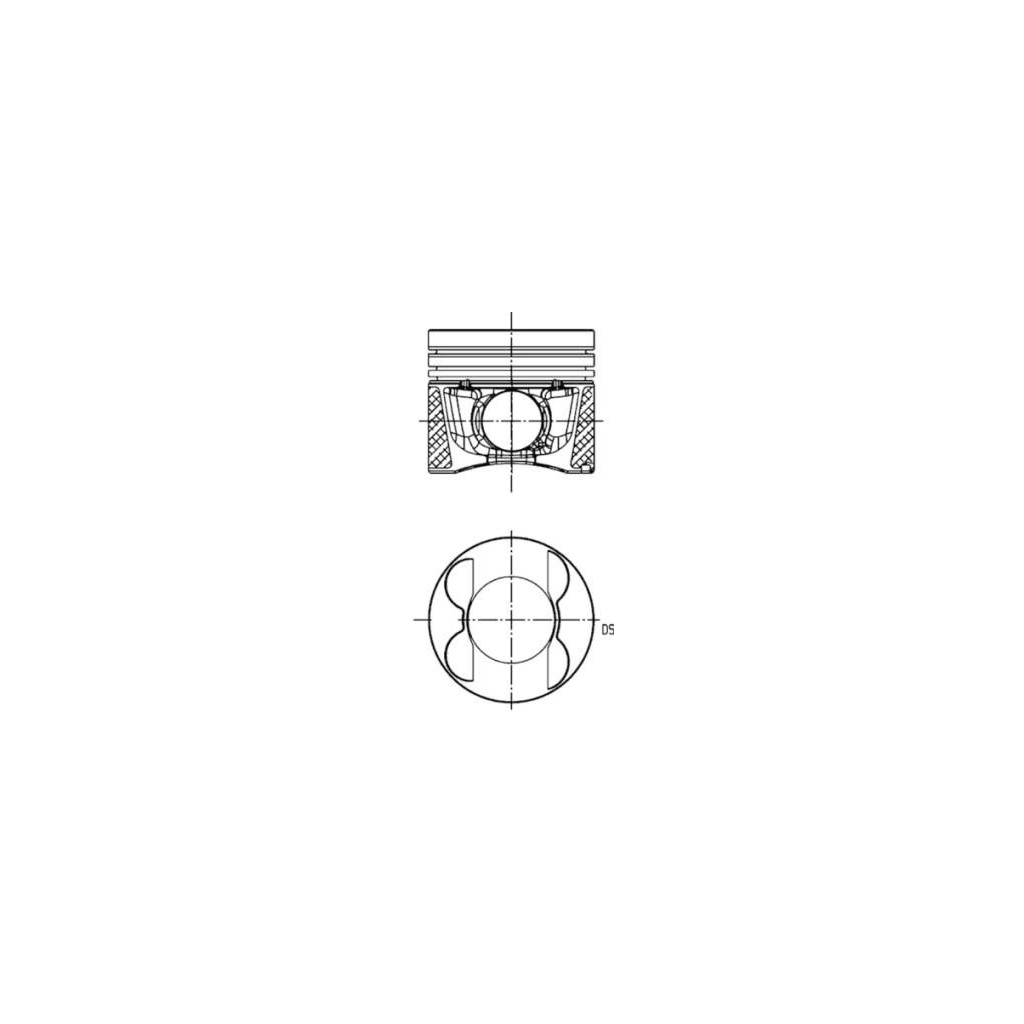

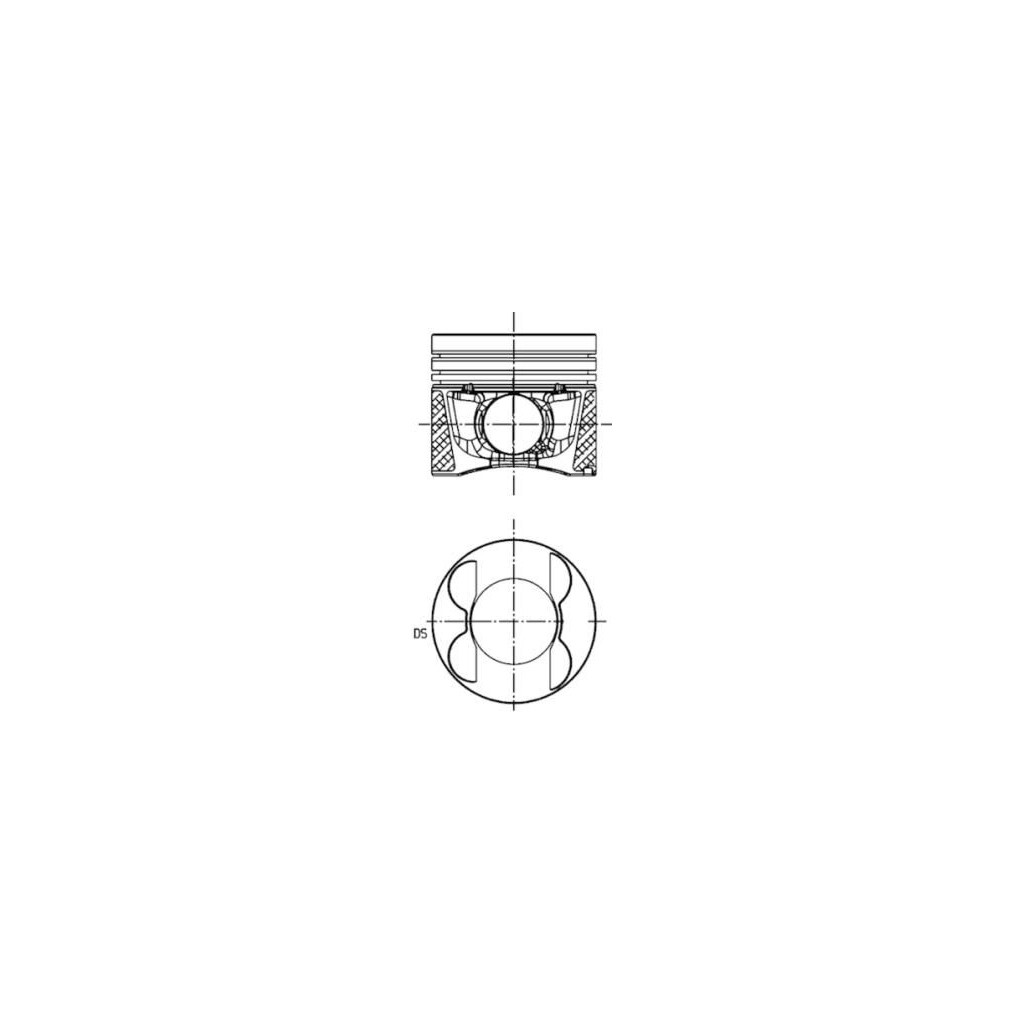

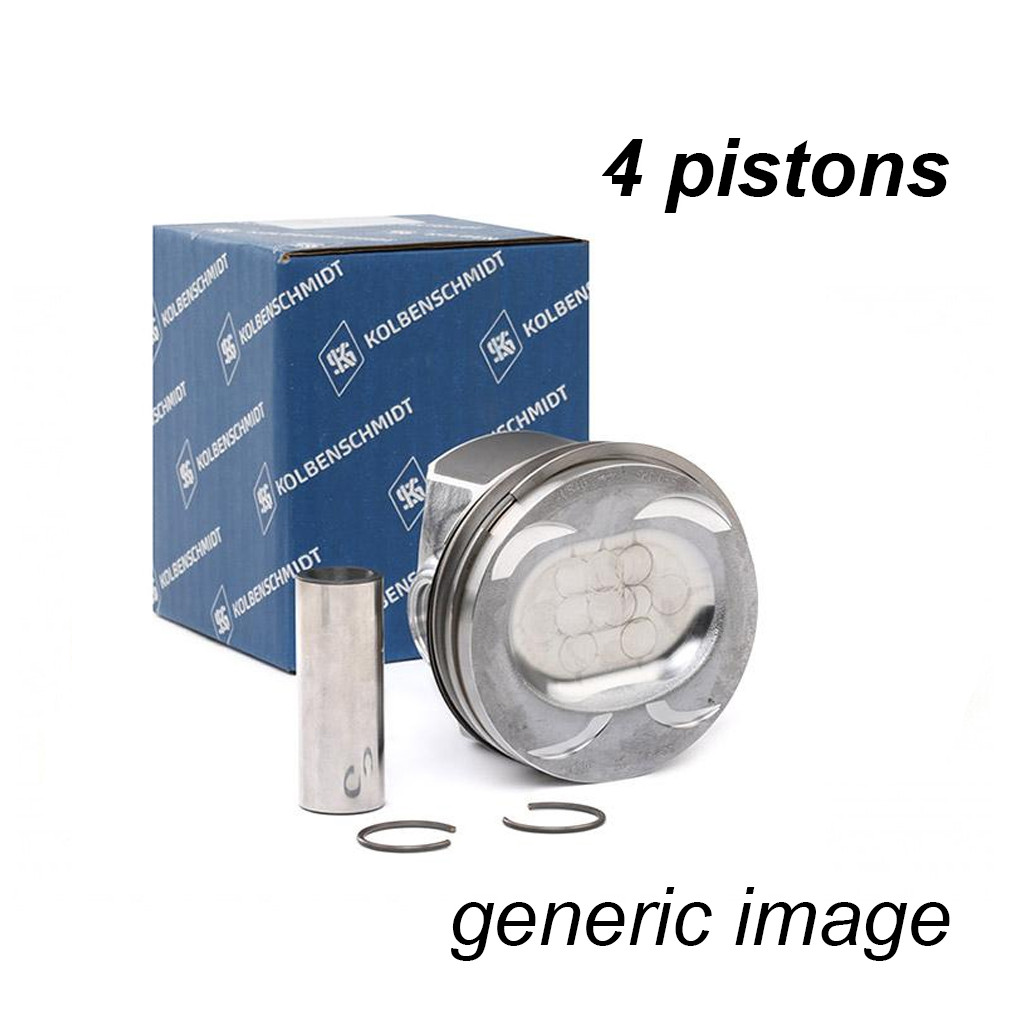

Cyl.Bore: 83.51mm Compression Height: 45.65mm Length: 71.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.4mm Component No.: 62409, 62408, 62591 Bolt d.: 30mm Bolt Length: 66mm Rep. Stage: 0.50 Fitment: for cylinder 1-3

Cyl.Bore: 83.51mm Compression Height: 45.65mm Length: 71.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.4mm Component No.: 62409, 62408, 62591 Bolt d.: 30mm Bolt Length: 66mm Rep. Stage: 0.50 Fitment: for cylinder 1-3

Cyl.Bore: 83.51mm Compression Height: 45.65mm Length: 71.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.4mm Component No.: 62591, 62409, 62408 Bolt d.: 30mm Bolt Length: 66mm Rep. Stage: 0.50 Fitment: for cylinder 3-6

Cyl.Bore: 83.51mm Compression Height: 45.65mm Length: 71.65mm Recess Depth 1: 14.65mm Recess Diameter: 43.4mm Component No.: 62591, 62409, 62408 Bolt d.: 30mm Bolt Length: 66mm Rep. Stage: 0.50 Fitment: for cylinder 3-6

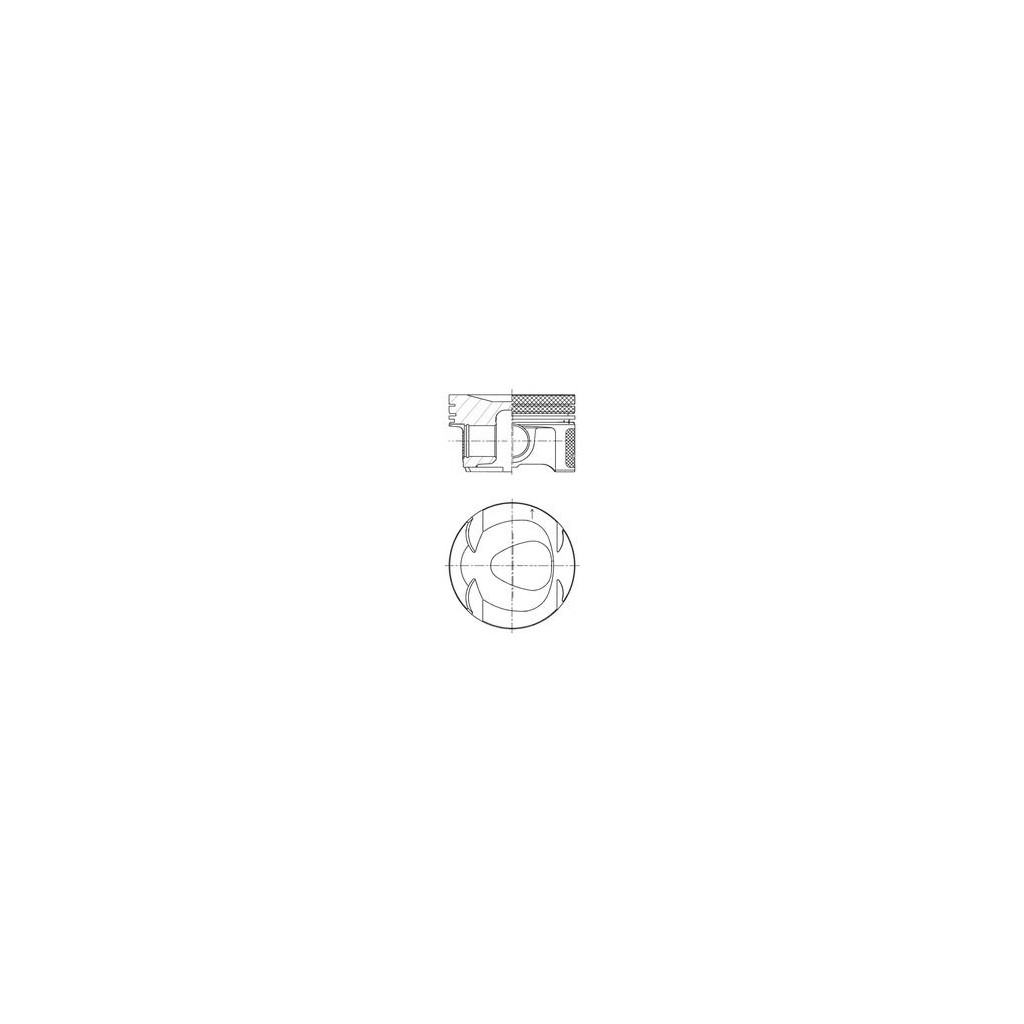

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm

Cyl.Bore: 83.50mm Oversize: 0.5mm Bolt d.: 30mm Component No.: 64051, 64054, 64057 Production Number: 83153 Compression Height: 48.5mm Recess Diameter: 49.4mm Bolt Length: 66mm Recess Depth 1: 13.2mm Valve Pocket Depth 1: 1.4mm Valve Pocket Depth 2: 1mm

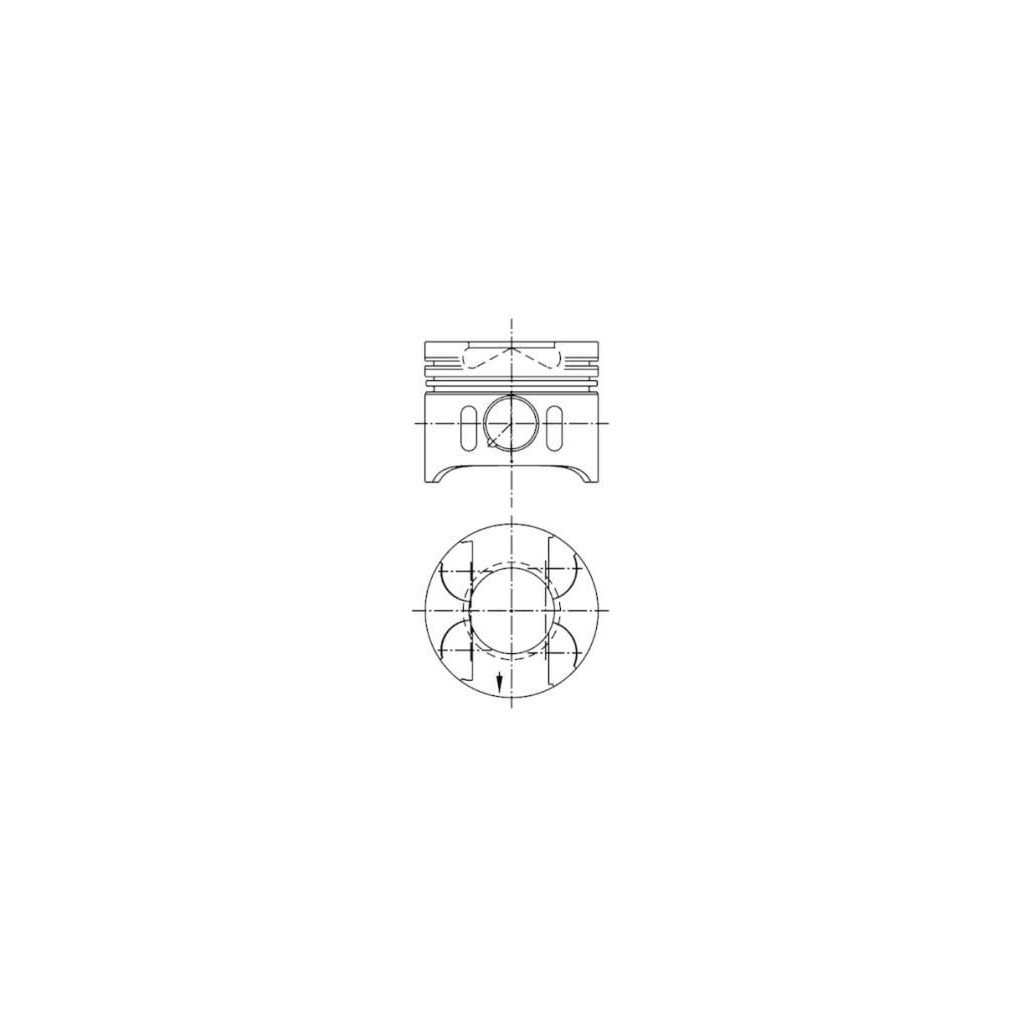

Cyl.Bore: 88.509mm Compression Height: 42.3mm Length: 72.3mm Recess Depth 1: 13.8mm Recess Diameter: 43.5mm Component No.: 60555, 60559, 60557 Bolt d.: 30mm Bolt Length: 70mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Cyl.Bore: 82.00mm Compression Height: 30mm Length: 50mm Recess Depth 1: 4.5mm Valve Pocket Depth 1: 3.4mm Valve Pocket Depth 2: 0.6mm Recess Diameter: 60.3mm Component No.: 66982, 61112, 61110 Standard Size [STD]: Bolt d.: 20mm Bolt Length: 56mm Connecting Rod Design: Trapezoidal Connecting Rod
