Quantity Unit: 5 Pairs Oversize: 0.25 mm for bearing clearance: 0.018 mm, until 0.068 mm for housing diameter: 61 mm, until 61.019 mm Width: 23.86 mm, until 23.96 mm For wall: 2.625 mm, until 2.631 mm for shaft diameter: 55.951 mm, until 55.97 mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 44.975 / 44.991mm Housing bore: 48.000 / 48.016mm Wall thickness: 1.5mm Bearing width: 19.80mm

Bore: 69.60mm Ring sizes: 1.50x1.50x2.00mm Oil ring type: 2 PC. CONFORMATIC

Bore: 77.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm

Crankshaft: 64.98 / 64.96 | 55.98 / 55.96 | 55.98 / 55.96mm Housing: 70.02 / 70.00 | 61.02 / 61.00 | 61.02 / 61.00mm Max Wall Thickness: 2,508 | 2,508 | 2,508mm Max Length: 19,8 | 18,8 | 23,9mm Quantity: 1 | 5 | 1

Crankshaft: 44.973 / 44.988mm Housing: 0.000 / 48.019mm Max Wall Thickness: 1,488mm Max Length: 19,698mm Quantity: 4

Crankshaft: 44.973 / 44.988mm Housing: 0.000 / 48.019mm Max Wall Thickness: 1,488mm Max Length: 19,698mm Quantity: 4

Crankshaft: 45.00 / 44.98mm Housing: 48.70 / 0.00mm Max Wall Thickness: 1,831mm Max Length: 17,8mm Quantity: 5

Crankshaft: 45.00 / 44.98mm Housing: 48.70 / 0.00mm Max Wall Thickness: 1,831mm Max Length: 17,8mm Quantity: 5

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 44.984 / 45.000mm Housing bore: 48.655 / 48.674mm Wall thickness: 1.835mm Bearing width: 18.00mm :

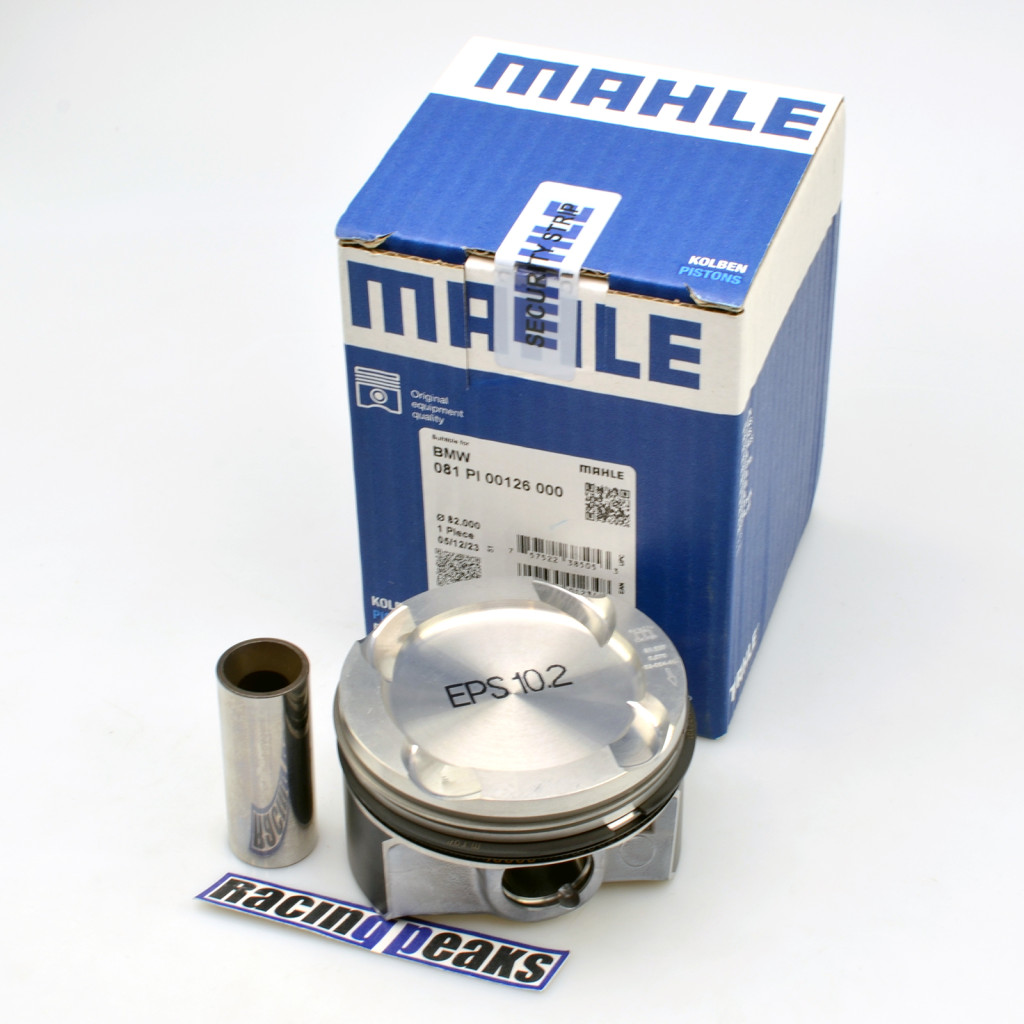

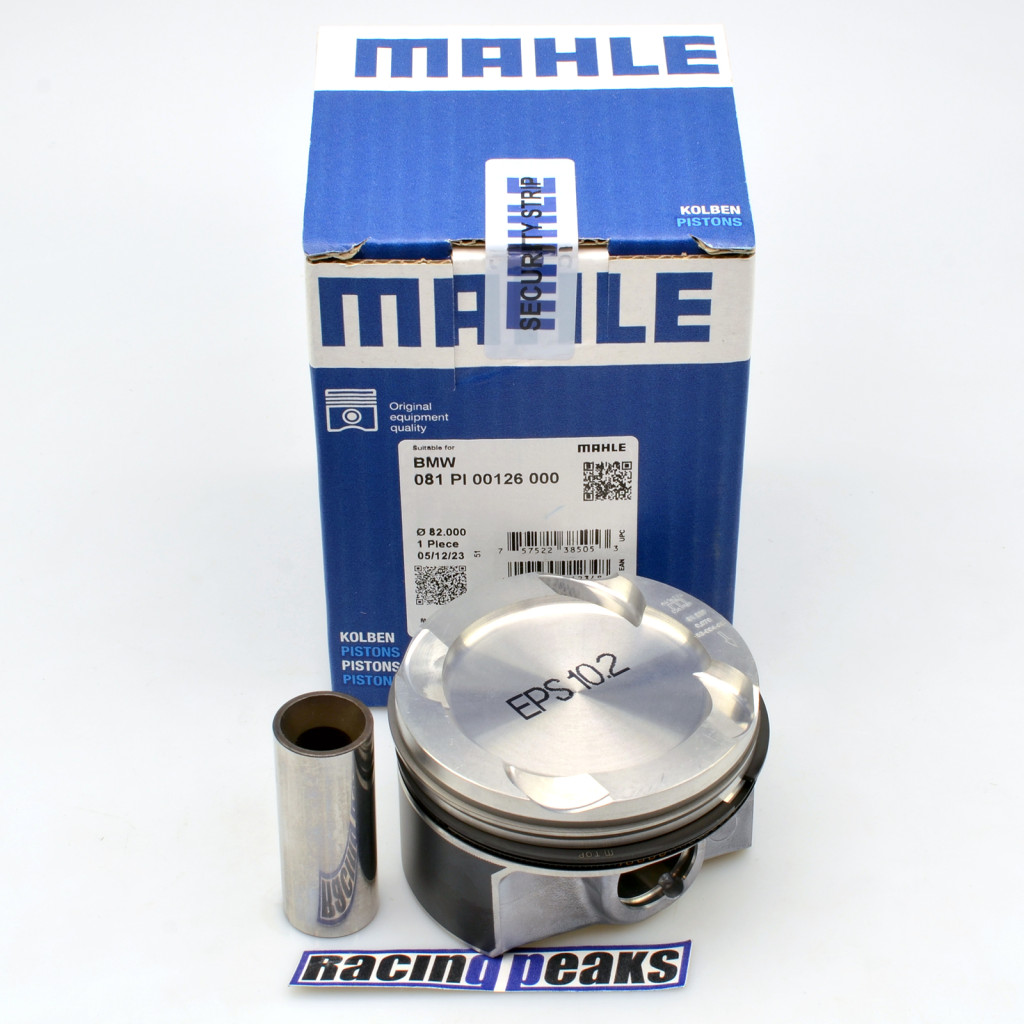

Bore: 82.00mm Length: 51.2 mm Compression Height: 33.2 mm Pin Length: 55 mm Pin Diameter: 22 mm Recess Depth 1: 3.57 mm Recess Diameter: 62 mm Valve Pocket Depth 1: 4.79 mm Valve Pocket Depth 2: 4.37 mm Top Land Height: 7 mm Production Number: 82L177 Piston rings: 1.20x1.50x2.00mm

Bore: 82.00mm Top ring: 1.20mm 2nd ring: 1.50mm 3rd ring: 2.00mm
