Gasket Design: Multilayer Steel (MLS) Thickness: 1.1 mm Bore diameter: 85 mm Fitting Position: Left Info: Head bolts must be replaced; sold separately

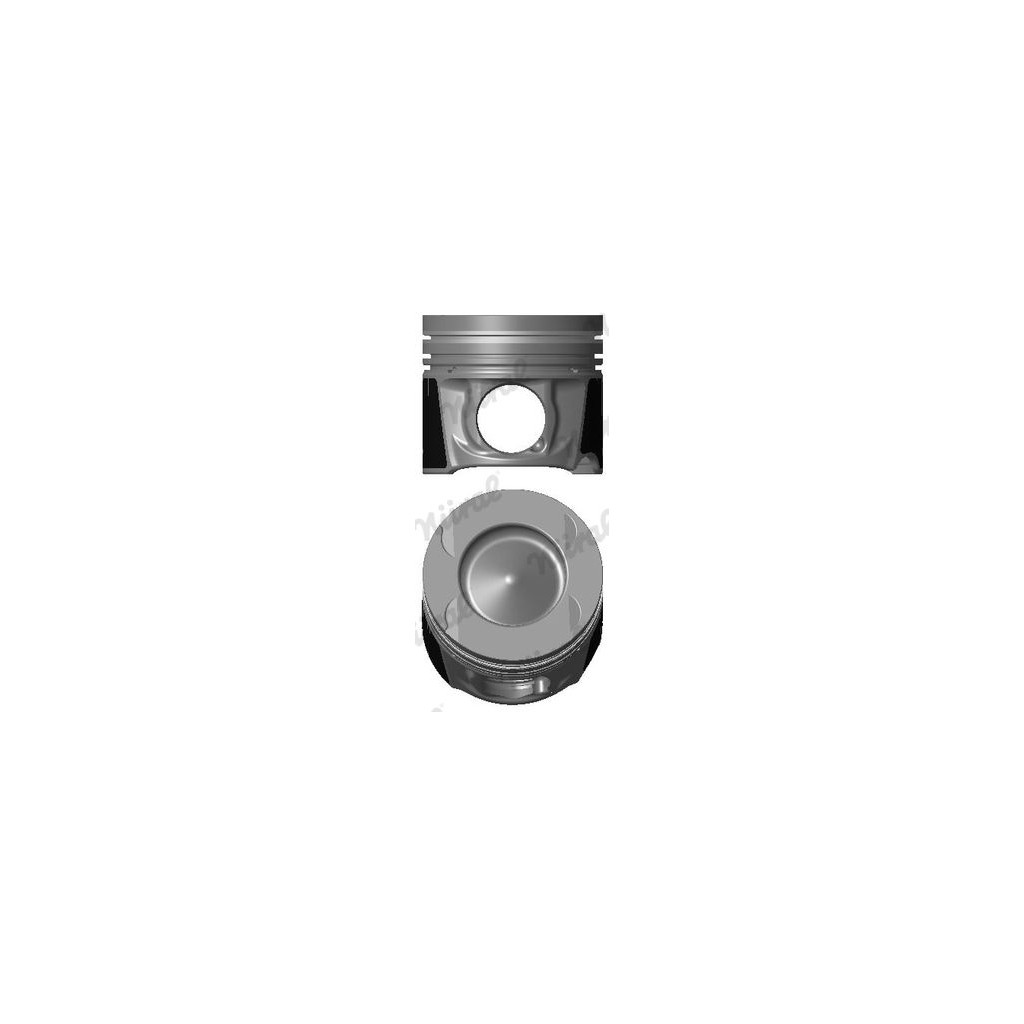

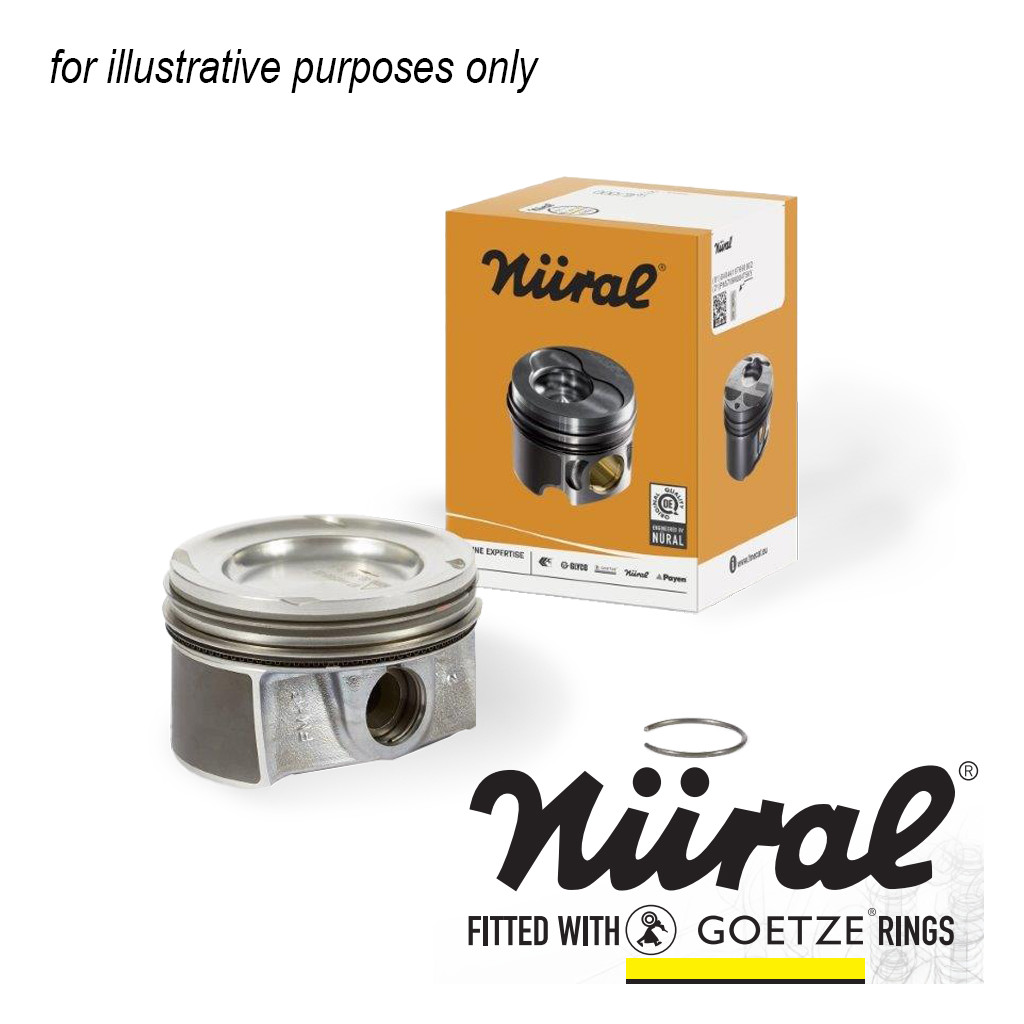

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.35 mm Oversize: 0.5 mm Compression Height: 46 mm Height: 70.5 mm Cyl.Bore: 80.5 mm Bolt d.: 30 mm Recess Diameter: 46.5 mm Bolt Length: 60 mm Valve Pocket Depth 1: 0.3 mm Component No.: 08-424907-00 Machined: with cut-out for oil jet

Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod Recess Depth 1: 12.35 mm Oversize: 0.5 mm Compression Height: 46 mm Height: 70.5 mm Cyl.Bore: 80.5 mm Bolt d.: 30 mm Recess Diameter: 46.5 mm Bolt Length: 60 mm Valve Pocket Depth 1: 0.3 mm Component No.: 08-424907-00 Machined: with cut-out for oil jet

Thread Size: M12 Thread Pitch: 1.50 mm Length: 132 mm Bolt Head-/Nut Design: Male Torx

Bore: 72.20mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 72.45mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 72.70mm Length: 47.3 mm Compression Height: 31.24 mm Pin Length: 49 mm Pin Diameter: 20 mm Valve Pocket Depth 1: 2 mm Valve Pocket Depth 2: 2.7 mm Top Land Height: 5.5 mm Connecting Rod Design: Trapezoidal Connecting Rod Production Number: 72 L 71 Piston Clearance: 0.05 mm Piston rings: 1.20x1.50x2.00mm

Bore: 80.00mm Top ring: 2.00mm 2nd ring: 1.75mm 3rd ring: 2.00mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 51.485 / 51.500mm Housing bore: 55.497 / 55.511 m Wall thickness: 1.985mm Bearing width: 17.00mm

Cyl.Bore: 84.50mm Compression Height: 47.916mm Length: 76mm Recess Depth 1: 14.9mm Recess Diameter: 49.07mm Component No.: 62757, 62753, 62755 Bolt d.: 32mm Bolt Length: 65mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Position: Connecting rod Quantity: 4 pcs Shaft diameter: 56.520 / 56.535mm Housing bore: 60.333 / 60.345mm Wall thickness: 1.9mm Bearing width: 24.70mm Position: Connecting rod Quantity: 4 pc Shaft diameter: 56.520 / 56.535mm Housing bore: 60.333 / 60.345mm Wall thickness: 1.872mm Bearing width: 24.70mm

Position: Connecting rod Quantity: 4 pcs Shaft diameter: 48.000 / 48.020mm Housing bore: 51.587 / 51.600mm Wall thickness: 1.768mm Bearing width: 20.50mm Position: Connecting rod Quantity: 4 pcs Shaft diameter: 48.000 / 48.020mm Housing bore: 51.587 / 51.600mm Wall thickness: 1.768mm Bearing width: 20.50mm
