Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4

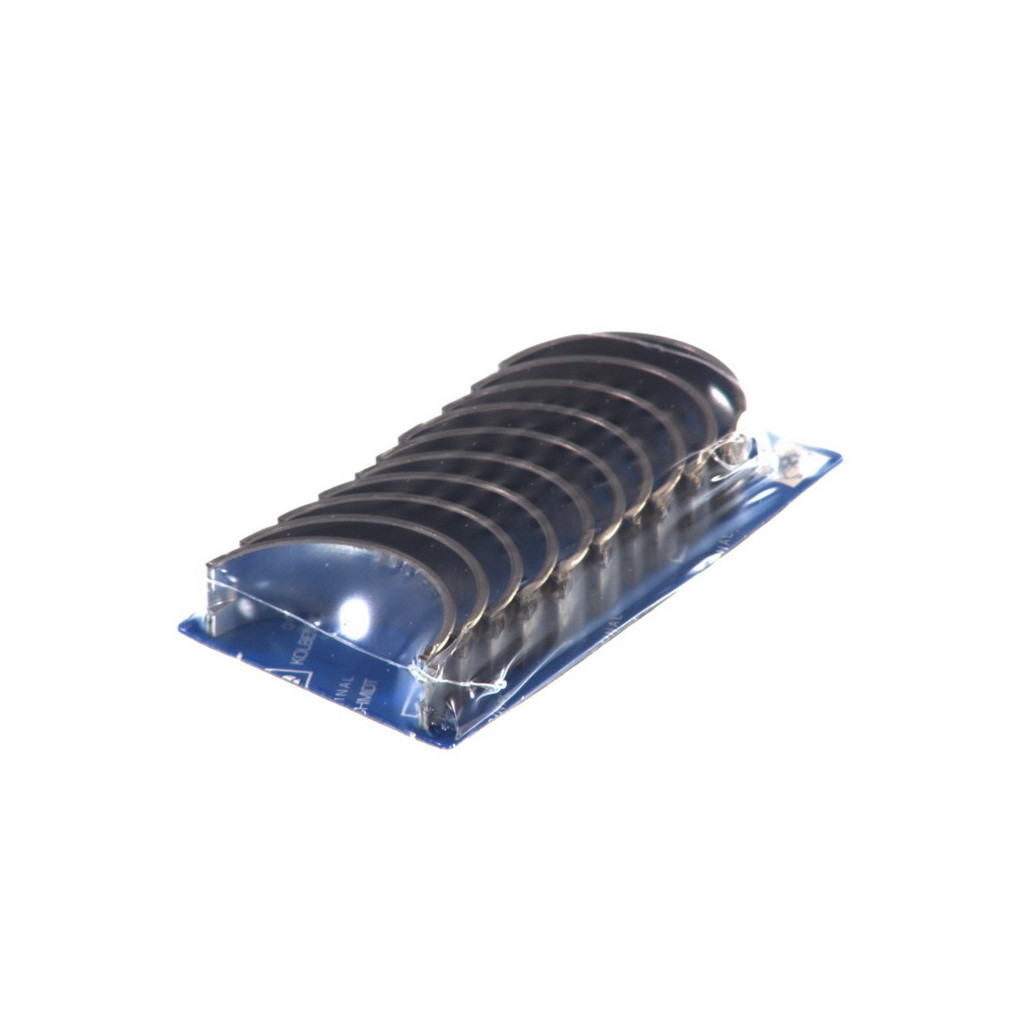

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 8

Bearing structure: Tri-Metal; Number in pack: 10

Number in pack: 1Big end width: 24.900 Big end diameter: 50.595-50.620 Center-to-center length: 144.000 Bore-to-bore length: 105.700 Pin end width: 24.900 Pin diameter: 26.020-26.035 Weight: 635 gr Specifications: Forged; Cracked; Tapered Torque: 50 Nm 2nd Torque option: 30 Nm + 90 degree

Crankshaft: 47.757 / 47.777mm Housing: 50.599 / 50.612mm Max Wall Thickness: 1.405mm Max Length: 18.999mm Quantity: for 1 journal only

Crankshaft: 47.757 / 47.777mm Housing: 50.599 / 50.612mm Max Wall Thickness: 1.405mm Max Length: 18.999mm Quantity: for 1 journal only

Crankshaft: 47.78 / 47.76mm Housing: 50.62 / 50.60mm Max Wall Thickness: 1.402mm Max Length: 19mm Quantity: 4

Crankshaft: 47.78 / 47.76mm Housing: 50.62 / 50.60mm Max Wall Thickness: 1.402mm Max Length: 19mm Quantity: 4

Crankshaft: 47.78 / 47.76mm Housing: 50.61 / 50.60mm Max Wall Thickness: 1.404mm Max Length: 20mm Quantity: 4
