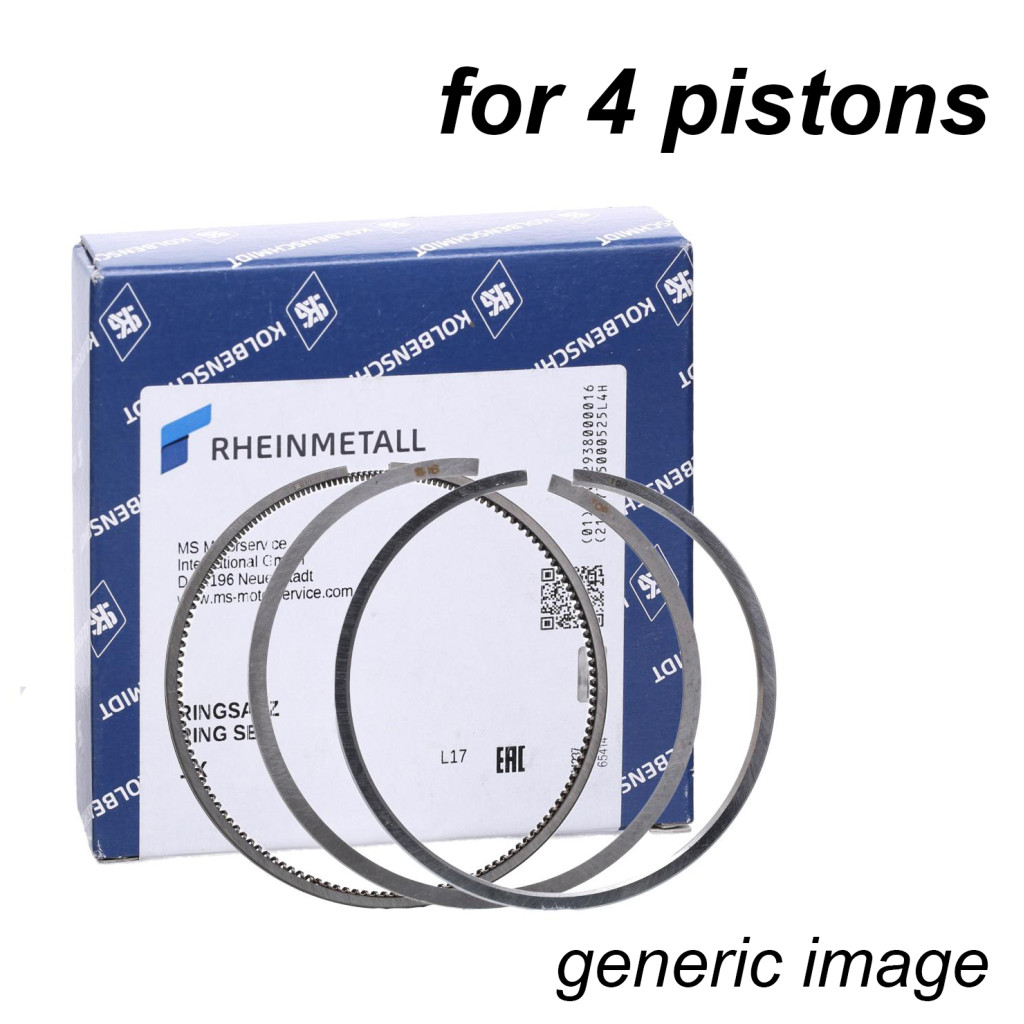

Bore: 81.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Bore: 81.00mm Top ring: 1.50mm 2nd ring: 1.75mm 3rd ring: 3.00mm

Component Number: 18515; 18652; 29824/04 Quantity: 3 Thickness [mm] 18515: 3,55 Height [mm] 18515: 1,5 Material 18515: Cast Iron with Ductile Iron Surface 18515: Chromed; Phosphatized Cylinder Piston Diameter [mm] 18515: 81 Thickness [mm] 18652: 3,55 Height [mm] 18652: 1,75 Surface 18652: Phosphatized Cylinder Piston Diameter [mm] 18652: 81 Thickness [mm] 29824...

Bore: 81.00mm Top ring: 1.00mm 2nd ring: 1.20mm 3rd ring: 2.00mm

Component Number: 80004; 80007; 86648 Quantity: 3 Thickness [mm] 80004: 3,3 Height [mm] 80004: 2 Material 80004: Grey Cast Iron Surface 80004: Chromed; Phosphatized Cylinder Piston Diameter [mm] 80004: 79,51 Thickness [mm] 80007: 3,65 Height [mm] 80007: 3 Surface 80007: Chromed; Phosphatized Cylinder Piston Diameter [mm] 80007: 79,51 Thickness [mm] 86648:...

Component Number: 61608; 80007; 87647 Quantity: 3 Thickness [mm] 61608: 3,4 Height [mm] 61608: 1,75 Material 61608: Cast Iron with Ductile Iron Surface 61608: Blank; Chrome ceramic coated Cylinder Piston Diameter [mm] 61608: 79,51 Thickness [mm] 80007: 3,65 Height [mm] 80007: 3 Surface 80007: Chromed; Phosphatized Cylinder Piston Diameter [mm] 80007:...

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 19.00mm

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.502mm Bearing width: 18.50mm Position: Crankshaft Quantity: 1 pair Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.019mm Wall thickness: 2.502mm Bearing width: 18.50mm

Cyl.Bore: 82.01mm Compression Height: 30.45mm Length: 58.78mm Piston Crown Clearance: 4.33mm Recess Depth 1: 5.5mm Component No.: 18994, 18680, 18738 Bolt d.: 20mm Bolt Length: 57mm Rep. Stage: 1.00

Bolt length [mm]: 42 Bolt Ø [mm]: 19 Component Number: 61937; 61938; 85712 Compression Height [mm]: 29,7 Cylinder Piston Diameter [mm]: 81,01 Length [mm]: 50,7 Production Number: 081178 Quantity: 3 Recess Depth 1 [mm]: 2,7 Thickness [mm] 61937: 2,75 Height [mm] 61937: 1 Material 61937: Steel Surface 61937: Blank; Nitrified Cylinder Piston Diameter [mm]...

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 1-2

Cyl.Bore: 80.01mm Compression Height: 45.55mm Length: 71.8mm Recess Depth 1: 17.75mm Valve Pocket Depth 1: 1mm Recess Diameter: 37.9mm Component No.: 86650, 80006, 80009 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 General Information: for cylinder 3-4
