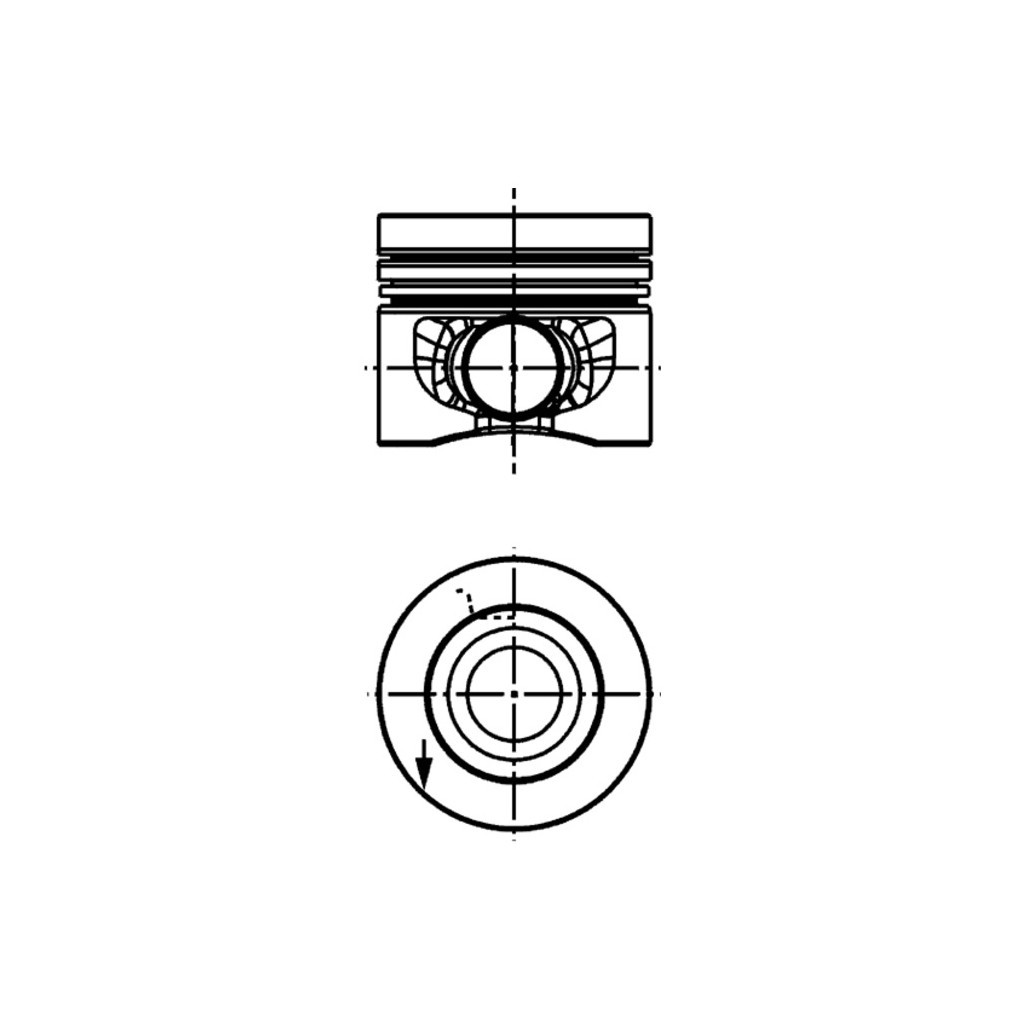

Bore: 83.01mm Length: 50.6 mm Compression Height: 29.6 mm Pin Length: 59 mm Pin Diameter: 20 mm Recess Depth 1: 6.2 mm Recess Diameter: 49.25 mm Valve Pocket Depth 1: 0.76 mm Machined: with cut-out for oil jet Surface: Coated Supplementary Article/Info 2: with piston ring carrier, without cooling duct Top Land Height: 6.35 mm Connecting Rod Design:...

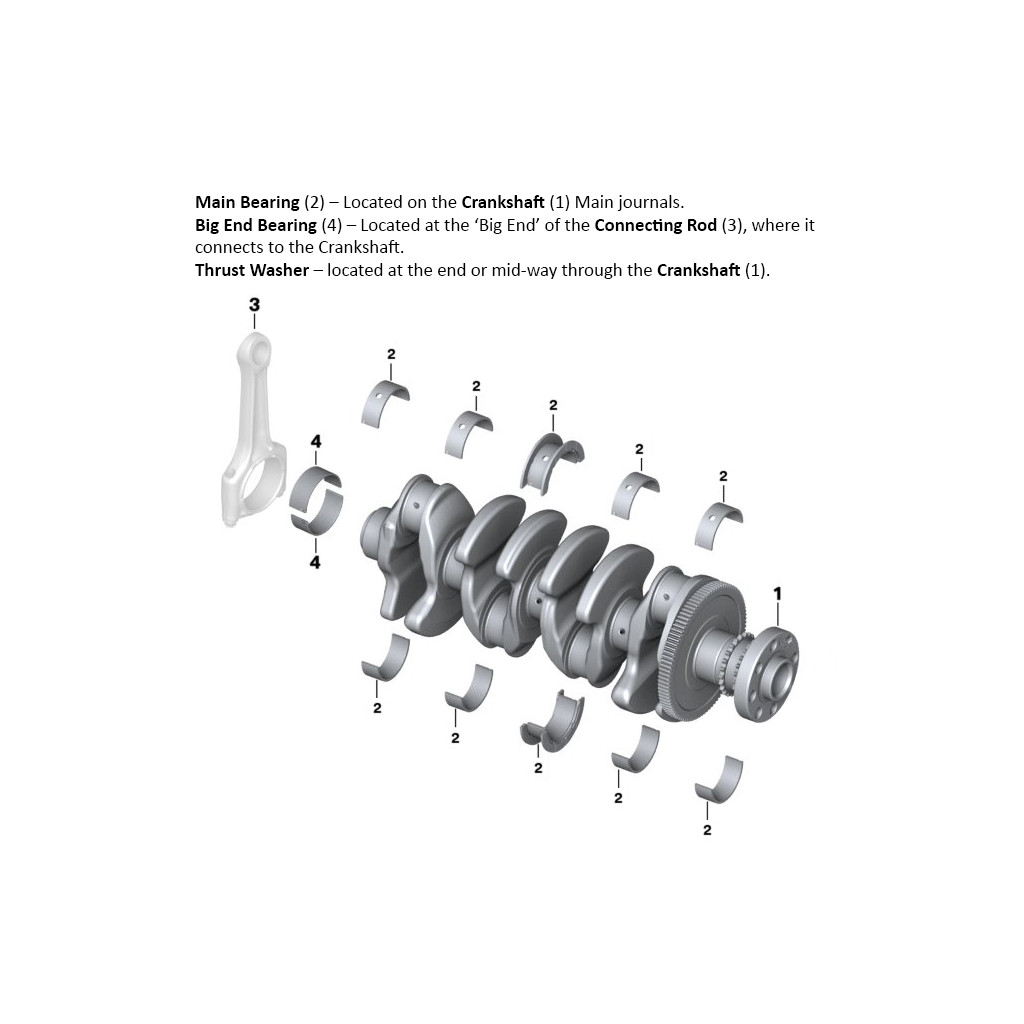

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 17.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 17.50mm

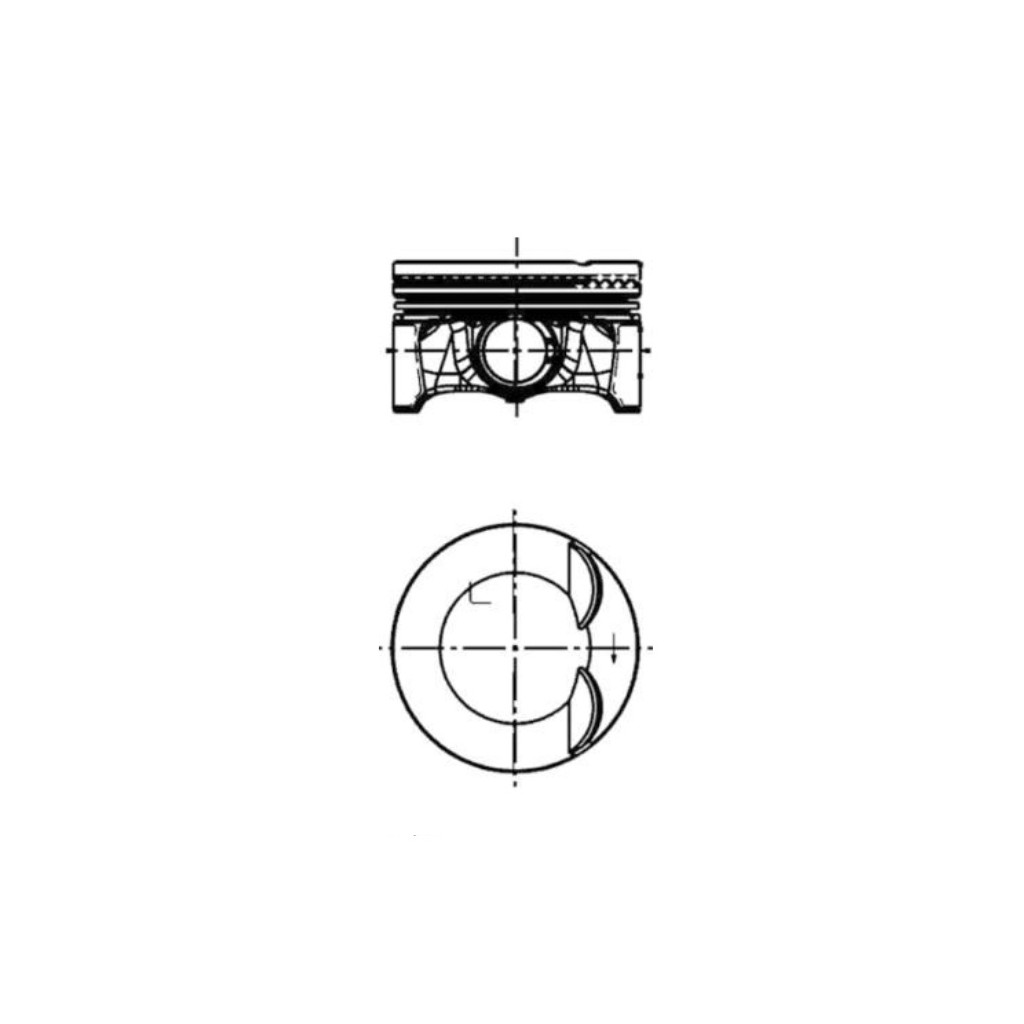

Cyl.Bore: 83.01mm Compression Height: 29.6mm Length: 50.1mm Recess Depth 1: 6.2mm Valve Pocket Depth 1: 3mm Recess Diameter: 50mm Component No.: 63715, 63721, 63718 Bolt d.: 21mm Bolt Length: 56mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

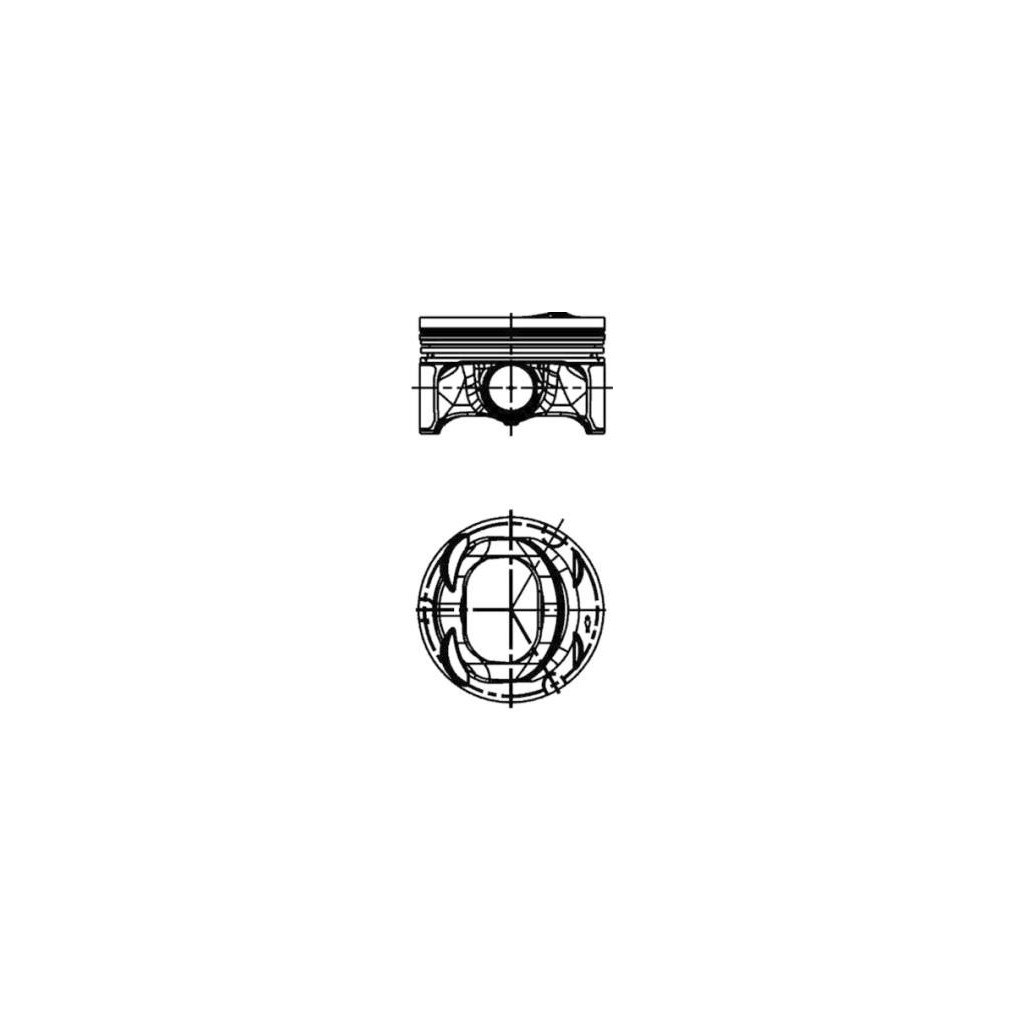

Cyl.Bore: 77.01mm Compression Height: 29.2mm Length: 50.21mm Piston Crown Clearance: 2mm Recess Depth 1: 4.6mm Valve Pocket Depth 1: 4mm Valve Pocket Depth 2: 2mm Component No.: 63597, 63593, 63595 Bolt d.: 19mm Bolt Length: 52mm Rep. Stage: 0.50

Cyl.Bore: 81.51mm Compression Height: 45.55mm Length: 68.55mm Recess Depth 1: 12.7mm Recess Diameter: 50.88mm Component No.: 63503, 63509, 63506 Bolt d.: 26mm Bolt Length: 66mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Cyl.Bore: 77.01mm Compression Height: 28.97mm Length: 49.97mm Piston Crown Clearance: 2mm Recess Depth 1: 4.57mm Valve Pocket Depth 1: 4mm Valve Pocket Depth 2: 1.3mm Component No.: 66038, 66040, 66039 Bolt d.: 19mm Bolt Length: 54mm Rep. Stage: 0.50

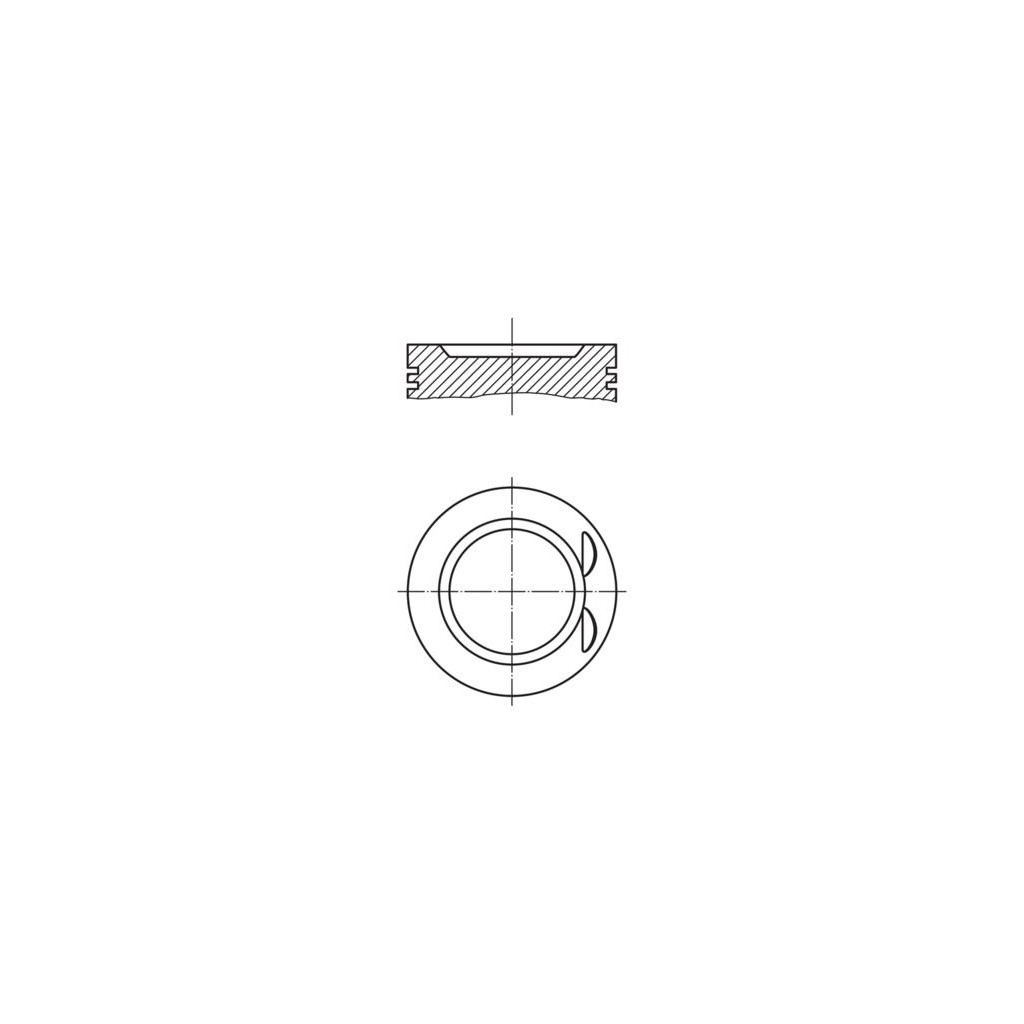

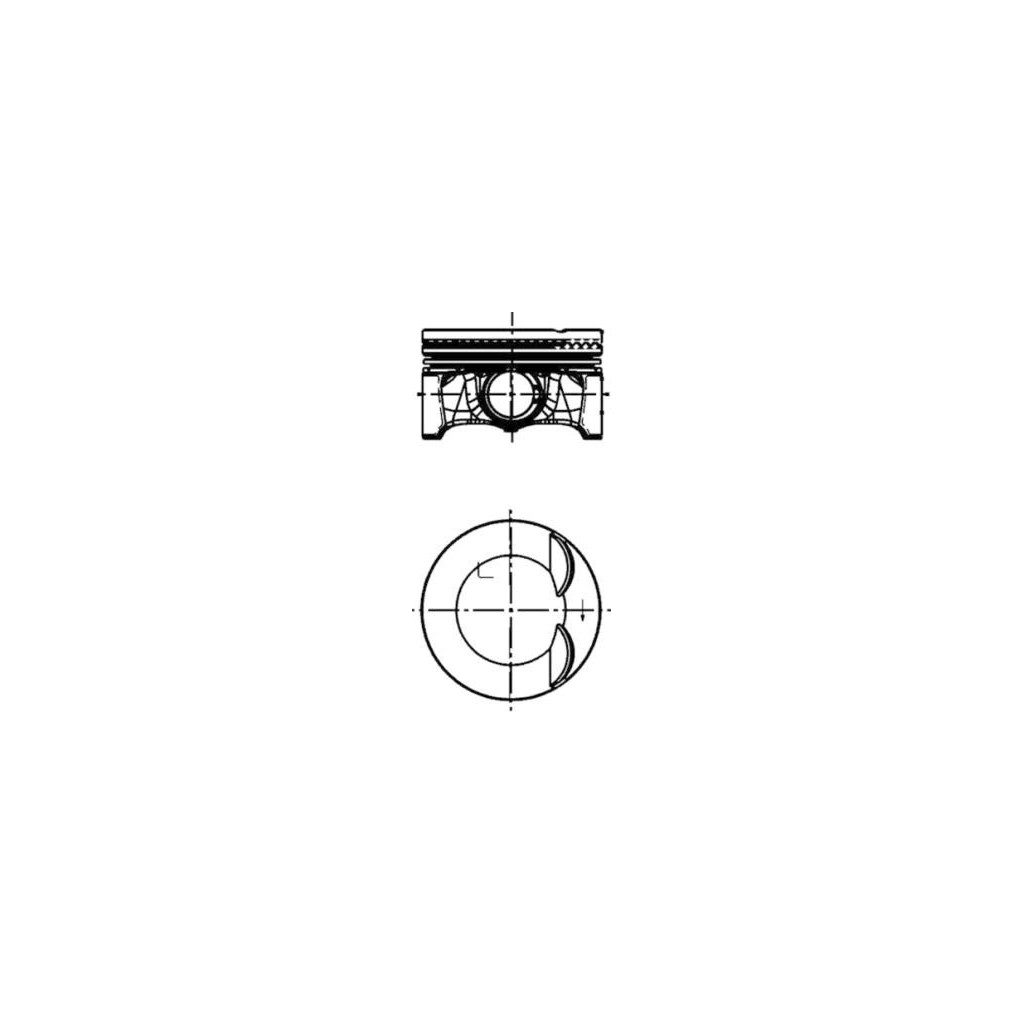

Cyl.Bore: 83.01mm Compression Height: 29.6mm Length: 50.1mm Recess Depth 1: 6.2mm Component No.: 66009, 66010, 66344 Bolt d.: 23mm Bolt Length: 53mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Position: Engine camshaft bracket

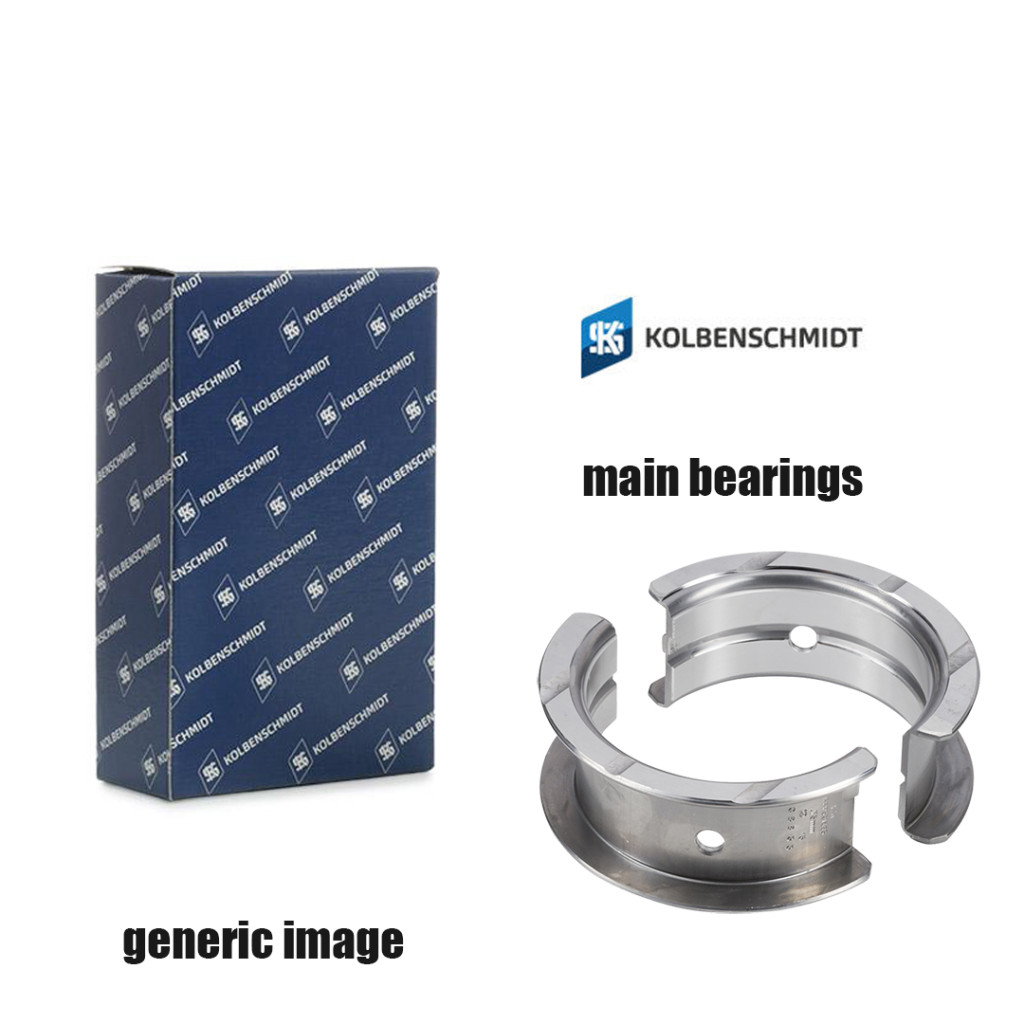

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 53.963 / 53.978mm Housing bore: 59.000 / 59.019 m Wall thickness: 2.507mm Bearing width: 18.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 41.965 / 41.980mm Housing bore: 45.000 / 45.016mm Wall thickness: 1.507mm Bearing width: 19.00mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.010mm Wall thickness: 2.502mm Bearing width: 18.50mm
