Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 63046; 63048; 87993 Compression Height [mm]: 45,55 Cylinder Piston Diameter [mm]: 81,51 Length [mm]: 68,8 Oversize [mm]: 0,50 Production Number: 081191 Quantity: 3 Recess Depth 1 [mm]: 17,5 Recess Diameter [mm]: 38 Valve pocket depth 1 [mm]: 0,7 Thickness [mm] 63046: 3,55 Height [mm] 63046:...

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 61608; 80007; 87647 Compression Height [mm]: 45,8 Cylinder Piston Diameter [mm]: 79,51 Length [mm]: 69,8 Production Number: 079155 Quantity: 3 Recess Depth 1 [mm]: 17,34 Recess Diameter [mm]: 38 Valve pocket depth 1 [mm]: 0,7 Thickness [mm] 61608: 3,4 Height [mm] 61608: 1,75 Material 61608: Cast Iron...

Cyl.Bore: 77.01mm Compression Height: 29.2mm Length: 50.21mm Piston Crown Clearance: 2mm Recess Depth 1: 4.6mm Valve Pocket Depth 1: 4mm Valve Pocket Depth 2: 2mm Component No.: 63597, 63593, 63595 Bolt d.: 19mm Bolt Length: 52mm Rep. Stage: 0.50

Cyl.Bore: 77.01mm Compression Height: 28.97mm Length: 49.97mm Piston Crown Clearance: 2mm Recess Depth 1: 4.57mm Valve Pocket Depth 1: 4mm Valve Pocket Depth 2: 1.3mm Component No.: 66038, 66040, 66039 Bolt d.: 19mm Bolt Length: 54mm Rep. Stage: 0.50

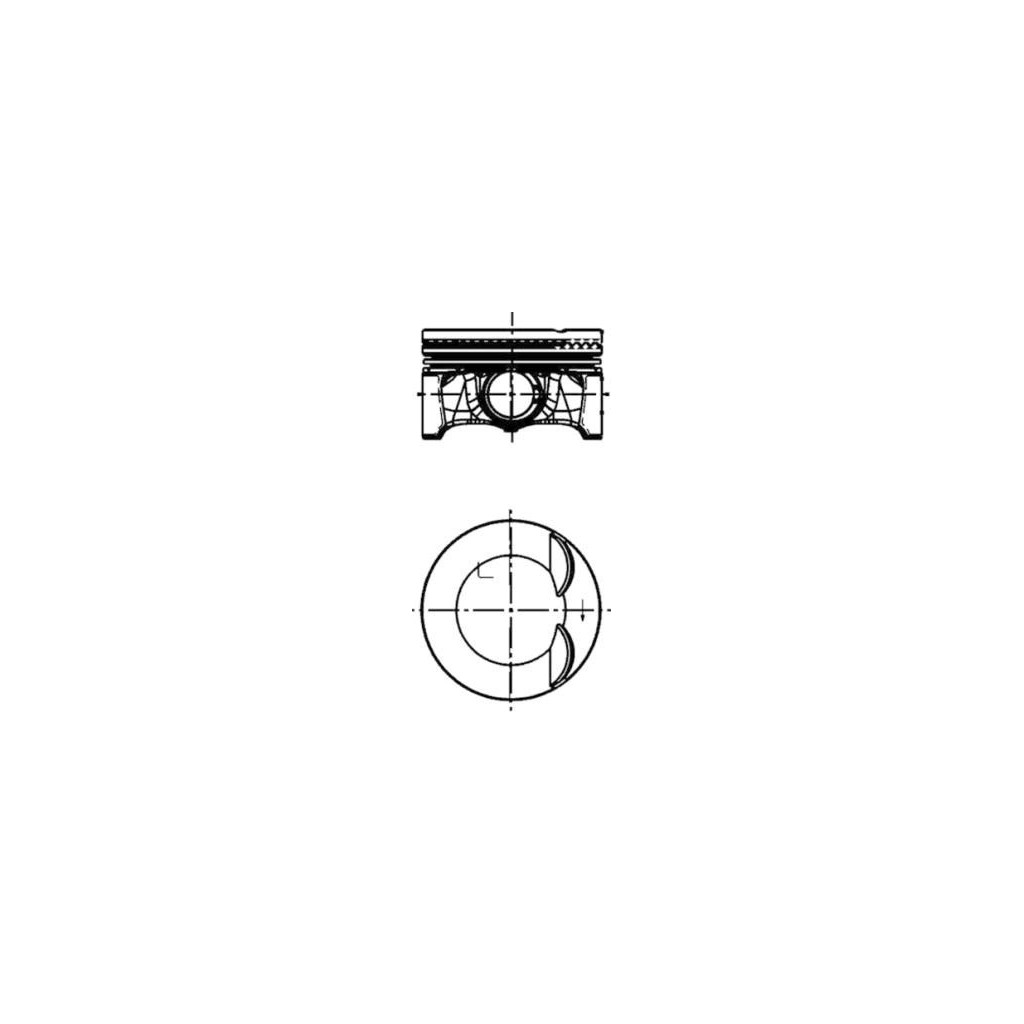

Cyl.Bore: 83.01mm Compression Height: 29.6mm Length: 50.1mm Recess Depth 1: 6.2mm Component No.: 66009, 66010, 66344 Bolt d.: 23mm Bolt Length: 53mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Position: Engine camshaft bracket

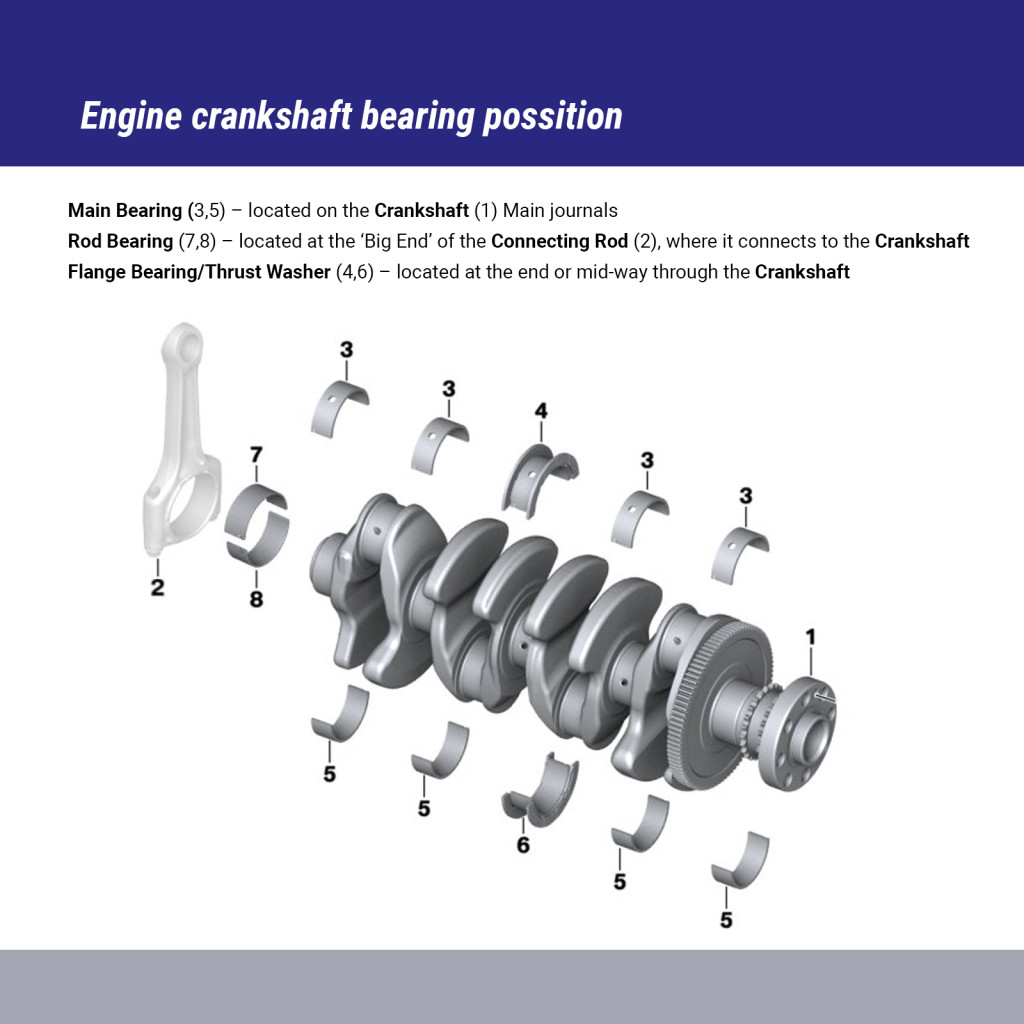

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.763 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 18.50mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 53.963 / 53.978mm Housing bore: 59.000 / 59.019 m Wall thickness: 2.507mm Bearing width: 18.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.763 / 47.778mm Housing bore: 50.600 / 50.612mm Wall thickness: 1.406mm Bearing width: 17.20mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 53.963 / 53.983mm Housing bore: 59.000 / 59.010mm Wall thickness: 2.508mm Bearing width: 18.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 41.965 / 41.980mm Housing bore: 45.000 / 45.016mm Wall thickness: 1.507mm Bearing width: 19.00mm

Position: Crankshaft Quantity: 5 pairs Shaft diameter: 53.958 / 53.978mm Housing bore: 59.000 / 59.010mm Wall thickness: 2.502mm Bearing width: 18.50mm
