Crankshaft: 47.757 / 47.777mm Housing: 50.599 / 50.620mm Max Wall Thickness: 1,405mm Max Length: 17,399mm Quantity: 4

Crankshaft: 53.98 / 53.96mm Housing: 56.82 / 56.80mm Max Wall Thickness: 1,402mm Max Length: 16,9mm Quantity: 6

Crankshaft: 53.98 / 53.96mm Housing: 59.01 / 59.00mm Max Wall Thickness: 2,499mm Max Length: 18,5mm Quantity: 5

Crankshaft: 47.98 / 47.96mm Housing: 53.01 / 53.00mm Max Wall Thickness: 2,508mm Max Length: 18,5mm Quantity: 5

Crankshaft: 53.98 / 53.96mm Housing: 59.02 / 59.00mm Max Wall Thickness: 2,508mm Max Length: 18,5mm Quantity: 5

Crankshaft: 57.98 / 57.96mm Housing: 63.02 / 63.00mm Max Wall Thickness: 2,504mm Max Length: 15,4mm Quantity: 5

Crankshaft: 59.98 / 59.96mm Housing: 65.01 / 65.00mm Max Wall Thickness: 2,502mm Max Length: 17mm Quantity: 7

Bore: 81.00mm Top ring: 1.75mm 2nd ring: 2.00mm 3rd ring: 3.00mm

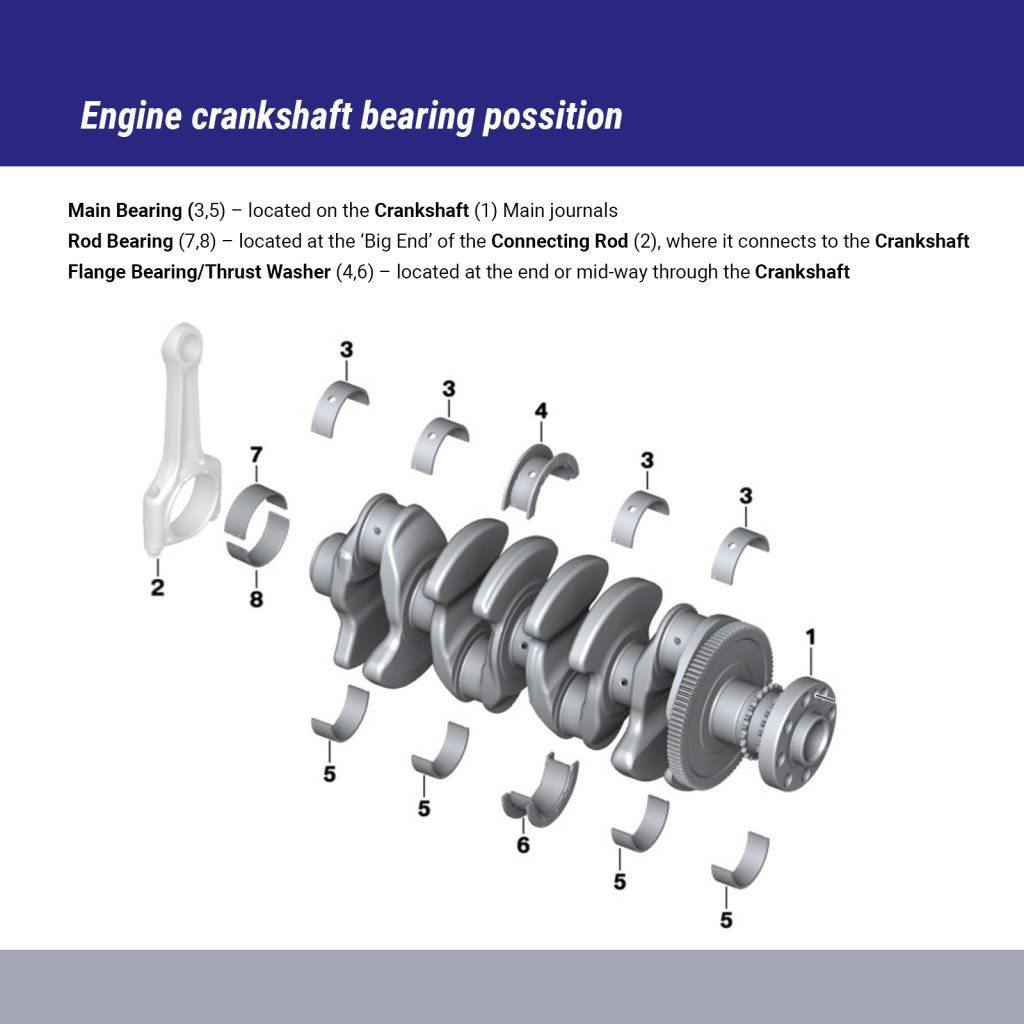

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 17.50mm

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 47.758 / 47.778mm Housing bore: 50.600 / 50.619mm Wall thickness: 1.406mm Bearing width: 17.50mm

Cyl.Bore: 83.01mm Compression Height: 29.6mm Length: 50.1mm Recess Depth 1: 6.2mm Valve Pocket Depth 1: 3mm Recess Diameter: 50mm Component No.: 63715, 63721, 63718 Bolt d.: 21mm Bolt Length: 56mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Bolt length [mm]: 66 Bolt Ø [mm]: 26 Component Number: 63046; 63048; 87993 Compression Height [mm]: 45,55 Cylinder Piston Diameter [mm]: 81,51 Length [mm]: 68,8 Oversize [mm]: 0,50 Production Number: 081191 Quantity: 3 Recess Depth 1 [mm]: 17,5 Recess Diameter [mm]: 38 Valve pocket depth 1 [mm]: 0,7 Thickness [mm] 63046: 3,55 Height [mm] 63046:...
