Cyl.Bore: 84.00mm Compression Height: 42mm Length: 66mm Recess Depth 1: 14.5mm Recess Diameter: 47.5mm Component No.: 66152, 66154, 66153 Standard Size [STD]: Bolt Ø: 28mm Bolt Length: 62mm Connecting Rod Design: Trapezoidal Connecting Rod

Cyl.Bore: 84.50mm Compression Height: 42mm Length: 66mm Recess Depth 1: 14.5mm Recess Diameter: 47.5mm Component No.: 66159, 66161, 66160 Bolt d.: 28mm Bolt Length: 62mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Cyl.Bore: 84.50mm Compression Height: 42mm Length: 66mm Recess Depth 1: 14.5mm Recess Diameter: 47.5mm Component No.: 66159, 66161, 66160 Bolt d.: 28mm Bolt Length: 62mm Rep. Stage: 0.50 Connecting Rod Design: Trapezoidal Connecting Rod

Position: Crankshaft Quantity: 1 pairs Shaft diameter: 64.961 / 64.980mm Housing bore: 70.000 / 70.019mm Wall thickness: 2.508mm Bearing width: 19.85mm Position: Crankshaft Quantity: 5 pairs Shaft diameter: 55.961 / 55.980mm Housing bore: 61.000 / 61.019mm Wall thickness: 2.508mm Bearing width: 18.85mm Position: Crankshaft Quantity: 1 pc Shaft...

Position: Main bearing, pos 1 Quantity: 1 pair Shaft diameter: 64.951 / 64.970mm Housing bore: 70.000 / 70.019mm Wall thickness: 2.508mm Bearing width: 19.85mm Position: Main bearing, pos 2, 3, 5, 6, 7 Quantity: 5 pairs Shaft diameter: 55.951 / 55.97mm Housing bore: 61.000 / 61.019mm Wall thickness: 2.508mm Bearing width: 18.85mm Position: Main bearing, pos 4...

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.975 / 49.991mm Housing bore: 53.600 / 53.619mm Wall thickness: 1.8mm Bearing width: 18.30mm

Position: Crankshaft Quantity: 4 pcs Shaft diameter: 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Crankshaft Quantity: 4 pc Shaft diameter: 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pc Shaft...

Position: Crankshaft Quantity: 4 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

Position: Crankshaft Quantity: 4 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 18.80mm Position: Flanged bearings Quantity: 1 pairs Shaft diameter : 54.971 / 54.990mm Housing bore: 60.000 / 60.019mm Wall thickness: 2.5mm Bearing width: 24.93mm : Position: Connecting rod...

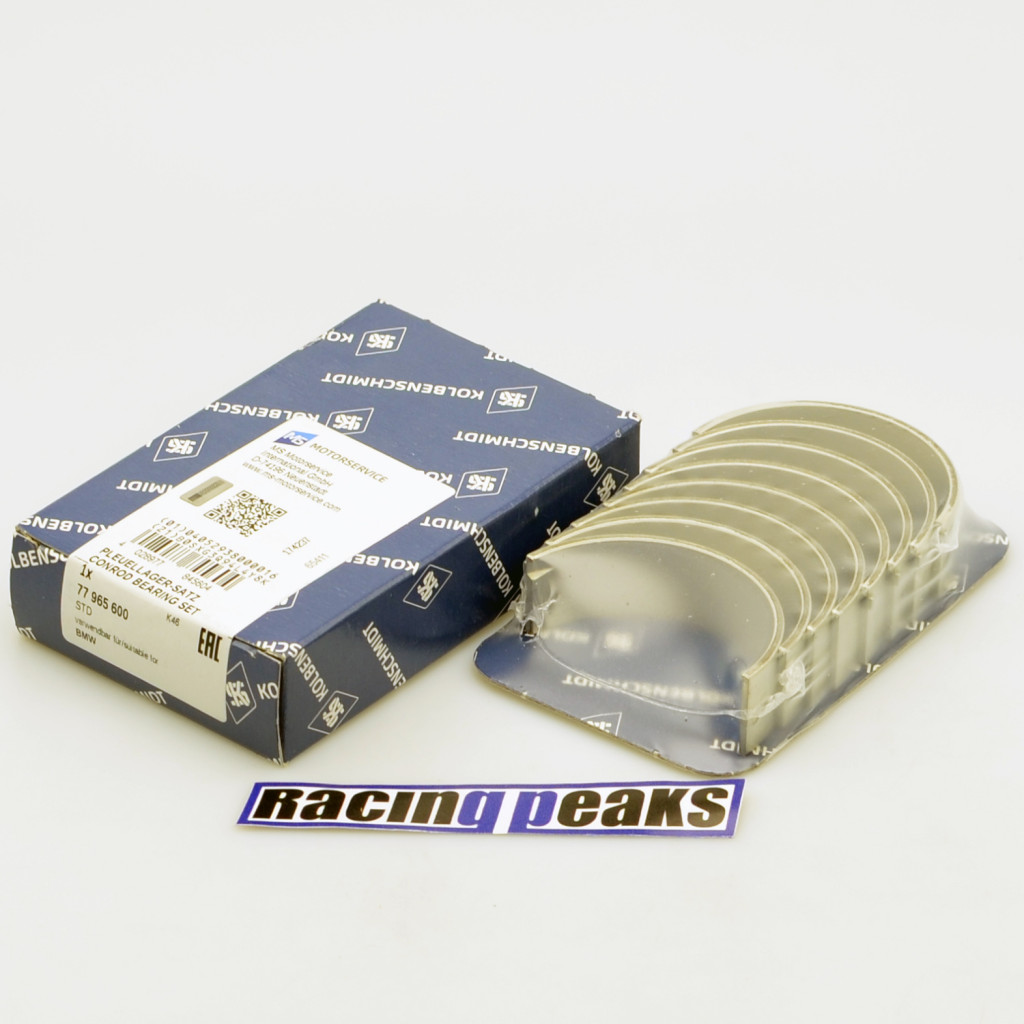

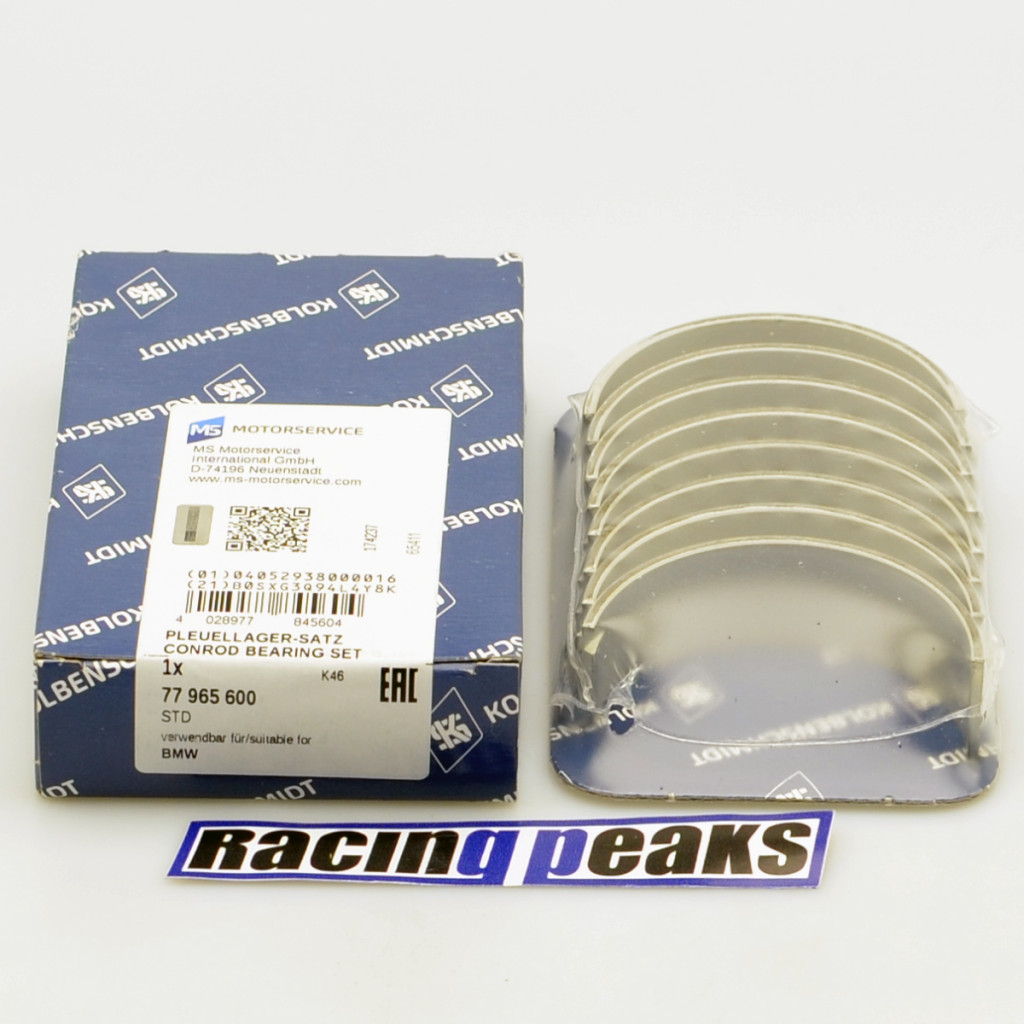

Position: Connecting rod Quantity: 4 pairs Shaft diameter: 49.973 / 49.993mm Housing bore: 53.600 / 53.616mm Wall thickness: 1.79mm Bearing width: 17.55mm

Position: Crankshaft Quantity: 4 pairs Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019 Wall thickness: 2.497mm Bearing width: 17.30mm Position: Flanged bearings Quantity: 1 pair Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019 Wall thickness: 2.497mm Bearing width: 23.95mm

Position: Main bearing Quantity: 4 pairs Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019mm Wall thickness: 2.497mm Bearing width: 17.30mm Position: Flanged bearing Quantity: 1 pair Shaft diameter: 49.980 / 50.001mm Housing bore: 55.000 / 55.019mm Wall thickness: 2.497mm Bearing width: 23.95mm Position: Connecting rod...
