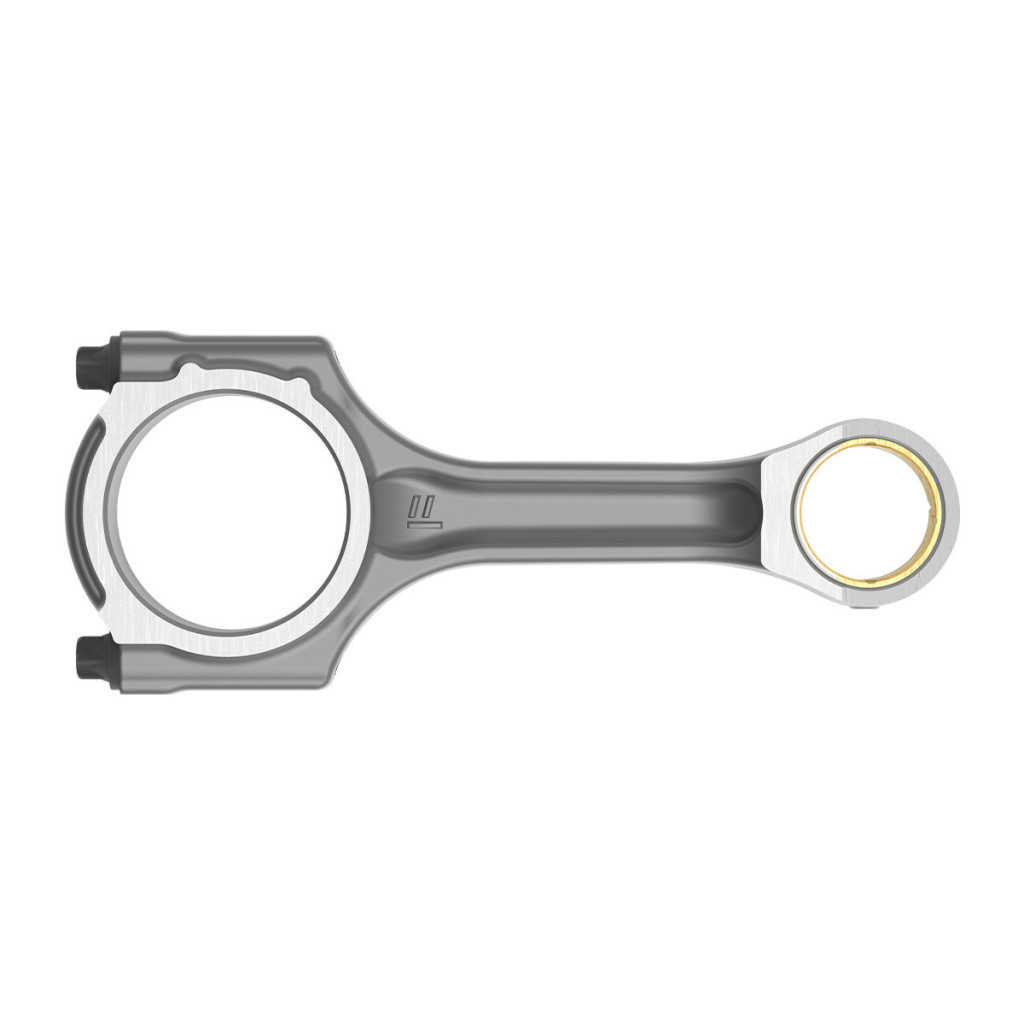

Connecting rod fits Ford Tourneo Transit 2.0 EcoBlue 2019- Euro 6.2
€66.59
VAT included
Number in pack:
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 155.000
Bore-to-bore length: 113.500
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 740 gr

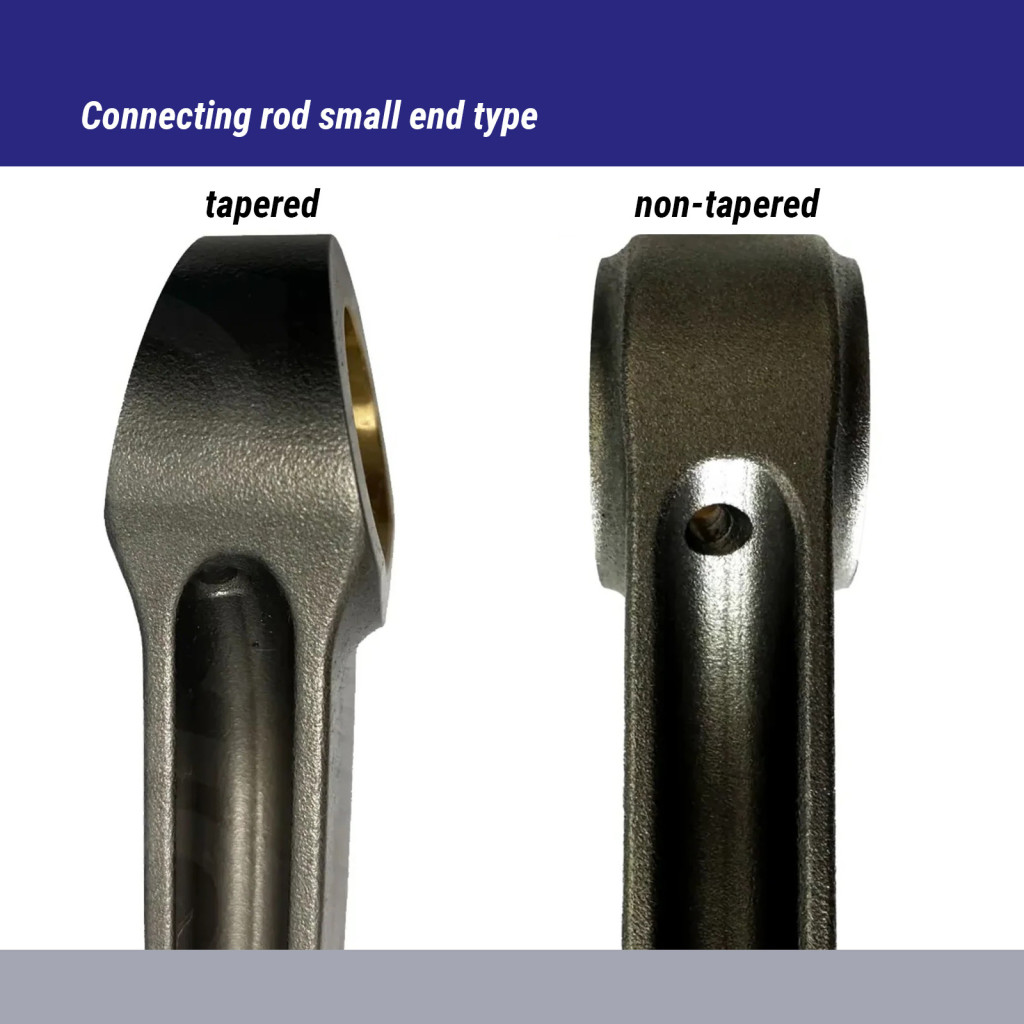

Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 155.000
Bore-to-bore length: 113.500
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 740 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
Connecting rod is a part that connects one end to the piston and other end to the crankshaft. Today connecting rods BMY1109 are manufactured with hot forging method and weight is adjusted in moulding phase which allows to stay within minimum tolerance values range.
BMY1109
16 Items
Data sheet
- Region
- Turkey
- Reference OE/OEM Number
- HG9Q6205AA
RFHG9Q6205AA
Specific References
New
Number in pack:
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 155.000
Bore-to-bore length: 113.500
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 740 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
1Big end width: 24.250
Big end diameter: 52.995-53.019
Center-to-center length: 155.000
Bore-to-bore length: 113.500
Pin end width: 24.250
Pin diameter: 30.020-30.035
Weight: 740 gr
Specifications: Forged; Cracked; Tapered
Torque: 60 Nm
