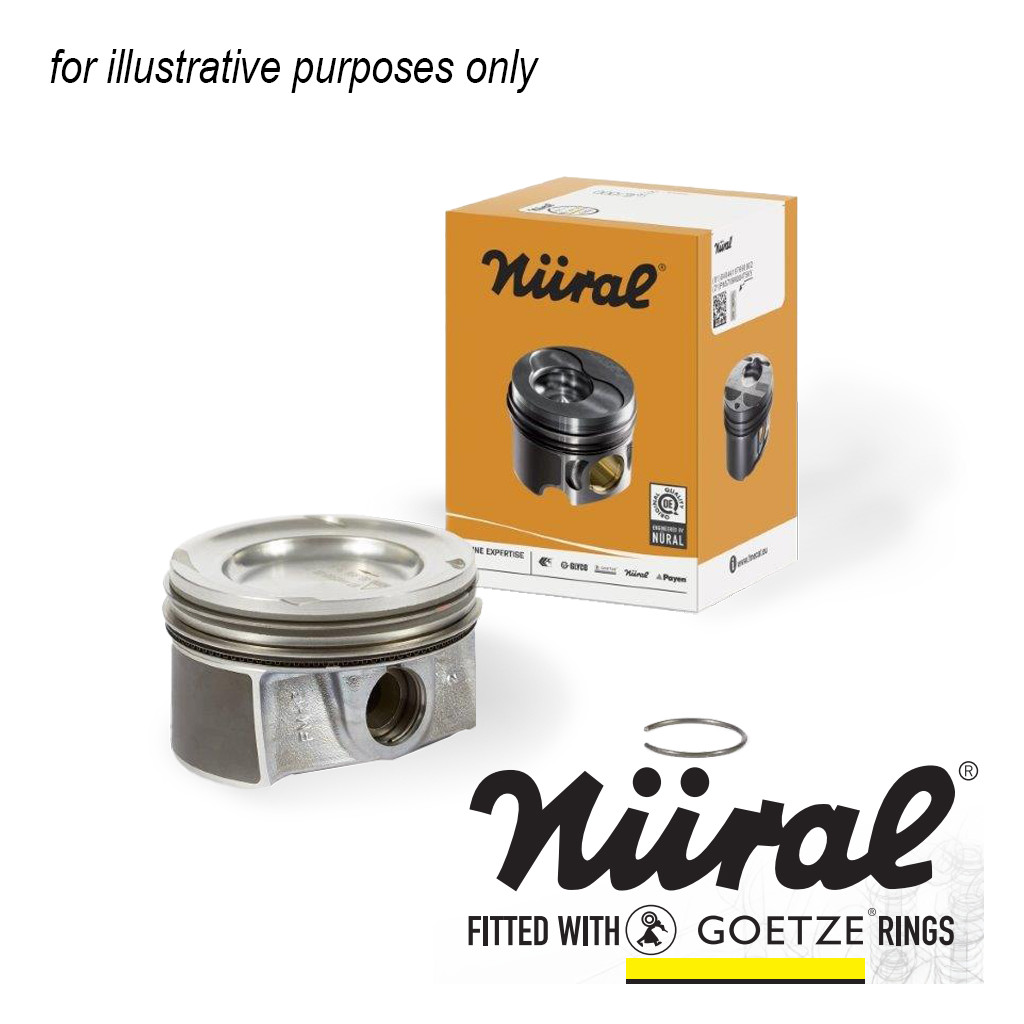

Engine piston 86.00 fits Ford Ranger Transit 2.2 TDCi 2011- ZSD P22DTE
€62.09
VAT included
Production Number: 08683-607
Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod
Recess Depth 1: 16.17 mm
Piston Clearance: 0.05 mm
Compression Height: 48.42 mm
Height: 74.8 mm
Cyl.Bore: 86 mm
Bolt d.: 30 mm
Recess Diameter: 49.04 mm
Bolt Length: 67 mm
Component No.: 08-427700-00
Machined: with cut-out for oil jet
Technical Information: CAUTION - CHECK BOWL DIAMETER
Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod
Recess Depth 1: 16.17 mm
Piston Clearance: 0.05 mm
Compression Height: 48.42 mm
Height: 74.8 mm
Cyl.Bore: 86 mm
Bolt d.: 30 mm
Recess Diameter: 49.04 mm
Bolt Length: 67 mm
Component No.: 08-427700-00
Machined: with cut-out for oil jet
Technical Information: CAUTION - CHECK BOWL DIAMETER
.png){kind=icon}
Security policy
Delivery policy
Shipping outside the EU
.png){kind=icon}
Return policy
Nüral pistons fitted with Goetze rings, both from Federal-Mogul, offer OE-quality performance trusted by leading automotive manufacturers. Designed for durability and precision, they ensure optimal engine efficiency, sealing, and reliability..
87-427700-50
10 Items
Data sheet
- Region
- Turkey
- Fitment
- Direct Replacement
- Reference OE/OEM Number
- 9800484180
9800484380
9800484580
BK2Q6105 - MPN
- 87-427700-50
- Ford
- Ranger III (2G / 2P) 2011 - current
- 2.2 TDCi 4WD (2.2L / 150 Hp / Diesel / GBVAJQJ)
- Volkswagen
- Passat Variant VIII (3G5) 2014 - current
- 2.0 TSI (2.0L / 190 Hp / Petrol / DRFA)
- Passat Saloon VIII (3G2 / A33 / CB2) 2014 - current
- 2.0 TFSI (2.0L / 190 Hp / Petrol / DRFA)
Specific References
New
Production Number: 08683-607
Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod
Recess Depth 1: 16.17 mm
Piston Clearance: 0.05 mm
Compression Height: 48.42 mm
Height: 74.8 mm
Cyl.Bore: 86 mm
Bolt d.: 30 mm
Recess Diameter: 49.04 mm
Bolt Length: 67 mm
Component No.: 08-427700-00
Machined: with cut-out for oil jet
Technical Information: CAUTION - CHECK BOWL DIAMETER
Supplementary Article/Info 2: with cooling duct, with piston ring carrier, for keystone connecting rod
Recess Depth 1: 16.17 mm
Piston Clearance: 0.05 mm
Compression Height: 48.42 mm
Height: 74.8 mm
Cyl.Bore: 86 mm
Bolt d.: 30 mm
Recess Diameter: 49.04 mm
Bolt Length: 67 mm
Component No.: 08-427700-00
Machined: with cut-out for oil jet
Technical Information: CAUTION - CHECK BOWL DIAMETER
